EXTERIOR/INTERIOR TRIM

8J–25

Wheel Opening Extension and Rocker Protector Assembly

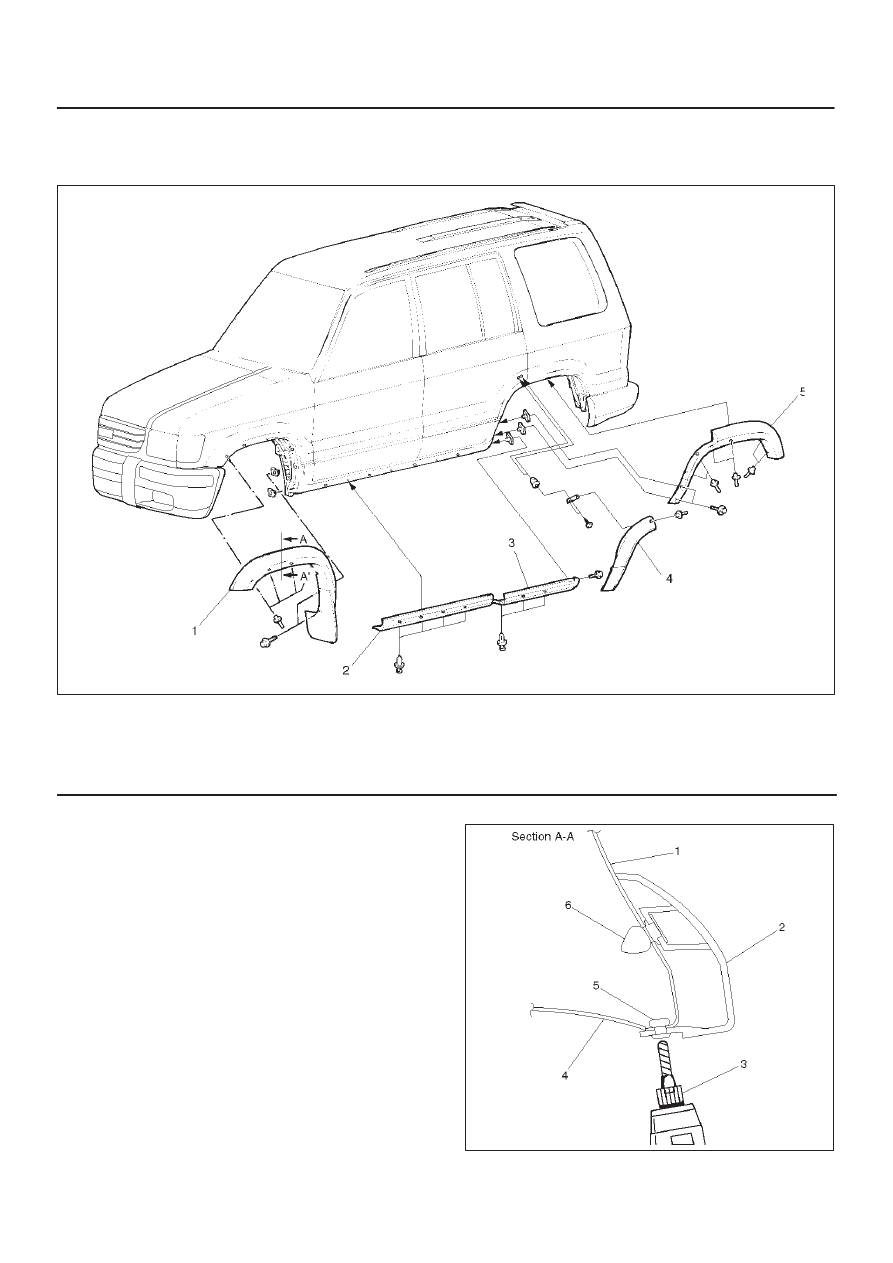

Wheel Opening Extension, Rocker Protector Assembly and Associated Parts

620RW002

Legend

(1) Front Wheel Opening Extension Assembly
(2) Front Rocker Protector Assembly
(3) Rear Rocker Protector Assembly

(4) Rear Quarter Wheel Opening Extension

Assembly

(5) Rear Door Wheel Opening Extension

Assembly

Removal

1. Remove the front rocker protector assembly.

D

Loosen and pull clips, and remove the front rocker
protector assembly.

2. Remove the rear rocker protector assembly.

D

Loosen and pull three clips, remove a rear screw,
and remove the rear rocker protector assembly.

3. Remove the front wheel opening extension(2).

D

Let a 5mm drill(3) go through four blind rivets(5) to
disengaged riveted portions.
Remove two screws and disengage five clips, then
remove the front wheel opening extension
assembly.

620RS005

8J–26

EXTERIOR/INTERIOR TRIM

4. Remove the rear quarter wheel opening extension

assembly.

D

Let a 5mm drill go through six blind rivets to
disengage riveted portions.
Disengage four clips, remove two screws, and
remove the rear quarter wheel opening extension
assembly.

5. Remove the rear door wheel opening extension

assembly.

D

Let a 5mm drill go through a blind rivet to disengage
riveted portions.
Disengage three clips, peel off the bonded portions
with two double surface adhesive tape and the rear
door wheel opening extension assembly.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

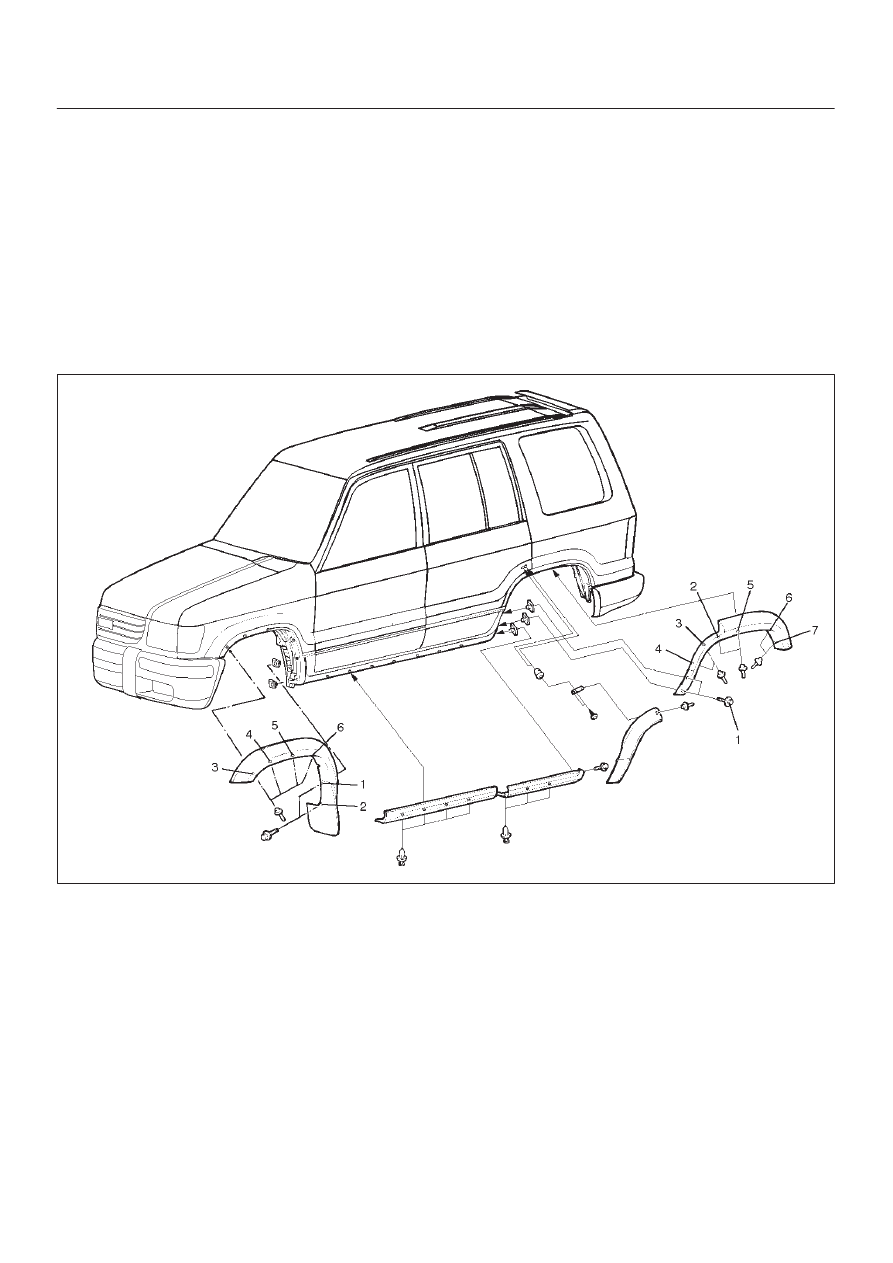

1. Use a new 2–sided adhesive tape whenever installing

each wheel opening extension assembly and rocker
protector assembly.  Using a white gasoline, clean the
places in advance where a 2–sided adhesive tape is
affixed.  Also, install the clips, screws and blind rivets
in the order specified as shown in the figure.

620RW001

EXTERIOR/INTERIOR TRIM

8J–27

Mud Flaps (With Wheel Opening Extension)

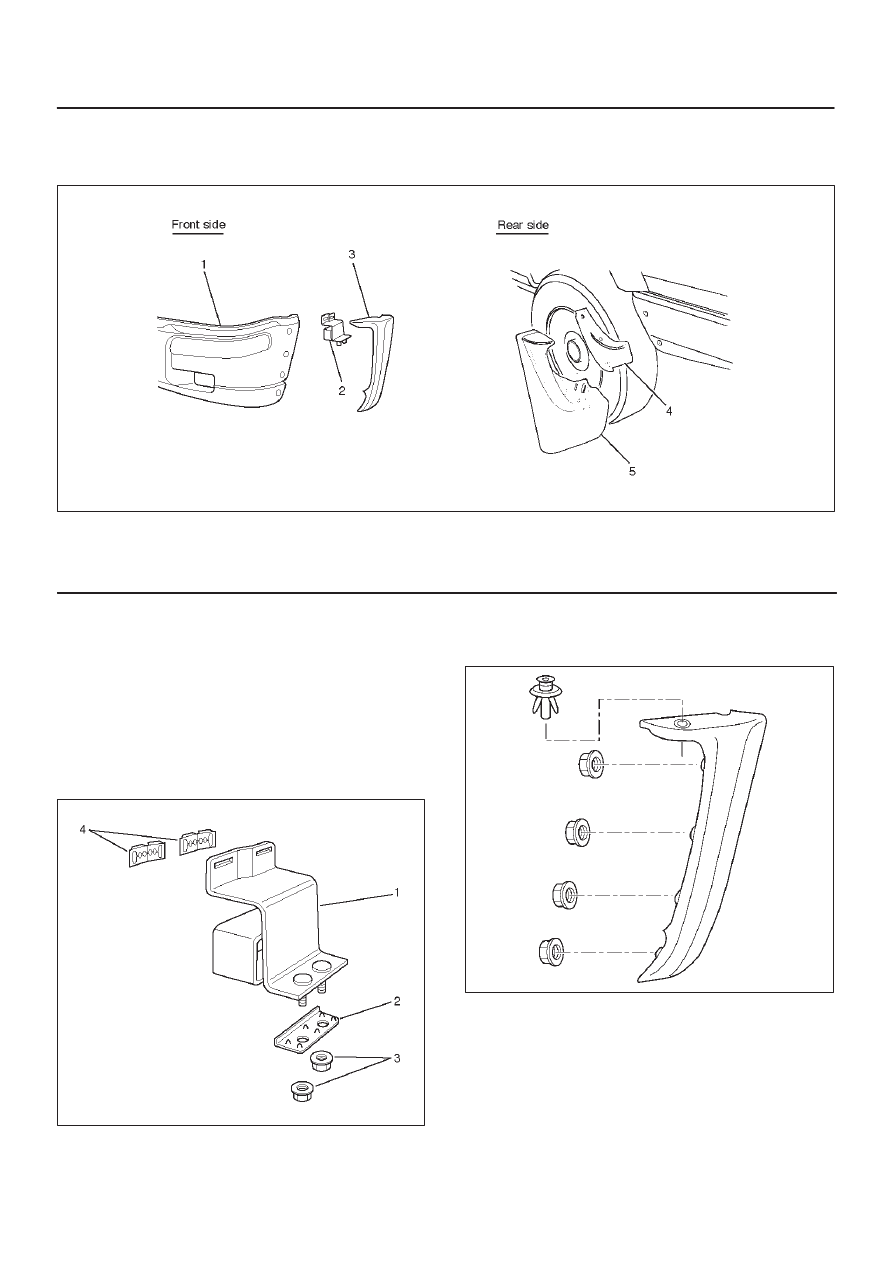

Mud Flaps (With Wheel Opening Extension) and Associated Parts

620RW003

Legend

(1) Front Bumper Assembly
(2) Front Bumper Slider

(3) Front Mud Flap
(4) Bumper Side Cover
(5) Rear Mud Flap

Removal

Front Side

1. Remove the front bumper assembly.

D

Disconnect the front fog light connector and remove
two bolts from both sides of the front bumper.

2. Remove the front bumper slider(1).

D

Remove two clips(4) and two nuts(3), release the
claw from the washer(2).

601RW009

3. Remove the front mud flap.

D

Remove four nuts and a clip.

601RW013

Rear Side

1. Remove the bumper side cover.
2. Remove the rear mud flap.

D

Remove four bolts and two nuts.

Installation

To install, follow the removal steps in the reverse order.

8J–28

EXTERIOR/INTERIOR TRIM

Ventilation Assembly

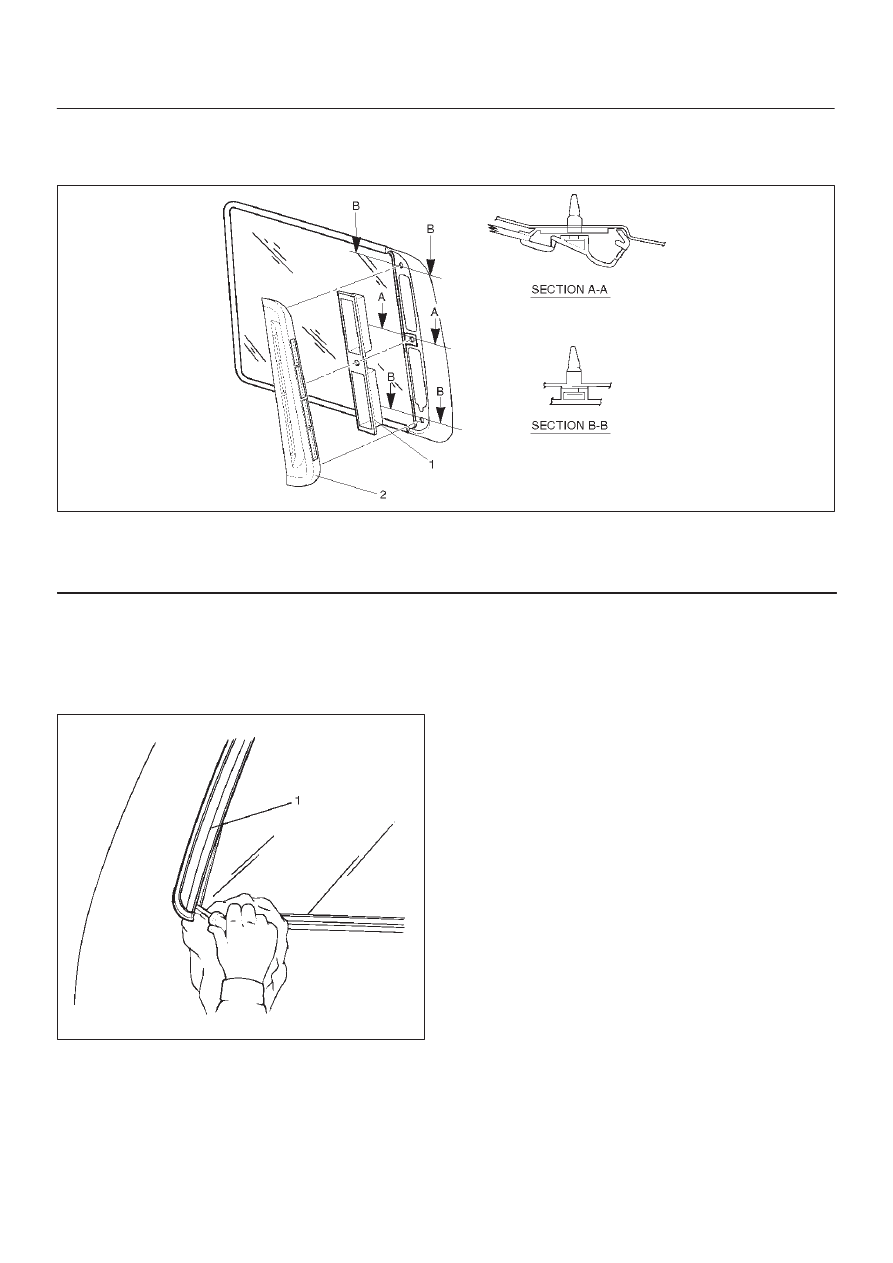

Ventilation Assembly and Associated Parts

641RS001

Legend

(1) Outlet Valve Assembly
(2) Ventilation Assembly

Removal

1. Remove the ventilation assembly(1).

D

Pry the ventilation assembly retainers free from the
body panel.

641RS002

2. Remove the outlet valve assembly.

Installation

1. Install the outlet valve assembly.

D

Insert the upper and lower catches of the outlet
valve into the body panel flange and fix them
securely.

2. Install the ventilation assembly.

D

Fix the clips to the body panel securely so that the
ventilation assembly will not come off the body
panel.
