6F-18  ENGINE EXHAUST

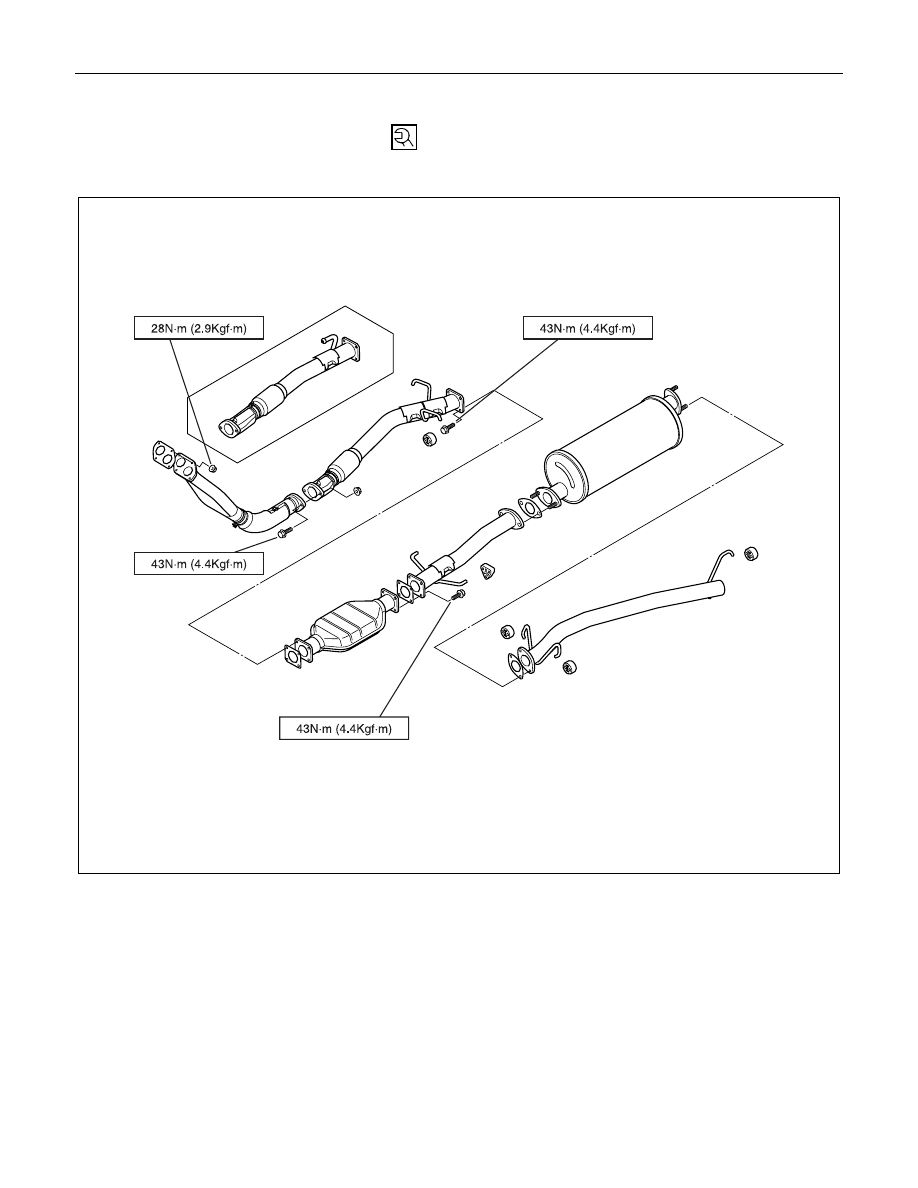

Installation

1. Install the mounting rubber (2).

2. Install the exhaust pipe (3) and tighten two bolts and nuts on

exhaust silencer to specified torque.

Torque:

Nuts: 43 N.m (4.4 kgf.m)

Main Data and Specifications

Exhaust system

Pipe outside diameter

✕

 thickness

Front pipe

mm(in)

Middle pipe

mm(in)

Rear pipe

mm(in)

42.7

✕

 1.5 (1.8

✕

0.059)<Flange>

54.0

✕

 1.5 (2.0

✕

 0.059)

50.8

✕

 1.5 (2.0

✕

 0.059)

Silencer

Type

Circular section-shell construction

of triple skin and end plates,

internal construction of baffles

and perforated tubes.

Inside diameter

mm (in)

Length mm

(in)

Approximately 180 (7.09)

Approximately 525 (20.67)

Mounting

Number of suspension points
Type
Catalytic converter type

4

Rubber

Three way Catalytic Converter

ENGINE EXHAUST  6F-19

Main Data and Specifications



Torque Specification

N

m (kgf

m)

ENGINE LUBRICATION  6G-1

SECTION 6G

ENGINE LUBRICATION

CONTENTS

PAGE

General Description........................................................................................................ 6G- 2

Service Precaution ......................................................................................................... 6G- 3

Oil Pump .......................................................................................................................... 6G- 4

Oil Pump and Associated Parts ................................................................................ 6G- 4

Disassembly ............................................................................................................... 6G- 4

Inspection and Repair................................................................................................ 6G- 5

Reassembly ................................................................................................................ 6G- 5

Oil Pan ............................................................................................................................. 6G- 6

Oil Pan and Associated Parts ................................................................................... 6G- 6

Disassembly ............................................................................................................... 6G- 6

Inspection and Repair................................................................................................ 6G- 7

Reassembly ................................................................................................................ 6G- 7

INDEX

6G-2  ENGINE LUBRICATION

General Description

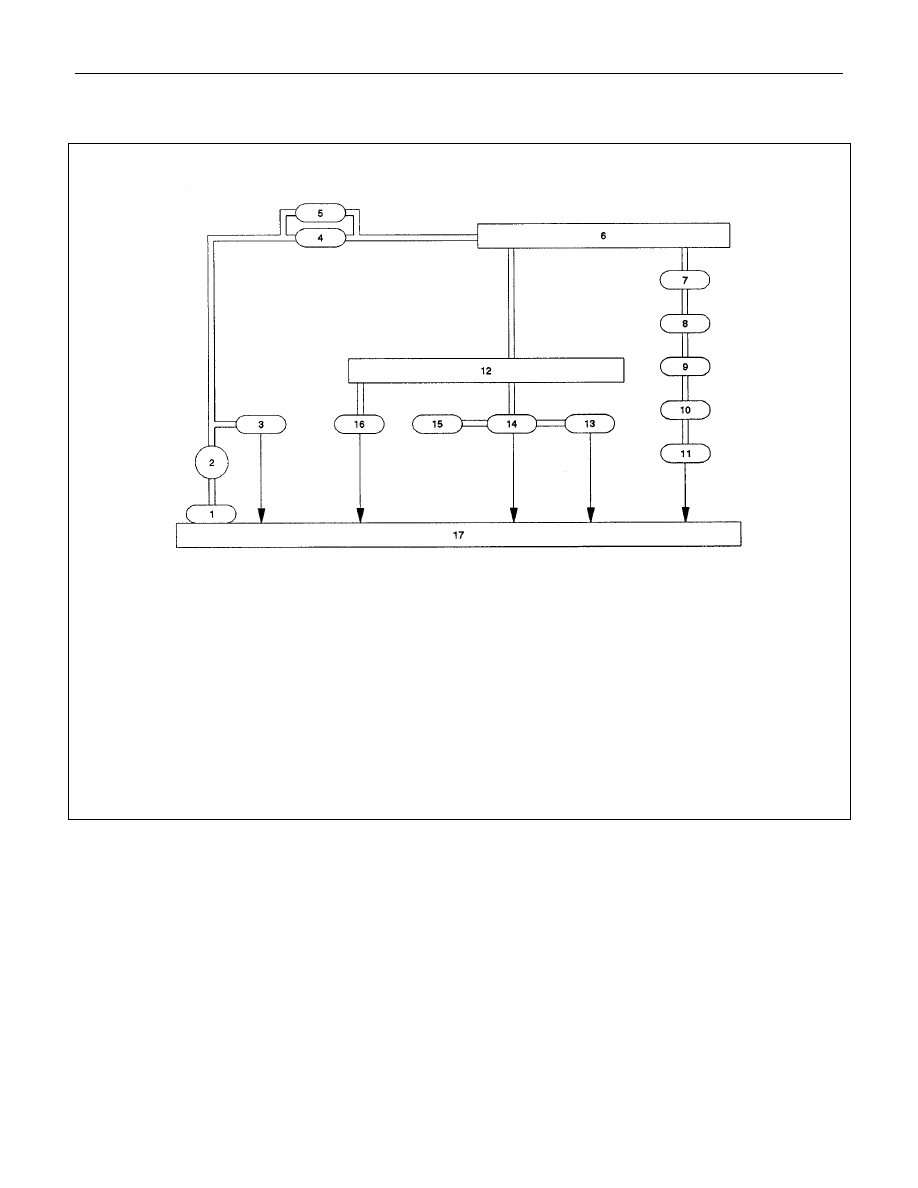

Legend

1 Oil Strainer
2 Oil Pump
3 Relief Valve
4 Oil Filter
5 Safety Valve
6 Oil Gallery
7 Crankshaft Bearing
8 Crankshaft

9 Connecting Rod Bearing

10 Connecting Rod
11 Piston
12 Oil Gallery; Cylinder Head
13 Camshaft
14 Camshaft Journal
15 HLV
16 Check relief valve
17 Oil Pan

A gear-type oil pump is directly driven by the crankshaft and
draws oil from the oil pan, via the suction pipe. If then passes
the pressured oil through a full-flow disposable oil filter, to the
main oil gallery in the cylinder Block. An oil pump pressure
relief valve and oil filter bypass valve are incorporated in the
system.
From the main oil gallery in the cylinder block, the cylinder
head and crankshaft main bearings are supplied with oil.
The camshaft bearings and hydraulic tappets are supplied
through the main feed galleries in the cylinder head. Vent
valves allow air to be expelled from the oil galleries in the
cylinder head. The balance shaft journals are directly fed from
the crankshaft main bearings. The connecting rod bearings are
fed via passages in the crankshaft. The oil returns to the oil
pan via passages in the cylinder block.
