STARTING AND CHARGING SYSTEM  6D3-19

Inspection

Generator

Before any in field testing can be undertaken it is important that
the battery's conditions is established and the terminals are
clean and tight.

Check the condition of the generator drive belt and ensure that
it is adjusted in accordance with the engine manufacturer's
recommnedations.

Battery conditions:
Note: This assessment may be difficult with maintenance free
assemblies.

Test the specific gravity of the individual cells the readings
should be within 10 points of each other, it is recommended
that the average SG should be 1.260 or higher.
A load test should be carried out to determine the ability of the
battery to supply and accept current. This is a good indicator
as to the general condition of the battery.
A load equal to the normal starting current should be placed
across the battery, the duration of this load test should not
exceed 10 seconds, during this time the terminal voltage
across the battery should not drop below 9.6 volts. Observe
each cell for signs of excessive gas liberation, usuall an
indication of cell failure.
If the battery test is clear proceed with the Generator tests as
follows.

Care should be taken when making the following connections.
It is recommended that the battery negative terminal be
disconnected before the test meters are connected, and
reconnecting the negative terminal when the meters are
inserted into the circuit under test.  The warning lamp in the D+
circuit should not exceed 2 watts.

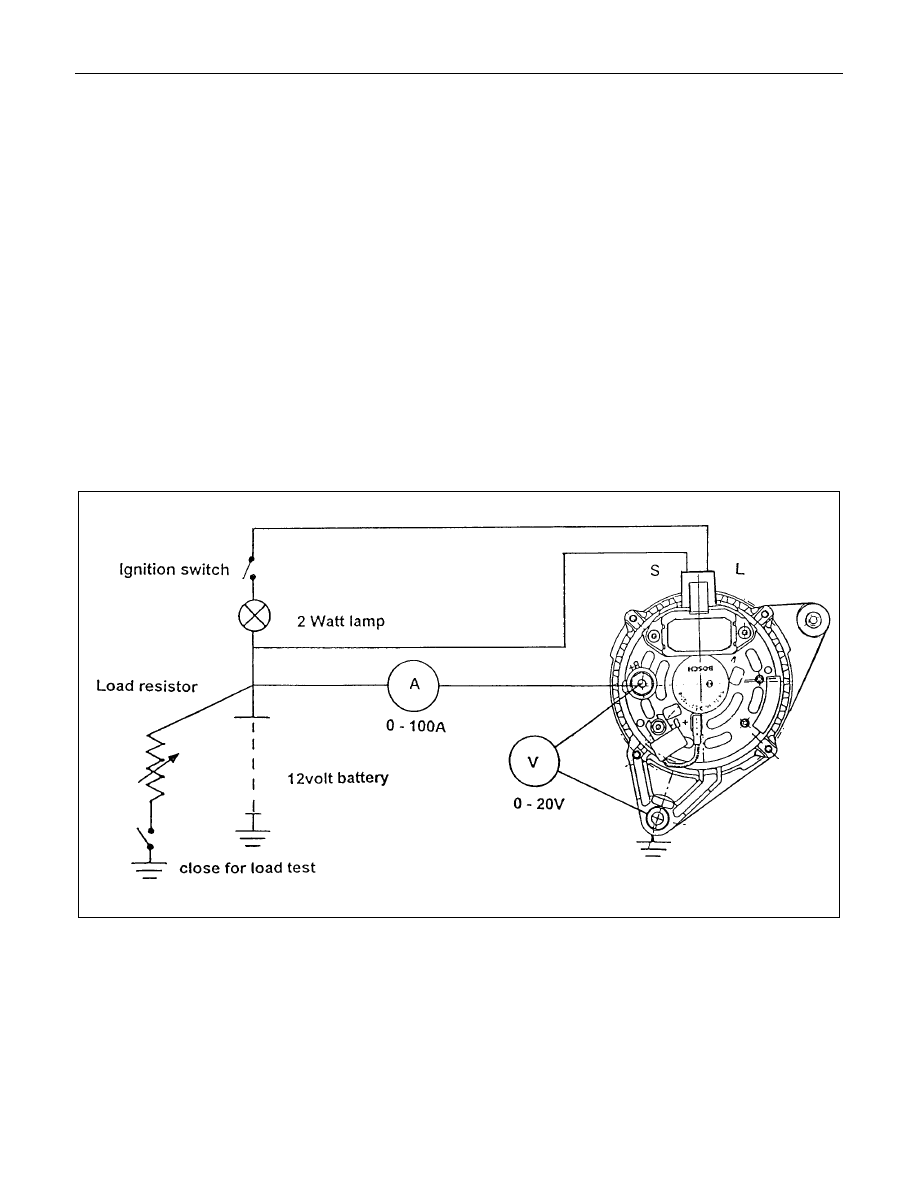

Regulating voltage test on the vehicle.

Connect a voltmeter to the generator, the positive lead to the
B+ terminal and the nagative lead  to the generator casing.
Select the voltage range to suit the system, i.e. 20v for 12 volt
sysytems or 40v for 24 volt systems.  Connect an ammeter in
series with the main output cable from the B+ terminal on the
generator, the range selected must be capable of reading the
maximum output from the generator.

Note the voltmeter reading before starting the engine. This
reading should increase when the engine is running indicating
generator output, start the engine and increase the engine
speed until the generator is running at 4000 rpm, switch on
vehicle loads of 5-10 A is indcated on the ammeter, the
voltmeter shoud read 14.0-14.2 v for a 12 volt system, for a 24
volt system the readings should be 5-10 A and 27.7-28.5 volts.

6D3-20  STARTING AND CHARGING SYSTEM

Load regulation test

Increase the engine speed until the generator is running at
6000 rpm, increase the load to 90% of full output a decrease in
the regulating voltage should not exceed 0.50 volts for 12 v
and 0.70 v for 24 v regulators of the readings obtained in the
previous test.  If so, the regulator is defective.

Generator output test at full load

Increase engine speed until the altenator is running at 6000
rpm, switch on electrical loads until the generator voltage drops
to 13.5 volts for 12 v systems and 26 volts for 24 v systems, full
outut should be obtained under these conditions.  It may be
necessary to adjust engine speed to maintain altenator
speed.If sufficient electrical loads are not available a carbon
pile resistance can be connected across the battery and
adjusted until maximum output is obtained.

Keep the time for this test to a minimum to avoid undue
heating and high engine speeds.

STARTING AND CHARGING SYSTEM  6D3-21

Technical Data

(mm)

Brush wear -

Minimum Length

3.8

Sliprings

-

Minimum Diameter 26.7

Sliprings

-

Trueness

<0.06

Pole claws

-

Trueness

<0.05(93.25

±

0.05)

Torque

N.m(kgf.m)

Pulley retaining nut

54-68(5.5-6.9)

Capacitor retaining screw

2.7-3.8(0.3-0.4)

Capacitor whiz nut

1.5-2.2(0.1-0.2)

B+ terminal nut M8

7.5-8.5(0.8-0.9)

B+ terminal rectifier nut

6.0-7.5(0.6-0.8)

Regulator retaining screw

1.6-2.3(0.1-0.2)

Rectifier retaining screw

1.6-2.3(0.1-0.2)

Bearing retaining plate screw 2.1-3.0(0.2-0.3)
Through bolt

3.8-5.5(0.4-0.6)

Winding resistance(between phases)

(

)

Stator

Rotor

70 Amp generator

0.086+10%

2.6

±

0.13

85 Amp generator

0.058+10%

2.6

±

0.13

90 Amp generator

0.056+10%

2.6

±

0.13

Warning lamp fault indication

Fault running

Generator not
running Ignition ON

Generator
Iginiton ON

Generator out cable
O/C

ON

ON

Battery "S" cable O/C

ON

ON

Battery overcharged

ON

ON

Positive diode short

OFF

ON

Negative diode short

ON

ON

Positive diode open

ON

OFF

Negative diode open

ON

OFF

Phase voltage sensing

ON

ON

cable open circuit
Power transistor
shorted

ON

ON

Warnign lamp driver
O/C

OFF

OFF

6D3-22  STARTING AND CHARGING SYSTEM

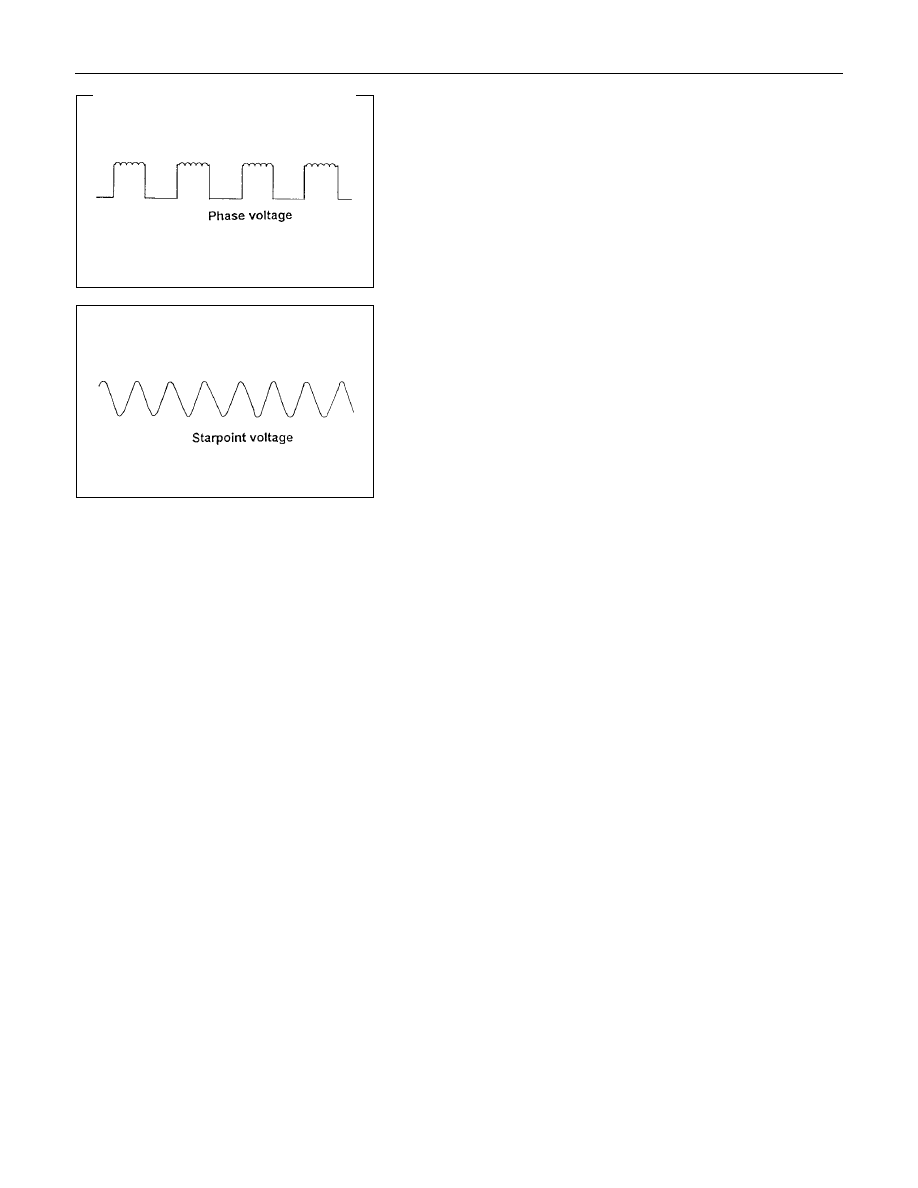

Output wave forms for phase and startpoint connections.

Note;  the average of these two waveforms are identical from
no load to 100% output of rated load.

Voltage phase = Voltage startpoint

6.9v@ rated output    7.2v@ Zero output

Note: The phase frequency is one third of the startpoint
frequency.
