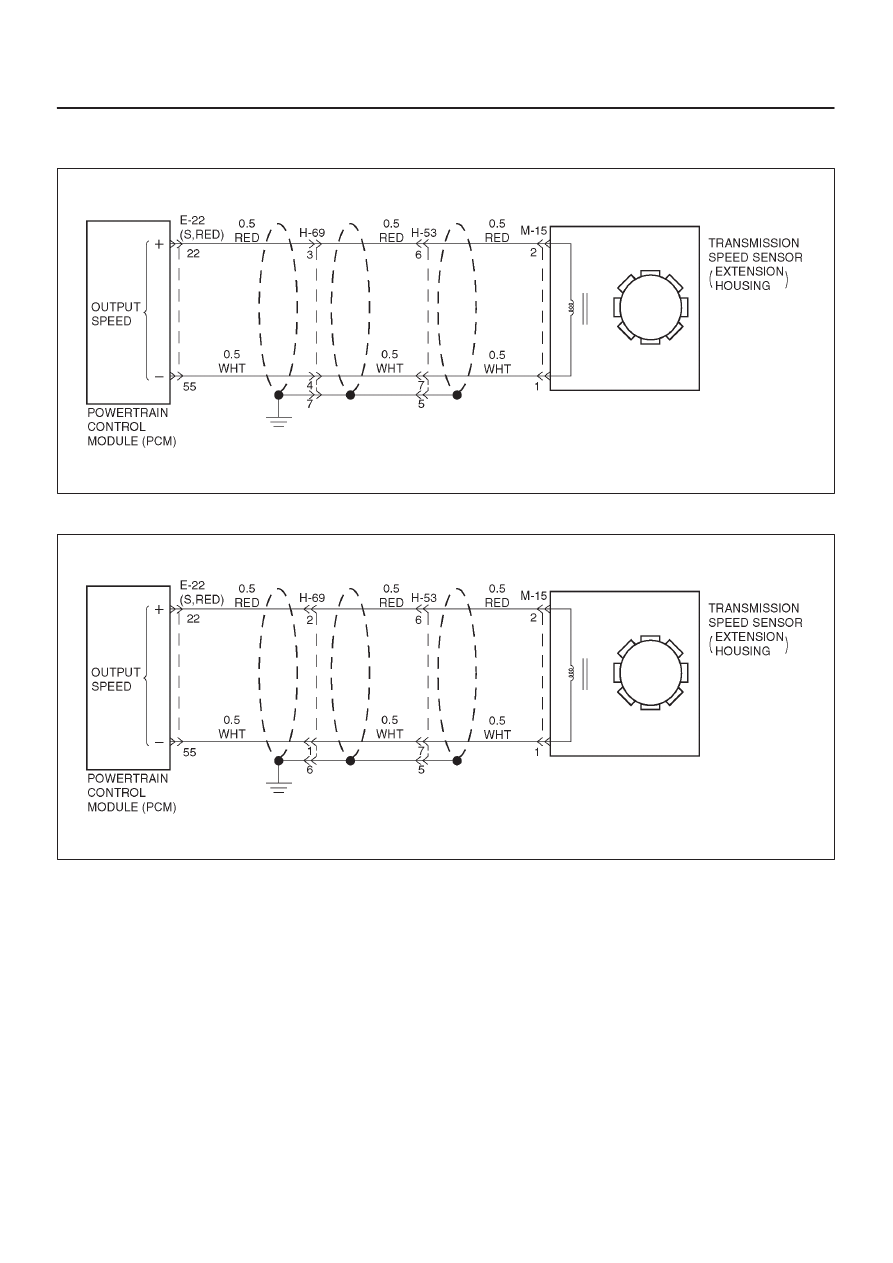

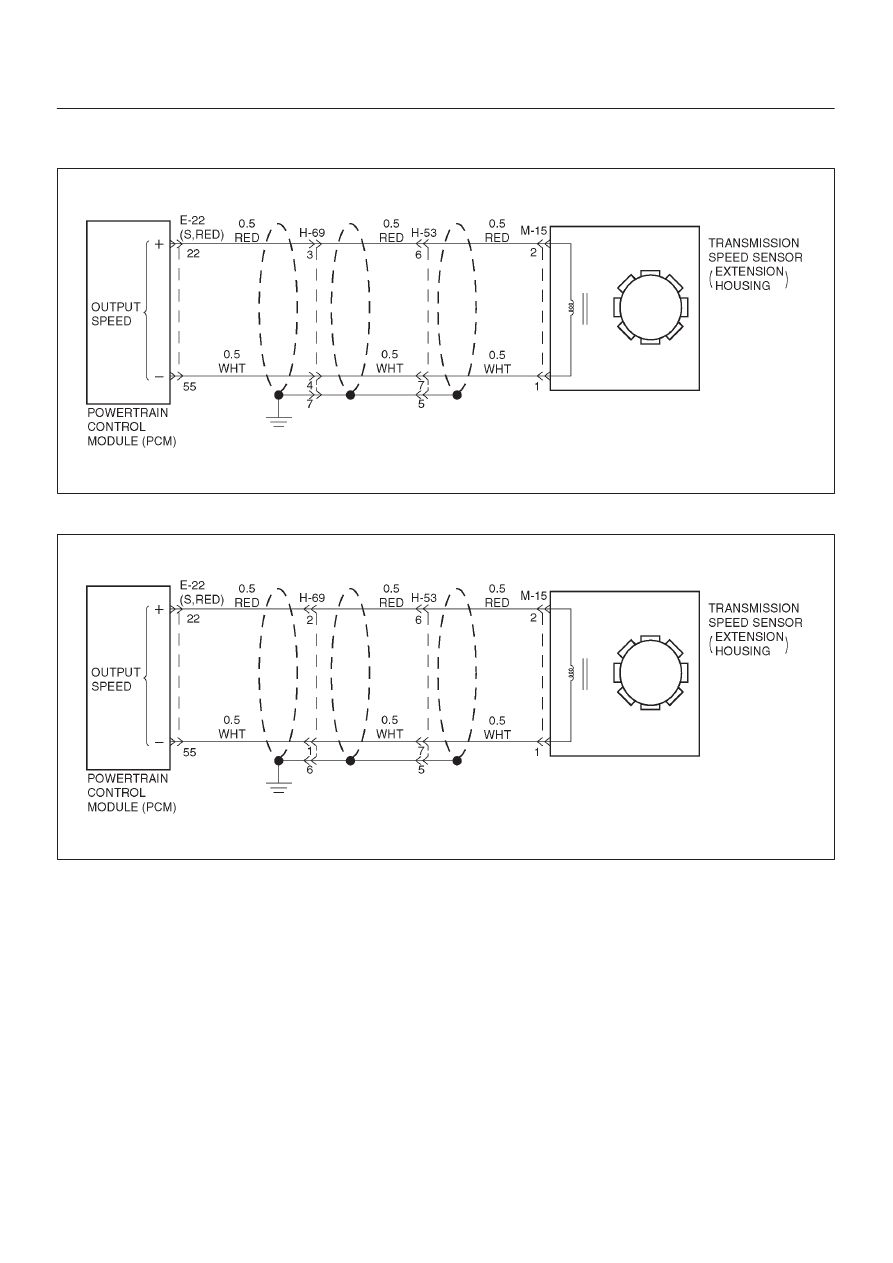

TRANSMISSION CONTROL SYSTEM (4L30–E) 7A1–49 DTC P0722 Automatic Transmission Output Speed Sensor (OSS) Low Input LHD D07R200049 RHD D07R200050 Circuit Description Output speed information is provided to the PCM by the Conditions For Setting The DTC D No MAP DTCs P0107 or P0108, P0106, P1106, D No TPS DTCs P0122 or P0123. D Not in Park or Neutral. D TP angle is greater than 10%. D Engine vacuum is between 0 and 70kPa. D Engine speed is between 3,000 and 7,000 rpm. D Transmission output speed is less than 0 rpm. D All conditions met for 5 seconds. |
