6E–12

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

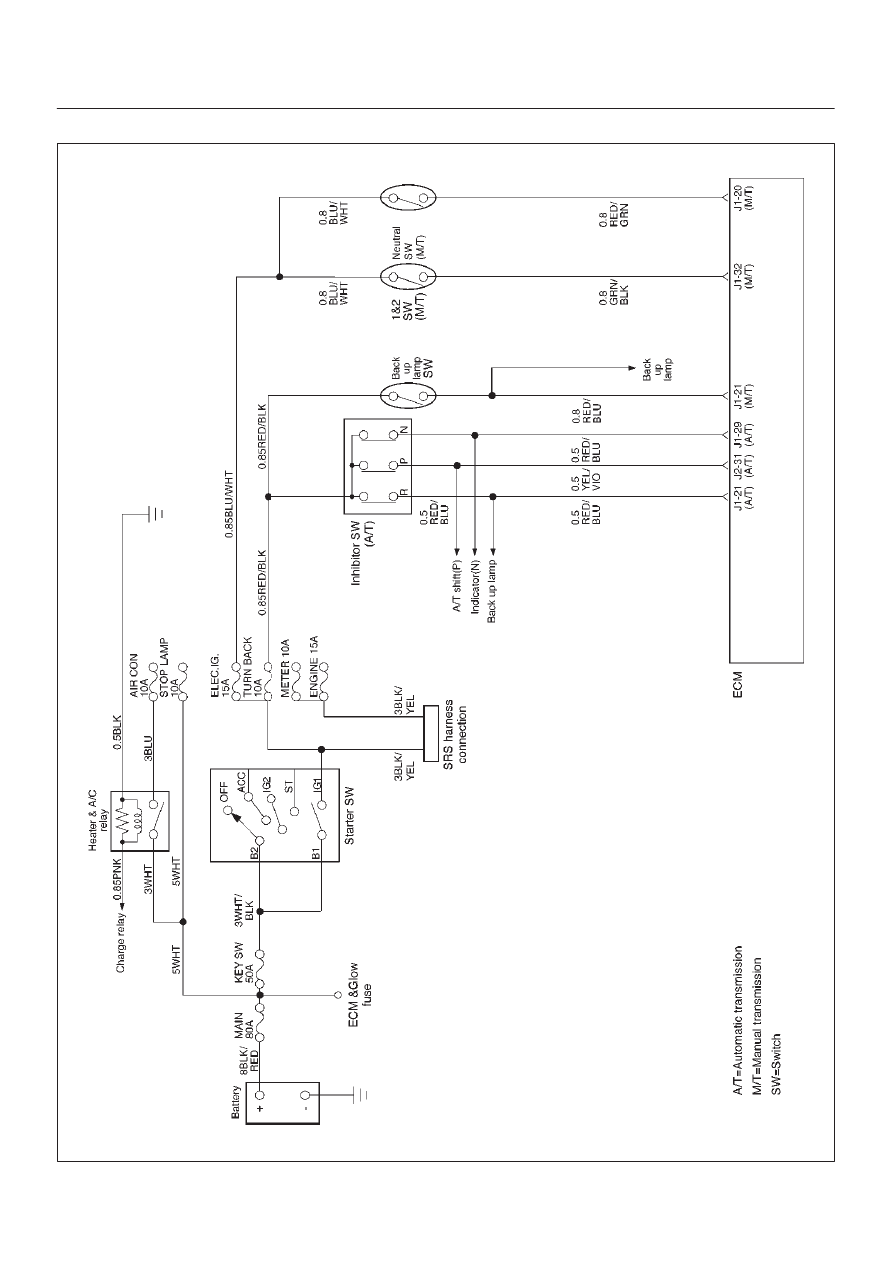

ECM Wiring Diagram (5 of 6)

060RW123

6E–13

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

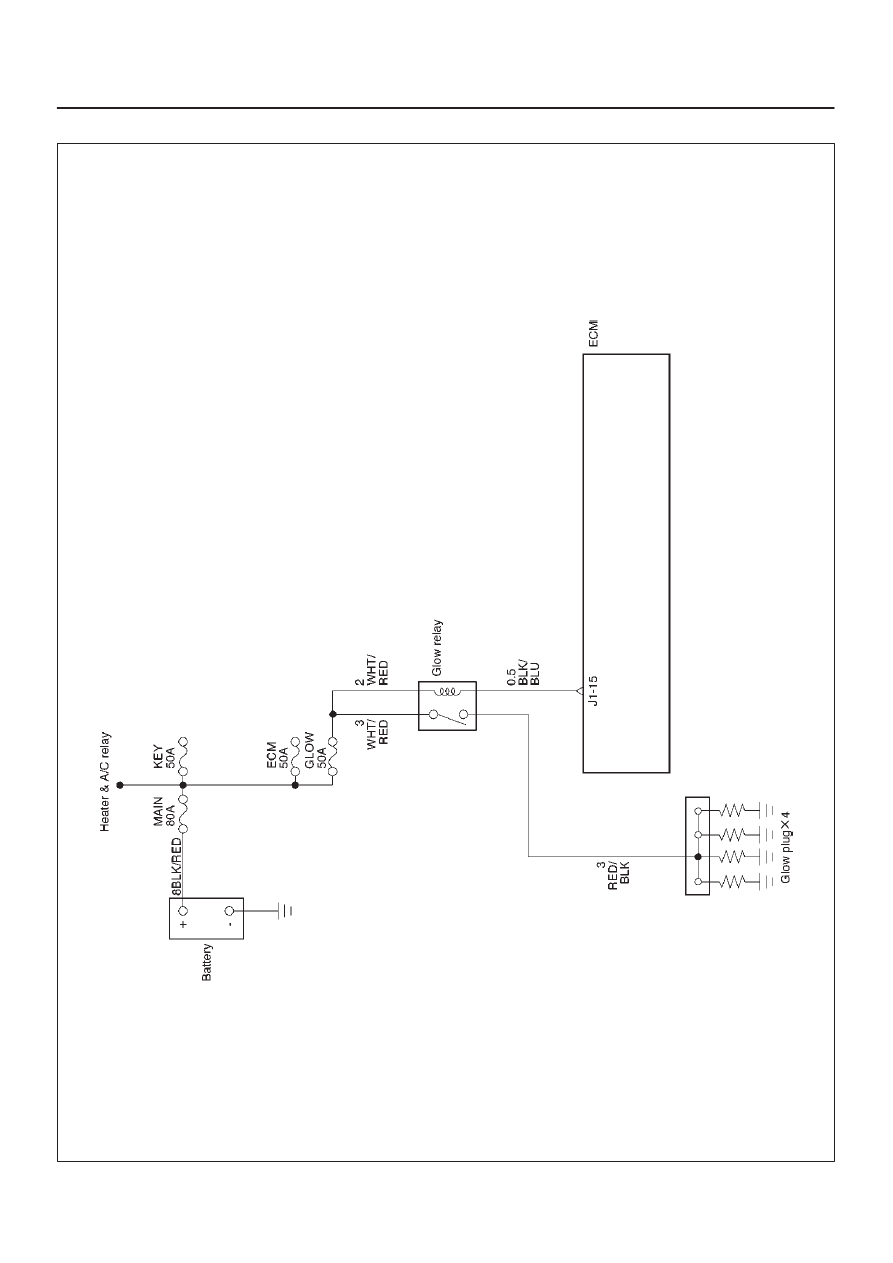

ECM Wiring Diagram (6 of 6)

060RW124

6E–14

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

ECM Pinouts

ECM Pinout Table, 32-Way Connector – J1 RED – Upper

060RW138

J1 – RED

PIN

SIGNAL

1

FUEL TEMPERATURE

2

SPARE ANALOG 1

3

+5VB1

4

+5VB2

5

SPARE ANALOG 3

6

ACCEL POS OUT 1

7

NOT USED

8

SPARE OUT 2 (TCC)

9

EVRV (EGR)

10

IGN RELAY

11

GLOW PLUG LAMP

12

DIAGNOSTIC LAMP

13

VSV (EXHAUST #2)

14

RAIL PRESS CNTRL VALVE

15

GLOW PLUG RELAY

16

VSV (EXHAUST #1)

6E–15

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

ECM Pinout Table, 32-Way Connector – J1 RED – Lower

060RW137

J1 – RED

PIN

SIGNAL

17

SPARE ANALOG 4

18

INTAKE SM POSITION

19

VEHICLE SPEED

20

MT NEUTRAL

21

REVERSE SW

22

ACCEL POS OUT 2

23

THERMO SW RELAY

24

SPARE OUT 3 (TURBO)

25

VSV (EGR)

26

TACHOMETER 1

27

BRAKE SW 1

28

NOT USED (BRAKE 2)

29

A/T NEUTRAL SW

30

NO CONNECTION

31

AC REQUEST SW

32

AT SOLENOID
