6E–9

ENGINE DRIVEABILITY AND EMISSIONS

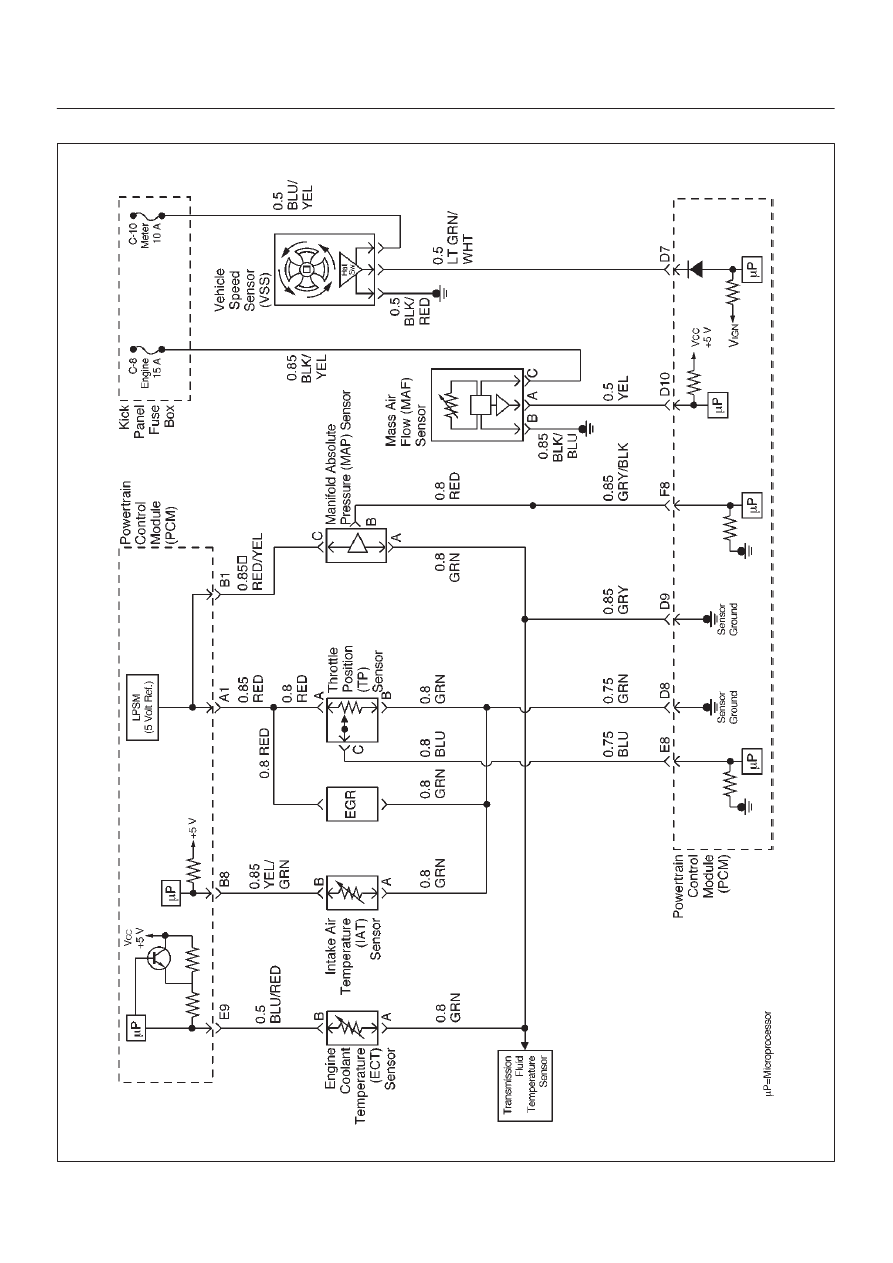

PCM Wiring Diagram (4 of 11)

D06RX00003

6E–10

ENGINE DRIVEABILITY AND EMISSIONS

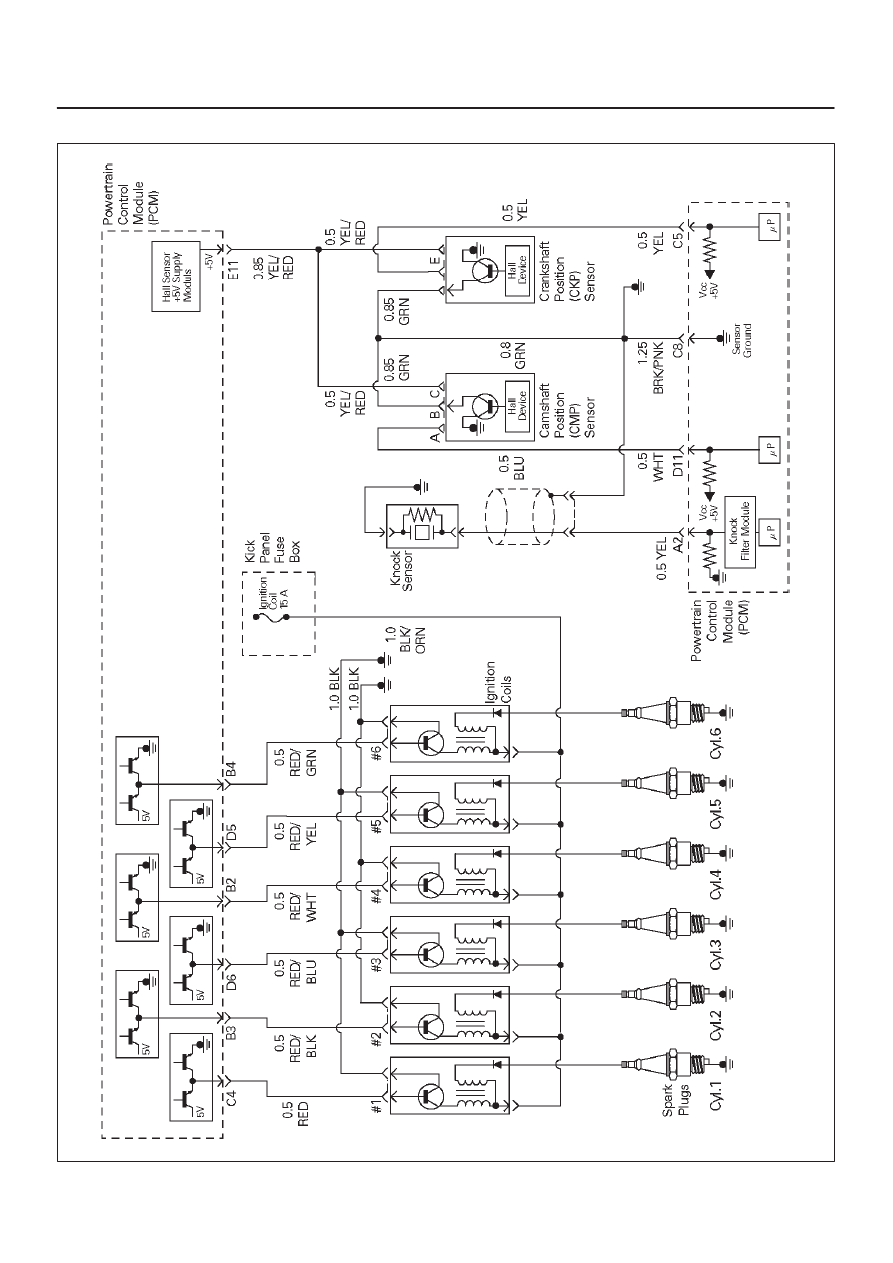

PCM Wiring Diagram (5 of 11)

D06RW138

6E–11

ENGINE DRIVEABILITY AND EMISSIONS

PCM Wiring Diagram (6 of 11) For AUSTRALIA, THAILAND, SOUTH EAST ASIA, LATIN

AMERICA, GULF, SAUDI, LATIN AMERICA.

D06RW137

6E–12

ENGINE DRIVEABILITY AND EMISSIONS

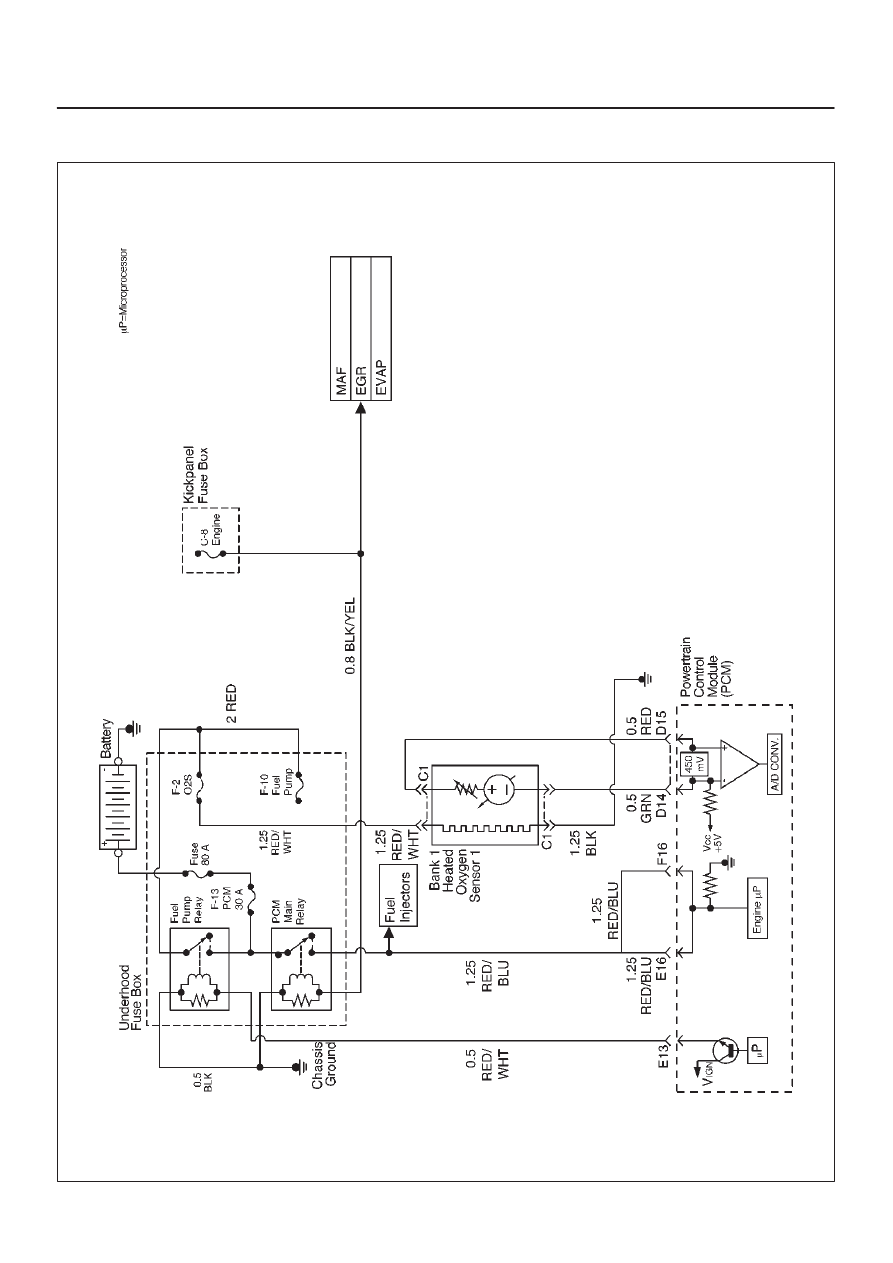

PCM Wiring Diagram (7 of 11) For EC.

D06RW100
