4C–4

DRIVE SHAFT SYSTEM

Rear Axle Shaft

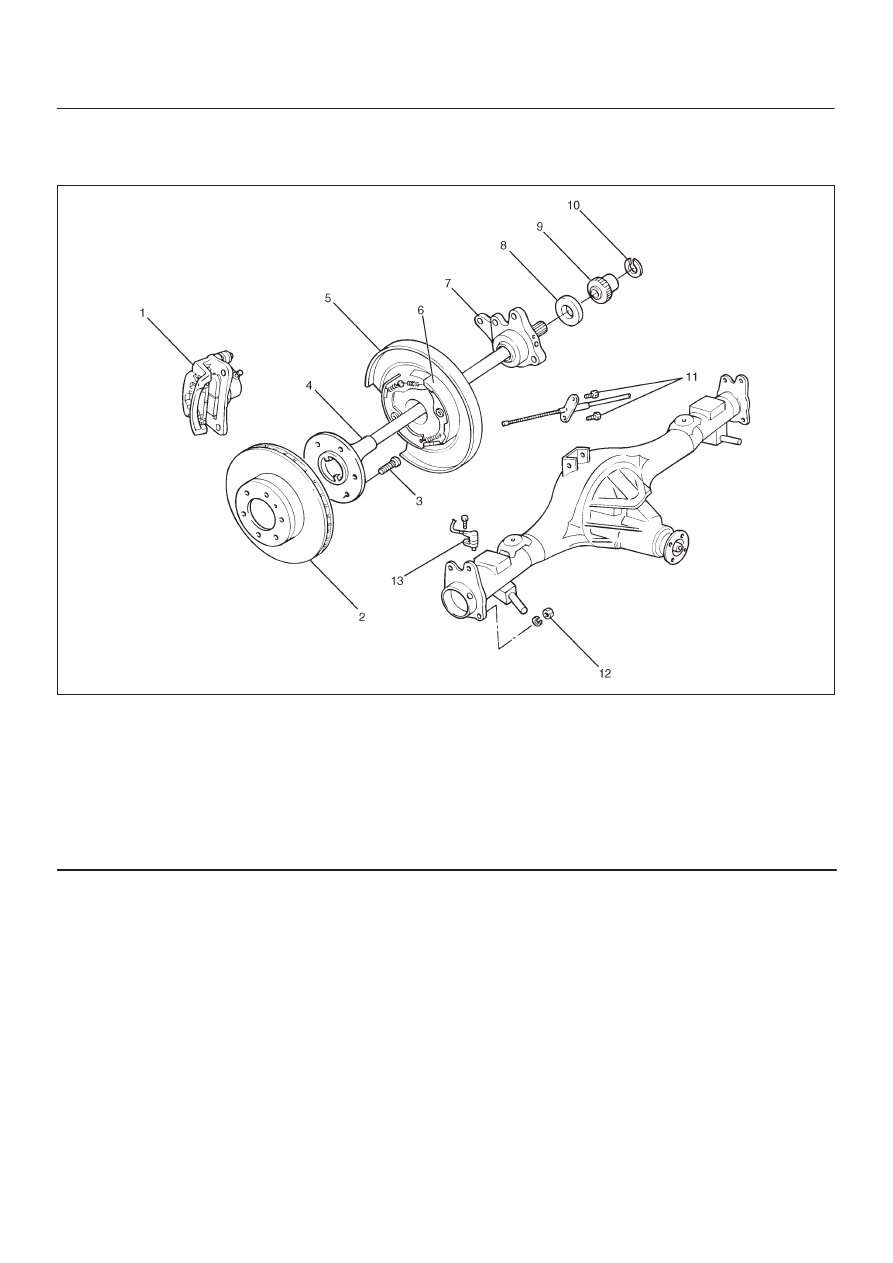

Rear Axle Shaft and Associated Parts

420RW014

Legend

(1) Brake Caliper
(2) Brake Disc
(3) Wheel Pin
(4) Axle Shaft Assembly
(5) Back Plate
(6) Parking Brake Assembly
(7) Bearing Holder

(8) Bearing
(9) Retainer

(10) Snap Ring

(11) Bolt

(12) Nut
(13) Antilock Brake System (ABS) Speed Sensor (if

so equipped)

Removal

1. Raise the vehicle.
2. Remove tires and wheels. Refer to Wheel in Steering

section.

3. Remove brake caliper. Use a wire to attach the brake

caliper to the frame. Refer to Disk Brakes in Brake
section.

4. Remove brake disc.
5. Remove ABS sensor (if so equipped).
6. Remove Parking brake assembly. Refer to Parking

Brakes in Brake section.

4C–5

DRIVE SHAFT SYSTEM

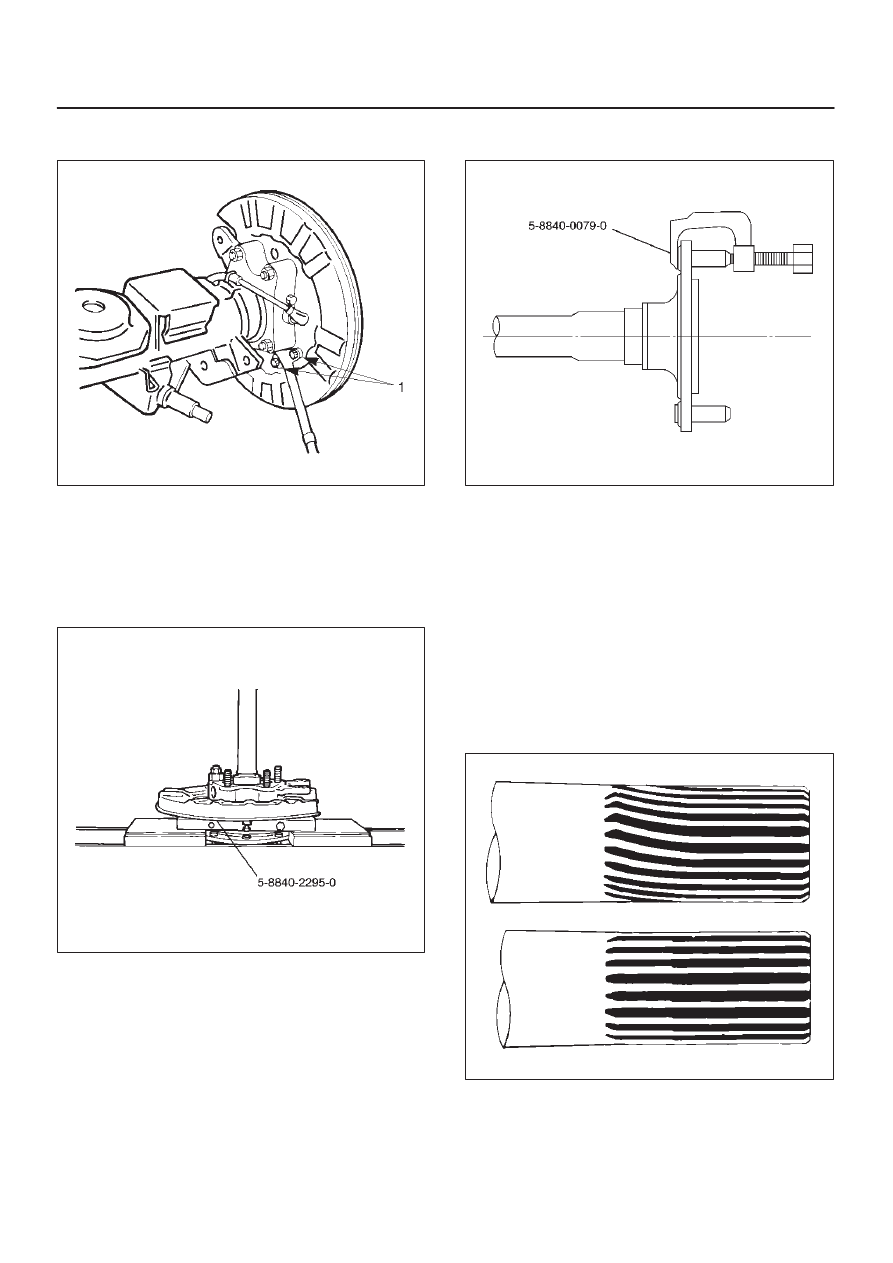

7. Remove the parking brake cable mounting

bolts(Behind the back plate)(1).

311RS001

8. Remove the bearing holder mounting nuts.
9. Remove axle shaft assembly.

NOTE: Be sure not to damage the oil seal.

10. Remove snap ring.

11. Using a bearing remover 5–8840–2295–0 and press,

remove retainer together with the bearing holder.

420RW024

12. Remove bearing.
13. Remove bearing holder.
14. Remove back plate.

15. Remove the wheel pins using a remover

5–8840–0079–0.

420RW023

Inspection and Repair

Make necessary correction or parts replacement if wear,
corrosion or any other abnormal conditions are found
through inspection.

Visual Check:

Check the following parts for wear, damage, noise or any
other abnormal conditions:

1. Axle shaft
2. Bearing

When checking the axle shaft, pay special attention to the
splined portions and replace the shaft if distortion or step
wear is noticeable.  Correct slight step wear with a grinder.

420RS008

4C–6

DRIVE SHAFT SYSTEM

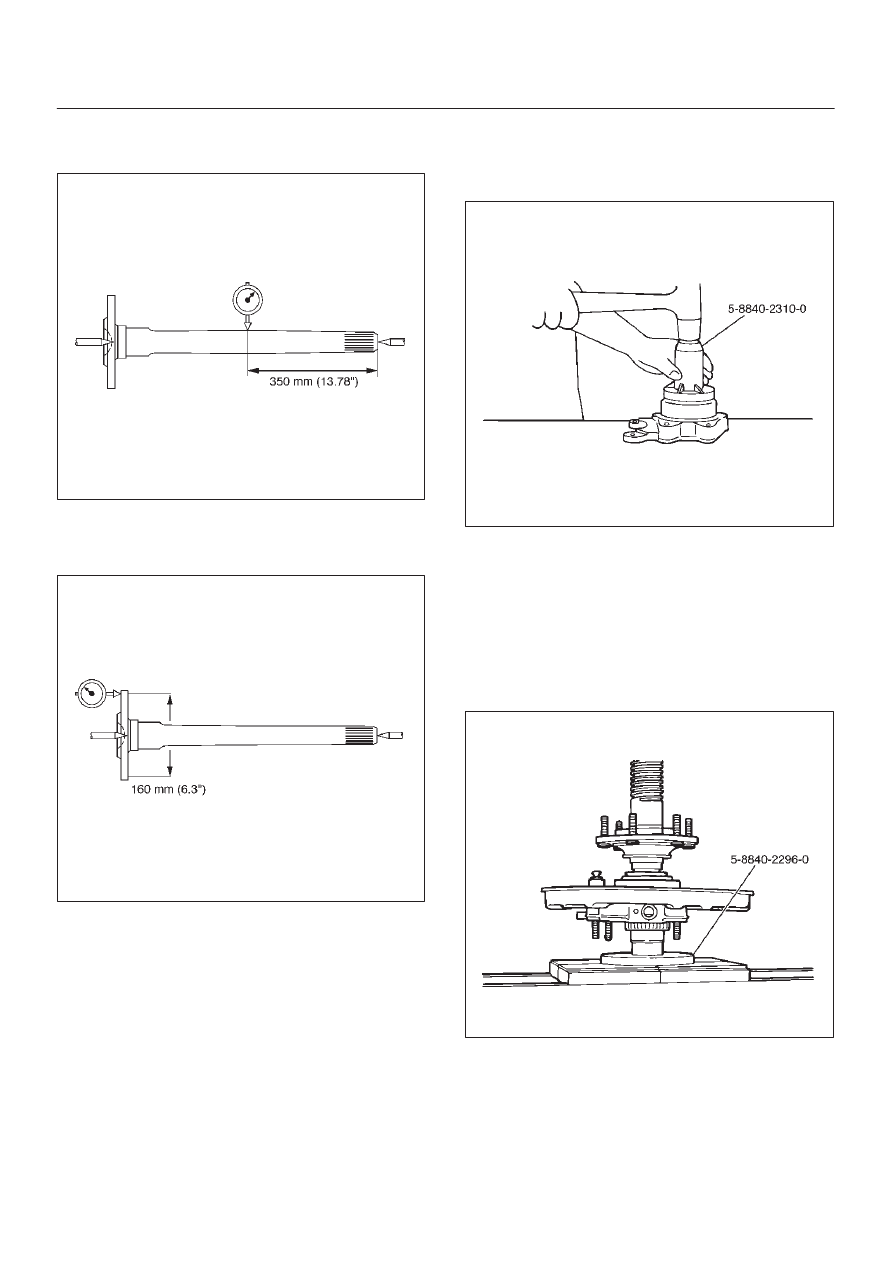

Axle Shaft Run–out

Limit: 1.0 mm (0.039 in)

420RW025

Axle Shaft Flange Run–out

Limit: 0.08 mm (0.003 in)

420RS010

Oil Seal Replacement

Remove the oil seal carefully not to damage the bearing
holder bore .
When installing, use oil seal installer 5–8840–2310–0.

420RW026

Installation

1. Install wheel pin.
2. Install back plate.
3. Install bearing holder.
4. Install bearing.
5. Install retainer by using a bearing installer

5–8840–2296–0, press fit together with the bearing.

420RW027

6. Install snap ring.
7. Install axle shaft assembly.

NOTE: Be sure not to damage the oil seal.

8. Tighten the bearing holder mounting nut to the

specified torque.

Torque: 74N·m (7.5kg·m/54 Ib ft)

4C–7

DRIVE SHAFT SYSTEM

9. Fix the parking brake cable mounting bolt (Behind the

back plate).

10. Install parking brake assembly, refer to Parking

Brakes in Brake section.

11. Install antilock brake system sensor (if so equipped).

12. Install brake disc.
13. Install brake caliper, refer to Disk Brakes in Brake

section.
