10A–5

CRUISE CONTROL SYSTEM

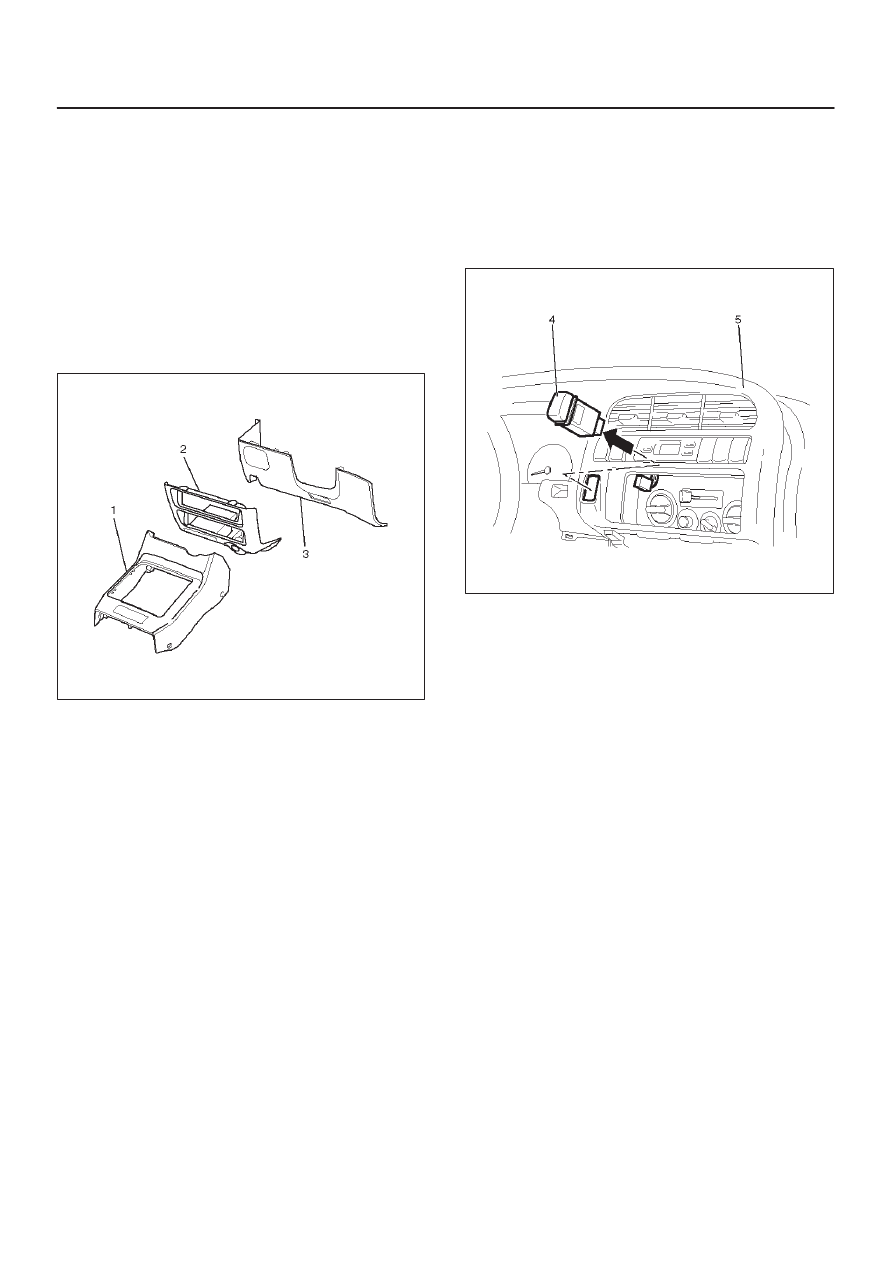

Cruise Control Main Switch

Removal

1. Disconnect the battery ground cable.
2. Remove the front console assembly (1).  Refer to the

Instrument Panel Assembly in Body Structure
section.

3. Remove the lower cluster assembly (2). Refer to the

Instrument Panel Assembly in Body Structure
section.

4. Remove the instrument panel driver lower cover

assembly (3).  Refer to the Instrument Panel
Assembly in Body Structure section.

821RW024

5. Remove the instrument panel cluster assembly (5).

Refer to the Instrument Panel Assembly in Body
Structure section.

6. Disconnect the and push the lock from the side of the

instrument panel cluster assembly to remove the
cruise control main switch (4).

821RW079

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Push in the switch with your fingers until the switch is

locked securely.

Cruise Control Switch (Combination Switch)

Removal and Installation

Refer to the Lighting Switch (Combination Switch)
removal and installation steps of Lighting System in Body
and Accessories section.

10A–6 CRUISE CONTROL SYSTEM

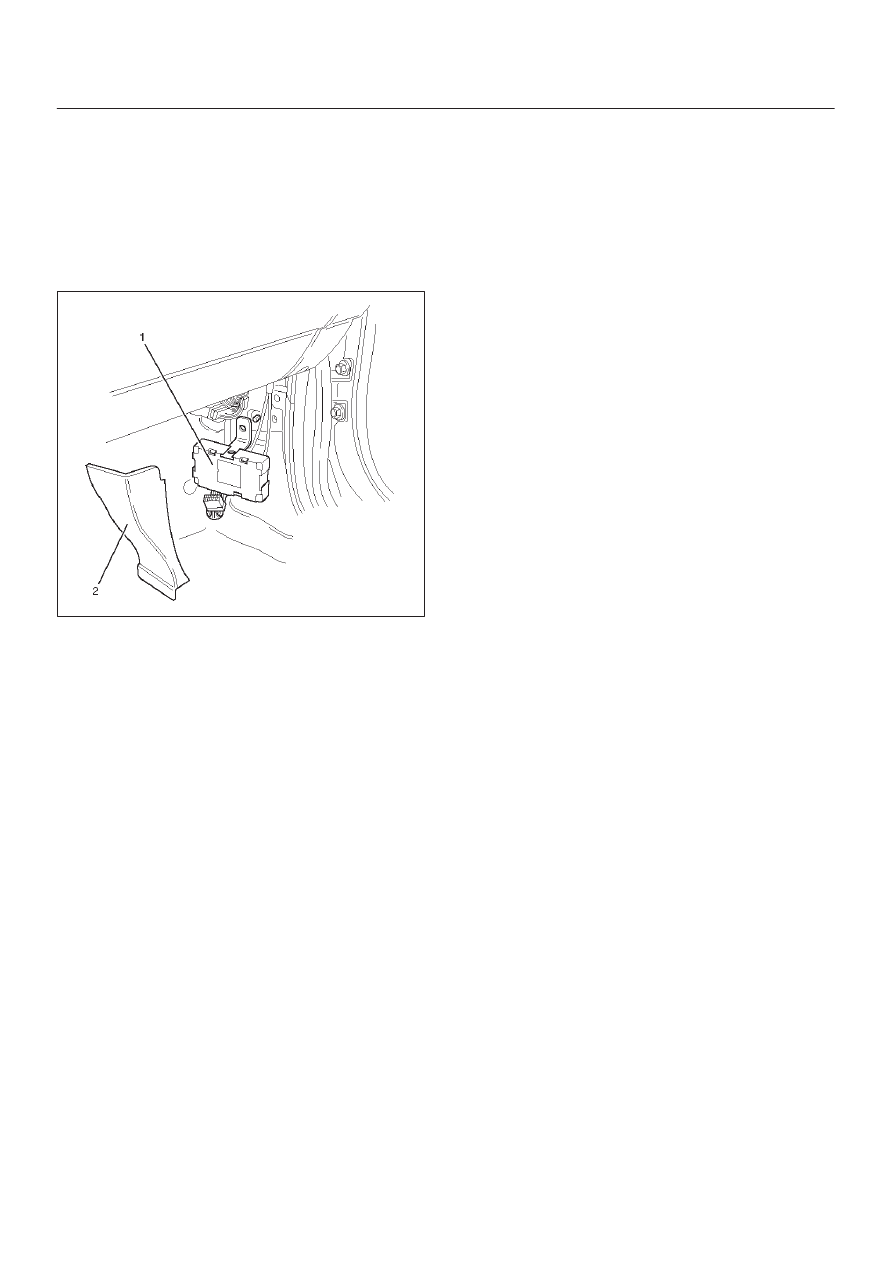

Cruise Control Unit

Removal

1. Disconnect the battery ground cable.
2. Remove the dash side trim panel (RH)(2).
3. Disconnect the connector.
4. Remove a fixing nut to remove the cruise control unit

(1).

825RW050

Installation

To install, follow the removal steps in the reverse order.

10A–7

CRUISE CONTROL SYSTEM

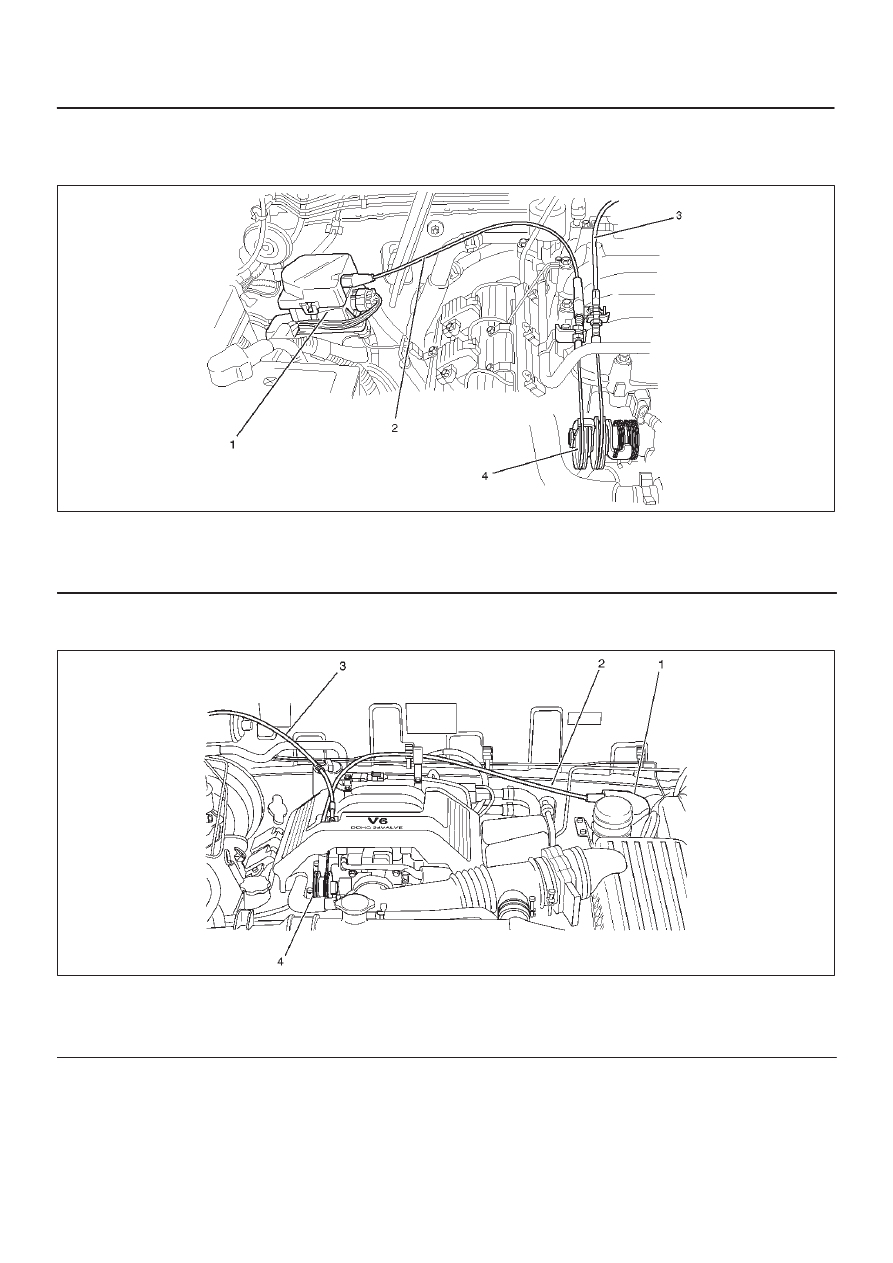

Cruise Actuator

Actuator Cable Diagram (LHD)

825RW051

Legend

(1) Cruise Actuator Assembly
(2) Cruise Control Cable

(3) Accel Control Cable
(4) Cam Link (Cruise Control Side)

Actuator Cable Diagram (RHD)

825RW221

Legend

(1) Cruise Actuator Assembly
(2) Cruise Control Cable

(3) Accel Control Cable
(4) Cam Link (Cruise Control Side)

10A–8 CRUISE CONTROL SYSTEM

Removal

1. Disconnect the battery ground cable.
2. Remove the cruise actuator Assembly (4).

D

Disconnect the connector (3).

D

Remove the cable end (1) from the cam link (cruise
control side).

D

Loosen two fixing nuts (2).

D

Remove three actuator fixing screws.

825RW049

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Take care not to bend the cable excessively.

Mode Switch

Removal and Installation

Refer to the Mode Switch removal and installation steps
in Automatic Transmission section.
