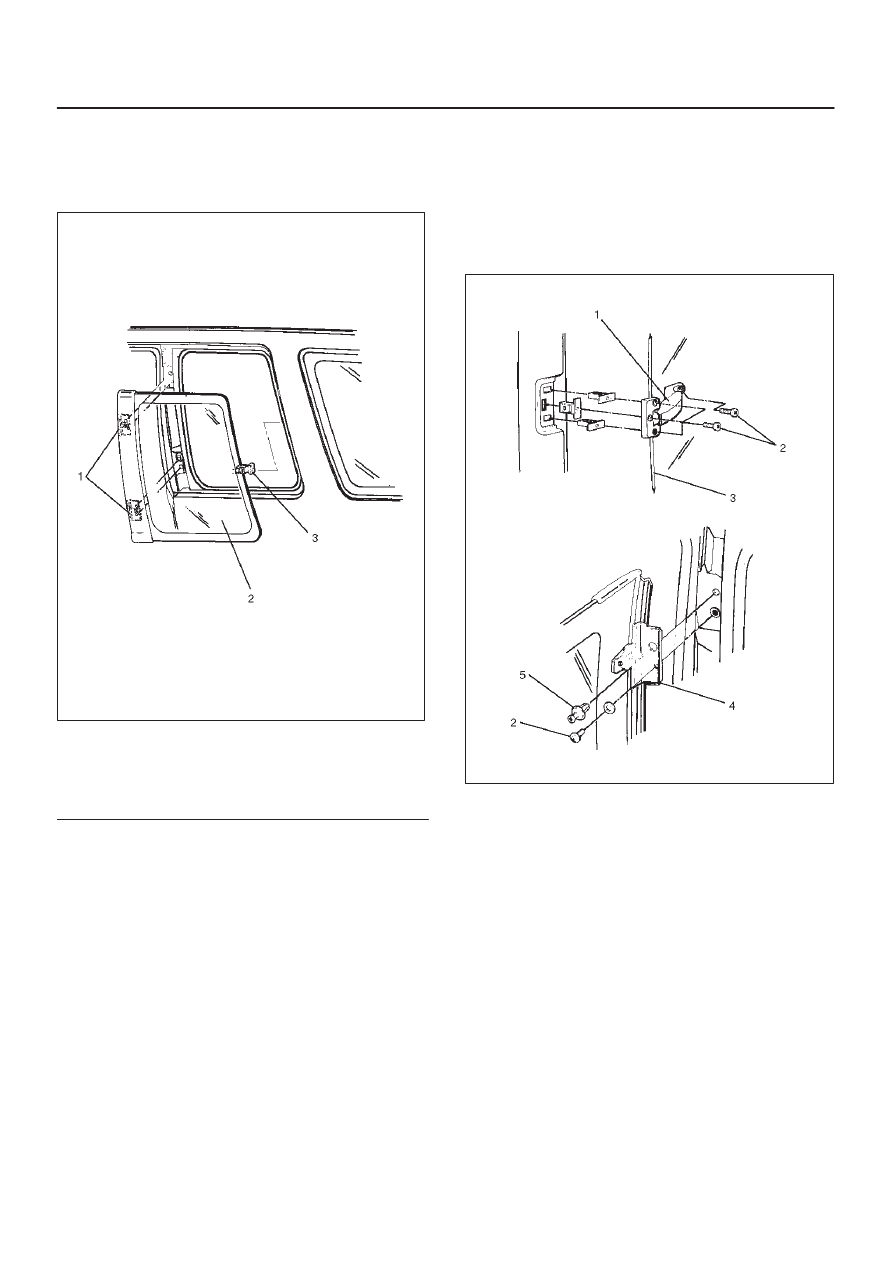

Quarter Flipper Glass Assembly (SWB)

Quarter Flipper Glass Assembly and
Associated Parts

641RW003

Legend

(1) Hinge Assembly
(2) Quarter Flipper Glass Assembly
(3) Fastener

Removal

1. Remove the quarter flipper glass assembly (3).

D

Remove the fixing screws (2) and rivet (5).

2. Remove the fastener (1).
3. Remove the hinge assembly (4).

641RW002

Installation

To install, follow the removal steps in the reverse order.

8J–34

EXTERIOR/INTERIOR TRIM

Tailgate Trim Panel (LH)

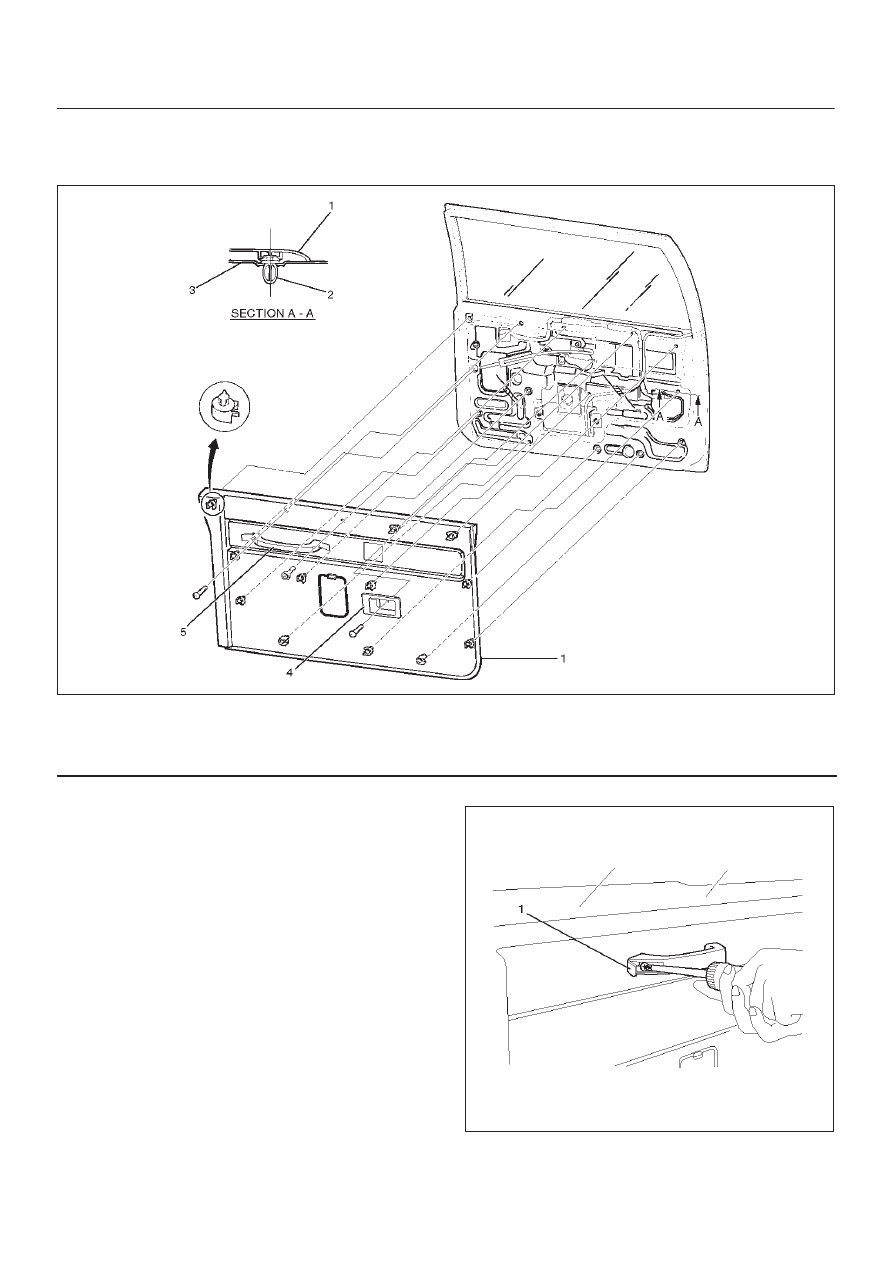

Tailgate Trim Panel (LH) and Associated Parts

683RW017

Legend

(1) Tailgate Trim Panel (LH)
(2) Clip

(3) Tailgate Panel
(4) Inside Handle
(5) Tailgate Assist Grip

Removal

1. Disconnect the battery ground cable.
2. Remove the tailgate assist grip.

D

Open the assist covers (1) and remove two fixing
screws.

683RW019

EXTERIOR/INTERIOR TRIM

8J–35

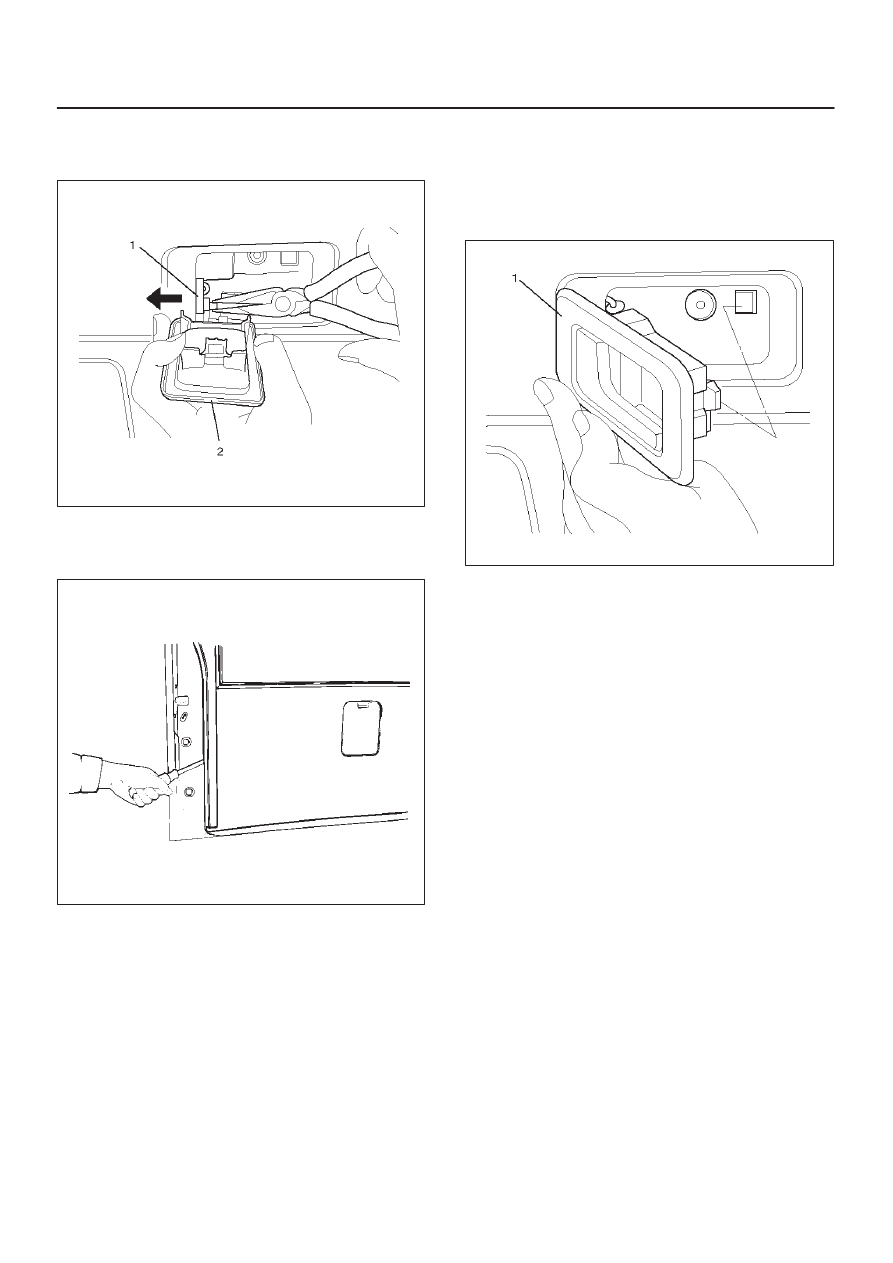

3. Remove the inside handle (2).

D

Remove the fixing screw and disconnect the locking
link (1).

683RW020

4. Remove the tailgate trim panel (LH).

D

Pry the trim panel retainers free from the tailgate
panel.

684RS001

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Install the inside handle (1), connect the link to the

handle, insert the catch portion of the handle into the
tailgate side hole securely and fix it with a screw.

683RW018

8J–36

EXTERIOR/INTERIOR TRIM

Tailgate Trim Panel (RH)

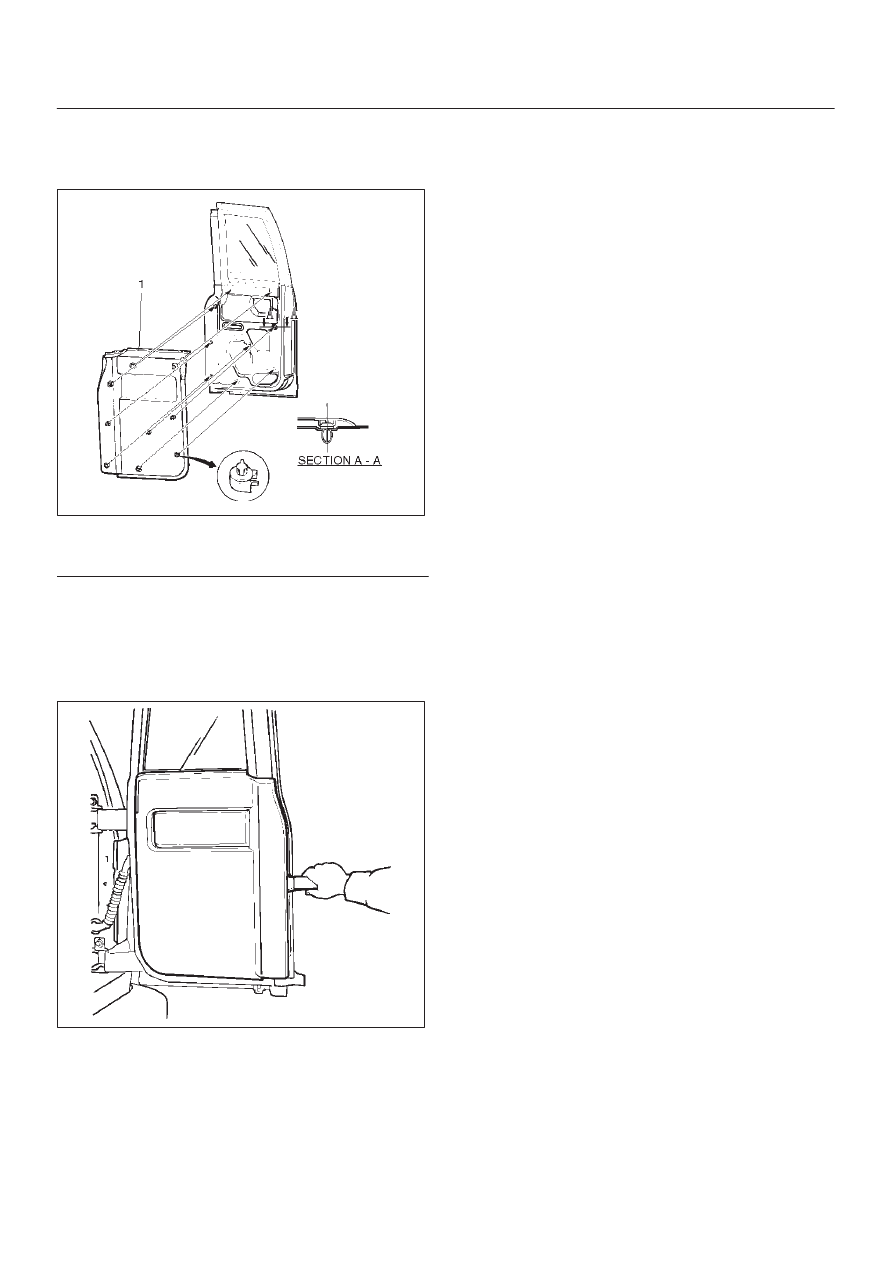

Parts Location

684RS002

Legend

(1) Tailgate Trim Panel

Removal

1. Disconnect the battery ground cable.
2. Remove the tailgate trim panel (RH).

D

Pry trim panel retainer free from the tailgate panel.

684RS003

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Insert the retainer of the trim panel into the tailgate

panel and fix it securely.
