EXTERIOR/INTERIOR TRIM

8J–21

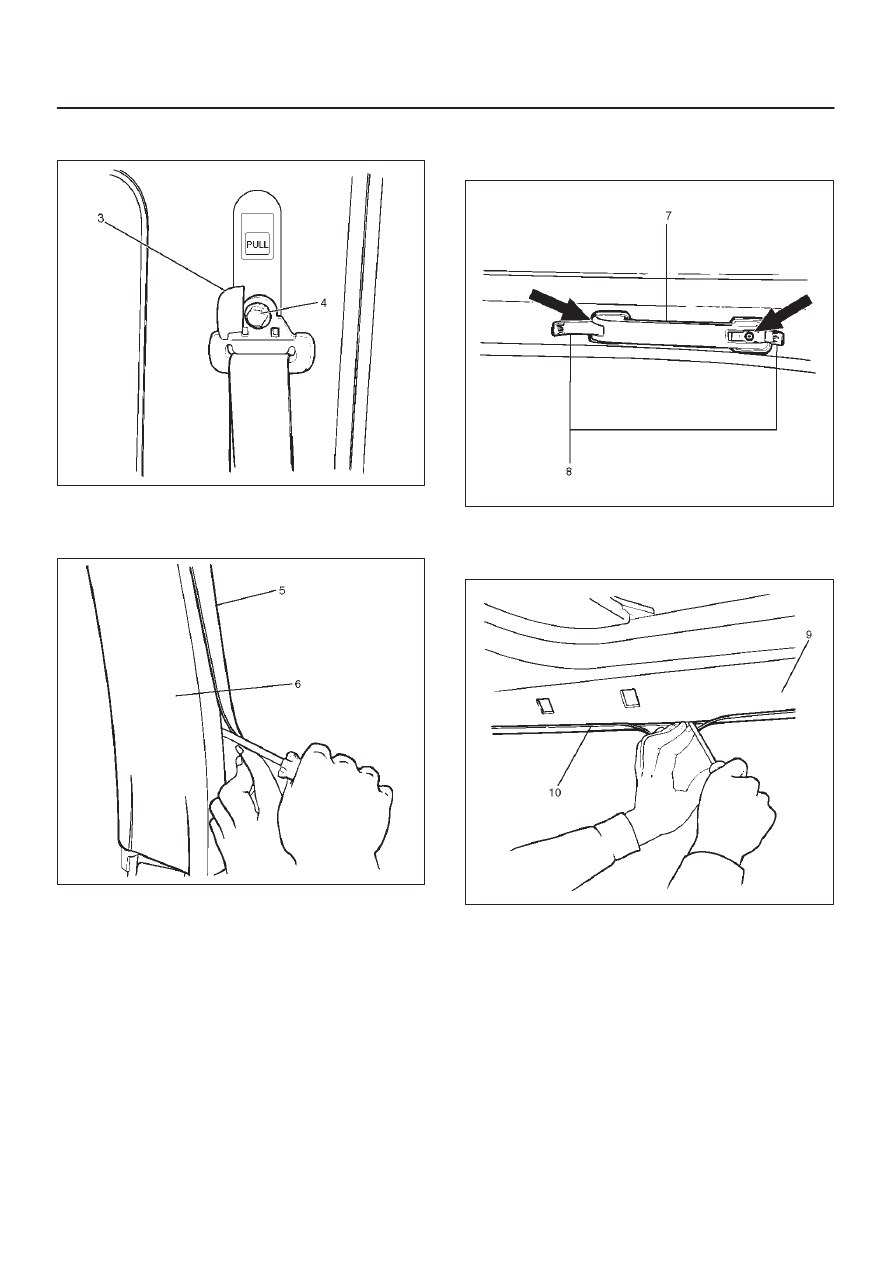

4. Remove the front seat belt anchor bolt cover (3) and

the anchor bolt (4).

760RW006

5. Remove the center pillar upper trim cover (6).

D

Turn up the finisher (5) and pry the trim cover
retainers free from the body panel.

643RS004

6. Remove the center pillar assist grip.
7. Remove the seat belt anchor plate/adjusut shoulder

anchor assembly.

8. Remove the assist grip (7).

D

Open the both side of the assist grip cover (8) and
remove two fixing screws.

743RW004

9. Remove the roof side trim cover (9).

D

Turn up the finisher (10) and pry the trim cover
retainers free from the body panel.

643RS005

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Install the seat belt anchor bolts to the specified

torque.

Torque: 39 N·m (4.0kg·m/29 lb ft)

8J–22

EXTERIOR/INTERIOR TRIM

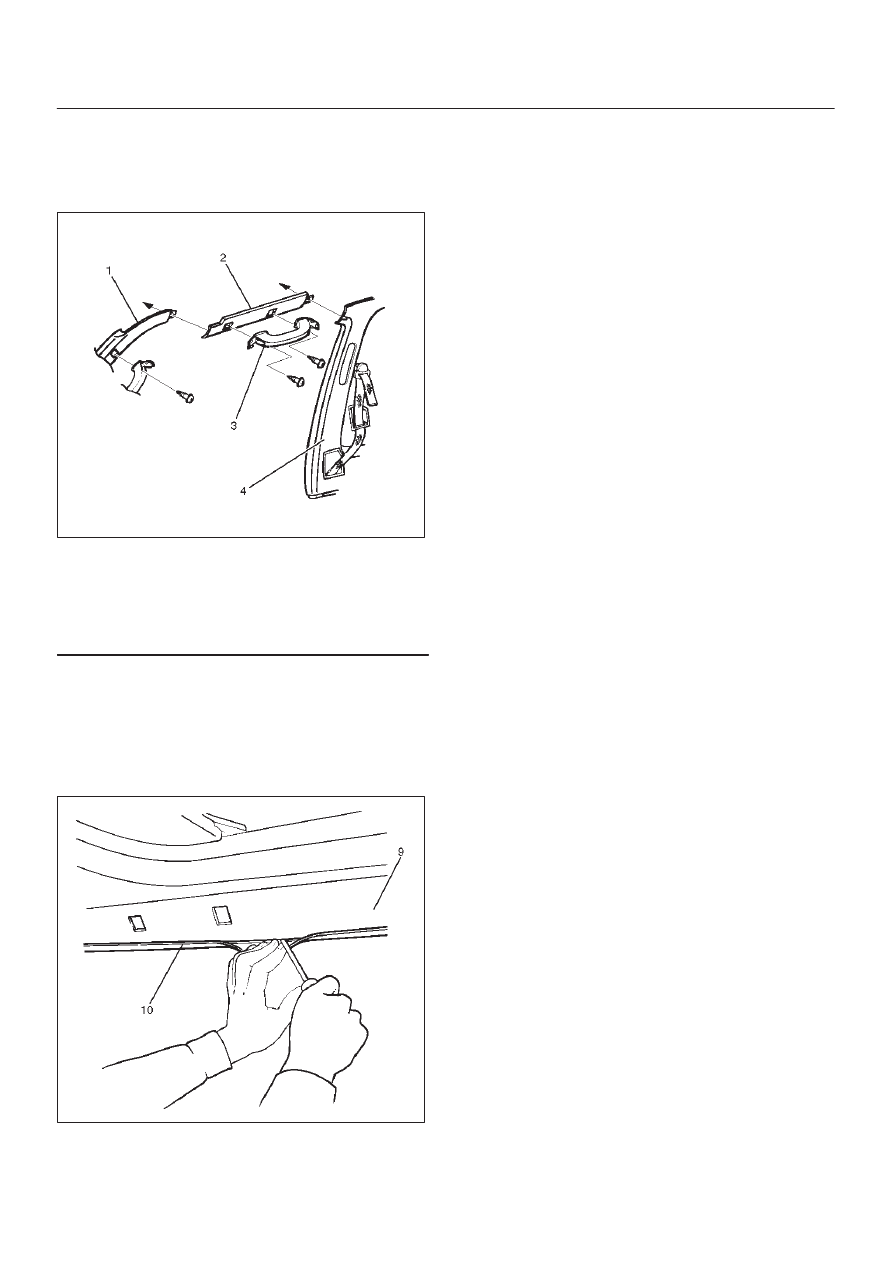

Roof Side Trim Cover (SWB)

Roof Side Trim Cover and Associated
Parts

643RW006

Legend

(1) Front Pillar Trim Cover
(2) Roof Side Trim Cover
(3) Assist Grip (Passenger Seat Side)
(4) Rear Quarter Upper Trim Cover

Removal

1. Remove the assist grip.
2. Remove the roof side trim cover (9).

D

Turn up the finisher (10) and pry the trim cover
retainers free from the body panel.

643RS005

Installation

To install, follow the removal steps in the reverse order.

EXTERIOR/INTERIOR TRIM

8J–23

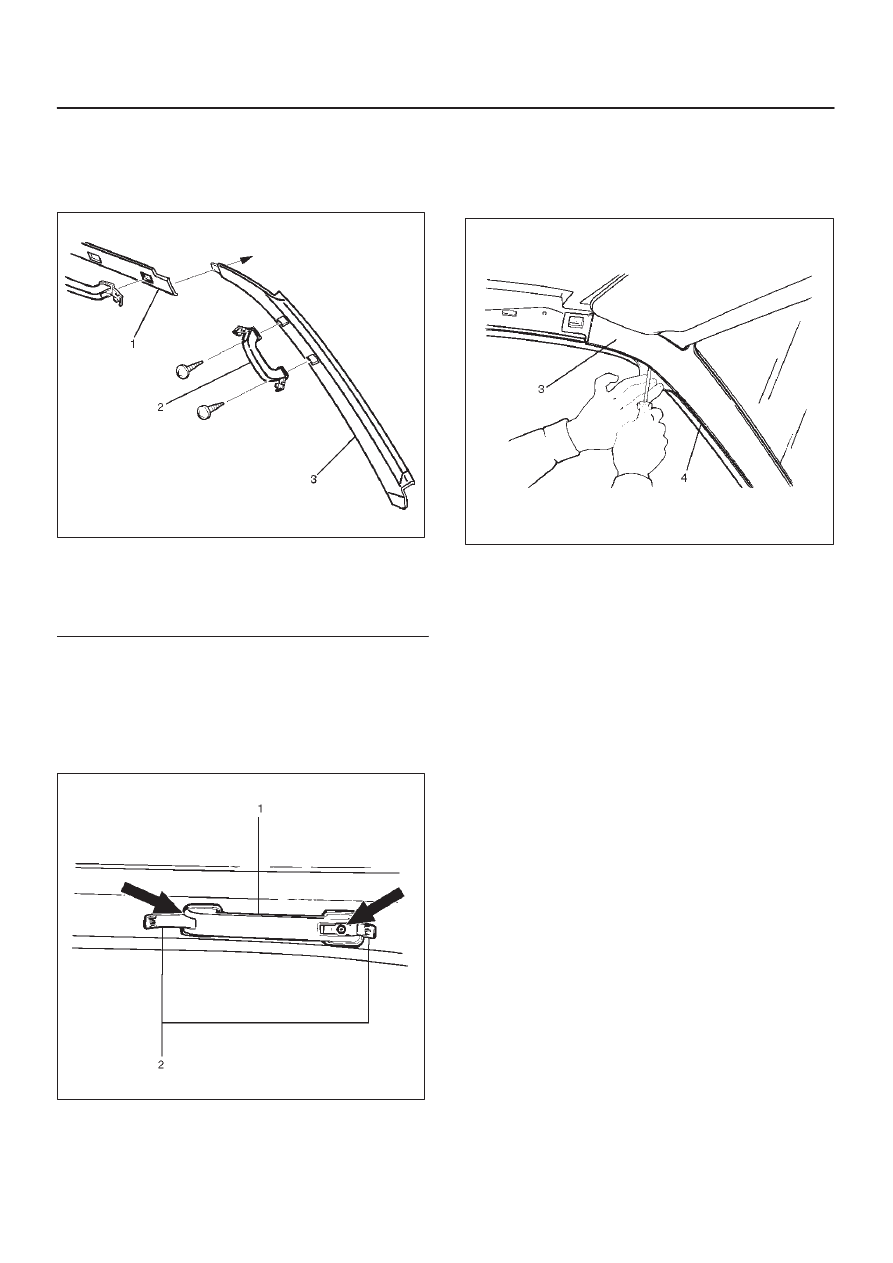

Front Pillar Trim Cover

Front Pillar Trim Cover and
Associated Parts

743RS003

Legend

(1) Roof Side Trim Panel
(2) Assist Grip
(3) Front Pillar Trim Panel

Removal

1. Remove the front pillar assist grip(1).

D

Open the both sides of the assist grip cover (2) and
remove the fixing screws and the front pillar assist
grip.

743RW003

2. Remove the front pillar trim cover (3).

D

Turn up the finisher (4) and pry the trim cover
retainers free from the body panel.

635RW001

Installation

To install, follow the removal steps in the reverse order.

8J–24

EXTERIOR/INTERIOR TRIM

Center Pillar Assist Grip

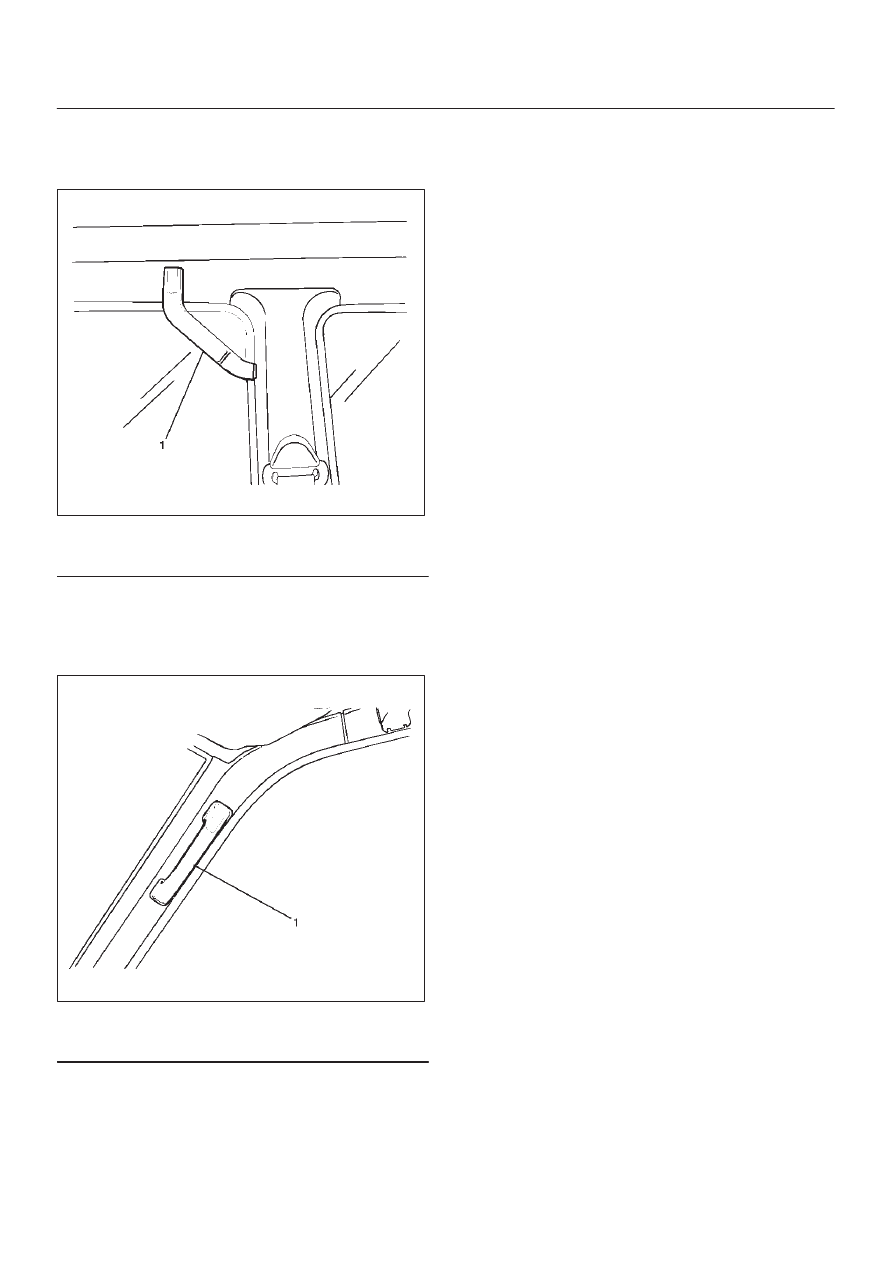

Parts Location

743RS004

Legend

(1) Center Pillar Assist Grip

Removal and Installation

Refer to the Center Pillar and Roof Side Trim Cover in this
section.

Assist Grip

Parts Location

743RS005

Legend

(1) Assist Grip

Removal and Installation

Refer to the Front Pillar Trim Cover in this section.
