8H–10 SECURITY AND LOCKS

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Tighten the outside handle fixing bolts to the specified

torque.

Torque: 9 N·m (0.9kg·m/78 lb in)

2. Check that the outside handle operates smoothly.

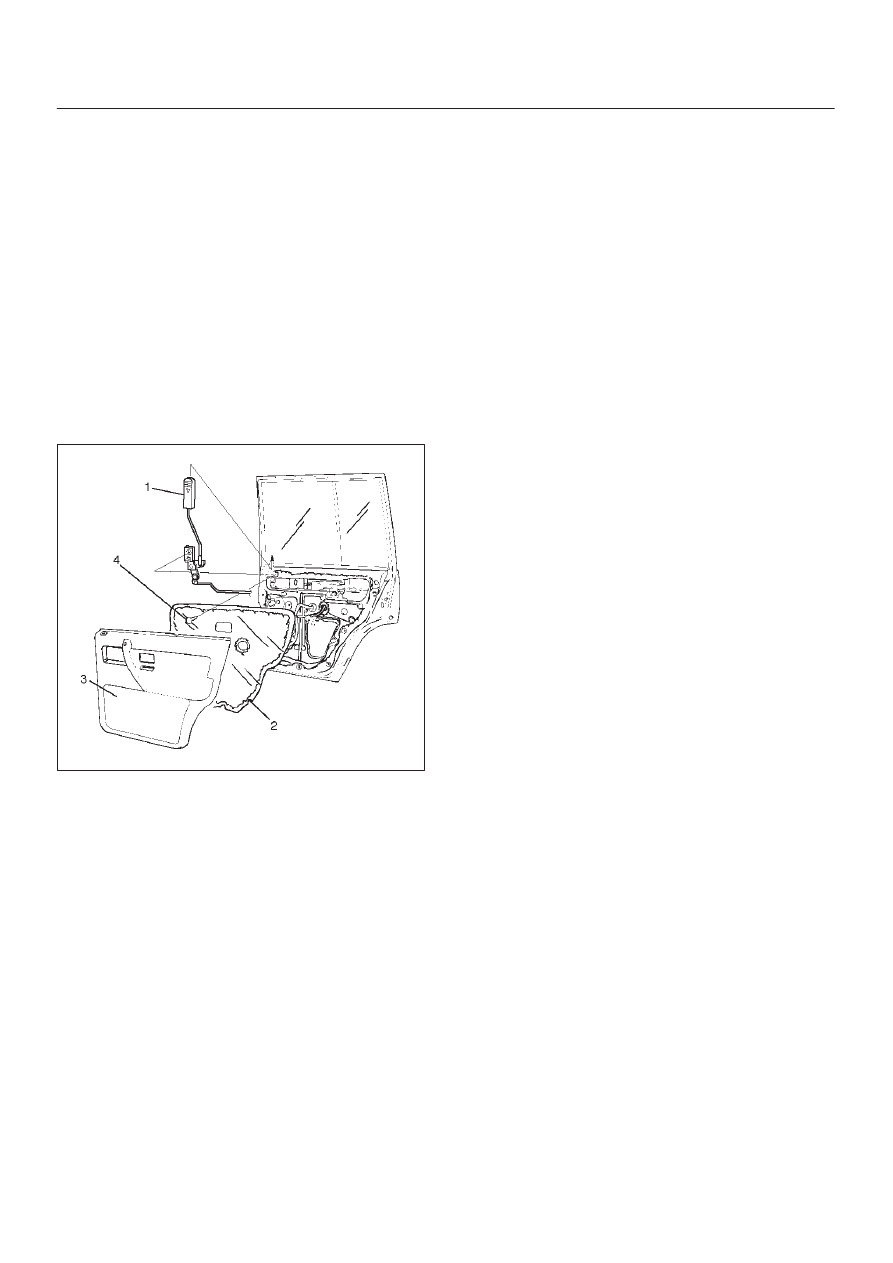

Rear Door Inside Lock Knob Link

Removal

1. Disconnect the battery ground cable.
2. Remove the door trim panel(3).
3. Remove the waterproof sheet(2).

D

Refer to the Rear Window Regulator And Glass in
Body Structure section.

4. Remove the fixing screw(4) and disconnect the

locking link at the door lock assembly to remove the
rear door inside lock knob link(1).

655RW009

Installation

To install, follow the removal steps in the reverse order.

SECURITY AND LOCKS

8H–11

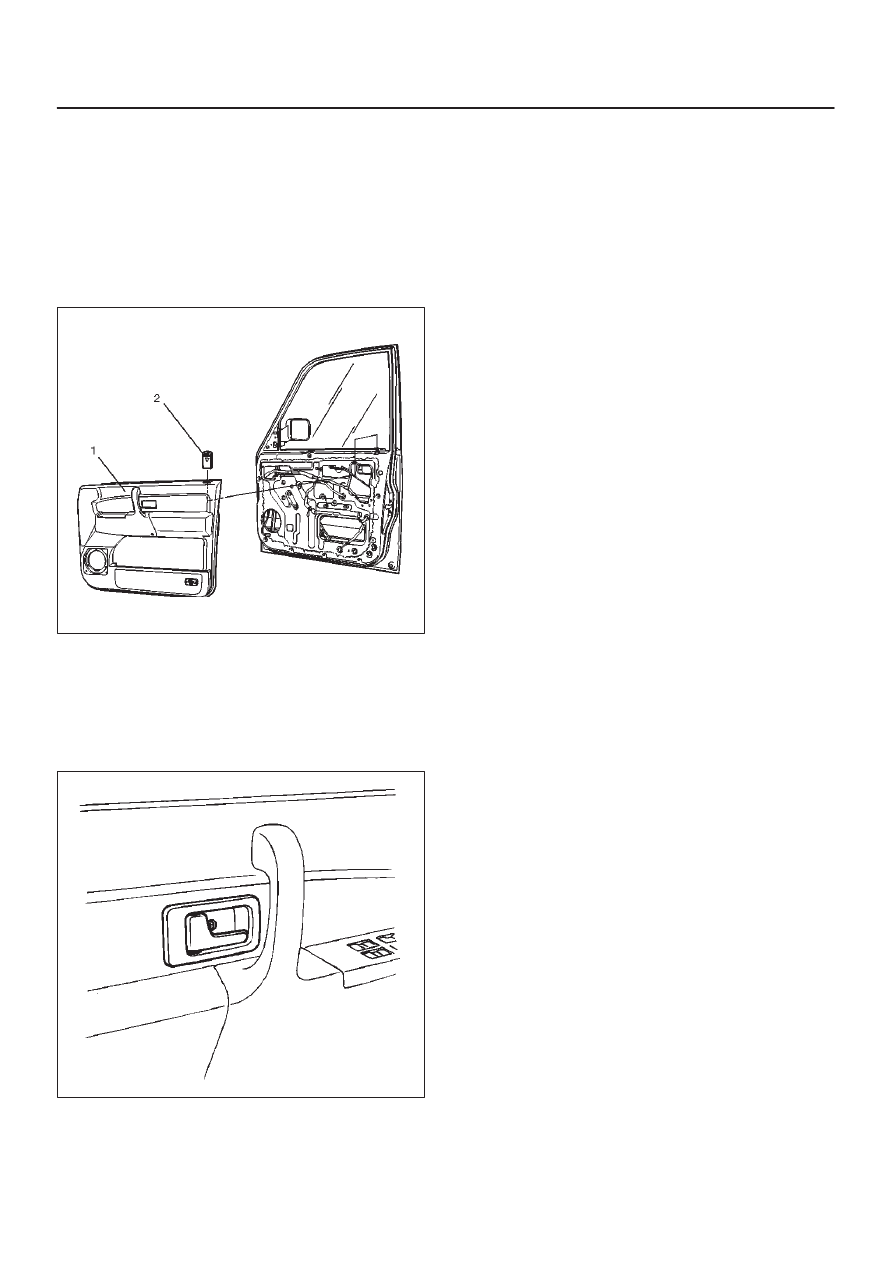

Door Inside Lock Knob

Removal

1. Disconnect the battery ground cable.
2. Remove the door trim panel(1).

D

Refer to the Front & Rear Door Trim Panel in
Exterior/Interior Trim section.

3. Turn the door inside lock knob counterclockwise and

then remove the door inside lock knob (2).

632RS011

Installation

To install, follow the removal steps in the reverse order.

Door Inside Handle

Removal and Installation

D

Refer to the Front & Rear Door Trim Panel in
Exterior/Interior Trim section.

635RS008

8H–12 SECURITY AND LOCKS

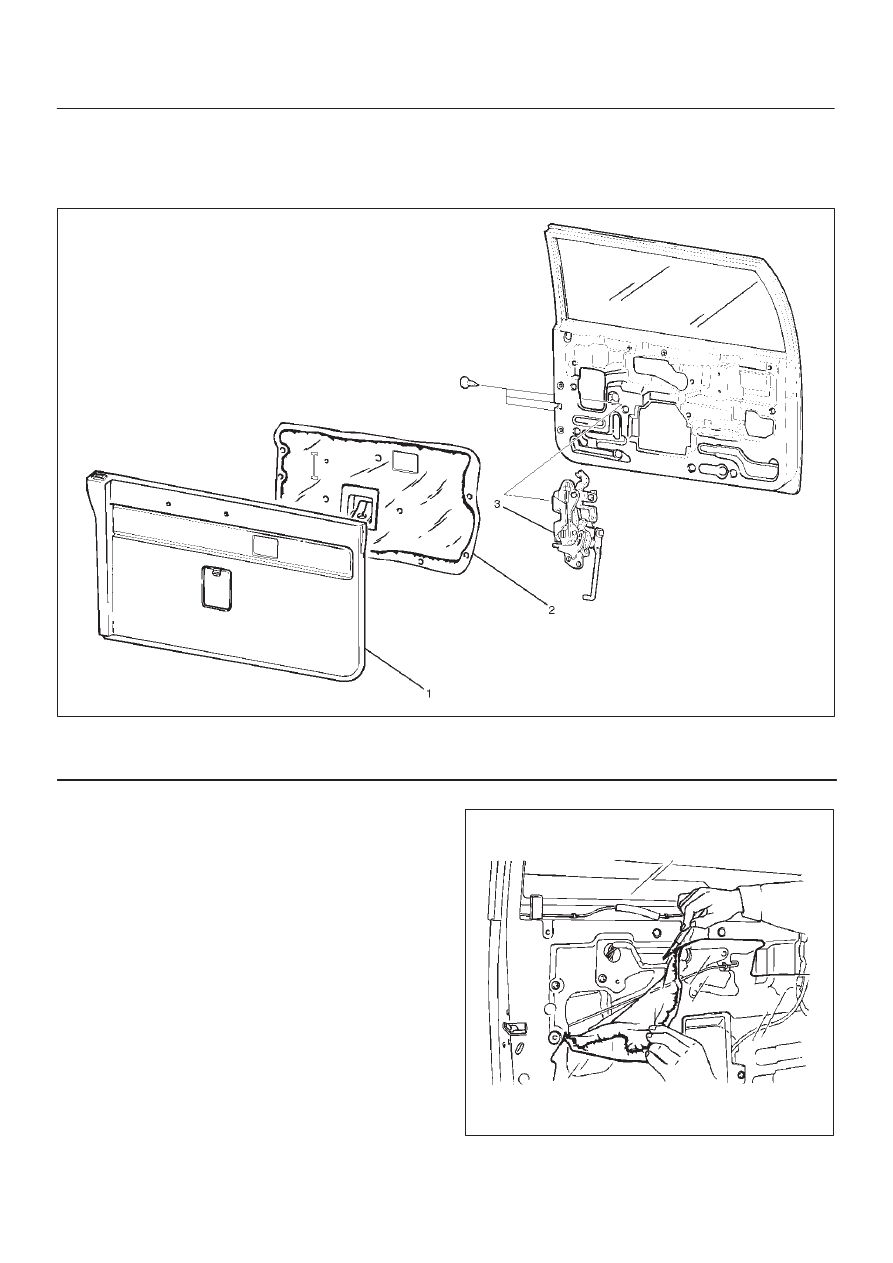

Tailgate Lock Assembly (LH)

Tailgate Lock Assembly (LH) and
Associated Parts

684RW008

Legend

(1) Tailgate Trim Panel(LH)

(2) Waterproof Sheet
(3) Tailgate Lock Assembly

Removal

1. Disconnect the battery ground cable.
2. Remove the tailgate trim panel (LH).

D

Refer to the Tailgate Trim Panel (LH) in
Exterior/Interior Trim section.

3. Taking notice of the tailgate harness, peel the

waterproof sheet off the tailgate panel carefully and
then remove the waterproof sheet.

684RS005

SECURITY AND LOCKS

8H–13

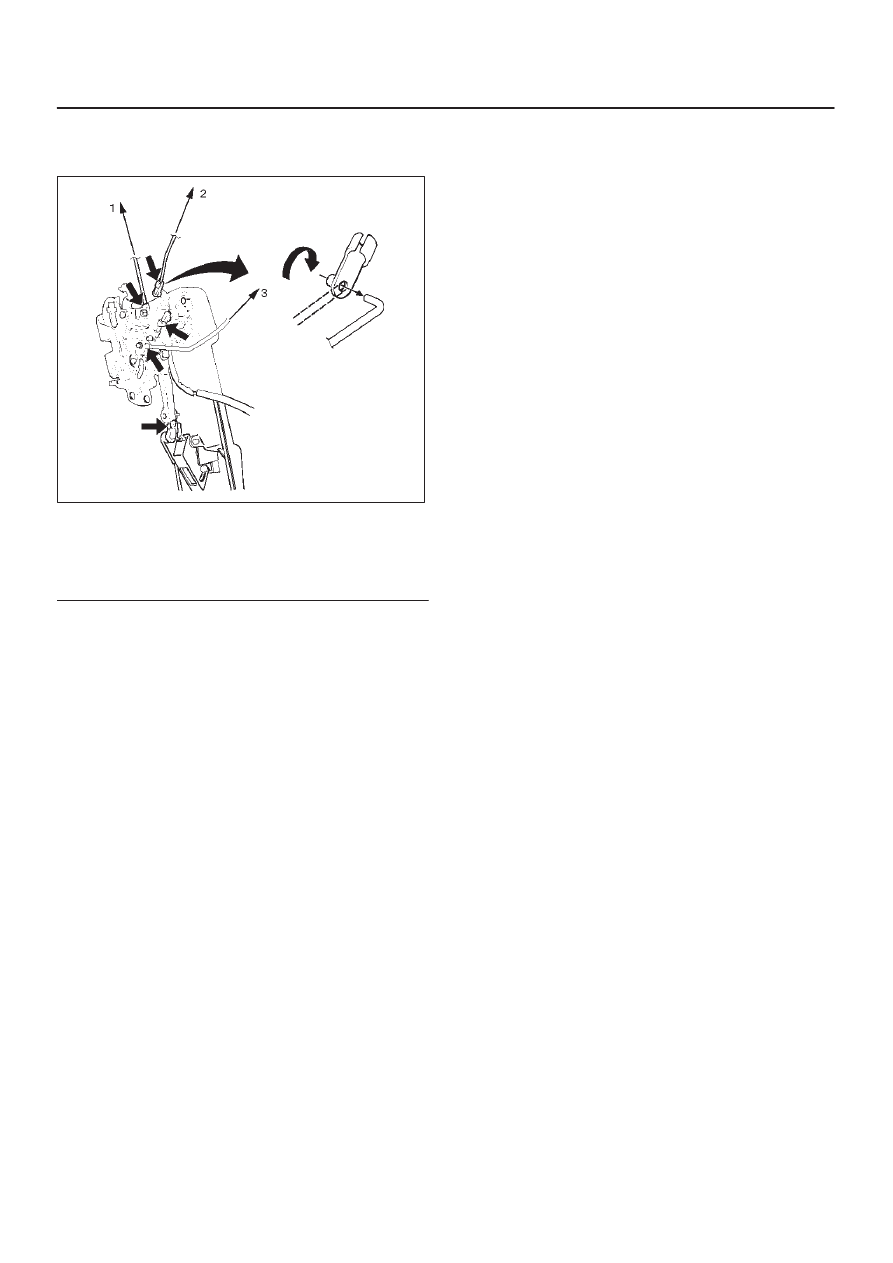

4. Disconnect the locking links (arrow marks positions),

remove three fixing screws and then remove the
tailgate lock assembly (LH).

683RW015

Legend

(1) To Inside Lock Knob
(2) To Actuator
(3) To Inside Handle

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Apply chassis grease to the lock assembly and striker

moving surface.

2. Tighten the tailgate lock assembly fixing screws to the

specified torque.

Torque: 7 N·m (0.7kg·m/61 lb in)

3. Check that the tailgate lock operates correctly after

installing it.
