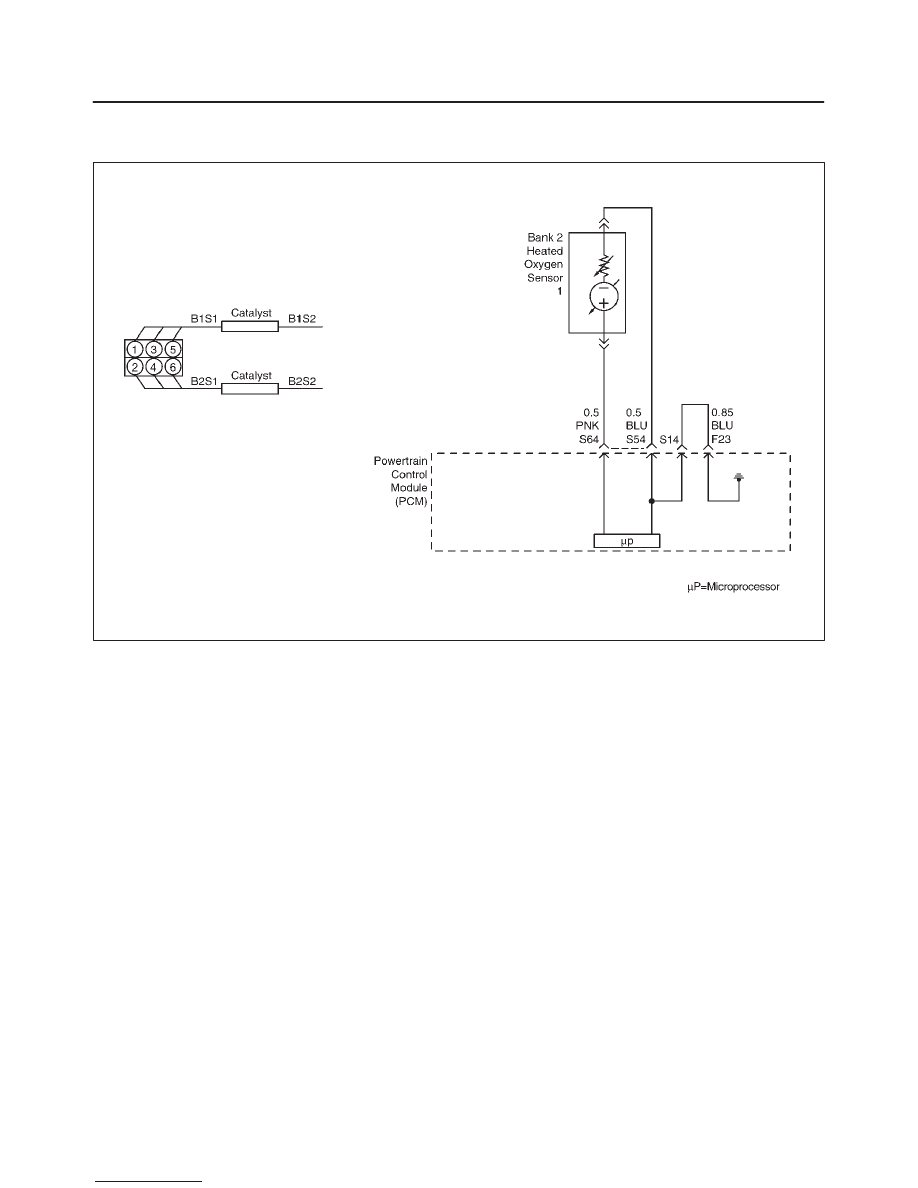

6E–197 TROOPER 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS Diagnostic Trouble Code (DTC) P0151 HO2S Circuit Low Voltage Bank 2 Sensor 1 D06RY00174 Circuit Description The powertrain control module (PCM) supplies a bias Conditions for Setting the DTC D No related DTCs. D The engine is operating in “closed loop.” D Engine coolant temperature is above 60 ° C (140 ° F). D “Closed loop” commanded air/fuel ratio is between D Throttle angle is between 3% and 19%. D Bank 2 HO2S 1 signal voltage remains below 22 mV Action Taken When the DTC Sets D The PCM will illuminate the malfunction indicator lamp D The PCM will store conditions which were present D “Open loop” fuel control will be in effect. Conditions for Clearing the MIL/DTC D The PCM will turn the MIL “OFF” on the third D A history DTC P0151 will clear after 40 consecutive D DTC P0151 can be cleared by using the Tech 2 “Clear Diagnostic Aids Check for the following conditions: D Heated oxygen sensor wiring – The sensor pigtail may D Poor PCM to engine block grounds. D Fuel pressure – The system will go lean if pressure is Fuel System Diagnosis. D Lean injector(s) – Perform “Injector Balance Test.” |
