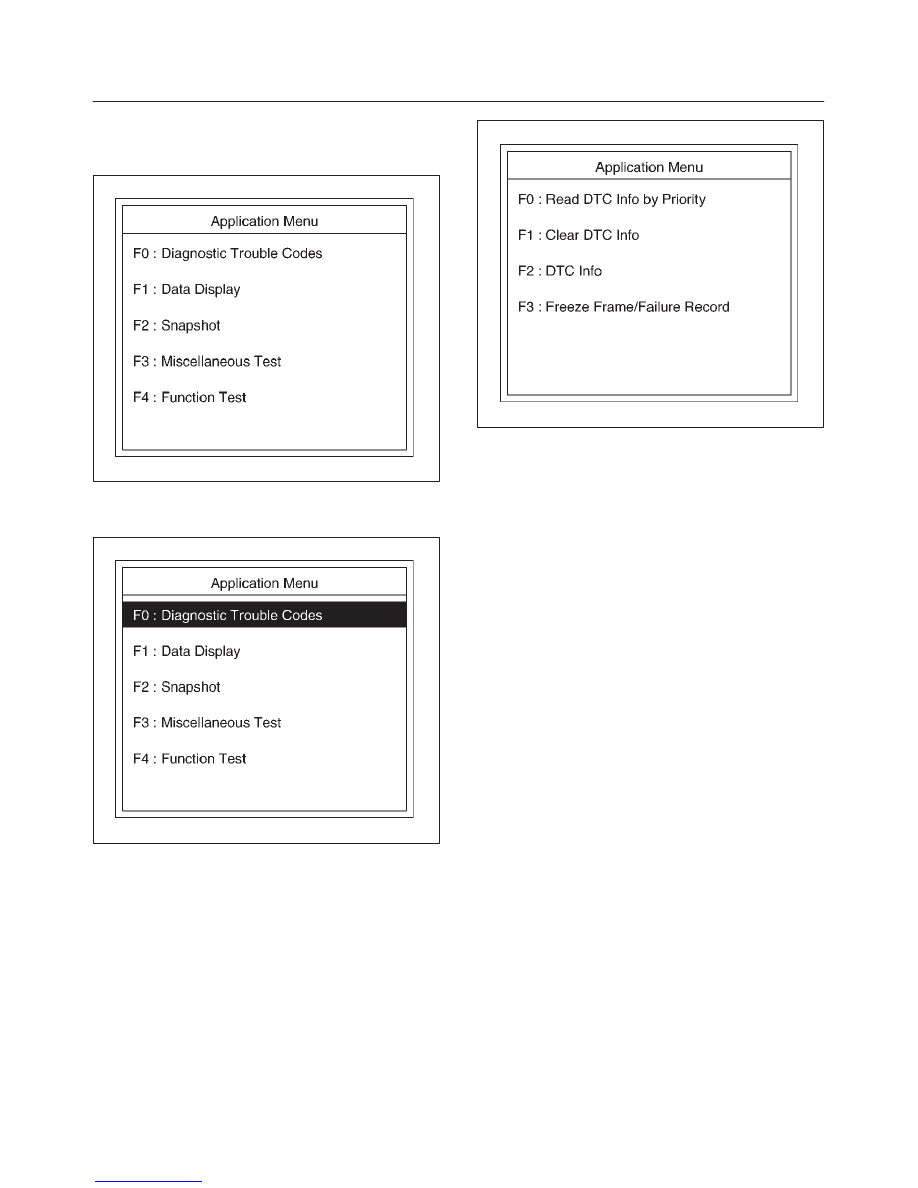

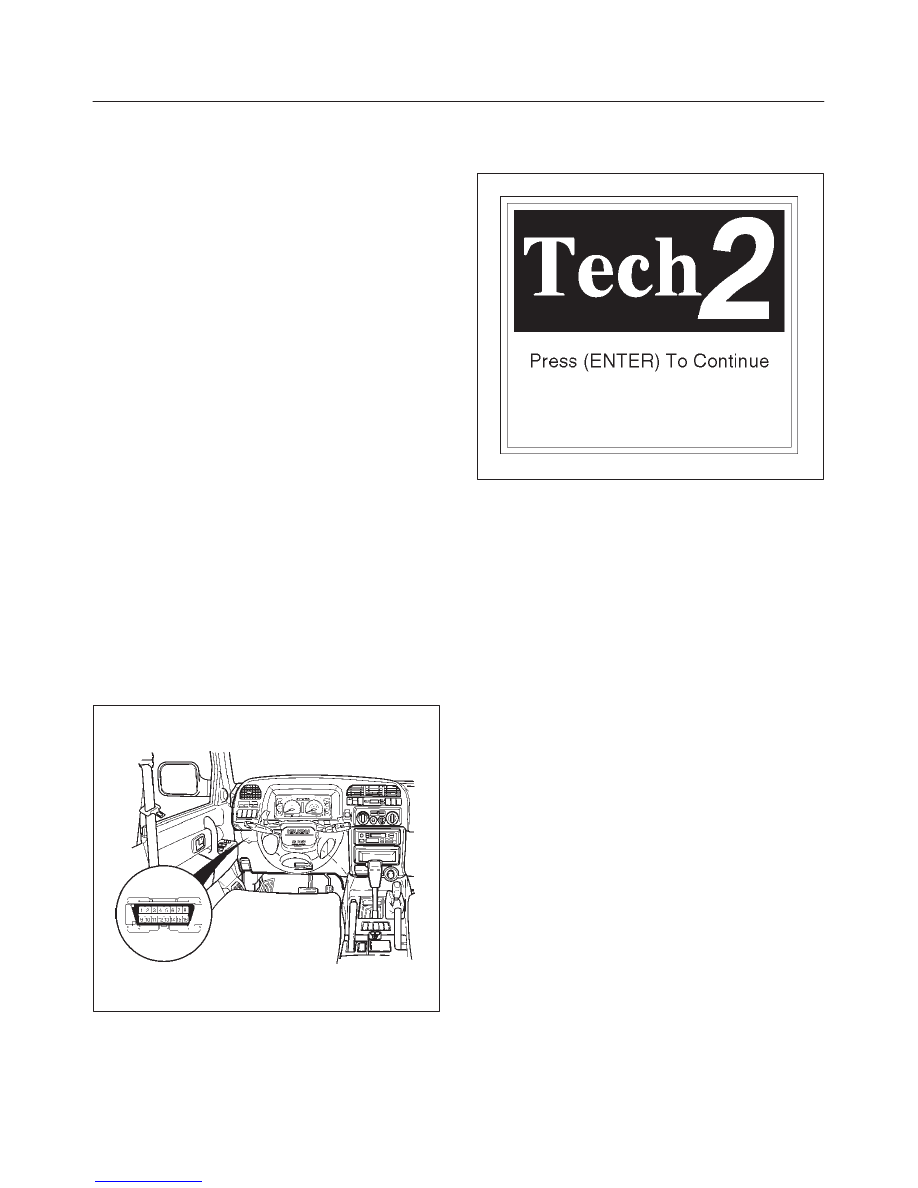

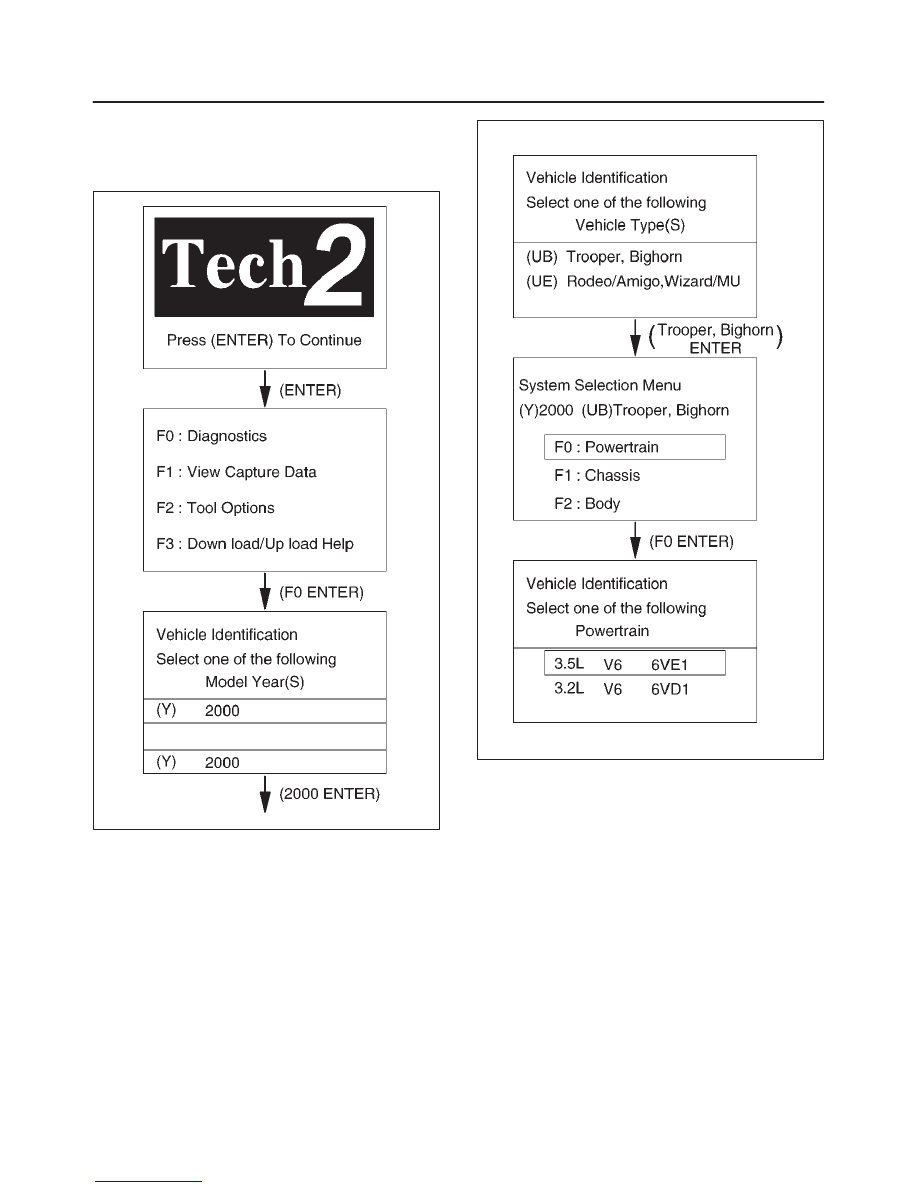

6E–45 TROOPER 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS Tech 2 Features 1. Tech 2 is a 12 volt system. Do not apply 24 volts. Communications Interface (VCI) module, PCMCIA 3. Make sure the Tech 2 is powered OFF when removing or installing the PCMCIA card. 4. The PCMCIA card has a capacity of 10 Megabytes which is 10 times greater than the memory of the Tech 5. The Tech 2 has the capability of two snapshots. static electricity, so care should be taken in the 7. The Tech 2 can plot a graph when replaying a snapshot. 8. Always return to the Main Menu by pressing the EXIT key several times before shutting down. 9. To clear Diagnostic Trouble Codes (DTCs), open Application Menu and press “F1: Clear DTC Info”. Getting Started D Before operating the Isuzu PCMCIA card with the 1. The Isuzu 2000 System PCMCIA card (1) inserts into the Tech 2 (5). 2. Connect the SAE 16/19 adapter (3) to the DLC cable (4). 3. Connect the DLC cable to the Tech 2 (5) DLC. 821RW021 6. Turn on the vehicle ignition. display. 060RW009 NOTE: The RS232 Loop back connector is only to use for |
