6E–13

TROOPER 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

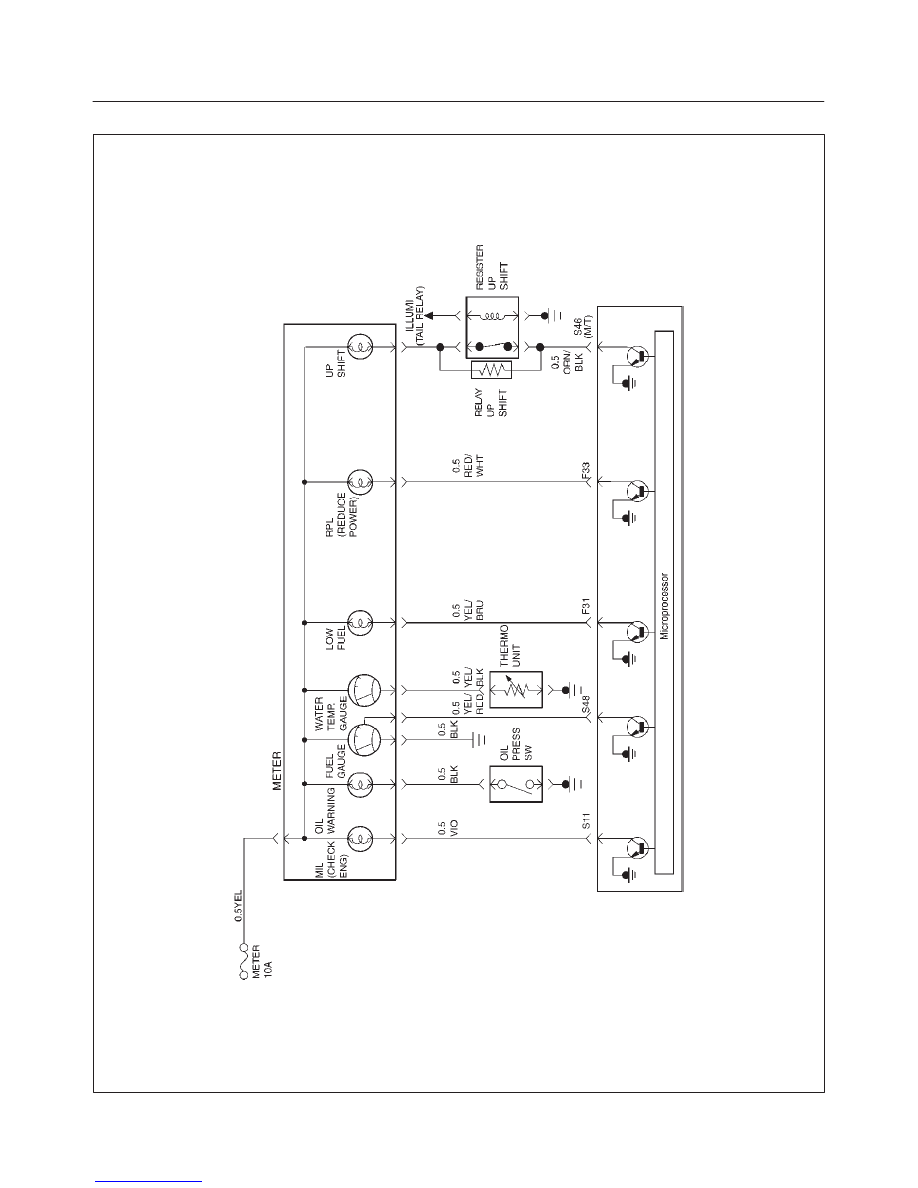

PCM Wiring Diagram (7 of 7)

D06RY00127

6E–14

TROOPER 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

PCM Pinouts

PCM Pinout Table, 80-Way Blue Connector – Row “F1

∼

 20”

060RY00045

PIN

PIN Function

Wire Color

IGN ON

ENG RUN

Refer To

F1

PCM Ground

BLK/BLU

0.0V

0.0V

Chassis Electrical

F2

5Volt Referrence“2” (AP
Sensor 2)

GRN

5.0V

5.0V

AP Sensor

F3

5Volt Referrence“2” (TP
Sensor 2)

RED/WHT

5.0V

5.0V

AP Sensor

F4

A/C Clutch

GRN/BLK

B+(A/C off)

B+(A/C off)

General Description and
Operation,A/C Cluch Circuit
Opreation

F5

Mission Main Case

GRN/RED

0.0V

0.0V

4L30E  T/Mission

F6

Not Used

—

—

—

—

F7

Tachometer

BLK/RED

8.8V

10.0V(at idle)

Chassis Electrical

F8

Not Used

—

—

—

—

F9

Not Used

—

—

—

—

F10

Not Used

—

—

—

—

F11

Not Used

—

—

—

—

F12

Camshaft Position Sensor

WHT/RED

5.0V or less

than 1.0V

4.6V

General Description and
Operation,Camshaft Position
Sensor

F13

Not Used

—

—

—

—

F14

Mass Air Flow(MAF)

BLK/BLU

4.9V

4.2V

General Description, Mass
Air Flow Sensor

F15

Not Used

—

—

—

—

F16

Not Used

—

—

—

—

F17

Bank 1 HO2S Low

RED

0.0V

0.1V

General Description and
Operation, Catalyst Monitor
HO2S 2

F18

Not Used

—

—

—

—

6E–15

TROOPER 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

PIN

Refer To

ENG RUN

IGN ON

Wire Color

PIN Function

F19

Ignition Feed

RED/GRN

B+

B+

6D Section

F20

Ignition Feed

RED/WHT

B+

B+

6D Section

6E–16

TROOPER 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

PCM Pinout Table, 80-Way Blue Connector – Row “F20

∼

 40”

060RY00156

PIN

PIN Function

Wire Color

IGN ON

ENG RUN

Refer To

F21

Bank 1 HO2S 1 Ground

WHT

0.0V

0.0V

General Description and
Operation, Catalyst Monitor
HO2S 1

F22

Not Used

—

—

—

—

F23

Bank 2 HO2S 1 Ground

BLU

0.0V

0.0V

General Description and
Operation, Catalyst Monitor
HO2S 1

F24

Not Used

—

—

—

—

F25

ION Sensing Module

RED/BLU

1.555V

1.555V

General Description and
Operation,ION Sensing
Module

F26

ION Sensing Module

RED/BLK

1.555V

1.555V

General Description and
Operation,ION Sensing
Module

F27

Intake Air Temperature
(IAT)Sensor

YEL/GRN

0.5–4.9V

0.5–4.9V

General Description and
Operation, IAT

F28

Not Used

—

—

—

—

F29

Manifold Absolute
Pressure(MAP)

RED

3.5V–4.9V

(depends on

altitude and

barometric

pressure)

0.6-1.3V

General Description and
Operation, Manifold Absolute
Pressure

F30

Not Used

—

—

—

—

F31

Low Fuel Lamp

YEL/BRN

B+

B+

Chassis Electrical

F32

Power Lamp

GRN/WHT

B+

B+

4L30E  T/Mission

F33

Reduse Power Lamp

RED/WHT

B+

B+

Chassis Electrical

F34

Not Used

—

—

—

—

F35

Not Used

—

—

—

—

F36

Not Used

—

—

—

—

F37

Power Steering Pressure
(PSP)

GRN/YEL

B+

B+

Power Steering

F38

Illuminated Switch

GRN/YEL

B+

B+

Chassis Electrical
