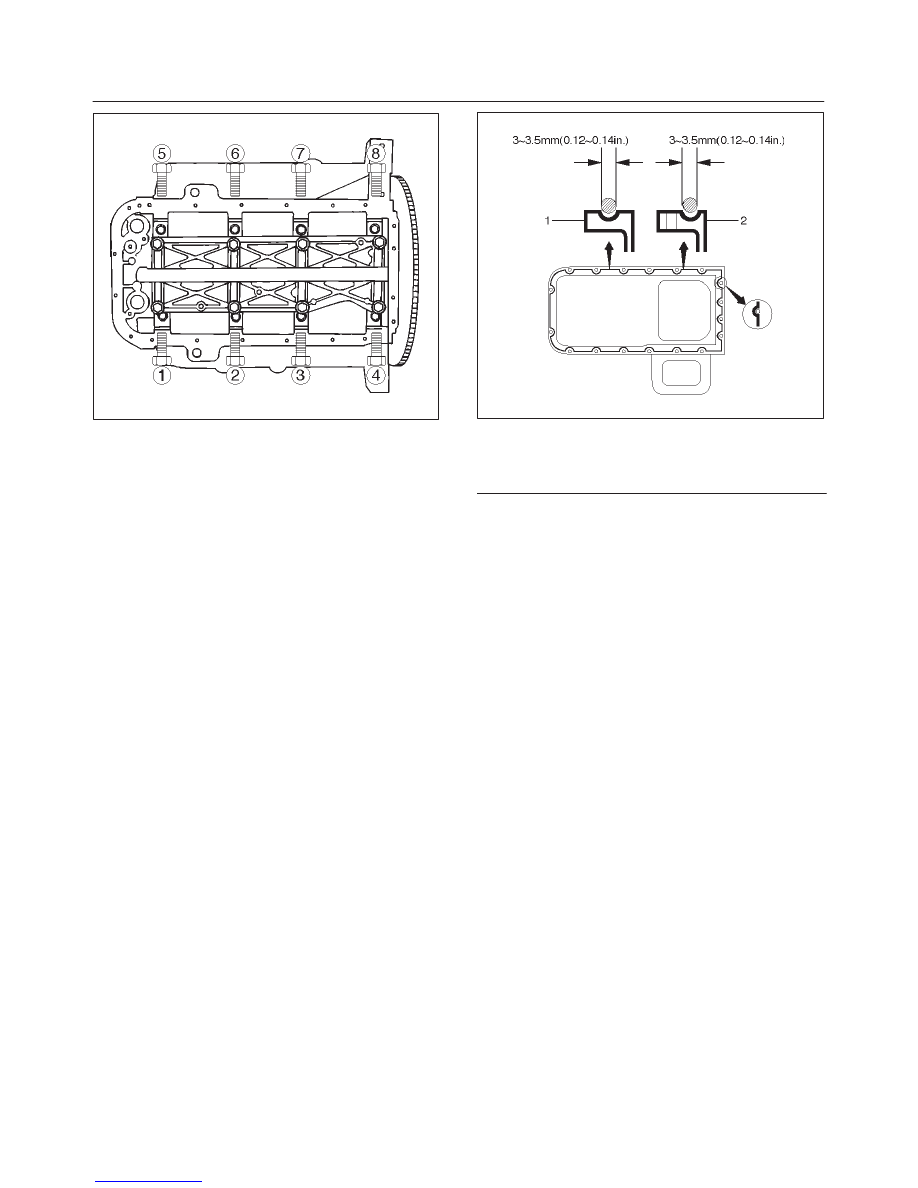

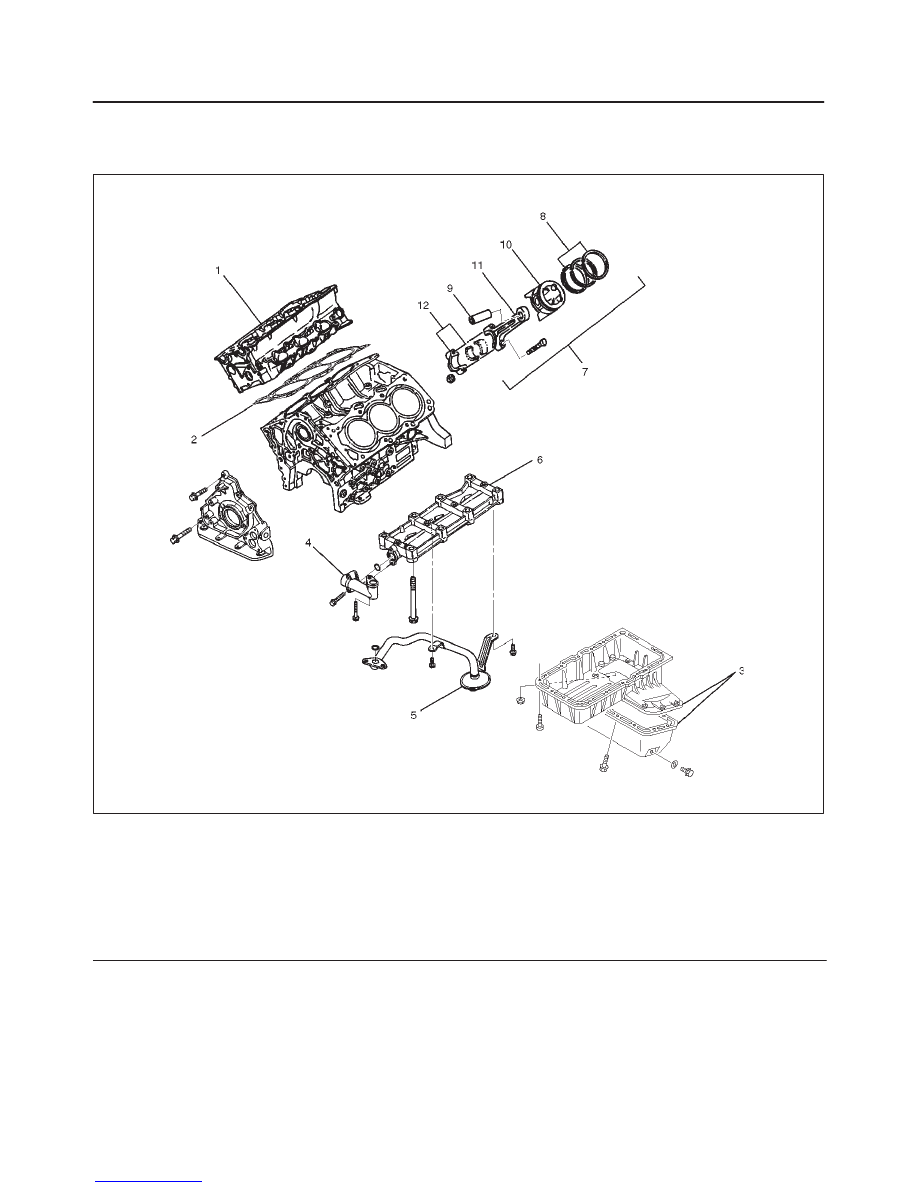

6A–73 ENGINE MECHANICAL 012RS001 7. Install oil pump assembly (5), refer to “Oil pump” in this manual. 8. Install oil strainer and O-ring (4). Torque: 25 N·m (18 lb ft) 10. Install crankcase with oil pan (2). 1. Completely remove all residual sealant, lubricant and moisture from the sealing surfaces. The 2. Apply a correct width bead of sealant (TB— 1207C or its equivalent) to the contact surfaces of 3. The crankcase assembly must be installed within 5 minutes after sealant application to prevent 4. Tighten the bolts and nuts to the specified torque. Torque : 10 N·m (89 lb in) 013RW010 Legend (1) Portion Between Bolt Holes 11. Install cylinder head assembly, refer to “Cylinder head” in this manual. |
