SUN ROOF/CONVERTIBLE TOP

8I–1

RODEO

BODY AND ACCESSORIES

SUN ROOF/CONVERTIBLE TOP

CONTENTS

Service Precaution

8I–1

. . . . . . . . . . . . . . . . . . . . . .

Sun Roof Glass

8I–2

. . . . . . . . . . . . . . . . . . . . . . . . .

Sun Roof Glass and Associated Parts

8I–2

. . . .

Removal

8I–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8I–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Sun Roof Deflector

8I–3

. . . . . . . . . . . . . . . . . . . . . .

Removal

8I–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8I–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Sunshade

8I–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Disassembled View

8I–4

. . . . . . . . . . . . . . . . . . . .

Removal

8I–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8I–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Sun Roof Frame Complete Assembly

8I–6

. . . . . .

Sun Roof Frame Complete Assembly and
Associated Parts

8I–6

. . . . . . . . . . . . . . . . . . . . . .

Removal

8I–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8I–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Sun Roof Switch

8I–7

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8I–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8I–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Sun Roof Control Unit

8I–8

. . . . . . . . . . . . . . . . . . . .

Removal

8I–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8I–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Safety Stop Switch

8I–8

. . . . . . . . . . . . . . . . . . . . . .

Removal

8I–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8I–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Limit Switch

8I–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8I–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8I–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Sun Roof Motor

8I–9

. . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8I–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8I–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

8I–10

. . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

8I–2

SUN ROOF/CONVERTIBLE TOP

Sun Roof Glass

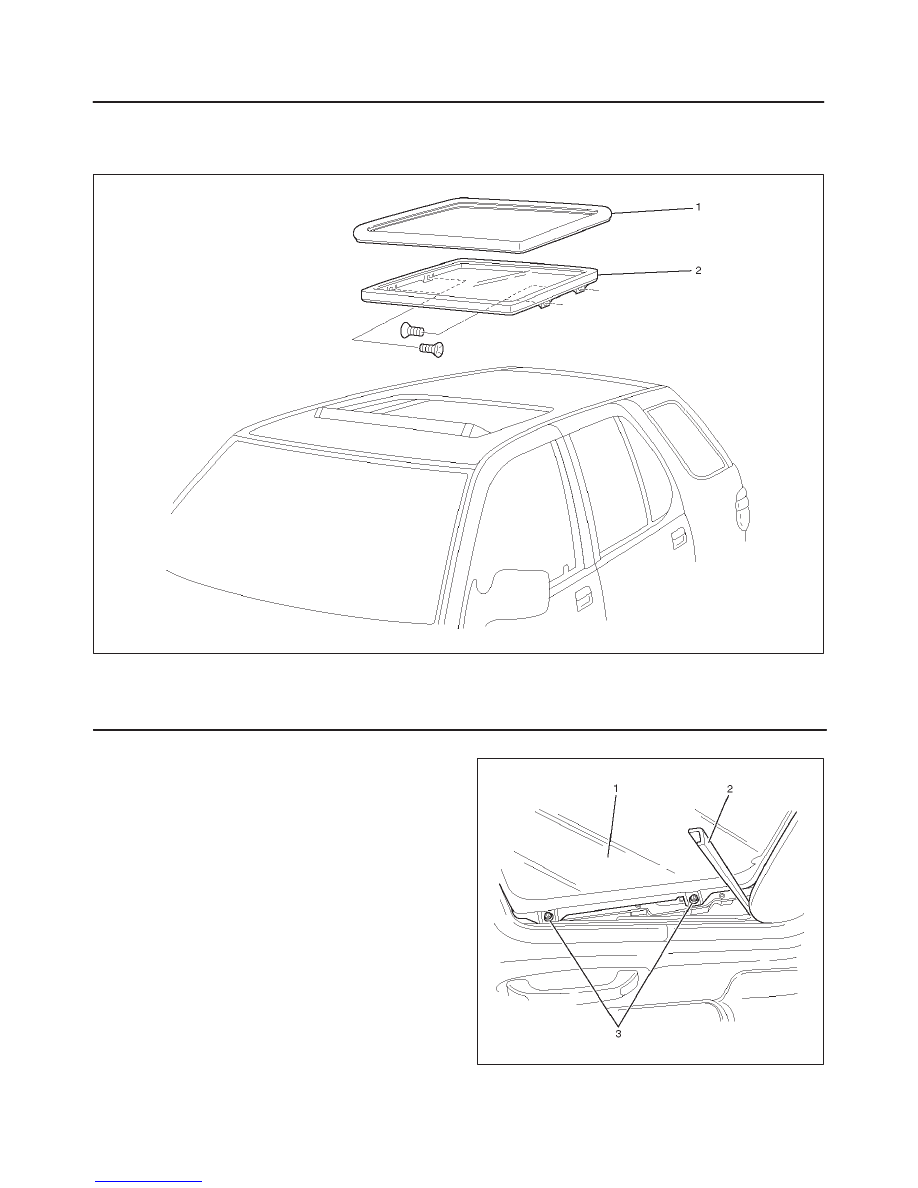

Sun Roof Glass and Associated Parts

665RW004

Legend

(1) Sun Roof Weatherstrip
(2) Sun Roof Glass

Removal

1. Tilt the sun roof and open the sunshade.
2. Disconnect the battery ground cable.
3. Pull out the front of sight shield (2).
4. Remove four sun roof glass fixing Torx screws (3) to

remove the sun roof glass (1).

665RW011

SUN ROOF/CONVERTIBLE TOP

8I–3

Installation

1. Be sure to install the sun roof weatherstrip so that the

joint of the weatherstrip is on the rear side of the
vehicle.

2. Temporary install the glass to the sun roof frame.
3. Open and shut the sun roof four to five times to

position correctly the sun roof weatherstrip and the
glass in the longitudinal and latitudinal setting
positions.

4. Adjust the setting position to flush the surface

between the roof panel and weatherstrip of sunroof
glass.

5. Tighten the sun roof glass fixing screws to the

specified torque.

Torque: 4 N·m (35 lb in)

6. After the sun roof glass is installed, recheck the roof

panel and sun roof glass for vertical install position.
If out of standard, adjust with fixing screws.

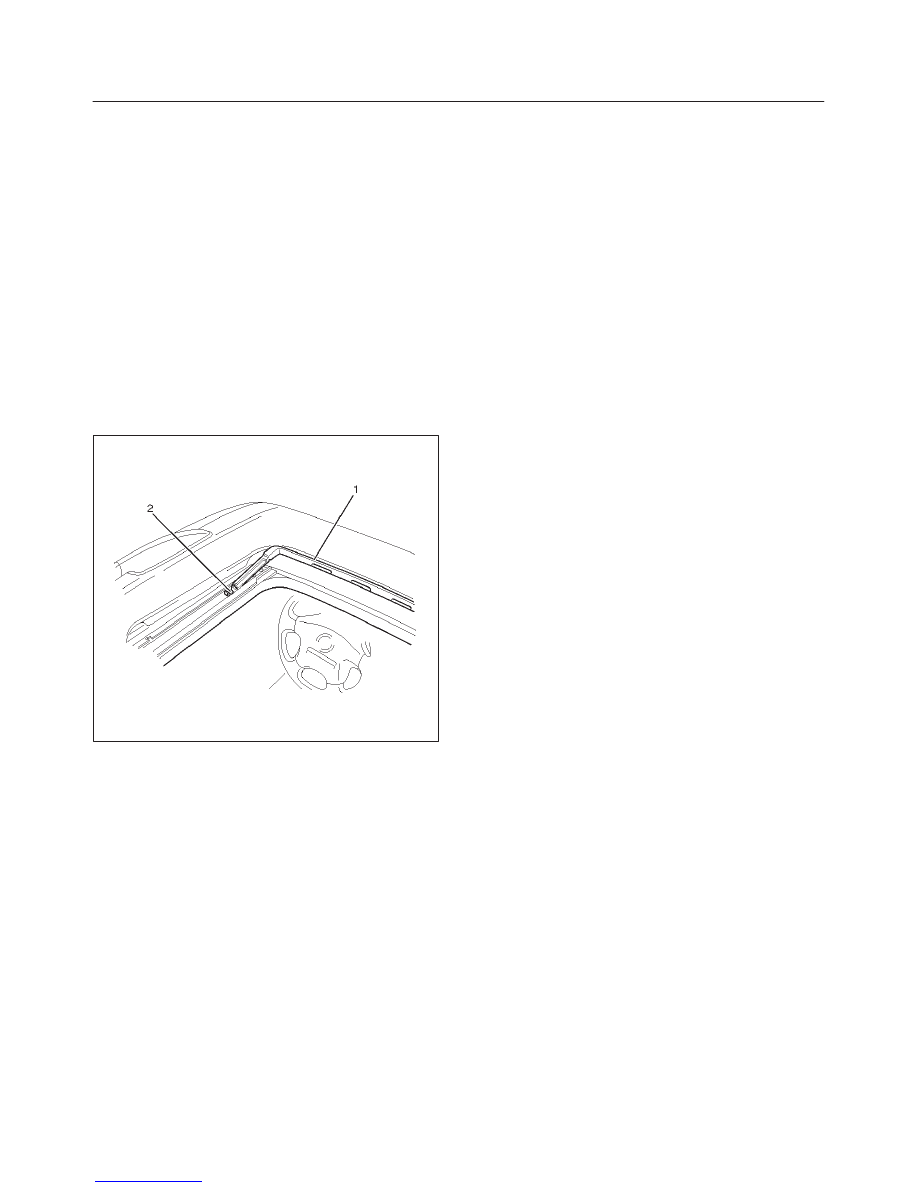

Sun Roof Deflector

Removal

1. Open the sun roof.

f

Let a 5 mm drill go through 2 blind rivets (2) to
disengage riveted portions.

2. Remove the sun roof deflector (1).

665RW008

Installation

To install, follow the removal steps in the reverse order.

8I–4

SUN ROOF/CONVERTIBLE TOP

Sunshade

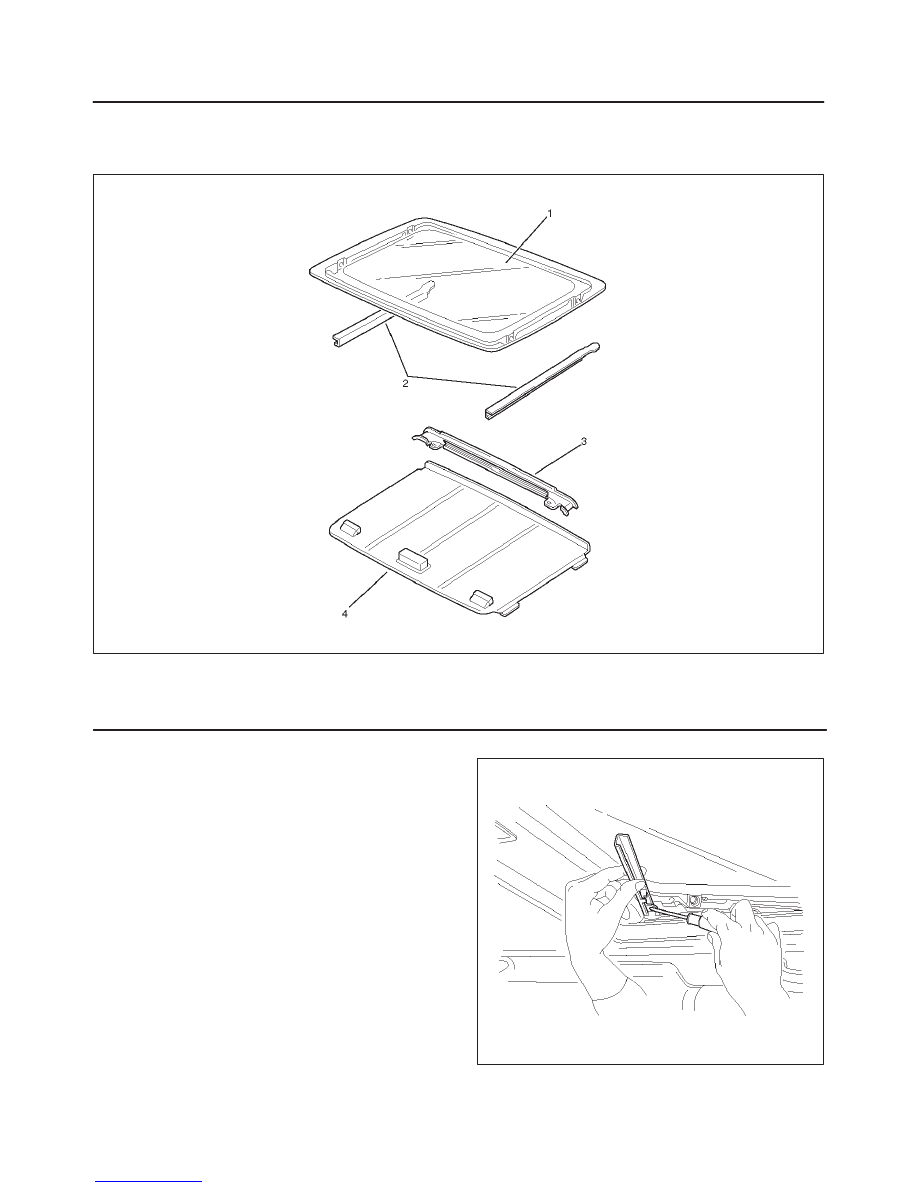

Disassembled View

665RW012

Legend

(1) Sun Roof Glass
(2) Sight Shield

(3) Sunshade Stopper
(4) Sunshade

Removal

1. Tilt the sun roof.
2. Disconnect the battery ground cable.
3. Remove the sun roof glass.

f

Refer to Sun Roof Glass in this section.

4. Pull the sight shield upward using screwdriver.

665RW006
