1A–74 HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

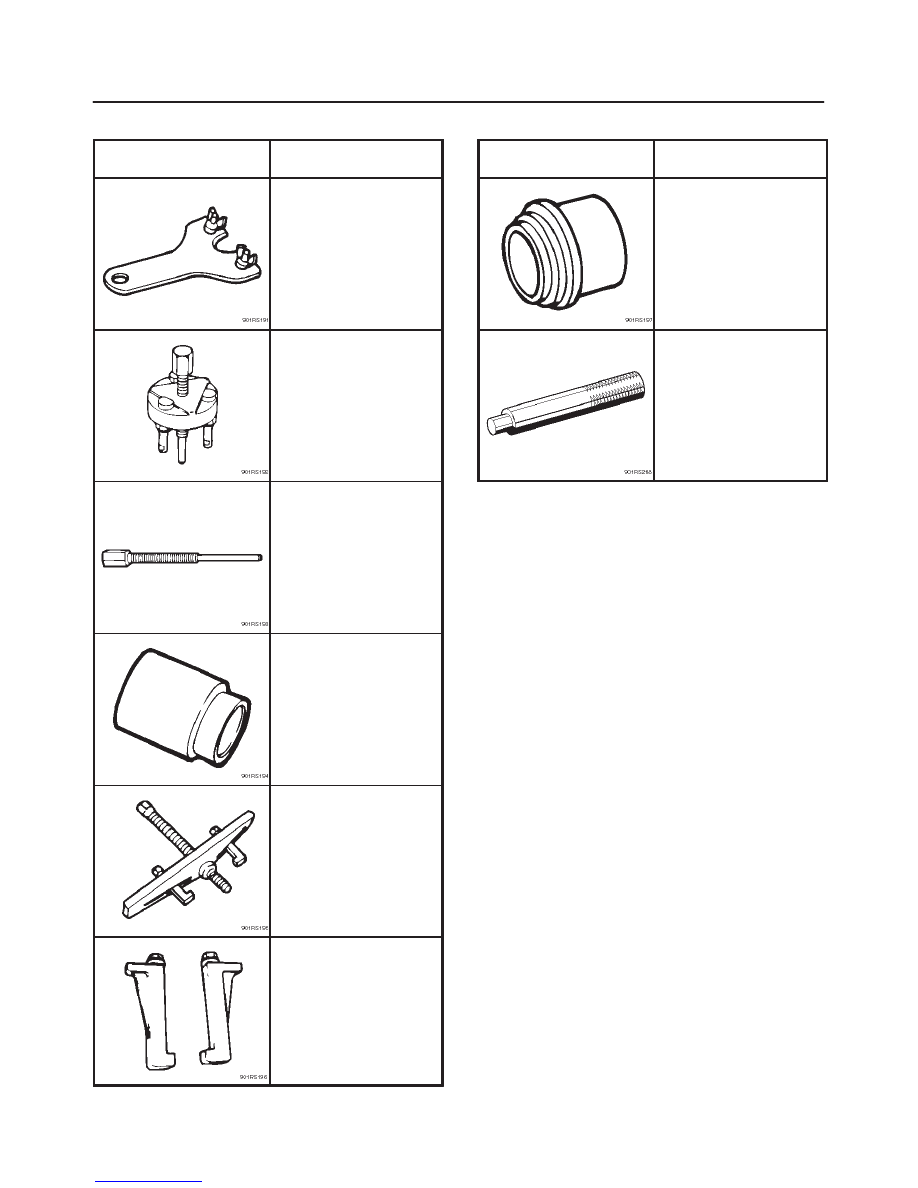

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

J-33939

Drive plate holder

J-33944-A

Drive plate puller

J-33944-4

Forcing screw

J-38424

Pulley puller pilot

J-8433

Pulley puller

J-24092-2

Pulley puller leg

ILLUSTRATION

TOOL NO.

TOOL NAME

J-33940-A

Pulley installer

J-8092

Drive handle

POWER–ASSISTED STEERING SYSTEM

2A–1

RODEO

STEERING

POWER-ASSISTED STEERING SYSTEM

CONTENTS

Service Precaution

2A–2

. . . . . . . . . . . . . . . . . . . . . .

Diagnosis

2A–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

General Description

2A–8

. . . . . . . . . . . . . . . . . . . . .

Power Steering System Test

2A–10

. . . . . . . . . . . . . .

Maintenance

2A–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fluid Level

2A–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Bleeding The Power Steering System

2A–11

. . . . . .

Bleeding Procedure

2A–11

. . . . . . . . . . . . . . . . . . . . .

Flushing The Power Steering System

2A–11

. . . . . .

Steering Wheel Free Play Inspection

2A–12

. . . . . .

Front End Alignment Inspection and
 Adjustment

2A–12

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

2A–16

. . . . . . . . . . . . .

Special Tools

2A–17

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Steering Unit

2A–18

. . . . . . . . . . . . . . . . . . . . .

Power Steering Unit and Associated Parts

2A–18

Removal

2A–18

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation (4

×

2 Model)

2A–19

. . . . . . . . . . . . . . . .

Installation (4

×

4 Model)

2A–19

. . . . . . . . . . . . . . . .

Power Steering Unit Disassembled View

2A–20

. .

Disassembly

2A–20

. . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

2A–20

. . . . . . . . . . . . . . . . . .

Reassembly

2A–20

. . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

2A–21

. . . . . . . . . . .

Special Tools

2A–21

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Steering Pump

2A–22

. . . . . . . . . . . . . . . . . . . .

Power Steering Pump and Associated Parts

2A–22

Removal

2A–22

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

2A–22

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Steering Pump Disassembled View

2A–23

Disassembly

2A–23

. . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

2A–24

. . . . . . . . . . . . . . . . . .

Reassembly

2A–24

. . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

2A–26

. . . . . . . . . . .

Transfer Gear Assembly

2A–27

. . . . . . . . . . . . . . . . .

Transfer Gear Assembly and Associated
 Parts

2A–27

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

2A–27

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

2A–27

. . . . . . . . . . . . . . . . . .

Installation

2A–27

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Supplemental Restraint System Steering
 Wheel & Column

2A–28

. . . . . . . . . . . . . . . . . . . . . . .

Service Precaution

2A–28

. . . . . . . . . . . . . . . . . . . .

SRS Connectors

2A–28

. . . . . . . . . . . . . . . . . . . . . .

Inflator Module

2A–30

. . . . . . . . . . . . . . . . . . . . . . . . . .

Inflator Module and Associated Parts

2A–30

. . . . .

Removal

2A–30

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

2A–31

. . . . . . . . . . . . . . . . . .

Installation

2A–31

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Steering Wheel

2A–32

. . . . . . . . . . . . . . . . . . . . . . . . .

Steering Wheel and Associated Parts

2A–32

. . . .

Removal

2A–32

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

2A–34

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Combination Switch

2A–35

. . . . . . . . . . . . . . . . . . . . .

Combination Switch and Associated Parts

2A–35

Removal

2A–35

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

2A–37

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Lock Cylinder

2A–39

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Lock Cylinder and Associated Parts

2A–39

. . . . . .

Removal

2A–39

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

2A–41

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

System Inspection

2A–42

. . . . . . . . . . . . . . . . . . . . .

Steering Column

2A–43

. . . . . . . . . . . . . . . . . . . . . . . .

Steering Column and Associated Parts

2A–43

. . .

Removal

2A–43

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Insepction

2A–46

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

2A–47

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

System Inspection

2A–48

. . . . . . . . . . . . . . . . . . . . .

Supplemental Restraint System Steering
 Wheel & Column and Associated Parts

2A–49

. . . .

Main Data and Specifications

2A–49

. . . . . . . . . . .

Special Tools

2A–49

. . . . . . . . . . . . . . . . . . . . . . . . . .

2A–2 POWER–ASSISTED STEERING SYSTEM

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).  REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

Diagnosis

Since the problems in steering, suspension, wheels and
tires involve several systems, they must all be considered
when diagnosing a complaint. To identify the symptom,
always road test the vehicle first. Proceed with the follow-
ing preliminary inspections and correct any defects which
are found.

1. Inspect tires for proper pressure and uneven wear.
2. Raise vehicle on a hoist, then inspect front and rear

suspension and steering linkage for loose or
damaged parts.

3. Spin the front wheels.  Inspect for out-of-round tires,

out-of-balance tires, loose and/or rough wheel
bearings.

General Diagnosis

Condition

Possible cause

Correction

Vehicle Pulls

Mismatched or uneven tires.

Replace tire.

Tires not adequately inflated.

Adjust tire pressure.

Broken or sagging springs.

Replace spring.

Radial tire lateral force.

Replace tire.

Improper wheel alignment.

Adjust wheel alignment.

Brake dragging in one wheel.

Repair brake.

Loose, bent or broken front or rear
suspension parts.

Tighten or replace the appropriate
suspension part(s).

Faulty shock absorbers.

Replace shock absorber.

Parts in power steering valve
defective.

Replace power steering unit.

Abnormal or Excessive Tire Wear

Sagging or broken spring.

Replace spring.

Tire out of balance.

Balance or replace tire.

Improper wheel alignment.

Check front end alignment.

Faulty shock absorber.

Replace shock absorber.

Hard driving.

Replace tire.

Overloaded vehicle.

Replace tire and reduce load.

Tires not rotated periodically.

Replace or rotate tire.

Worn or loose road wheel bearings.

Replace wheel bearing.

Wobbly wheel or tires.

Replace wheel or tire.

Tires not adequately inflated.

Adjust the pressure.

POWER–ASSISTED STEERING SYSTEM

2A–3

Condition

Correction

Possible cause

Wheel Hop

Blister or bump on tire.

Replace tire.

Improper shock absorber operation.

Replace shock absorber.

Shimmy, Shake or Vibration

Tire or wheel out of balance.

Balance wheels or replace tire/or
wheel.

Loose wheel bearings.

Replace wheel bearing.

Worn steering linkage ball joints.

Replace ball joints.

Worn upper or lower end ball joints.

Replace ball joints.

Excessive wheel run–out.

Repair or replace wheel and/or tire.

Blister or bump on tire.

Replace tire.

Excessive loaded radial run–out of
tire/wheel assembly.

Replace tire or wheel.

Improper wheel alignment.

Check wheel alignment.

Loose or worn steering linkage.

Tighten or replace steering linkage.

Loose steering unit.

Tighten steering unit.

Tires not adequately inflated.

Adjust tire pressure.

Loose, bent or broken front or rear
suspension parts.

Tighten or replace the appropriate
suspension parts.

Faulty shock absorber.

Replace shock absorber.

Hub bearing preload misadjustment.

Adjust preload.

Parts in power steering valve
defective.

Replace power steering unit.

Hard Steering

Bind in steering linkage ball studs,
upper or lower end ball joint.

Replace ball joint.

Improper wheel alignment.

Check wheel alignment.

Tire not adequately inflated.

Inflate tires to proper pressure.

Bind in steering column or shaft.

Repair or replace.

Improper power steering system
operation.

Repair or replace.

Refer to “Power steering system diag-

nosis”

Too Much Play In Steering

Wheel bearings worn.

Replace wheel bearings.

Loose steering unit or linkage.

Retighten or repair.

Worn or loose steering shaft
universal joint.

Retighten or replace steering shaft.

Worn steering linkage ball joints.

Replace ball joints.

Worn upper or lower end ball joints.

Replace ball joints.

Poor Steering Wheel Returnability

Bind in steering linkage ball joints.

Replace ball joints.

Bind in upper or lower end ball joints.

Replace ball joints.

Bind in steering column and shaft.

Repair or replace.

Bind in steering gear.

Check and repair steering gear.

Improper wheel alignment.

Adjust wheel alignment.

Tires not adequately inflated.

Adjust tire pressure.

Loose steering wheel nut.

Retighten.

Worn wheel bearing.

Replace.
