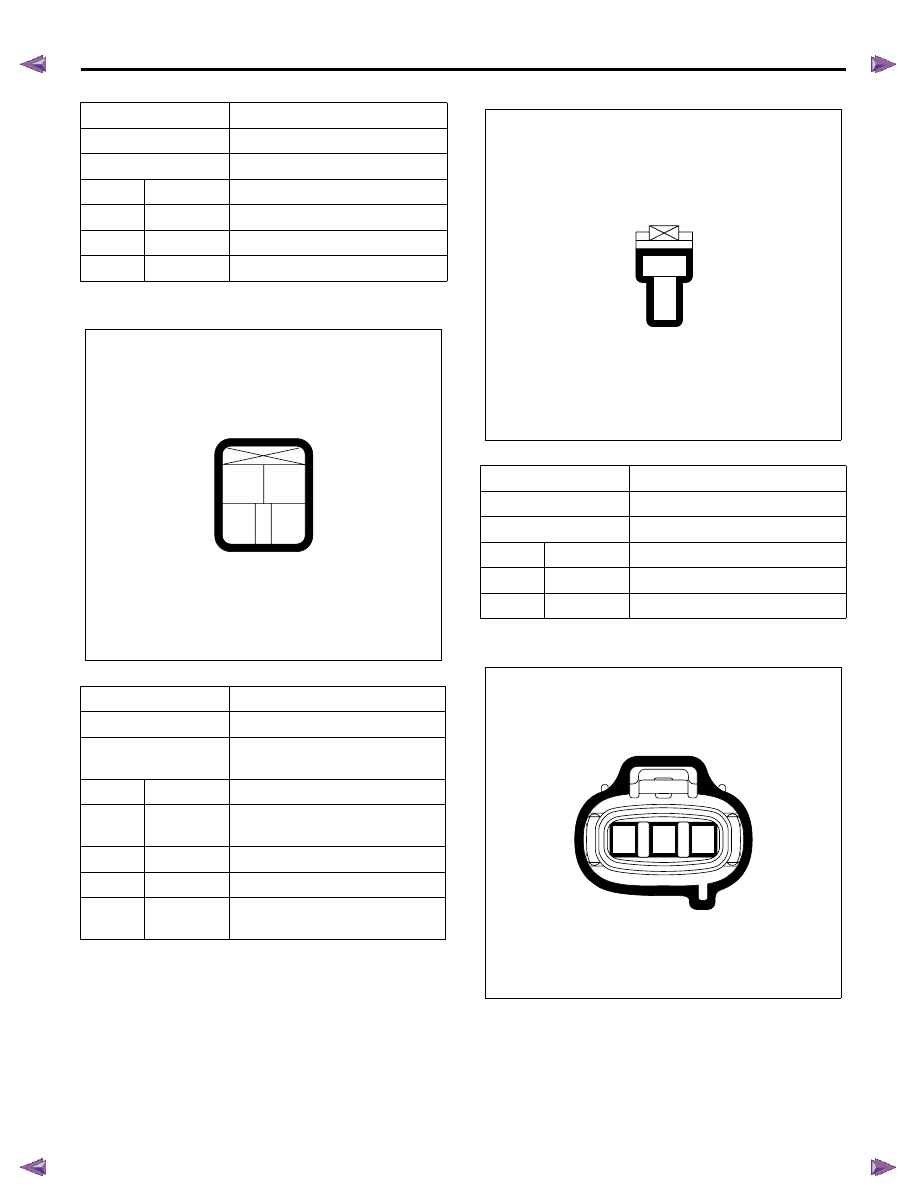

ENGINE CONTROL SYSTEM (4JK1/4JJ1)   6E-35

Brake Switch

Clutch Switch

Camshaft Position (CMP) Sensor

Connector No.

E-107

Connector Color

Black

Test Adapter No.

J-35616-64A

Pin No.

Wire Color

Pin Function

1

YEL

Sensor signal

2

BLU

Sensor low reference

3

GRN

Sensor 5V reference

Connector No.

C-44

Connector Color

White

Test Adapter No.

J-35616-40 (Pin1-2)

J-35616-2A (Pin3-4)

Pin No.

Wire Color

Pin Function

1

GRN

Switch 1 (stop lamp switch)
battery voltage feed

2

RED

Switch 1 (stop lamp switch) signal

3

ORN

Switch 2 signal

4

WHT/  GRN

Brake switch 2 ignition voltage
feed

RTW76ESH000801

1

2

3

4

Connector No.

C-77

Connector Color

White

Test Adapter No.

J-35616-42

Pin No.

Wire Color

Pin Function

1

WHT/ GRN

Ignition voltage feed

2

YEL

Switch signal

LNW46ESH000801

1
2

RTW76ESH000701

1

2 3

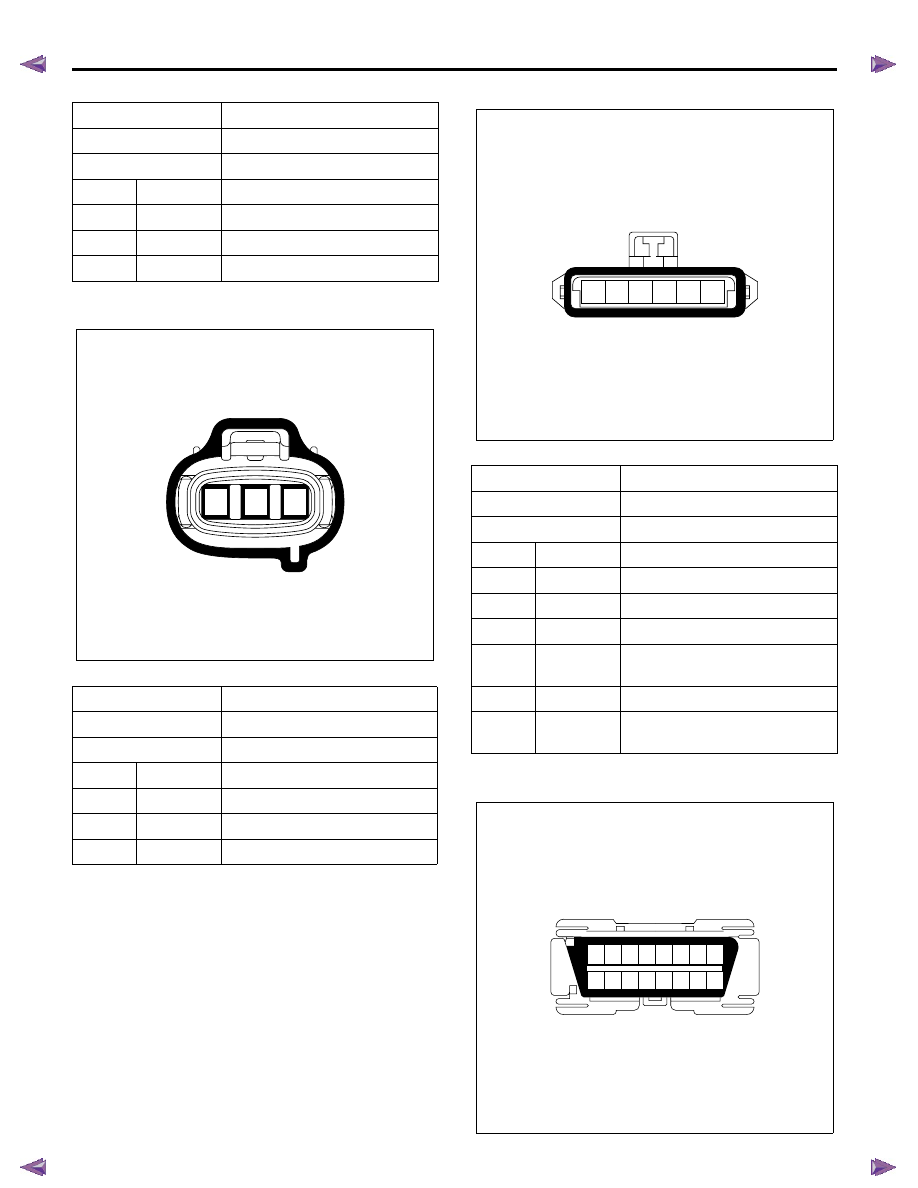

6E-36   ENGINE CONTROL SYSTEM (4JK1/4JJ1)

Crankshaft Position (CKP) Sensor

Cruise Main Switch

Data Link Connector (DLC)

Connector No.

E-39

Connector Color

Black

Test Adapter No.

J-35616-64A

Pin No.

Wire Color

Pin Function

1

WHT

Sensor signal

2

BLK

Sensor low reference

3

RED

Sensor 5V reference

Connector No.

E-52

Connector Color

Black

Test Adapter No.

J-35616-64A

Pin No.

Wire Color

Pin Function

1

YEL

Sensor signal

2

BLU

Sensor low reference

3

GRN

Sensor 5V reference

RTW76ESH000701

1

2 3

Connector No.

B-67

Connector Color

White

Test Adapter No.

J-35616-33

Pin No.

Wire Color

Pin Function

1

RED/ GRN

Illumination lamp ground

2

GRN/ RED

Illumination lamp voltage feed

3

WHT/ GRN

Cruise main switch signal

4

WHT/  GRN

Cruise main switch ignition
voltage

5

—

Not used

6

GRN/ WHT

Cruise main switch ignition lamp
ground

RTW76ESH001101

1 2 3 4 5 6

LNW36ESH015801

8

7

6

5

4

3

2

1

16

15

14

13

12

11

10

9

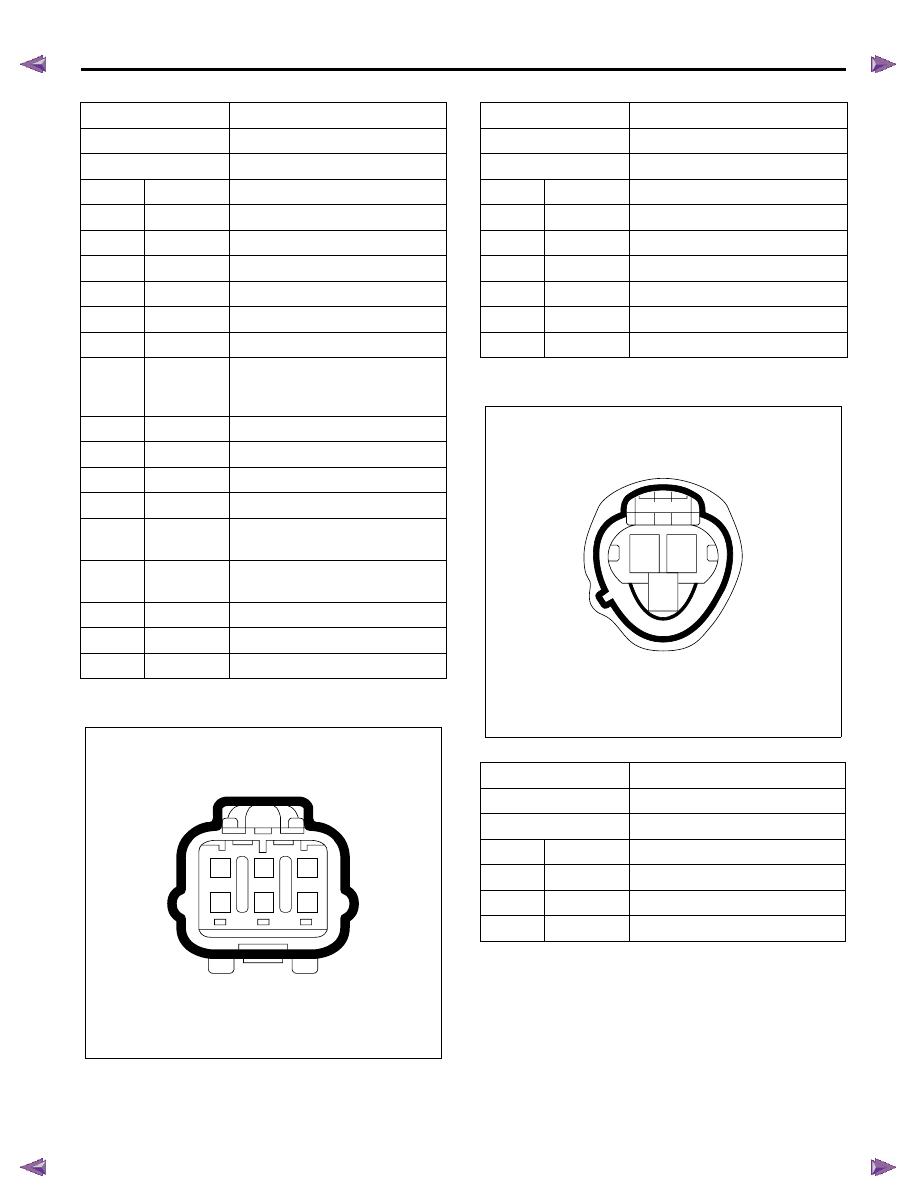

ENGINE CONTROL SYSTEM (4JK1/4JJ1)   6E-37

EGR Valve

Engine Coolant Temperature (ECT) Sensor

Connector No.

B-58

Connector Color

Black

Test Adapter No.

J-35616-2A

Pin No.

Wire Color

Pin Function

1

BKL/ GRN

Diagnostic request switch (ECM)

2

—

Not used

3

—

Not used

4

BLK

Ground

5

BLK

Ground

6

BLU

CAN high

7

VIO/ GRN

Keyword serial data (TCM
[standard output], EHCU [ABS
module] and SRS control unit)

8

—

Not used

9

—

Not used

10

—

Not used

11

YEL/ BLK

Diagnostic request switch (TCM)

12

ORN/ WHT

Diagnostic request switch (EHCU
[ABS module])

13

RED

Diagnostic request switch (SRS
control unit)

14

YEL

CAN low

15

—

Not used

16

RED/ YEL

Battery voltage

LNW46ESH001901

1
4

2
5

3
6

Connector No.

E-71

Connector Color

Gray

Test Adapter No.

J-35616-64A

Pin No.

Wire Color

Pin Function

1

WHT/ BLU

Position sensor 5V reference

2

RED

Position sensor low reference

3

GRY

Position sensor signal

4

BRN

Solenoid drive voltage

5

—

Not  used

6

YEL

Solenoid control low side (PWM)

Connector No.

E-41

Connector Color

Gray

Test Adapter No.

J-35616-64A

Pin No.

Wire Color

Pin Function

1

GRN/ RED

Sensor signal

2

WHT

Sensor low reference

3

YEL/ BLK

Gauge signal

LNW46ESH001701

1

2

3

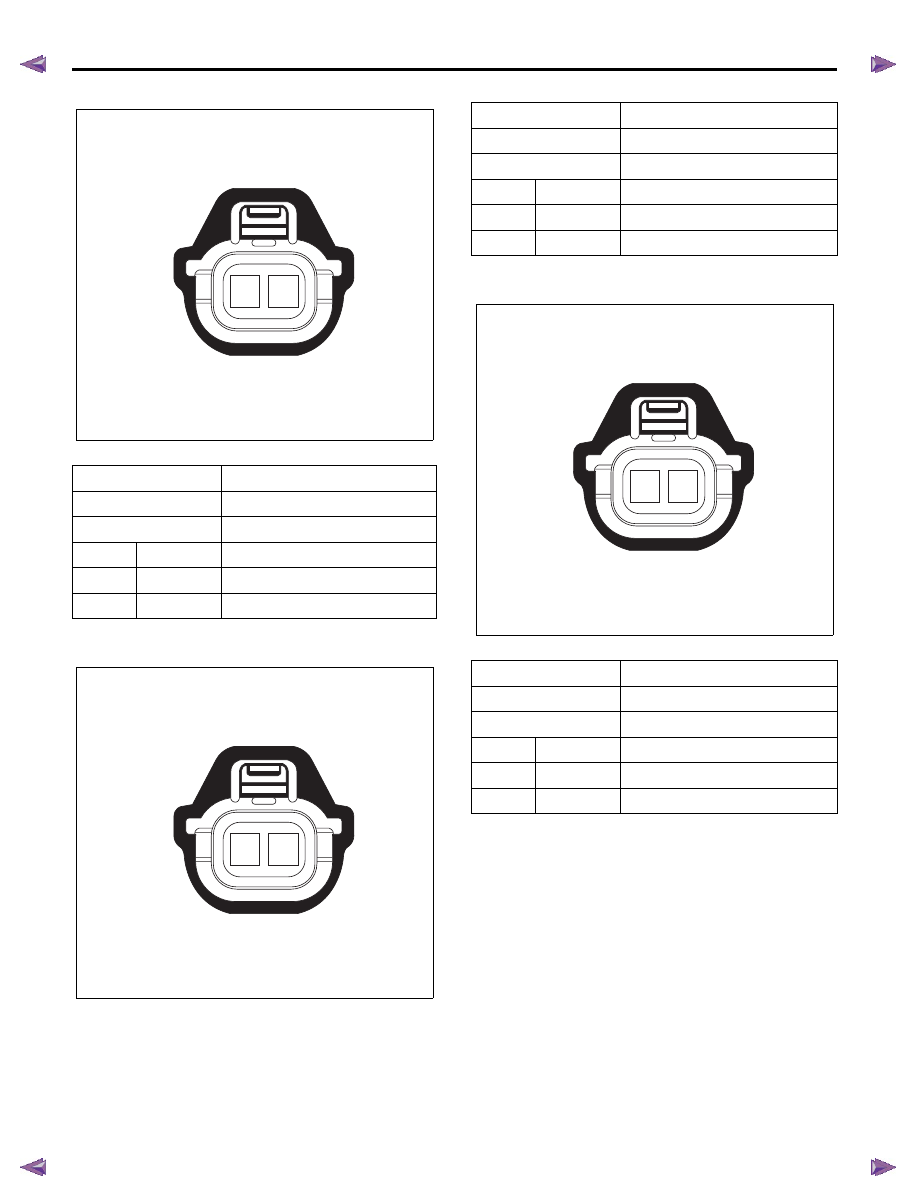

6E-38   ENGINE CONTROL SYSTEM (4JK1/4JJ1)

Fuel Injector No.1 Cylinder

Fuel Injector No.2 Cylinder

Fuel Injector No.3 Cylinder

Connector No.

E-13

Connector Color

Gray

Test Adapter No.

J-35616-64A

Pin No.

Wire Color

Pin Function

1

BLU/ YEL

Solenoid control

2

BLU

Charge voltage

LNW46ESH001101

1 2

LNW46ESH001101

1 2

Connector No.

E-14

Connector Color

Gray

Test Adapter No.

J-35616-64A

Pin No.

Wire Color

Pin Function

1

YEL

Solenoid control

2

RED

Charge voltage

Connector No.

E-15

Connector Color

Gray

Test Adapter No.

J-35616-64A

Pin No.

Wire Color

Pin Function

1

BRN

Solenoid control

2

WHT

Charge voltage

LNW46ESH001101

1 2
