4C2-10 SHIFT ON THE FLY SYSTEM
412RS044

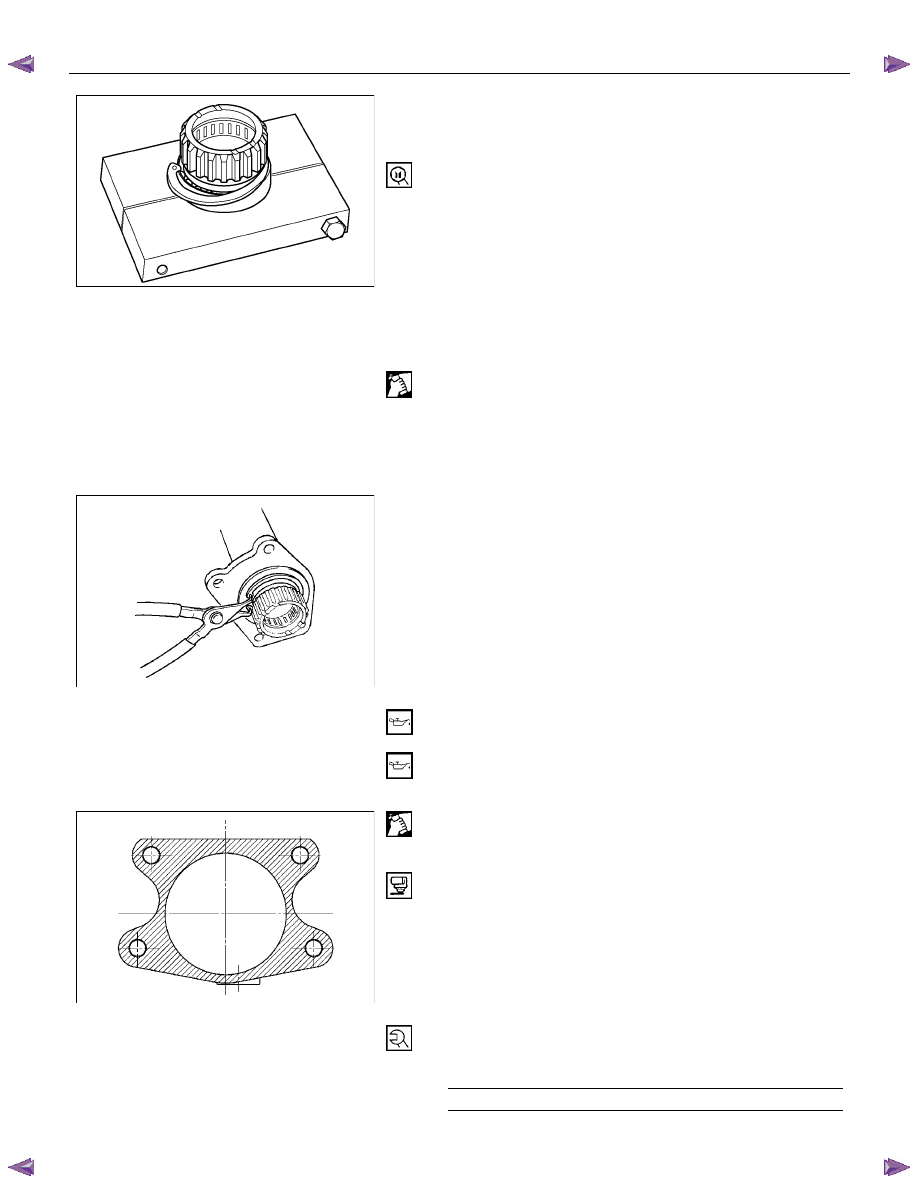

13. Inner Shaft Bearing • Place a new snap ring in inner shaft. : 5-8840-2197-0
12. Snap Ring Be careful not to damage the inner shaft.
11.inner Shaft • Clean the housing contact surface of the front axle case. • Insert inner shaft assembly into the front axle case. NOTE: Be careful not to damage oil seal.
412RW017
10. Snap Ring
Install snap ring in the groove of front axle case. NOTE: Be sure to install the snap ring properly.
9. Clutch Gear Apply differential gear oil to clutch oil. 8. Sleeve Apply differential gear oil to sleeve.

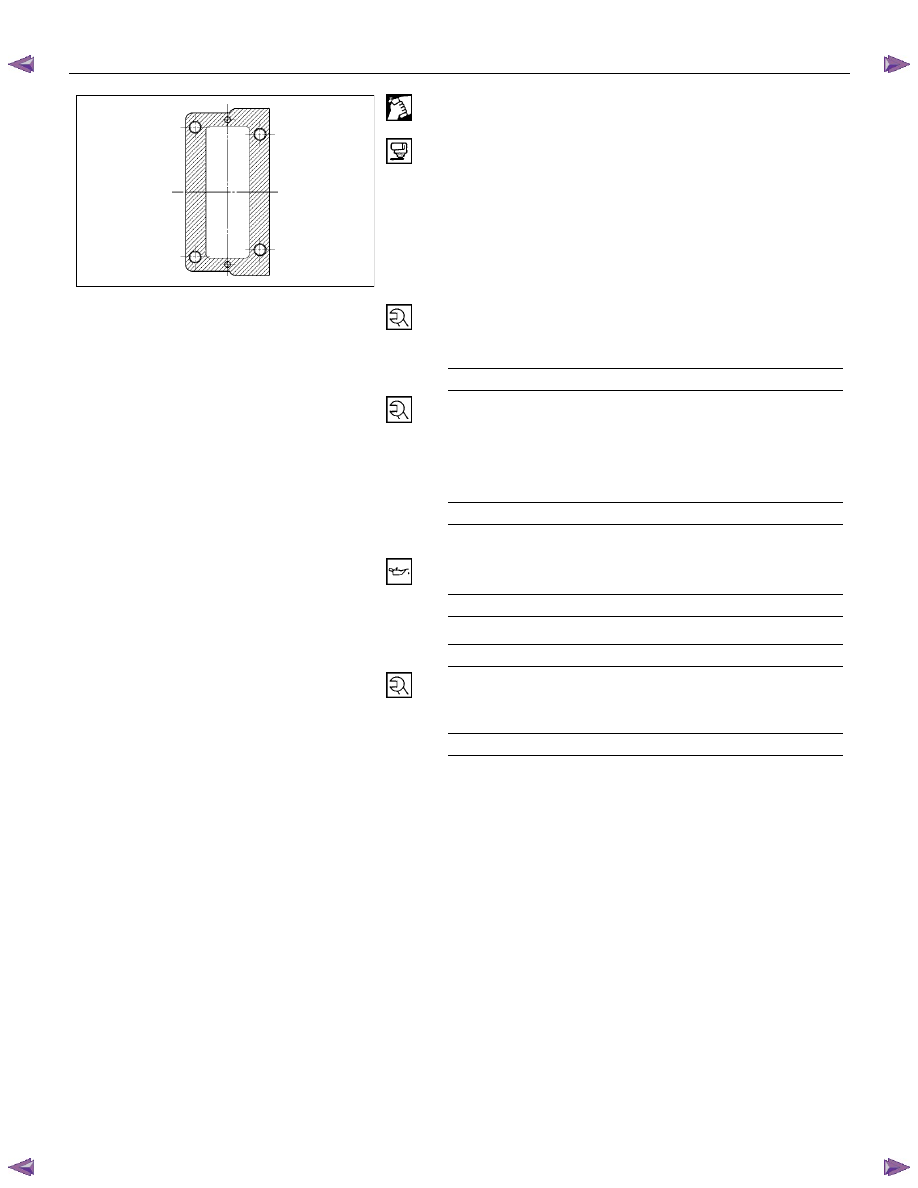

412RW023 7. Housing • Clean contact surface with the front axle and actuator mounting surface. • Apply liquid gasket to the contact surface on the front axle case and install in the housing.
6. Bolt
Tighten bolts to specified tightening torque.

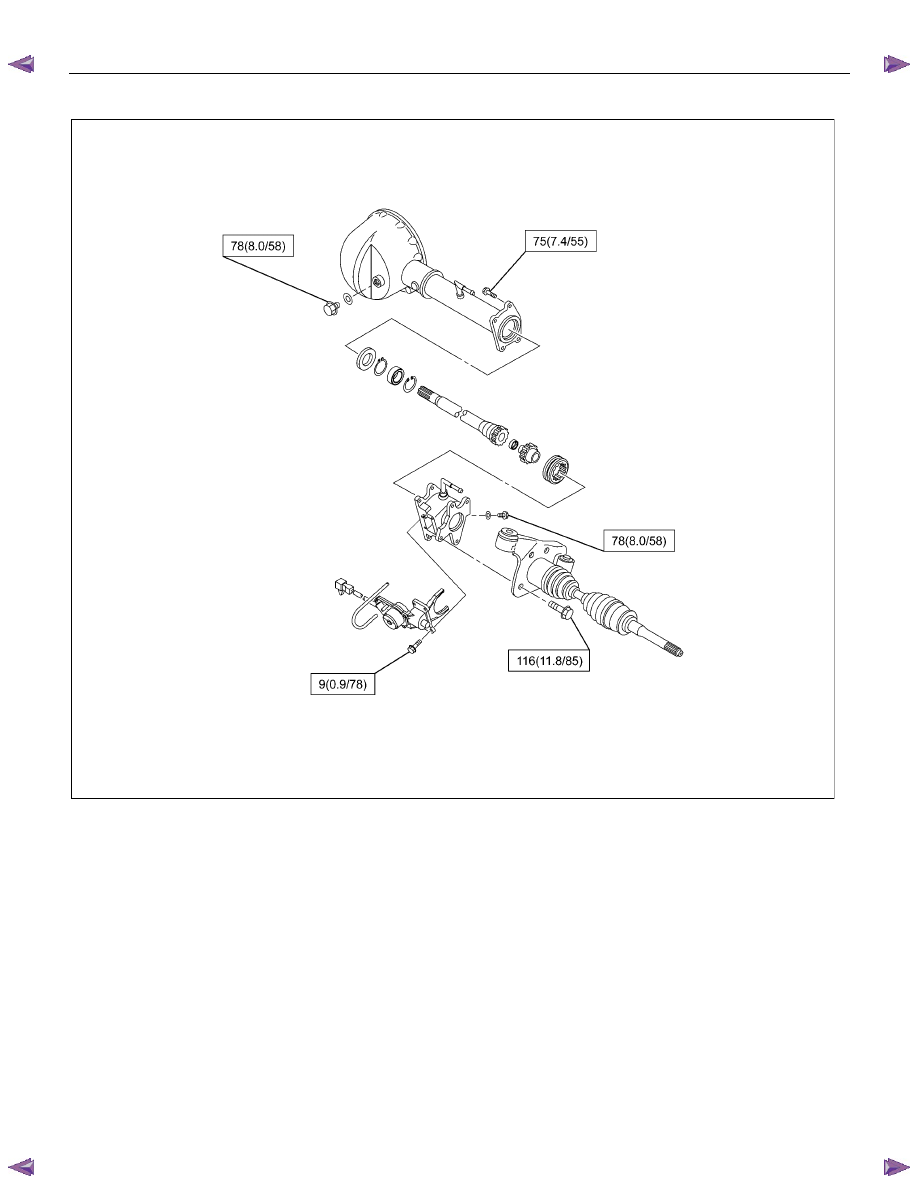

Housing Bolt Torque N ⋅m (kgf⋅m/lb⋅ft) 75 (7.6/55) |
