 Manual Transmission (MUX)    7B1-57

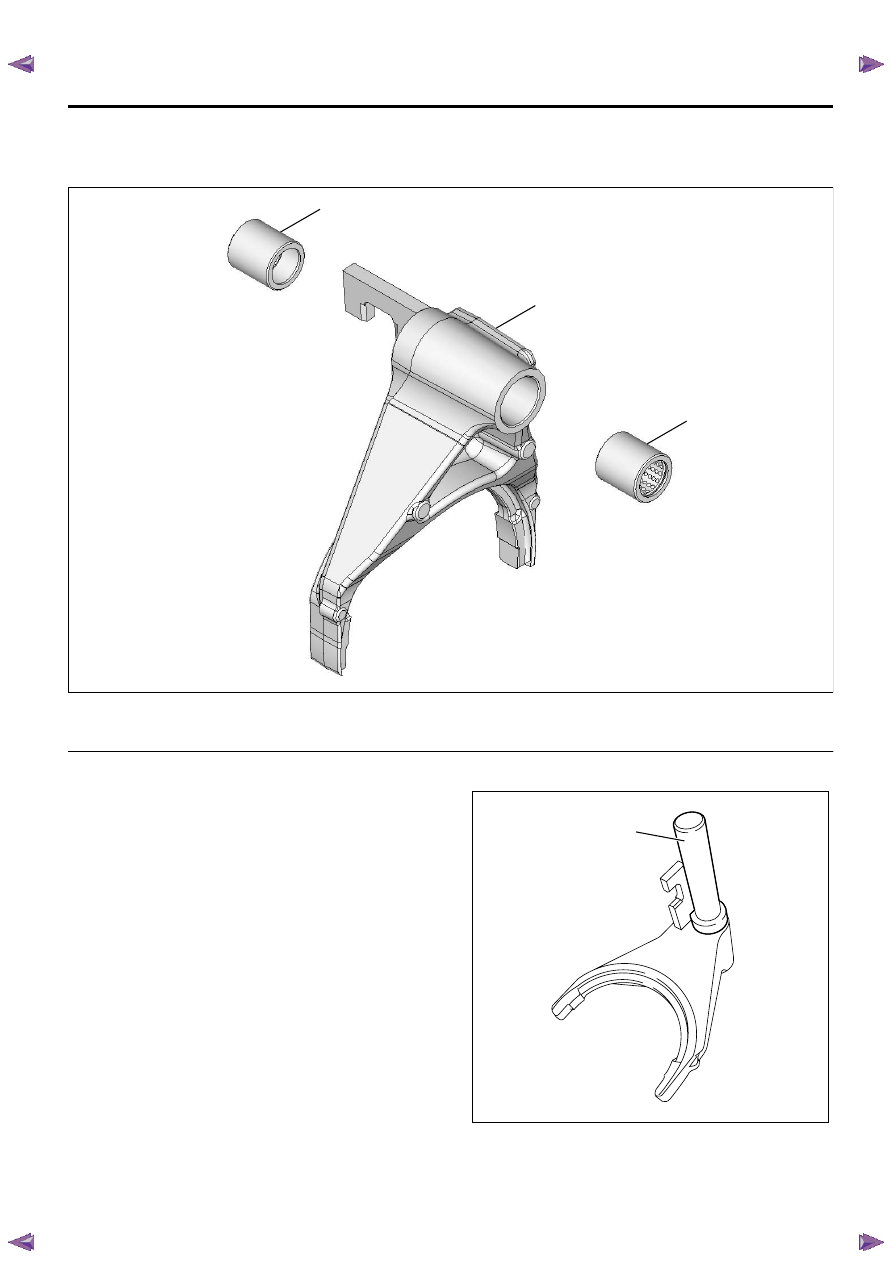

3rd-4th Shift Arm Assembly

Component

Legend

1. Linear ball bearing

2. 3rd-4th shift arm



Removal

1. Remove the two linear ball bearings.

Installation

1. Use the installer 5-8840-2848-0 (1) to install the

two linear ball bearings.

Notice:

• The bearing to be pressed fit to both boss faces.

• The bearing must be pressed at marked side.

RTW77BMF001201

1

2

1

RTW77BSH002801

1

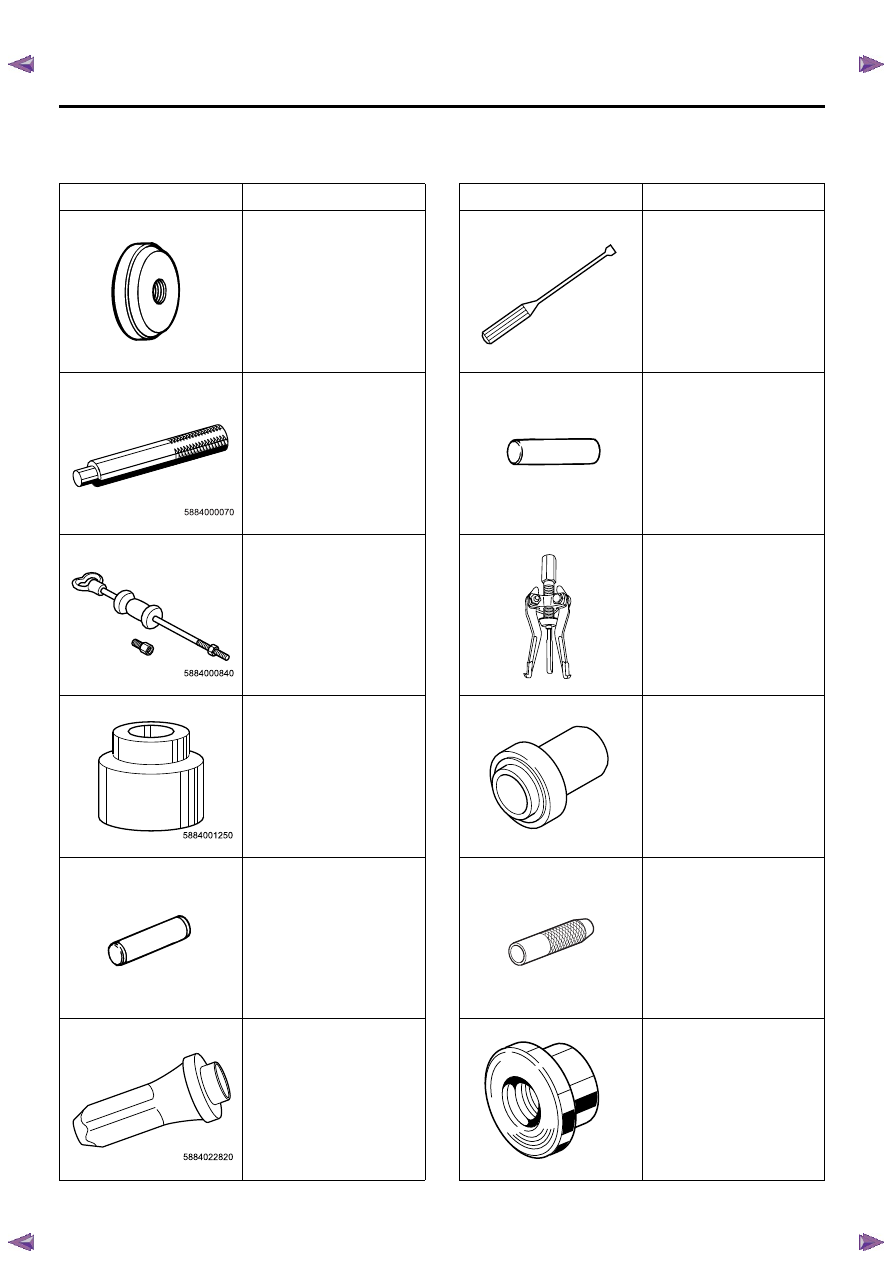

7B1-58    Manual Transmission (MUX)

Special Tools

Special Tools

Illustration

Tool Number/ Description

5-8522-0053-0 (J-29016)

Bearing Installer

5-8840-0007-0 (J-8092)

Grip

5-8840-0084-0 (J-2619-

01)

Sliding Hammer

5-8840-0125-0 (J-26516)

Pilot Bearing Installer

5-8840-2244-0 (J-5590)

Bearing Installer

5-8840-2282-0 (J-36797)

Oil Seal Installer

5852200530

5884022440

5-8840-2291-0 (J-39207)

Bearing Remover

5-8840-2346-0

Installer

5-8840-2757-0 (J-45887)

Bearing Remover

5-8840-2786-0 (J-46202)

Oil Seal Installer

9-8522-1182-0 (J-35835)

Bearing Installer

5-8840-2846-0

Oil Seal & Bearing

Installer

Illustration

Tool Number/ Description

5884022910

5884023460

5884027570

5884027860

9852211820

5884028460

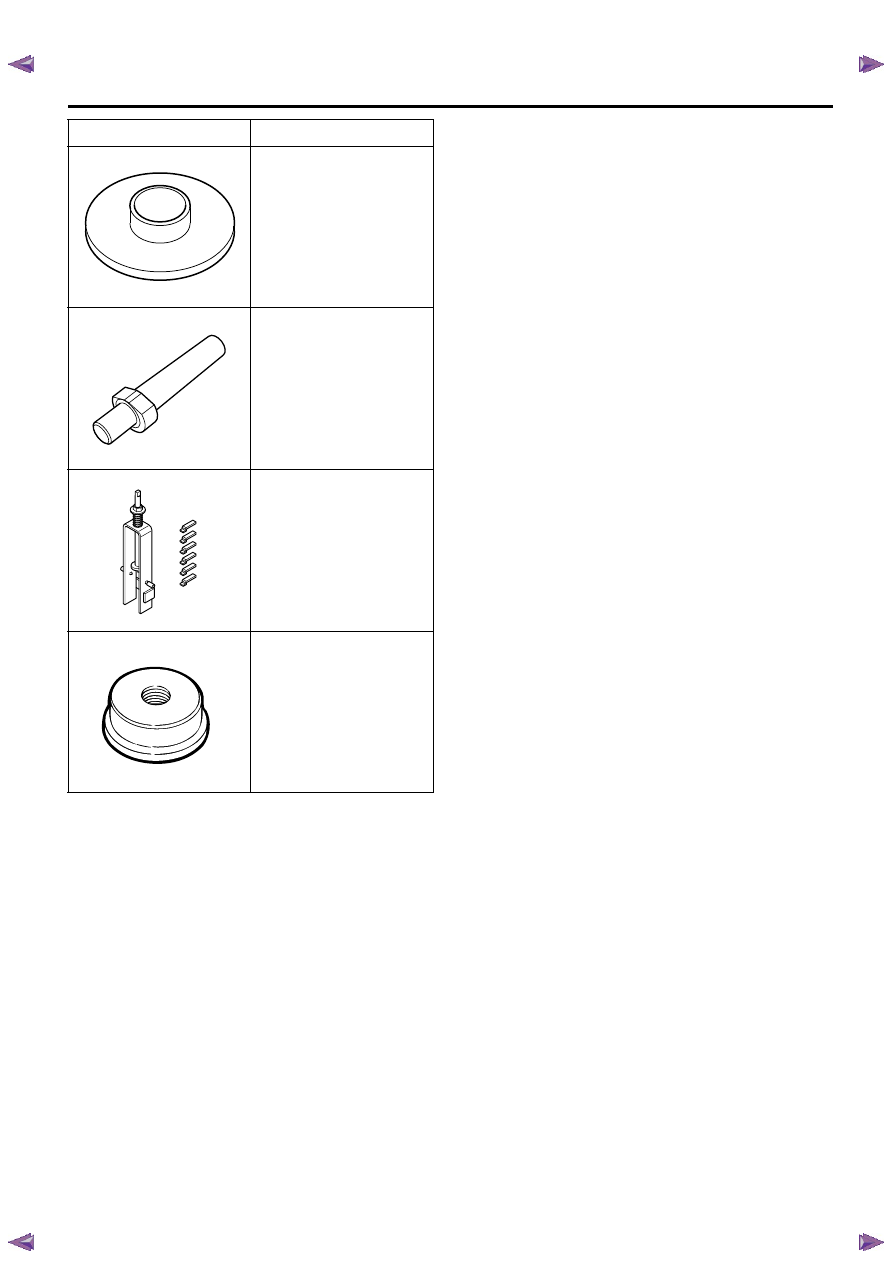

 Manual Transmission (MUX)    7B1-59

5-8840-2847-0

Bearing Installer

5-8840-2848-0

Linear Ball Bearing

Installer

5-8840-2849-0

Snap Ring Selector

5-8840-2850-0 (J-6197-

A)

Bearing Installer

Illustration

Tool Number/ Description

5884028470

5884028480

5884028490

5884028500

CLUTCH  7C-1

SECTION 7C

CLUTCH

TABLE OF CONTENTS

 PAGE

Main Data and Specifications.........................................................................................   7C-  2

General Description ........................................................................................................   7C-  3

Torque Specification .......................................................................................................   7C-16

Servicing ..........................................................................................................................  7C-20

Clutch ...............................................................................................................................  7C-22

Removal and Installation............................................................................................   7C-22

Inspection and Repair ................................................................................................   7C-26

Clutch Control..................................................................................................................  7C-32

Removal and Installation............................................................................................   7C-32

Master Cylinder................................................................................................................ 7C-33

Disassembly................................................................................................................  7C-33

Reassembly.................................................................................................................  7C-34

Slave Cylinder (MSG, MUA) ............................................................................................   7C-35

Disassembly................................................................................................................  7C-35

Inspection and Repair ................................................................................................   7C-36

Reassembly.................................................................................................................  7C-37

Slave Cylinder (MUX).......................................................................................................   7C-38

Disassembly................................................................................................................  7C-38

Inspection and Repair ................................................................................................   7C-39

Reassembly.................................................................................................................  7C-40

Hydraulic Damper Cylinder.............................................................................................   7C-41

Inspection and Repair ................................................................................................   7C-41

Troubleshooting ..............................................................................................................  7C-42

Special Service Tool........................................................................................................   7C-51
