FRONT SUSPENSION  3C-35

3.  Apply the setting marks (2) to the height control

arm and torsion bar, then remove height control

arm.

NOTE: “Besco chassis grease” should be applied on
contact area of height control arm with frame.

(RH & LH Both side)










410RS005

4.  Apply the setting marks (3) to the torsion bar and

lower control arm, and then remove torsion bar.






RTW340SH000301





Inspection and Repair

Make necessary correction or replace parts if wear,
damage, corrosion or any other abnormal condition is
found through inspection.

Check the following parts:

• Torsion

bar

•  Height control arm
• Adjust

bolt

•  Rubber seat

Installation

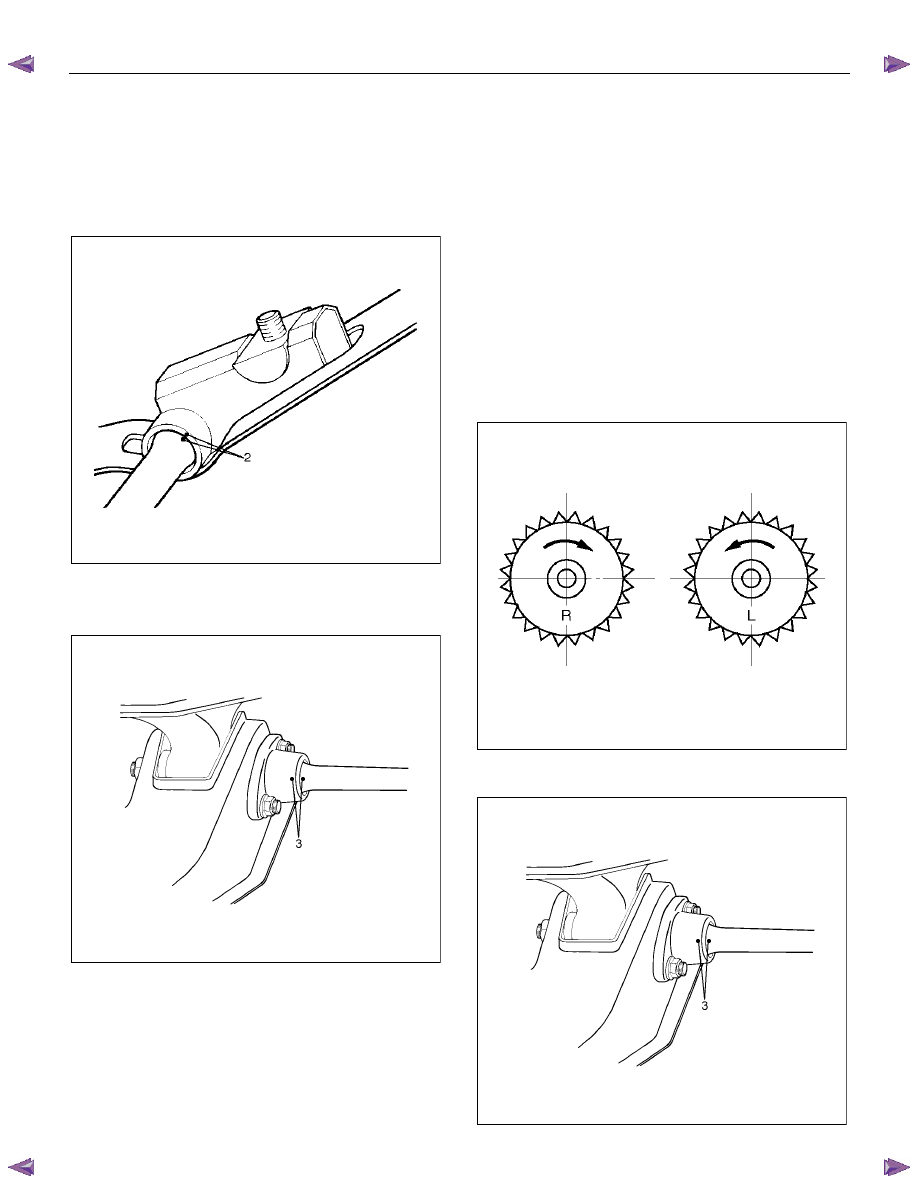

1.  Apply grease to the serrated portions, then install

torsion bar. Make sure the bars are on their correct

respective sides and align the setting marks (3).











410RS007







RTW340SH000301



3C-36  FRONT SUSPENSION

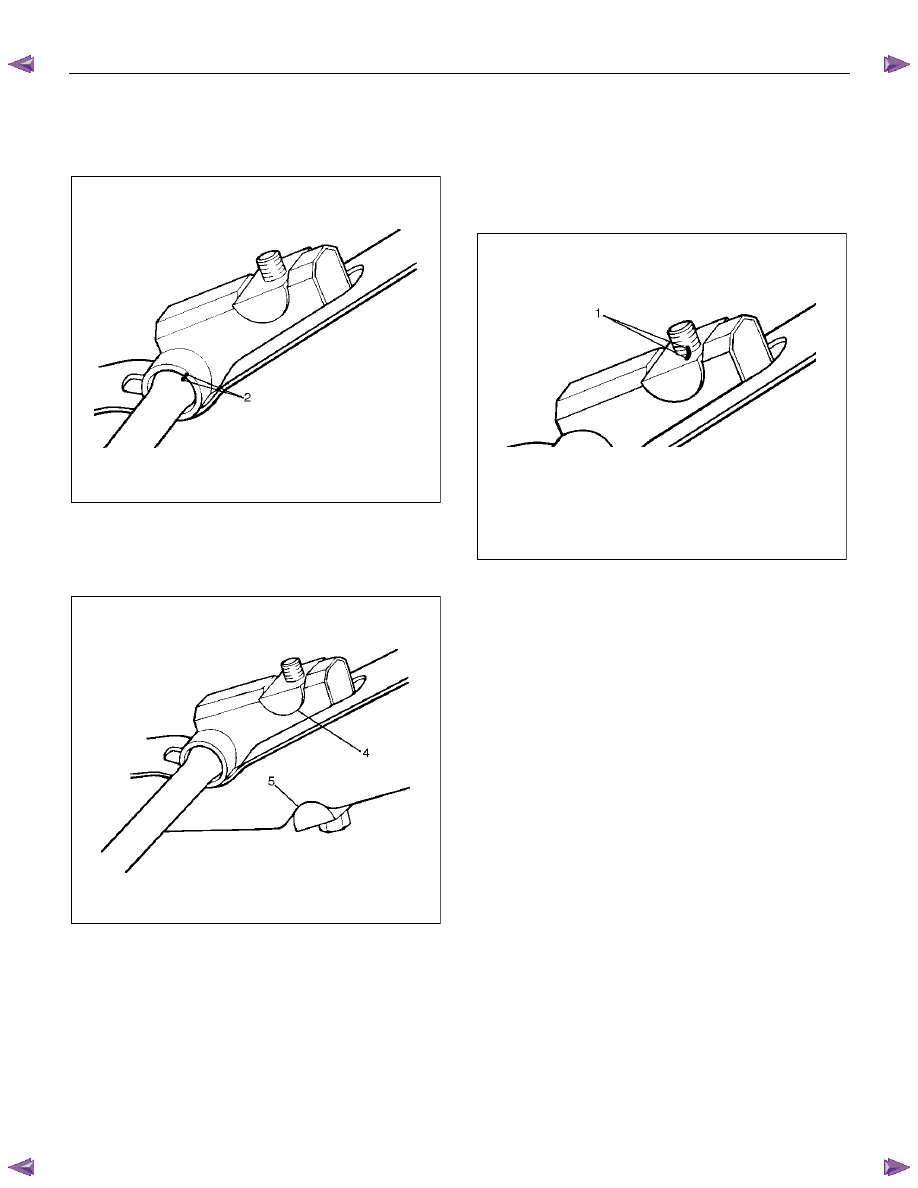

2.  Apply grease to the portion that fits into the bracket

then install height control arm and align the setting

marks (2).










410RS005

3.  Apply grease to the bolt portion of the end piece

(4). Apply grease to the portion of the seat (5) that

fits into the bracket.










410RS008



4.  Apply grease to the serrated portions.

5.  Install adjust bolt and seat, then turn the adjust bolt

to the setting mark (1) applied during disassembly.

NOTE: Adjust the trim height. Refer to Front End
Alignment Inspection and Adjustment in Steering
section.











410RS004





FRONT SUSPENSION  3C-37

Knuckle

Knuckle and Associated Parts

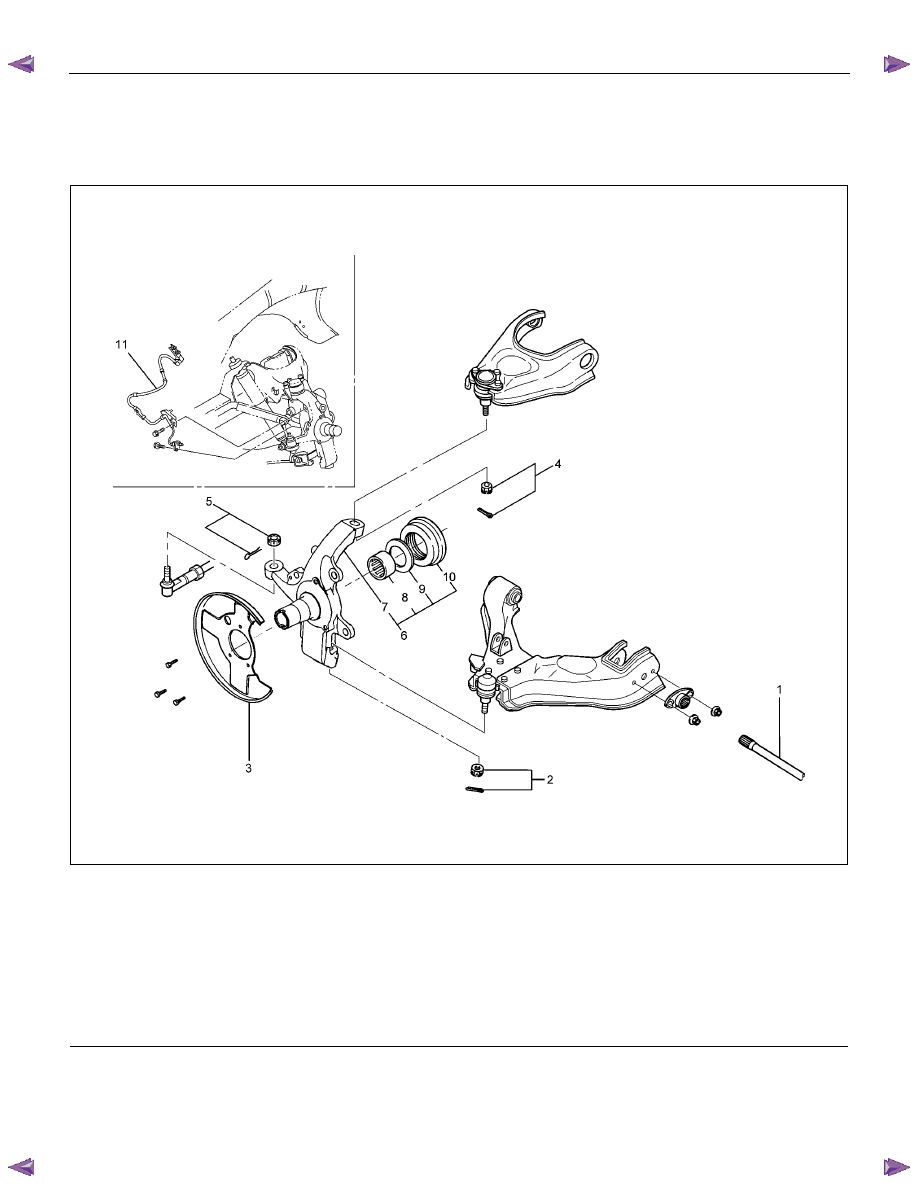

RUW63CLF000101

Legend

  (1) Torsion Bar

  (2) Nut and Cotter Pin, Lower Ball Joint

  (3) Back Plate

  (4) Nut and Cotter Pin, Upper Ball Joint

  (5) Nut and Cotter Pin, Tie-rod End

  (6) Knuckle Assembly







 (7)

Knuckle

  (8) Needle Bearing (4

×4 Model Only)

  (9) Thrust Washer (4

×4 Model Only)

  (10) Oil Seal (4

×4 Model Only)

  (11) Speed Sensor harness





Removal

1. Raise the vehicle and support the frame with

suitable safety stands.



2.  Remove wheel and tire assembly. Refer to Wheel

in this section.

3.  Remove the brake caliper. Refer to Disc Brakes in

Brake section.

3C-38  FRONT SUSPENSION

4. Remove the hub assembly. Refer to Front Hub

and Disk in this section.

5. Remove tie-rod end from the knuckle. Refer to

Power Steering Unit in Steering section.

6.  Remove the speed sensor from the knuckle.

7. Loosen torsion bar by height control arm adjust

bolt, and then remove torsion bar. Refer to Torsion

Bar in this section.

8.  Remove speed sensor harness.

9.  Remove back plate.

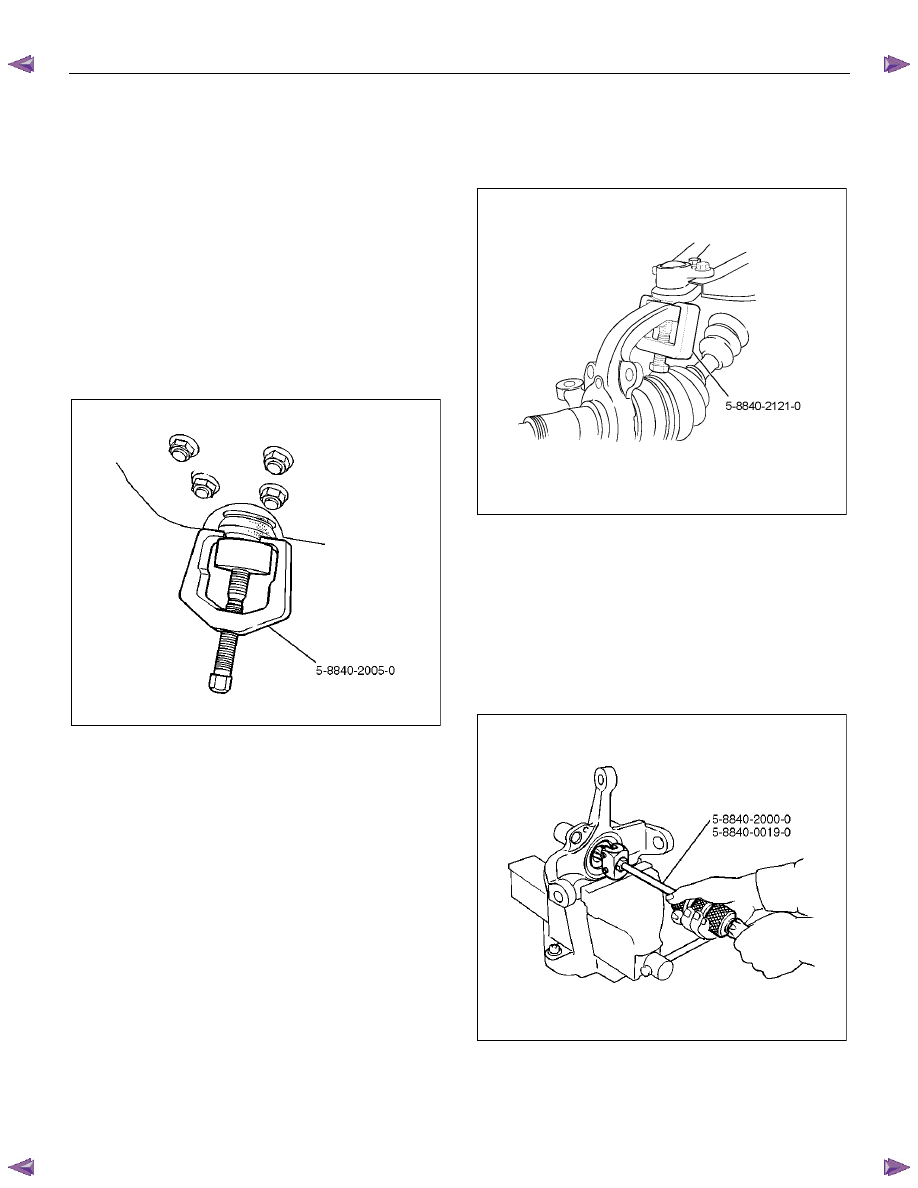

10. Remove lower ball joint by using remover 5-8840-

2005-0.

CAUTION: Be careful not to damage the ball joint
boot.








901RW271





11. Remove upper ball joint by using remover 5-8840-

2121-0.

CAUTION: Be careful not to damage the ball joint
boot.





901RW272

12. Remove knuckle assembly.

13.

Remove oil seal. If replacement required.

 (4

×4 Model Only)

14.

Remove washer. If replacement required.

 (4

×4 Model Only)

15. Remove needle bearing by using remover 5-8840-

2000-0 and sliding hammer 5-8840-0019-0.



If replacement required. (4

×4 Model Only)










(4

×4 Model Only)

RTW340SH00401
