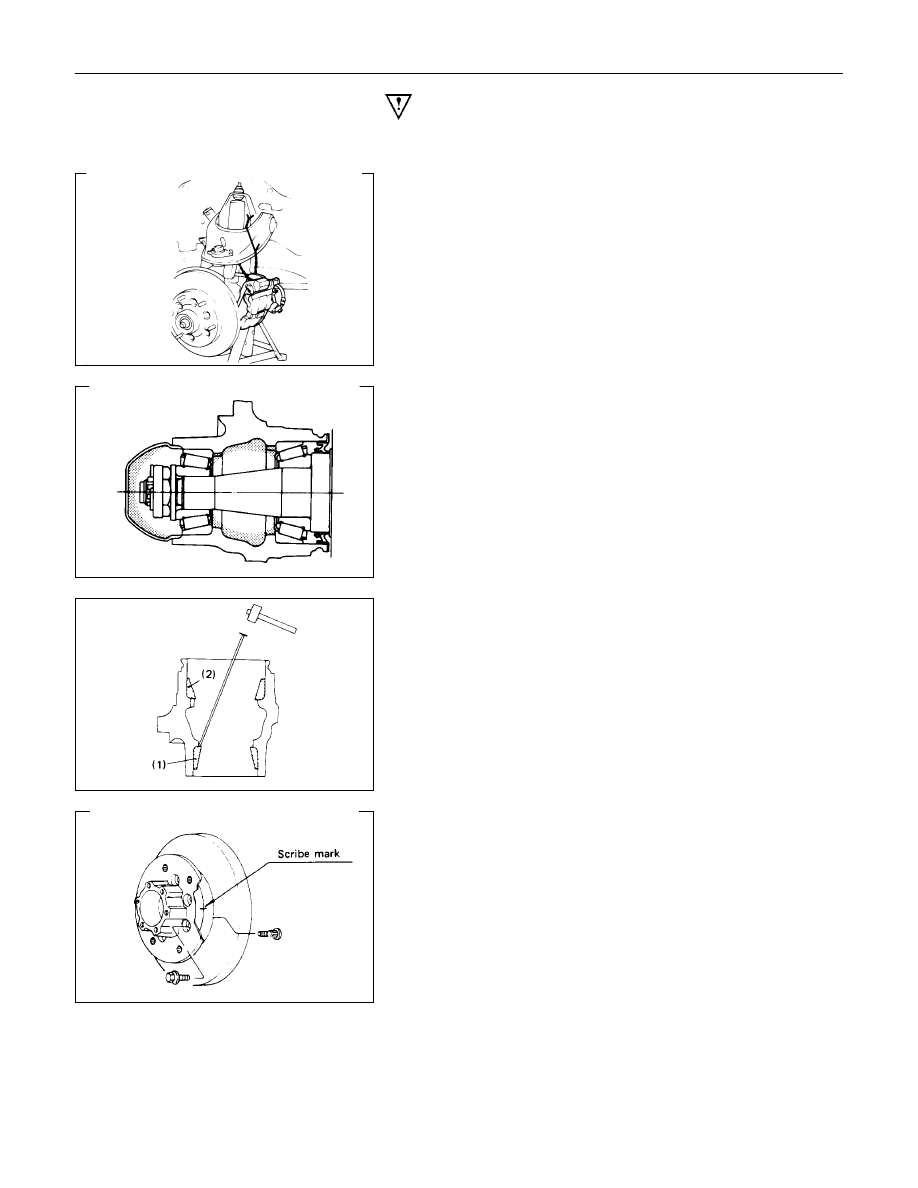

4C1-42  FRONT WHEEL DRIVE

Important Operations

Before removal, jack up the front of vehicle and support frame
with jack stands.

2. Brake Caliper

(1) Remove the two bolts from the rear side of the knuckle arm,

then remove the brake caliper, with the brake hose

attached.

(2) Use a wire etc., for attaching the brake caliper to the upper

link.

3. Hub Cap
When removing hub cap, exercise care so as not to scratch or
distort hub fitting face.

9. Hub and Disc Assembly
Using a brass bar to remove the outer bearing outer race (1),
oil seal, inner bearing and inner bearing outer race (2) from the
hug.

If necessary, replace the wheel pin in the following manner.

12.Bolt

13.Wheel Pin ; Front Hub

(1) Scribe mark on hub to disc before disassembly to insure

proper assembly.

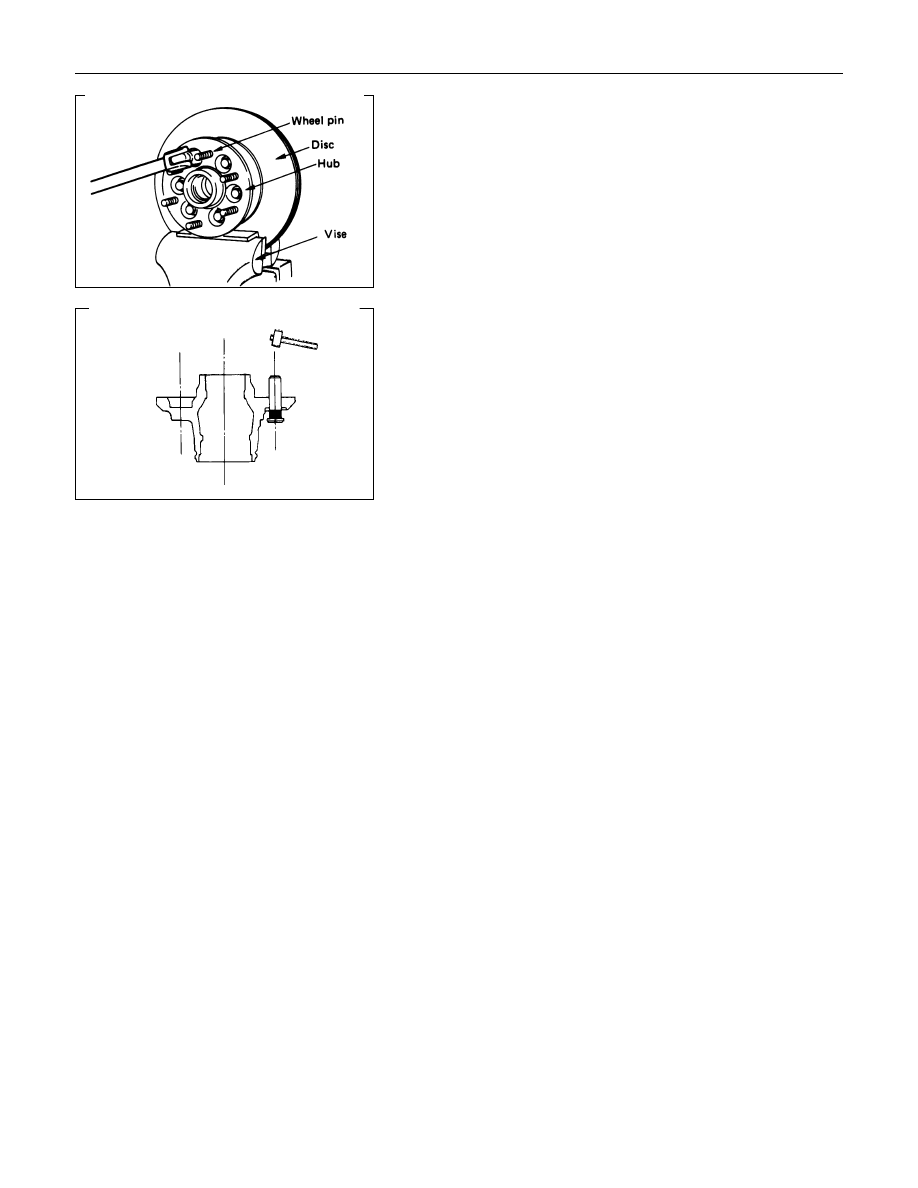

FRONT WHEEL DRIVE  4C1-43

(2) Clamp hub and disc assembly in vise using protective pads

and remove six (6) disc to hub retaining bolts.

(3) Place hub on a suitable work surface and remove wheel

studs, as required, using a hammer.

4C1-44  FRONT WHEEL DRIVE

  INSPECTION AND REPAIR

Make necessary correction or parts replacement if wear, damage or any other abnormal conditions are found
through inspection.

•

 Hub

•

 Hub bearing

•

 Bearing outer race

•

 Disc

•

 Oil seal

Visual Check

Check the following parts for wear, damage or other abnormal
conditions.

FRONT WHEEL DRIVE  4C1-45

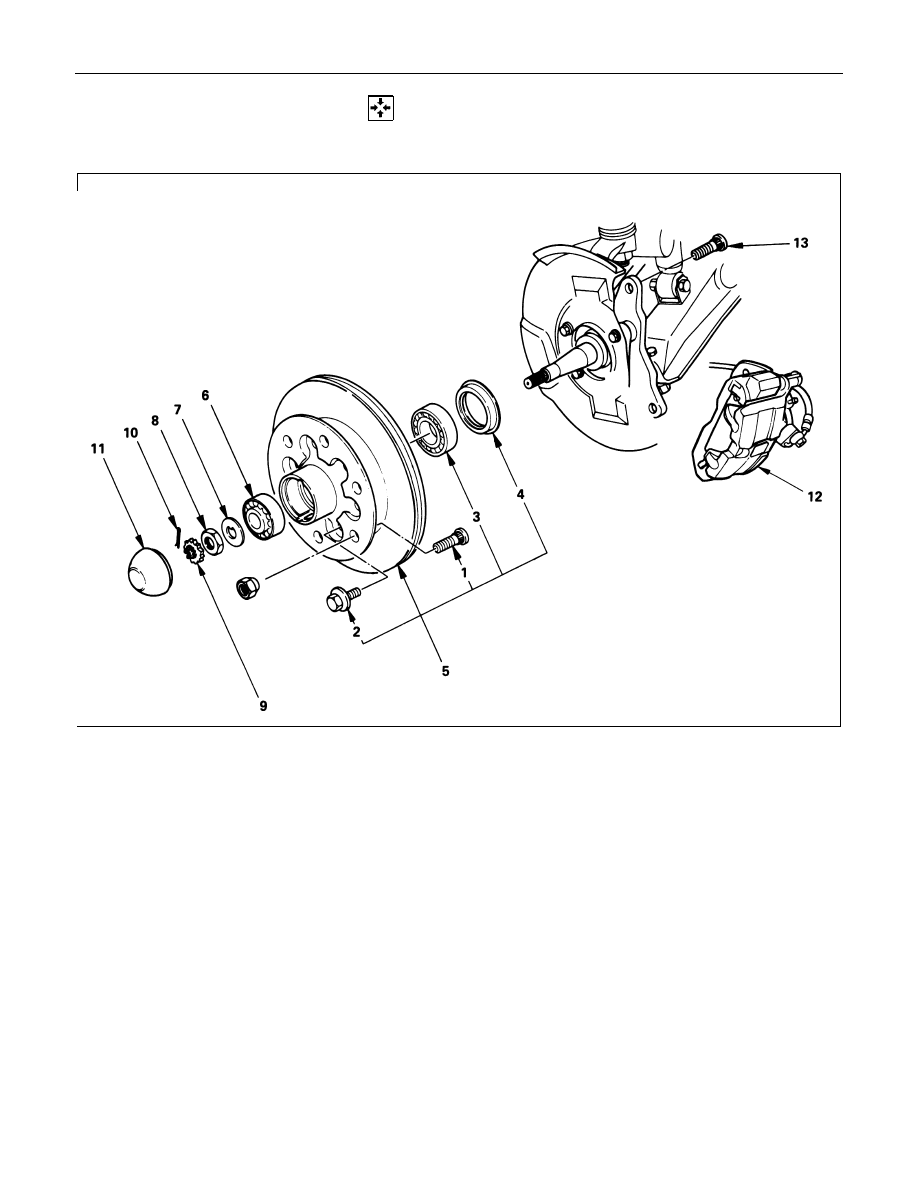

  REASSEMBLY

Refer to SECTION 3E “WHEEL AND TIRE” for wheel removal procedure.

Reassembly Steps

▲

1. Wheel pin

▲

2. Bolt

▲

3. Inner bearing and outer race

▲

4. Oil seal

▲

5. Hub and disc assembly
6. Outer bearing
7. Lock washer

▲

8. Hub nut
9. Nut retainer

10. Split pin

▲

11. Hub cap

12. Brake caliper

▲

13. Bolt
