REAR AXLE  4B-41

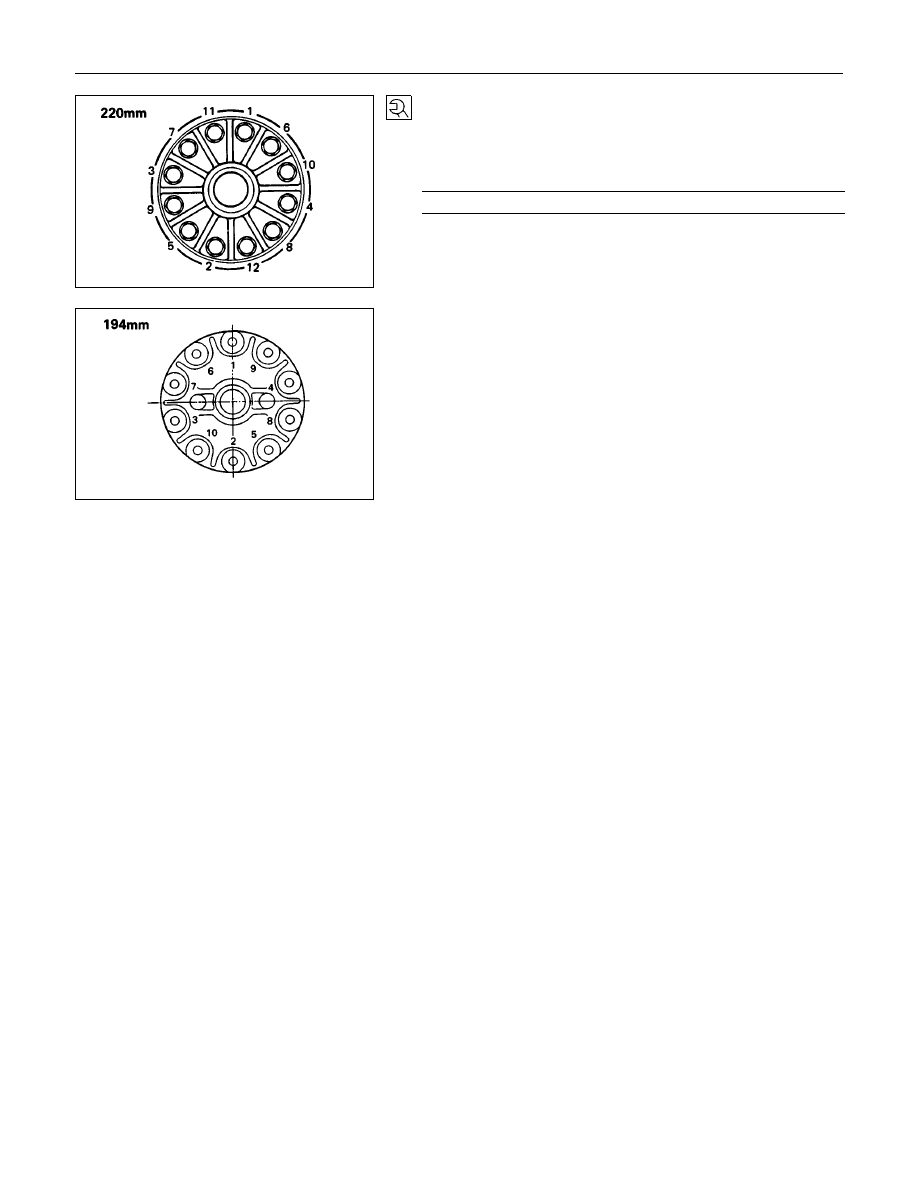

8. Ring Gear
Discard used bolts and install new ones.
When installing the ring gear, apply the LOCTITE 271 or
equivalent to the threaded holes and bolts after applying.
Ring Gear Bolt Torque

N

⋅

m (kgf

⋅

m/lb

⋅

ft)

107.9

±

 9.8 (11

±

 1/79.5

±

 7.2)

4B-42  REAR AXLE

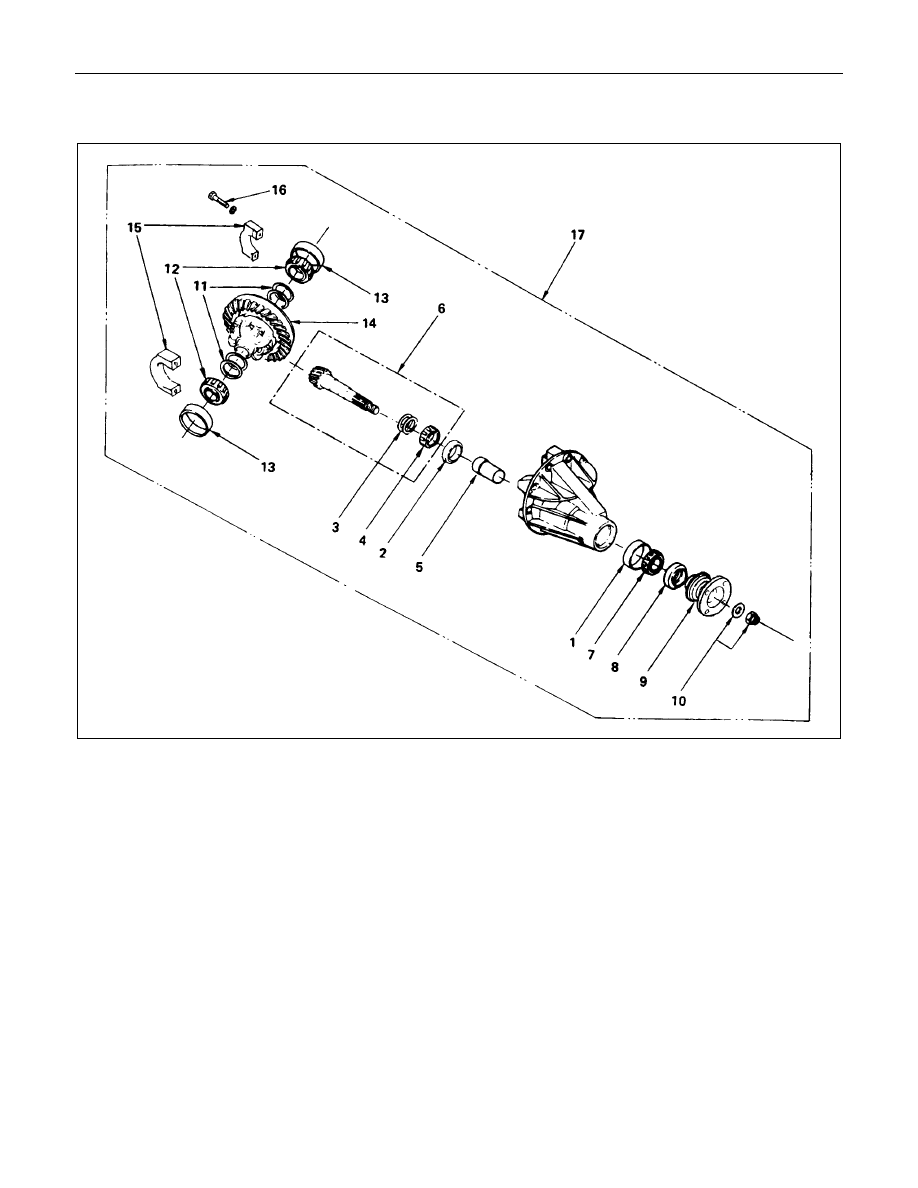

MAJOR COMPONENTS

Reassembly Steps

▲

1. Outer bearing outer race

▲

2. Inner bearing outer race

▲

3. Pinion depth adjusting ; shim

▲

4. Inner bearing

▲

5. Collapsible spacer
6. Friction disc
7. Outer bearing

▲

8. Oil seal
9. Pinion flange assembly

▲

10. Flange nut and washer

▲

11. Backlash and pre-load adjusting shim

▲

12. Side bearings
13. Side bearing outer race
14. Differential cage assembly and ring gear

▲

15. Bearing cap

▲

16. Bolt

▲

17. Differential assembly

REAR AXLE  4B-43

Important Operations

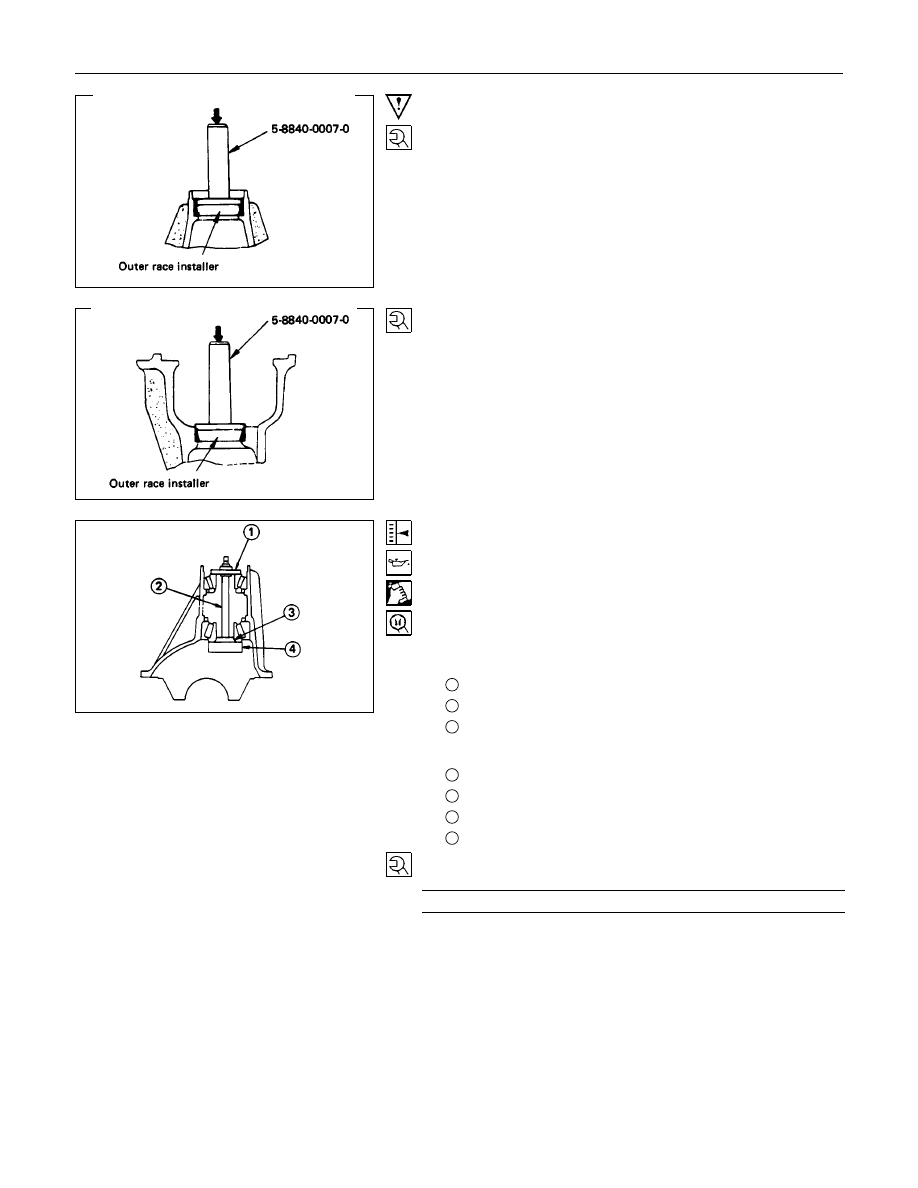

1. Outer Bearing Outer Race
Installer : 9-8522-1141-0 (194 mm)

(J-24256)
5-8840-2164-0 (220 mm)
(J-8092)

Grip :

5-8840-0007-0

(J-8092)

2. Inner Bearing Outer Race
Installer : 9-8522-1274-0 (194 mm)

(J-24252)
5-8840-2163-0 (220 mm)
(J-37261)

Grip :

5-8840-0007-0

(J-8092)

3. Pinion Depth Adjusting ; Shim

Adjustment of drive pinion mounting distance.

(1) Apply gear oil to the drive pinion bearing, inner and outer.

Clean all of the pinion setting gage sets.

Then install the gage set together with the inner and outer

bearings.

For 194 mm

1

Pilot

: 5-8840-2085-0 (J-21777-42)

2

Stud and nut : 5-8840-2089-0 (J-23597-9)

4

Gage plate

: 5-8840-2087-0 (J-23597-7)

For 220 mm

1

Front pilot

: 5-8840-2085-0 (J-21777-42)

2

Stud and nut : 5-8840-0127-0 (J-21777-43)

3

Rear pilot

: 5-8840-0129-0 (J-23597-12)

4

Gage plate

: 5-8840-2166-0 (J-23597-42)

Tighten the nut to the specified torque.

194 mm and 220 mm

kg

⋅

cm(lb.in)

23 (20)

4B-44  REAR AXLE

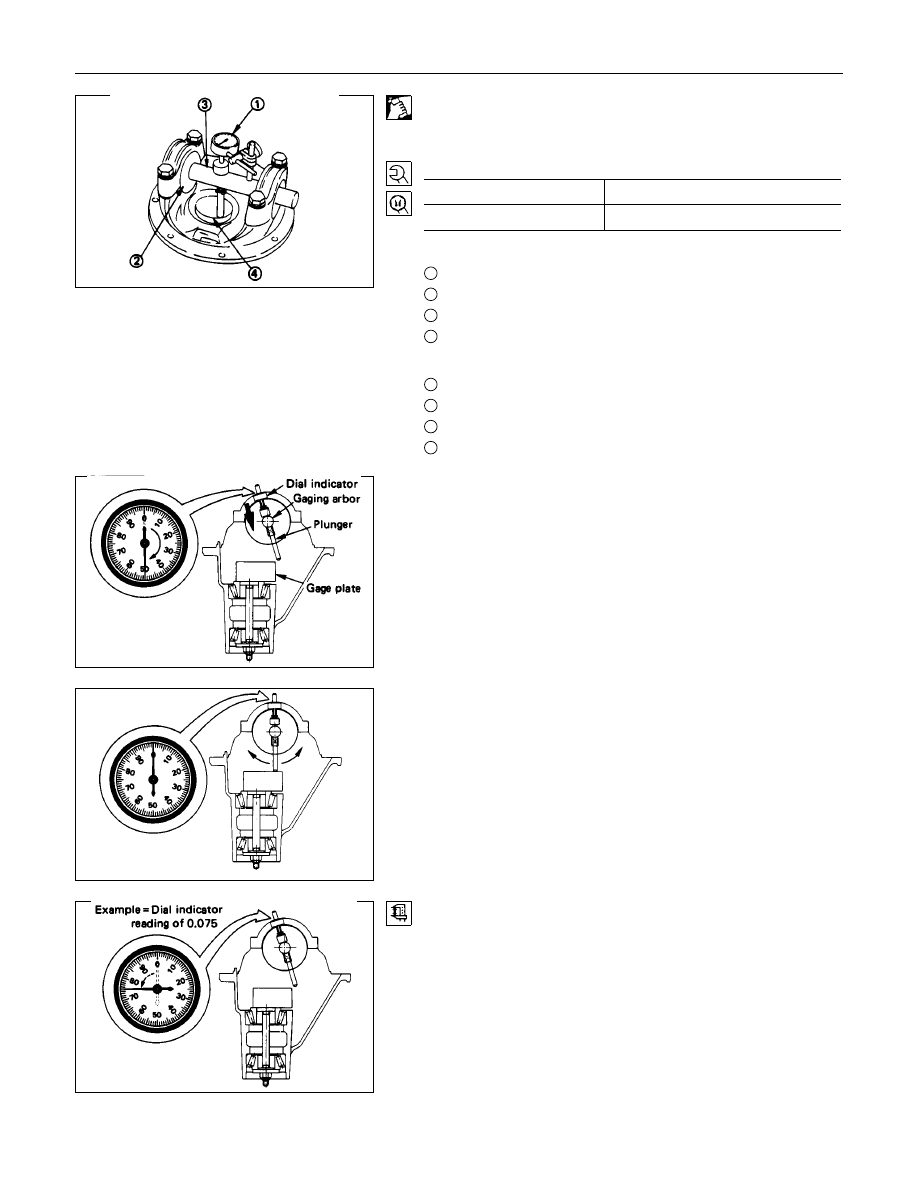

(2) Clean the side bearing bores.  Install a dial indicator with

discs and arbor.  Then install and tighten the bearing caps

to the specified torque.

Torque

N

⋅

m (kgf

⋅

m/lb

⋅

ft)

194 mm

98.1

±

 9.8 (10

±

 1/72

±

 7.2)

220 mm

107.9

±

 9.8 (11

±

 1/79.6

±

 7.2)

For 194 mm

1

Dial indicator : 5-8840-0126-0 (J-8001)

2

Disc (2 pcs.) : 5-8840-2088-0 (J-23597-8)

3

Arbor

: 5-8840-0128-0 (J-23597-1)

4

Gage plate

: 5-8840-2087-0 (J-23597-7)

For 220 mm

1

Dial indicator : 5-8840-0126-0 (J-8001)

2

Disc (2 pcs.) : 5-8840-2167-0 (J-21777-86)

3

Arbor

: 5-8840-0128-0 (J-23597-1)

4

Gage plate

: 5-8840-2166-0 (J-23597-42)

(3) Set the dial indicator to "0".  Place it on the mounting post of

the gaging arbor with the contact button touching the

indicator pad.  Force the dial indicator downward until the

needle has made a half turn clockwise.  Tighten down the

dial indicator in this position.

(4) Position the plunger on the gage plate.  Move the gaging

arbor slowly back and forth and locate the position at which

the dial indicator shows the greatest deflection. At this point,

once again set the dial indicator to "0".

Repeat the procedure to verify the "0" setting.

(5) After the ZERO setting is obtained, rotate the gaging arbor

until the dial indicator rod does not touch the gaging plate.

Record the number the dial indicator needle points to.
