9-8  ACCESSORIES

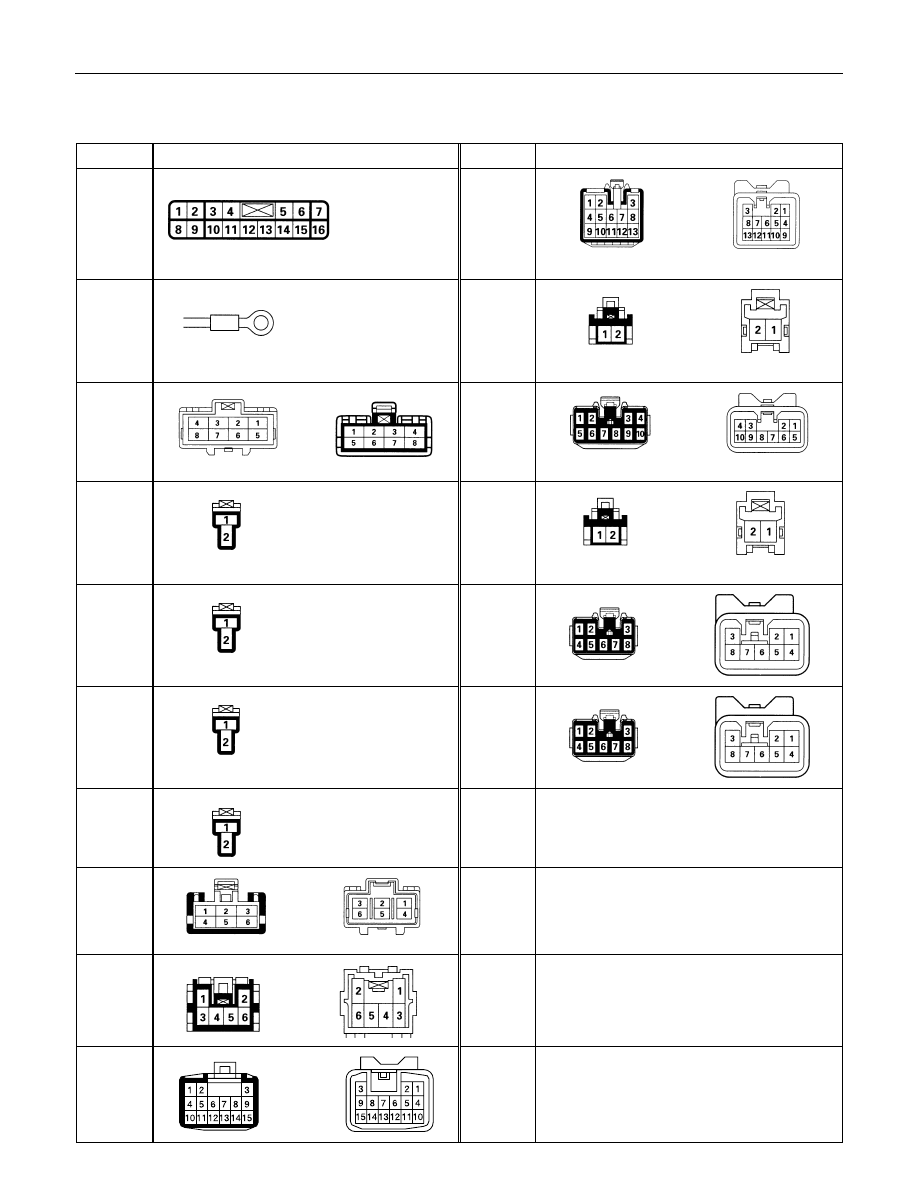

CONNECTOR LIST

No.

Connector face

No.

Connector face

B-14

H-10

(W/POWER WINDOW AND DOOR LOCK)

B-28

H-10

(W/O POWER WINDOW AND DOOR LOCK)

C-41

H-13

(W/ POWER WINDOW AND DOOR LOCK)

D-3

H-13

(W/O POWER WINDOW AND DOOR LOCK)

D-8

H-14

D-13

H-16

D-17

H-7

(LHD)

H-7

(RHD)

H-9

ACCESSORIES  9-9

RADIO



  REMOVAL AND INSTALLATION

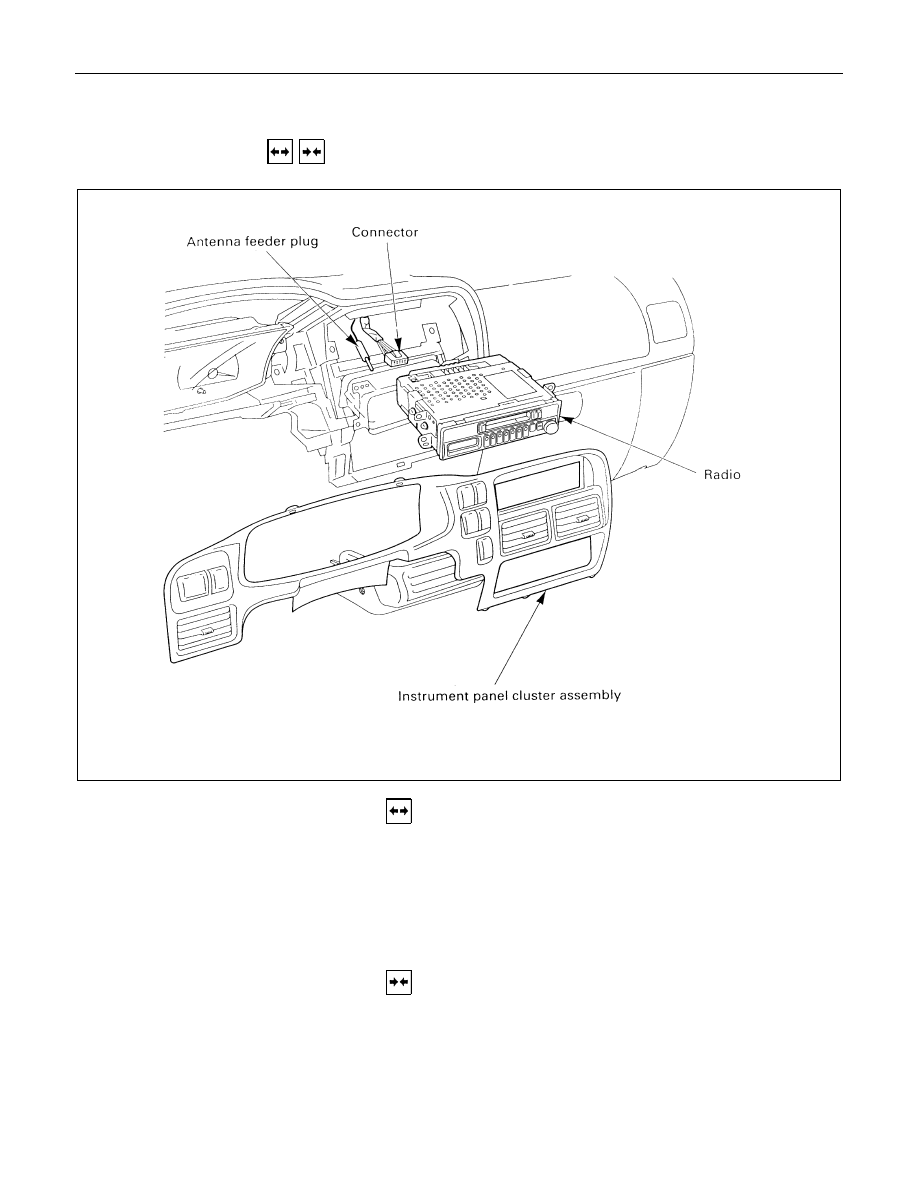

This illustration is based on LHD model.

Removal

1. Remove Instrument Panel lower cover assembly.

2. Remove meter cluster assembly.

3. Disconnect the connector for Audio and Mirror.

4. Remove 4 screws on the radio.

5. Disconnect the Antenna feeder plug.

6. Pull out the radio.

Installation

To install, follow the removal steps in the reverse order.

9-10  ACCESSORIES

SPEAKER



  REMOVAL AND INSTALLATION

Removal

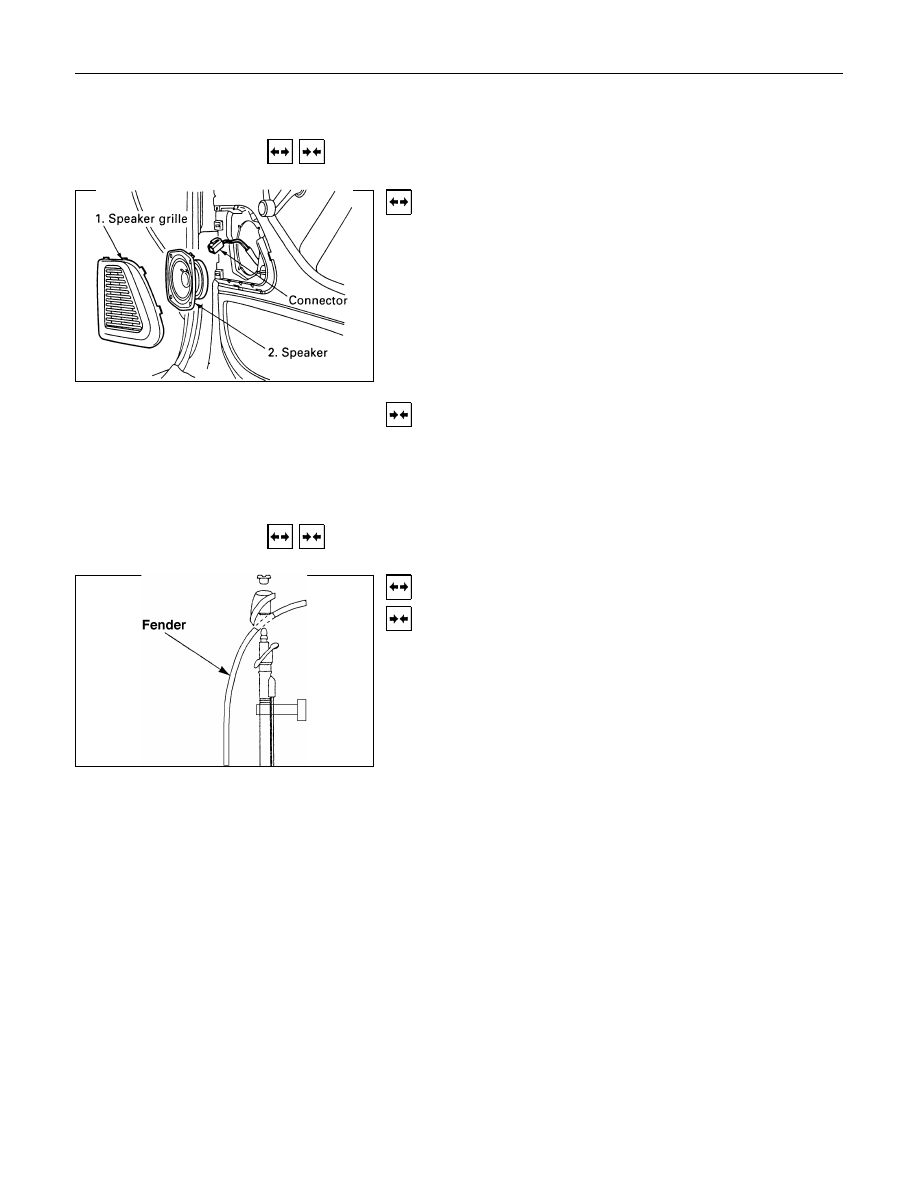

1. Speaker Grille

• Pull the grille to release the locks.

2. Speaker

• Remove four screws.
• Disconnect the connector.

Installation

To install, follow the removal steps in the reverse order.

ANTENNA



  REMOVAL AND INSTALLATION

Removal and Installation

1. Remove the antenna nut.

2. Remove the antenna cover.

3. Remove the fender cover.

4. Remove the antenna stay.

5. Pull out the antenna downward.
Remove and install the antenna as illustrated.
Antenna unit is located on the front fender driver side.
To install, follow the removal steps in the reverse order.
