6D3–2

STARTING AND CHARGING SYSTEM (6VD1 3.2L)

Starting System

General Description

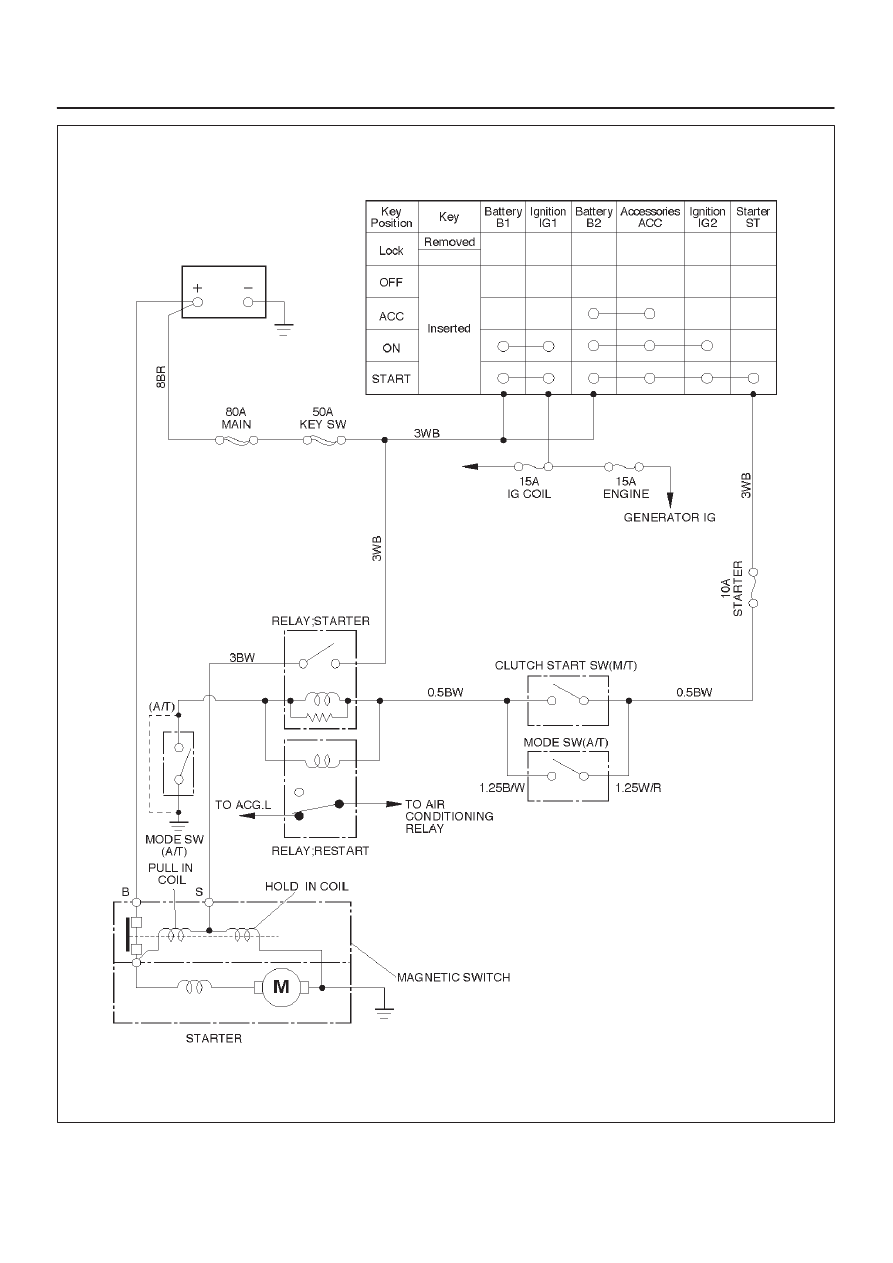

Cranking Circuit

The cranking system consists of a battery, starter, starter
switch, starter relay, etc. These main components are
connected.

Starter

The cranking system employs a magnetic type reduction
starter in which the motor shaft is also used as a pinion
shaft. When the starter switch is turned on, the contacts of
magnetic switch are closed, and the armature rotates. At
the same time, the plunger is attracted, and the pinion is
pushed forward by the shift lever to mesh with the ring
gear.
Then, the ring gear runs to start the engine. When the
engine starts and the starter switch is turned off, the
plunger returns, the pinion is disengaged from the ring
gear, and the armature stops rotation. When the engine
speed is higher than the pinion, the pinion idles, so that
the armature is not driven.

6D3–3

STARTING AND CHARGING SYSTEM (6VD1 3.2L)

C06RW005

6D3–4

STARTING AND CHARGING SYSTEM (6VD1 3.2L)

Diagnosis

Condition

Possible cause

Correction

Starter does not run

Charging failure

Repair charging system

Battery Failure

Replace Battery

Terminal connection failure

Repair or replace terminal connector
and/or wiring harness

Starter switch failure

Repair or replace starter switch

Starter failure

Repair or replace starter

6D3–5

STARTING AND CHARGING SYSTEM (6VD1 3.2L)

Starter

Removal

1. Battery ground cable.
2. Remove exhaust front left pipe.
3. Remove heat protector(3).
4. Disconnect starter wiring connector from terminals

“B” and “S”(4).

5. Remove starter assembly mounting bolts on inside

and outside(5).

6. Remove starter assembly toward the bottom of

engine(6).

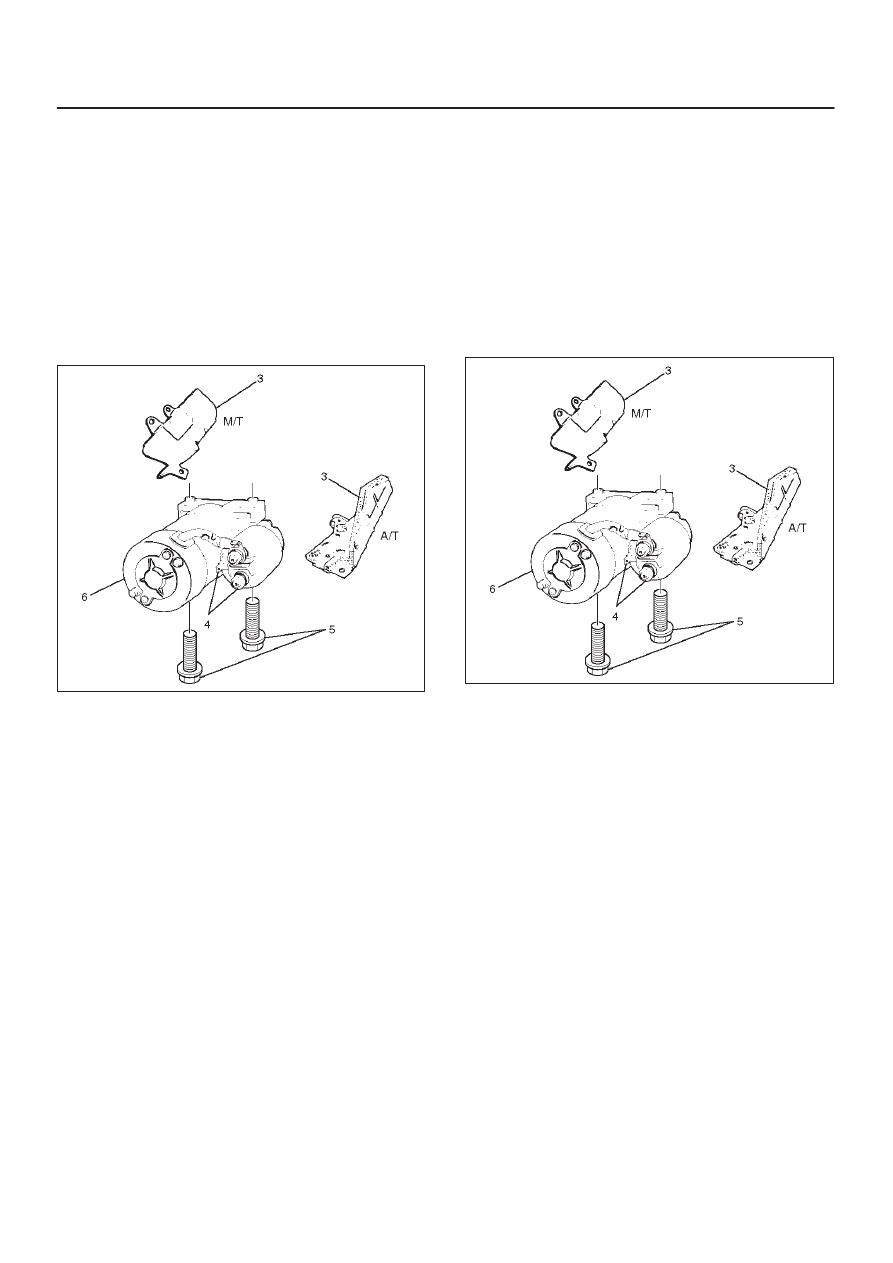

065RW001

Installation

1. Install starter assembly(6).
2. Install mounting bolts and tighten bolts to specified

torque(5).

Torque: 40 N·m (4.1 kg·m/30 lb ft)

3. Reconnect the connectors to terminals “B” and “S”

and tighten Terminals “B” to specified torque.

Torque: 9 N·m (0.9 kg·m/80 lb in)

4. Install heat protector(3).

065RW001

5. Install exhaust front left pipe and tighten bolts and

nuts to specified torque(2).

Stud Nuts
Torque: 67 N·m (6.8 kg·m/49 lb ft)
Nuts
Torque: 43 N·m (4.4 kg·m/32 lb ft)

6. Reconnect the battery ground cable.
