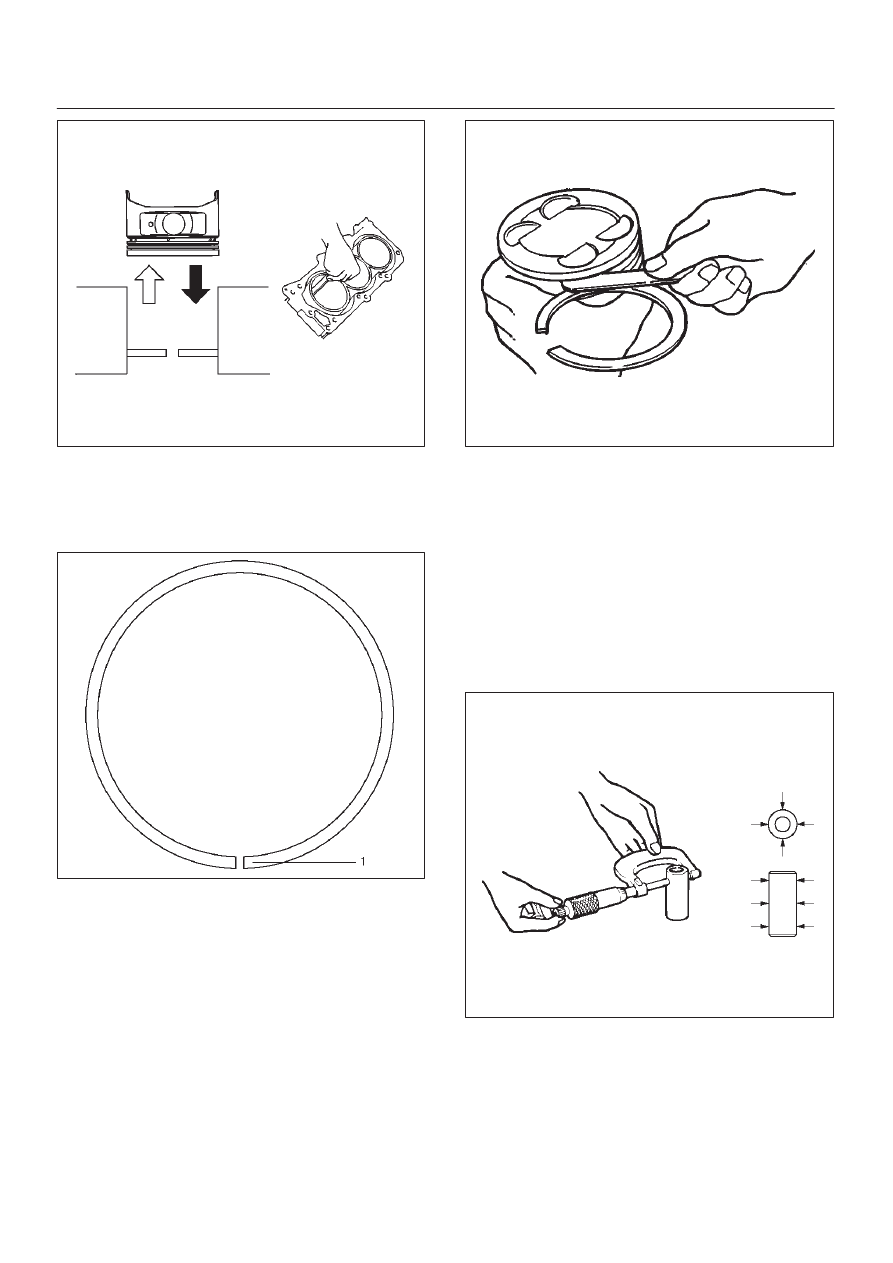

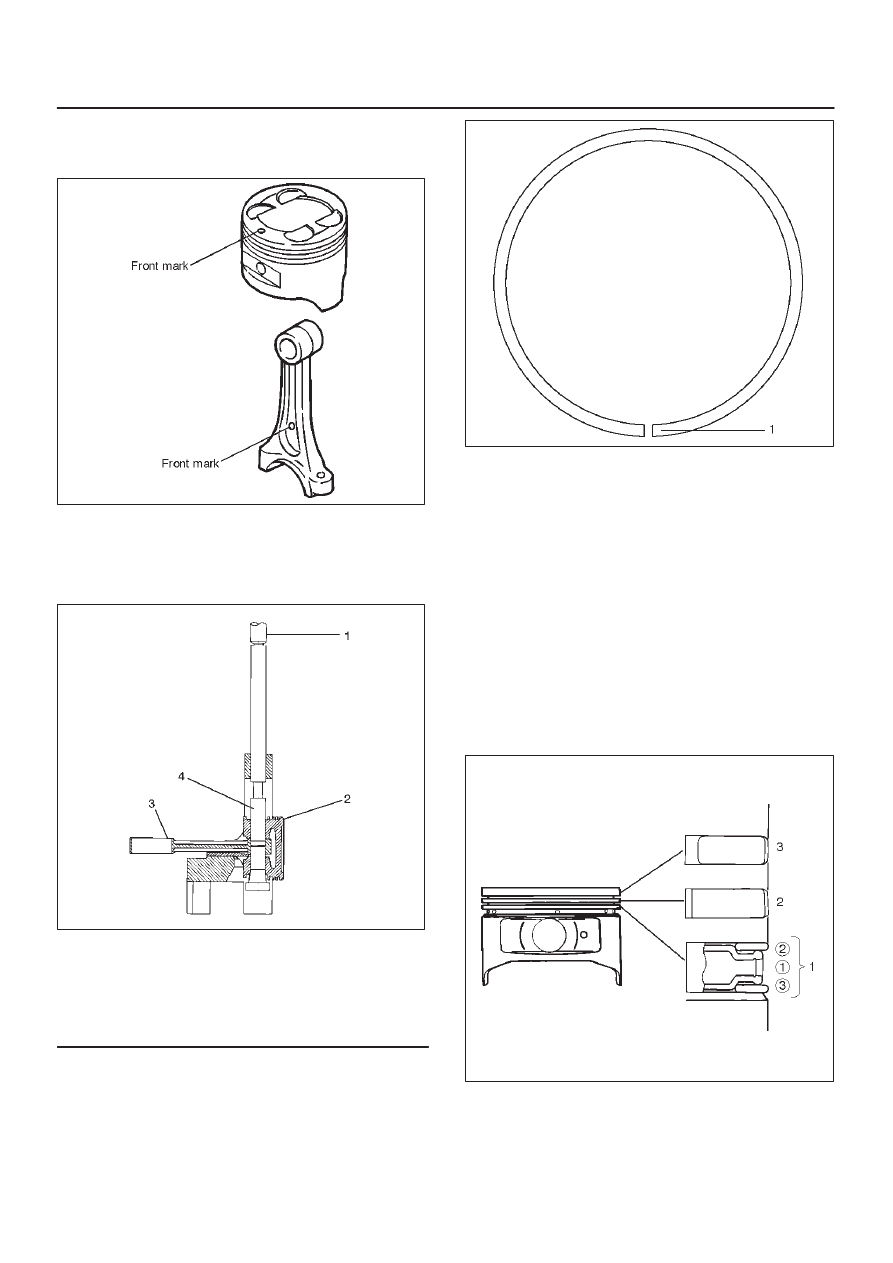

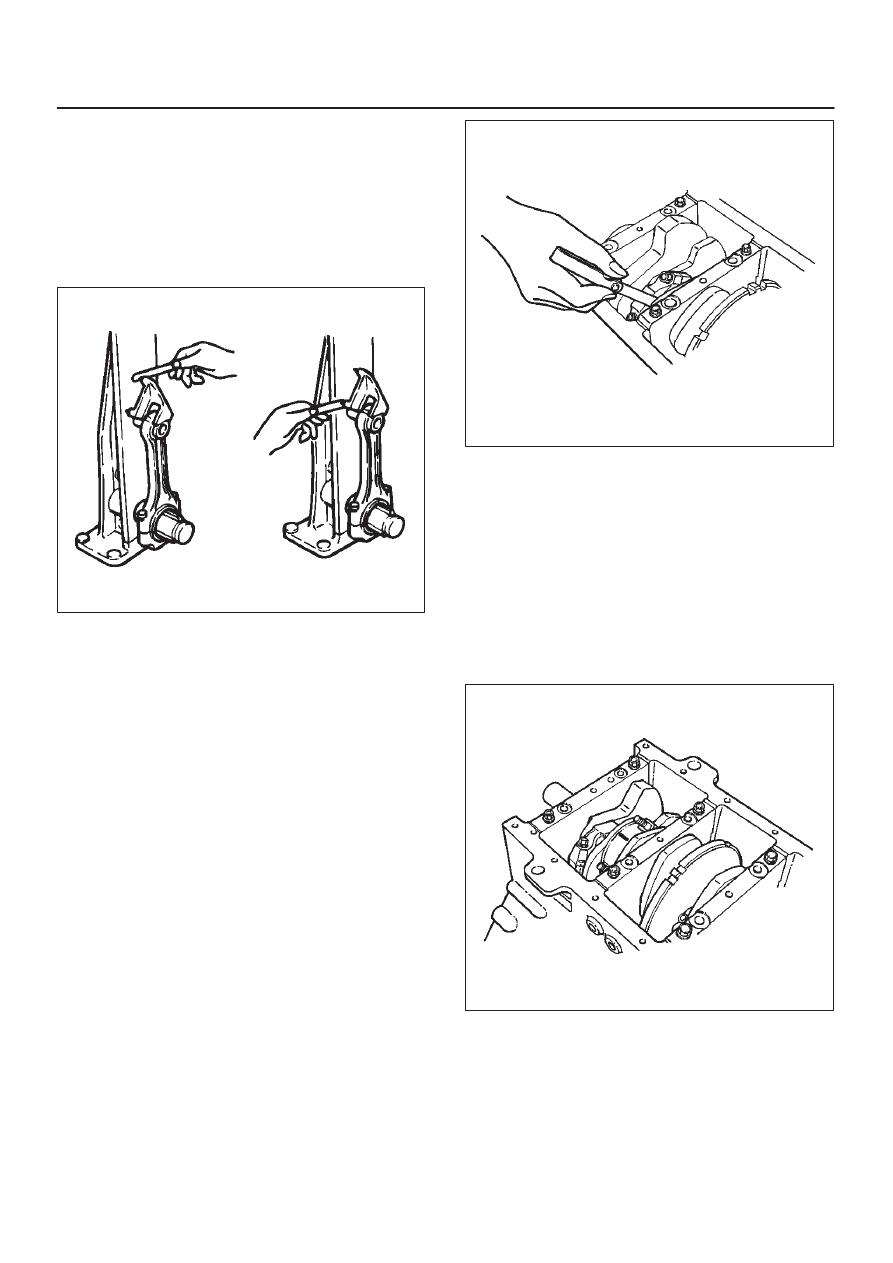

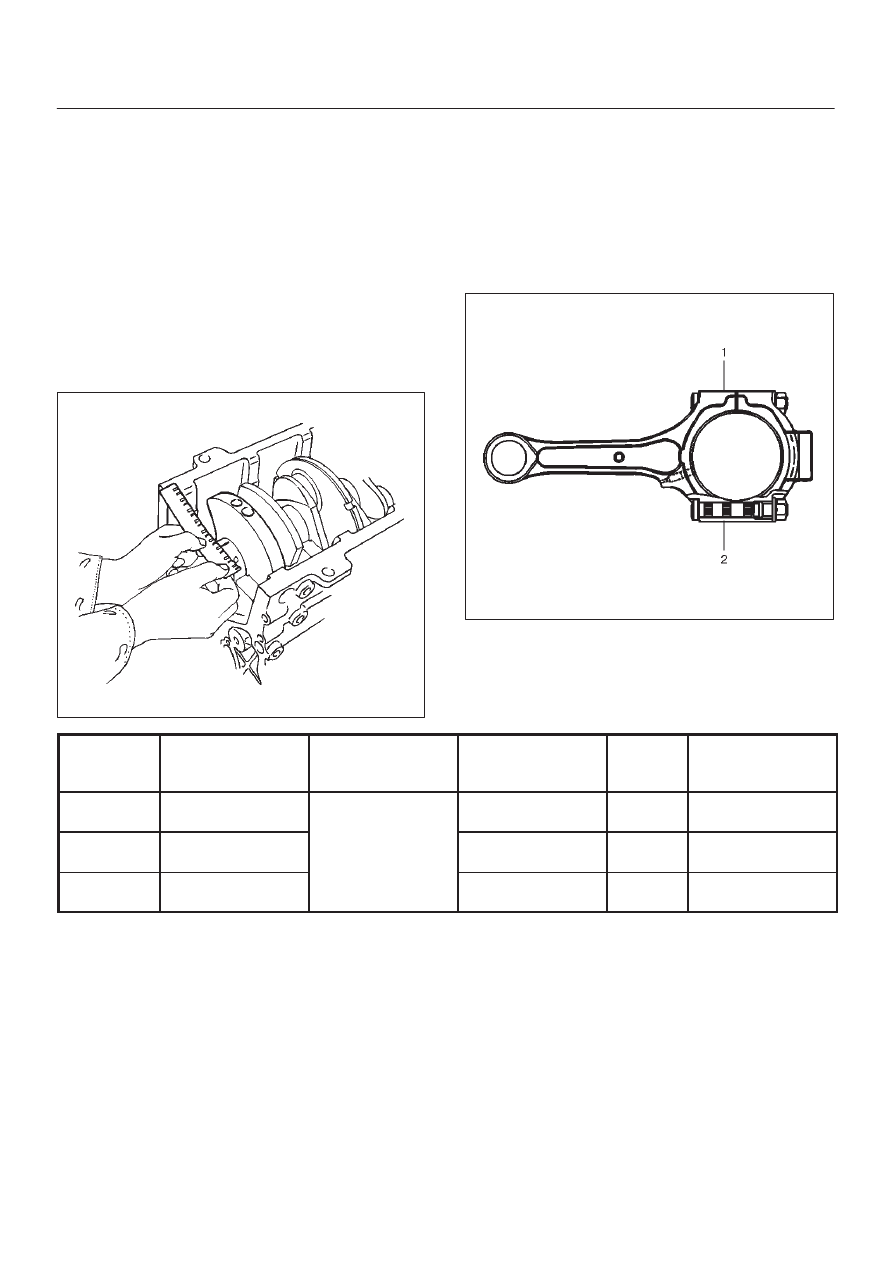

6A–76 ENGINE MECHANICAL (6VD1 3.2L) 015RS026 D Positioning mark (1) is painted as shown in the Marked T : No.1 Compression ring Marked T2 : No.2 Compression ring 015RS027 2. Measure the clearance between the piston ring groove and the piston ring with a feeler gauge. If the Compression Ring Clearance (0.0006 in.–0.0015 in) Limit : 0.15mm (0.0059 in) 015RS028 Piston Pin (9) NOTE: Do not reuse the old piston pin. 1. Use a micrometer to measure the new piston pin outside diameter in both directions at three different 2. Measure the inside diameter of the connecting rod small end. If the fitting interference between the small Standard : 0.023 mm–0.038 mm (0.0009 015RS029 3. Insert the new pin into the piston and rotate it. If the pin rotates smoothly with no backlash, the clearance Clearance (0.0004 in.–0.0007 in) Limit : 0.040 mm (0.0016 in) |
