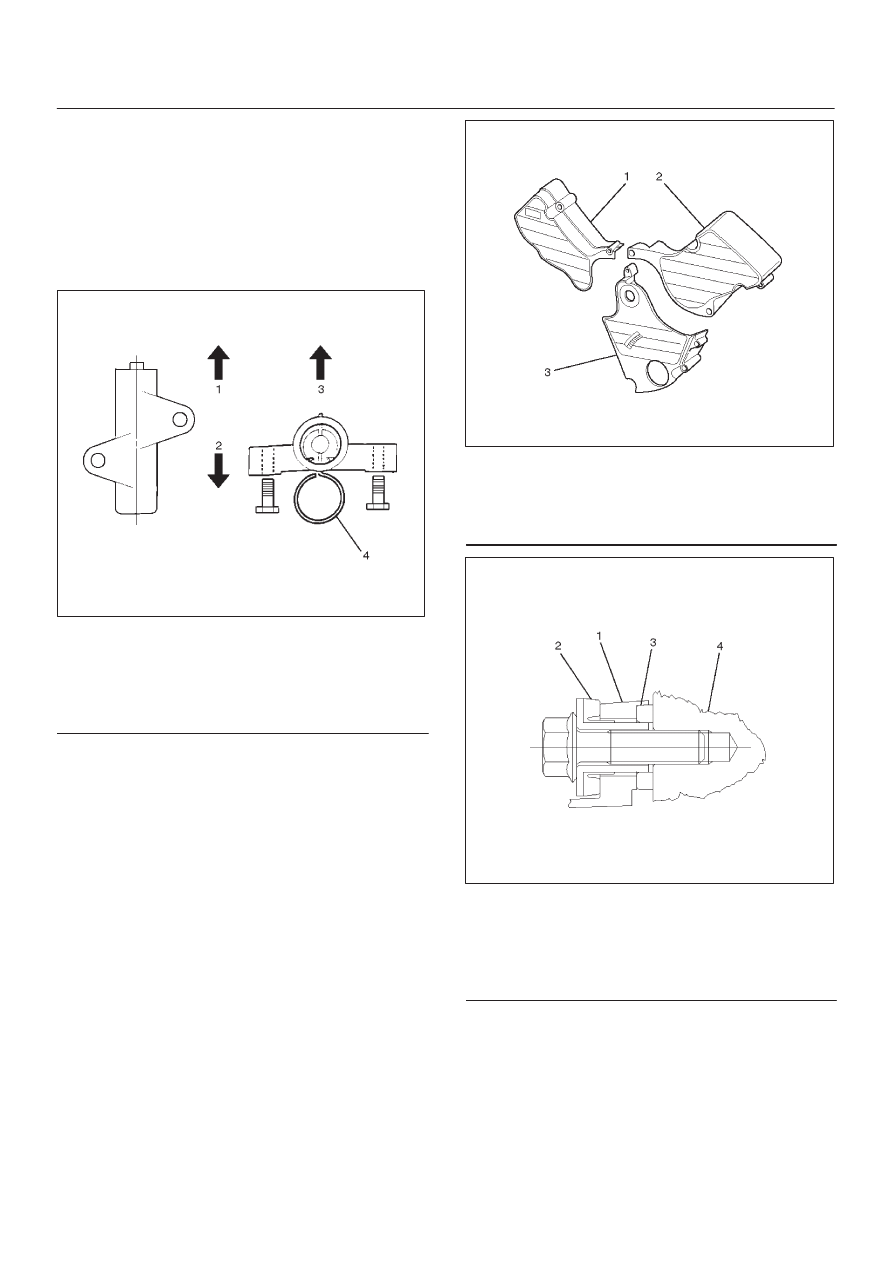

6A–28

ENGINE MECHANICAL (6VD1 3.2L)

2. Install pusher and tighten bolt to the specified torque.

Torque : 25 N·m (2.5 Kg·m/18 lb ft)

1. Install the pusher while pushing the tension pulley

to the belt.

2. Pull out pin from the pusher.

NOTE: When reusing the pusher, press the pusher with
approximately 100Kg to retract the rod, and insert a pin
(1.4 mm piano wire).

014RW011

Legend

(1) Up Side
(2) Down Side
(3) Direction for Installation
(4) Locking Pin

3. Remove double clips or equivalent clips, from

timing belt pulleys.
Turn the crankshaft pulley clockwise by two turns.

3.  Install timing belt cover.

Remove crankshaft pulley that was installed in step
1 item 5.
Tighten bolts to the specified torque.

Torque: 19 N·m (1.9 kg·m/14 lb ft)

020RW004

Legend

(1) Timing Belt Cover RH
(2) Timing Belt Cover LH
(3) Timing Belt Cover Lower

020RW003

Legend

(1) Timing Belt Cover
(2) Rubber Bushing
(3) Sealing Rubber
(4) Cylinder Body

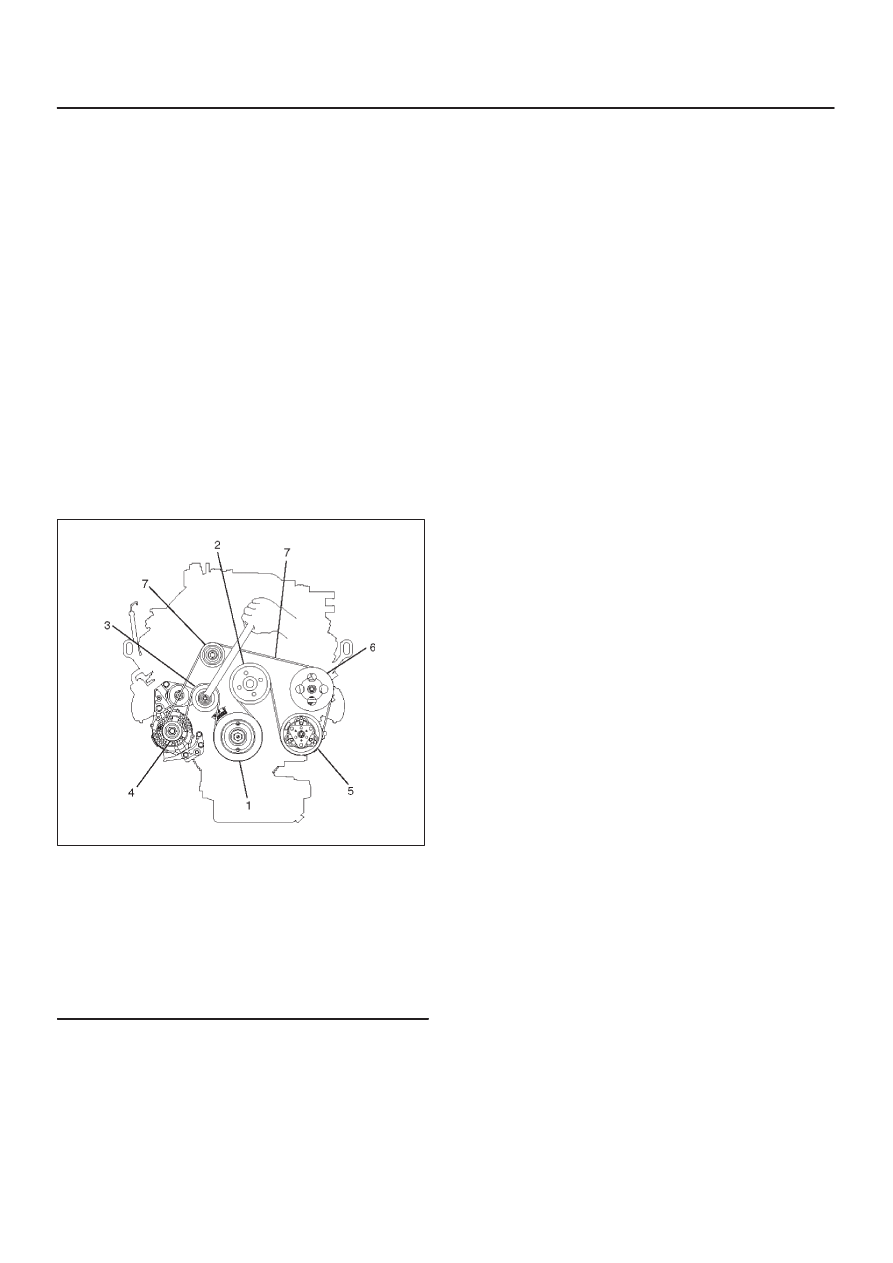

6A–29

ENGINE MECHANICAL (6VD1 3.2L)

4. Install crankshaft pulley using 5–8840–0133–0, hold

the crankshaft pulley and tighten center bolt to the
specified torque.

Torque : 167 N·m (17.0 kg·m/123 lb ft)

5. Install fan pulley bracket and tighten fixing bolts to the

specified torque.

Torque : 22 N·m (2.2 kg·m/16 lb ft)

6. Install power steering pump assembly and tighten to

the specified torque.

Torque :
M8 bolt : 22 N·m (2.2 kg·m/16 lb ft)
M10 bolt : 46 N·m (4.7 kg·m/34 lb ft)

7. Install cooling fan assembly and tighten bolts/nuts to

the specified torque.

Torque : 22 N·m (2.2 kg·m/16 lb ft) for fan pulley
and fan bracket.

Torque : 10 N·m (1.0 kg·m/88.5 lb in) for fan and
clutch assembly.

8. Move drive belt tensioner to loose side using wrench,

then install drive belt to normal position.

850RW001

Legend

(1) Crankshaft Pulley
(2) Cooling Fan Pulley
(3) Tensioner
(4) Generator
(5) Air Conditioner Compressor
(6) Power Steering Oil Pump
(7) Drive Belt

9. Install radiator upper fan shroud.

10. Install air cleaner assembly.

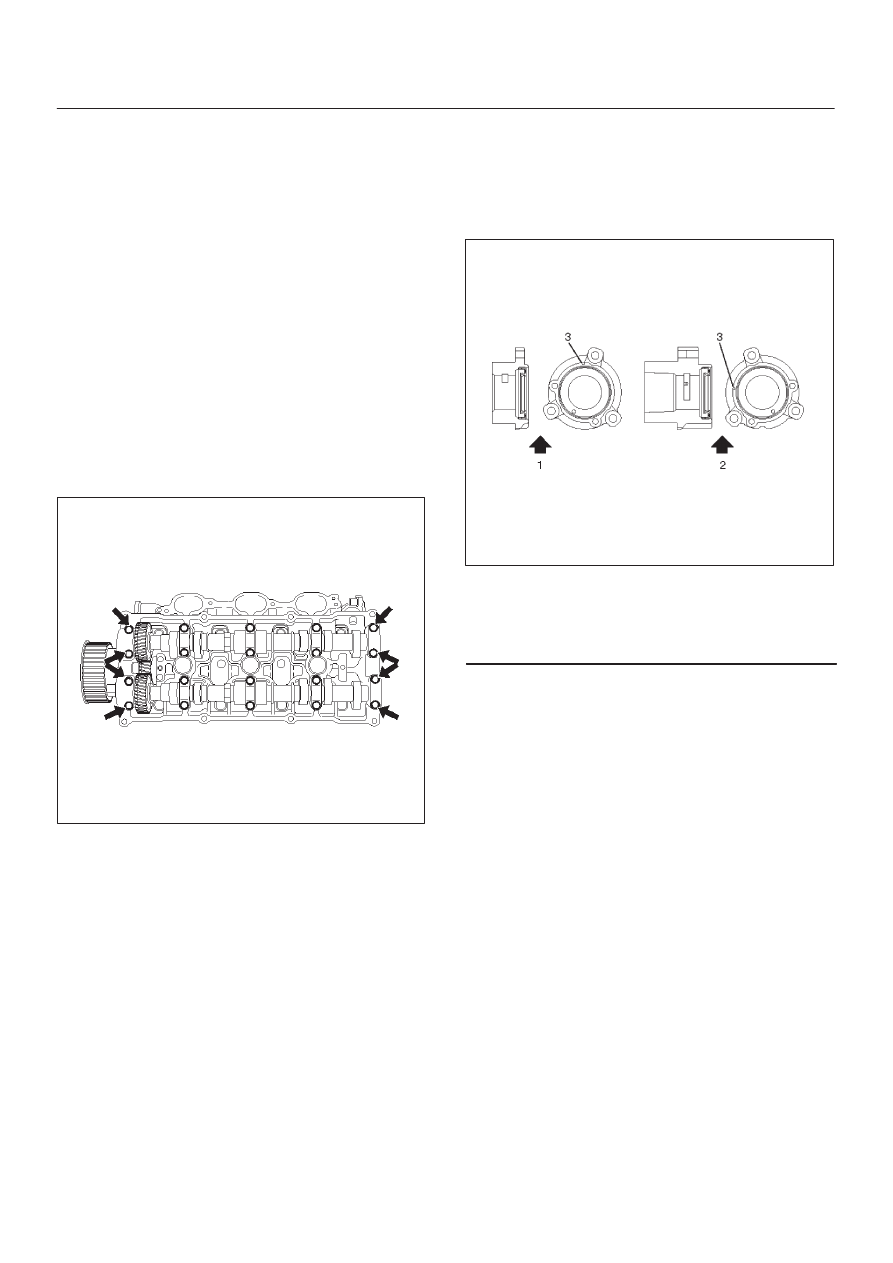

6A–30

ENGINE MECHANICAL (6VD1 3.2L)

Camshaft

Removal

1. Disconnect battery ground cable.
2. Remove crankshaft pulley.

D

Refer to removal procedure for Crankshaft Pulley in
this manual.

3. Remove timing belt.

D

Refer to removal procedure for Timing Belt in this
manual.

4. Remove cylinder head cover LH.

D

Refer to removal procedure for Cylinder Head
Cover LH in this manual.

5. Remove cylinder head cover RH.

D

Refer to removal procedure for Cylinder Head
Cover RH in this manual.

6. Remove twenty fixing bolts from inlet and exhaust

camshaft bracket on one side bank, then camshaft
brackets.

014RW027

7. Remove camshaft assembly.
8. Remove fixing bolt for camshaft drive gear pulley.
9. Remove three fixing bolts from camshaft drive gear

retainer, then camshaft drive gear assembly.

014RW026

Legend

(1) Right Bank
(2) Left Bank
(3) Timing Mark on Retainer

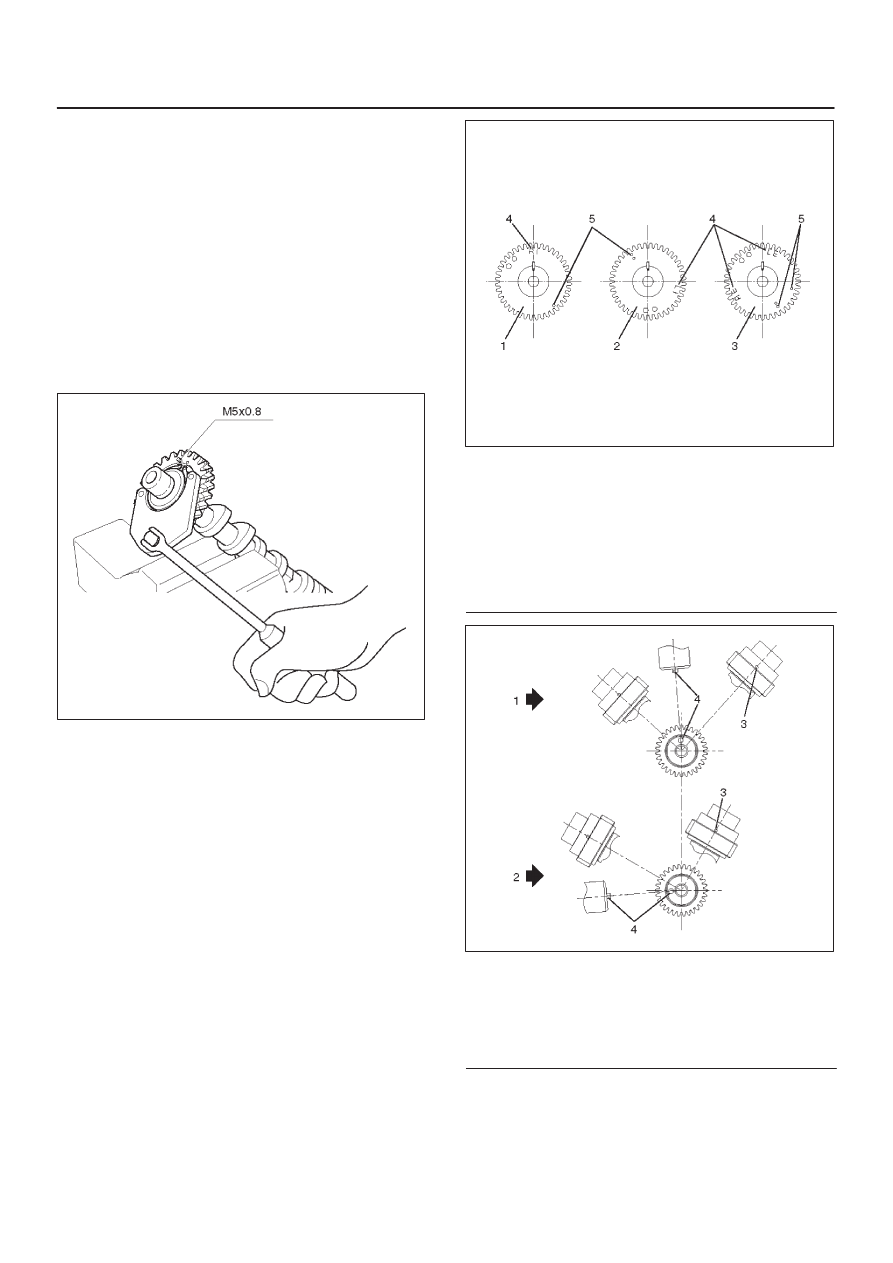

6A–31

ENGINE MECHANICAL (6VD1 3.2L)

Installation

1. Install camshaft drive gear assembly and tighten

three bolts to the specified torque.

Torque : 10 N·m (1.0 kg·m/89 lb in)

2. Tighten bolt for camshaft drive gear assembly pulley

to the specified torque.

Torque : 98 N·m (10.0 kg·m/72 lb ft)

3. Tighten sub gear setting bolt.

1. Use 5–8840–2443–0 to turn sub gear to right

direction until it aligns with the M5 bolt hole
between camshaft driven gear and sub gear.

2. Tighten the M5 bolt to a suitable torque to prevent

the sub gear from moving.

014RW041

4. Install camshaft assembly and camshaft brackets,

tighten twenty bolts on one side bank to the specified
torque.
1. Apply engine oil to camshaft journal and bearing

surface of camshaft bracket.

2.  Align timing mark on intake camshaft (one dot for

right bank, two dot for left bank) and exhaust
camshaft (one dot for right bank, two dots for left
bank) to timing mark on camshaft drive gear (one
dot).

014RW020

Legend

(1) Intake Camshaft Timing Gear for Right Bank
(2) Intake Camshaft Timing Gear for Left Bank
(3) Exhaust Camshaft Timing Gear
(4) Discrimination Mark

(LI: Left bank intake, RI: Right bank intake)
(LE: Left bank exhaust, RE: Right bank
exhaust)

014RW023

Legend

(1) Right Bank Camshaft Drive Gear
(2) Left Bank Camshaft Drive Gear
(3) Timing Mark on Drive Gear
(4) Dowel Pin
