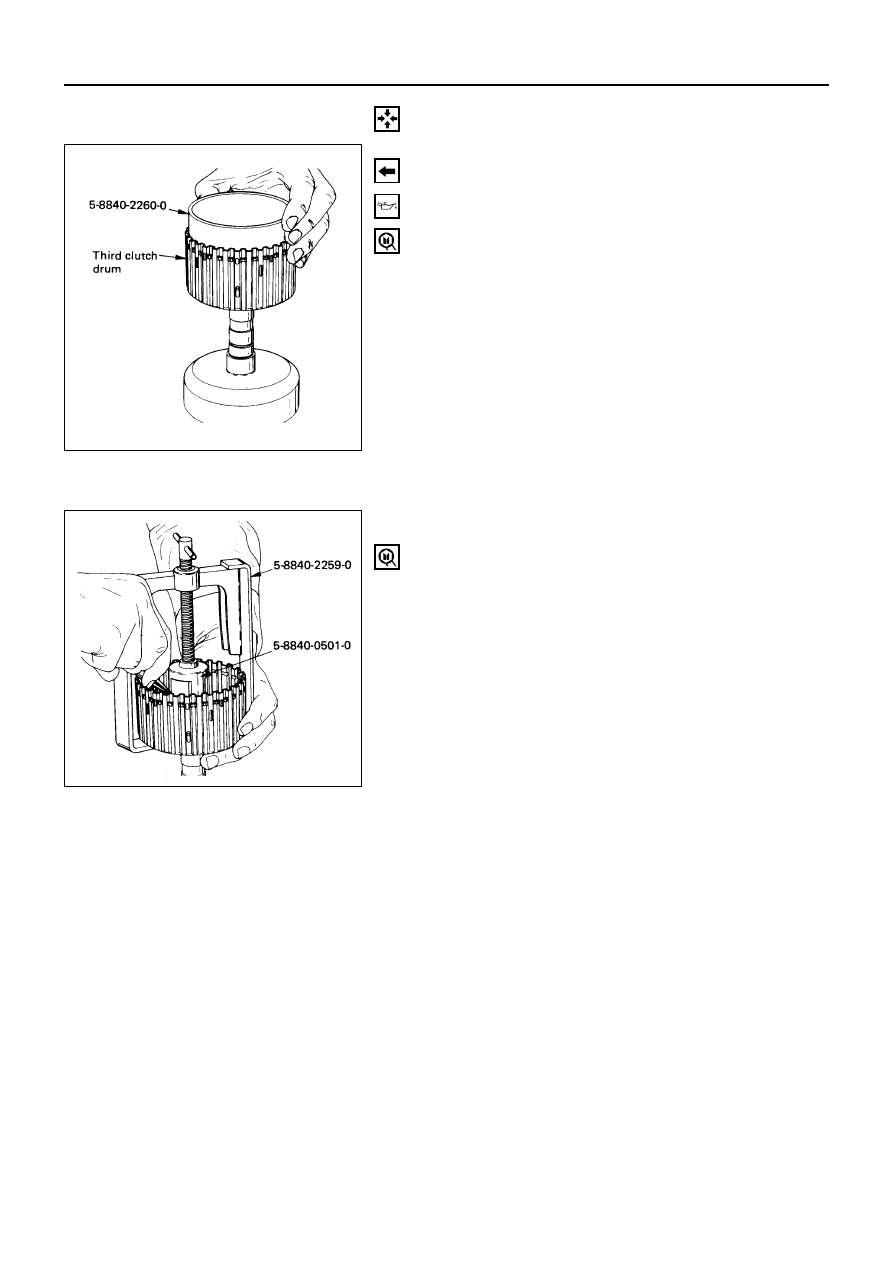

7A1 – 192 AUTOMATIC TRANSMISSION (4L30-E)

REASSEMBLY

4. Piston

1) The lip of the seals must point toward the front of

the transmission. Lubricate the lip seal with
transmission fluid.

2) Install piston assembly into the third clutch drum.

Use installer to protect the outer seal during
installation.

Third clutch piston installer: 5-8840-2260-0

(J-23084)

3. Springs

2. Spring Seat

1. Retaining Ring

1) Place retaining ring onto spring seat.
2) Compress the piston springs, using the piston

spring compressor.

NOTE:

Do not over-stress the springs and seat. Do not let
the spring seat catch in the ring groove. This may
cause damage to the spring seat.

3) Install spring seat retaining ring.
4) Remove the piston spring compressor.

Spring compressor: 5-8840-0501-0 (J-23075)
Adapter: 5-8840-2259-0 (J-23075-12)

AUTOMATIC TRANSMISSION (4L30-E)  7A1 – 193

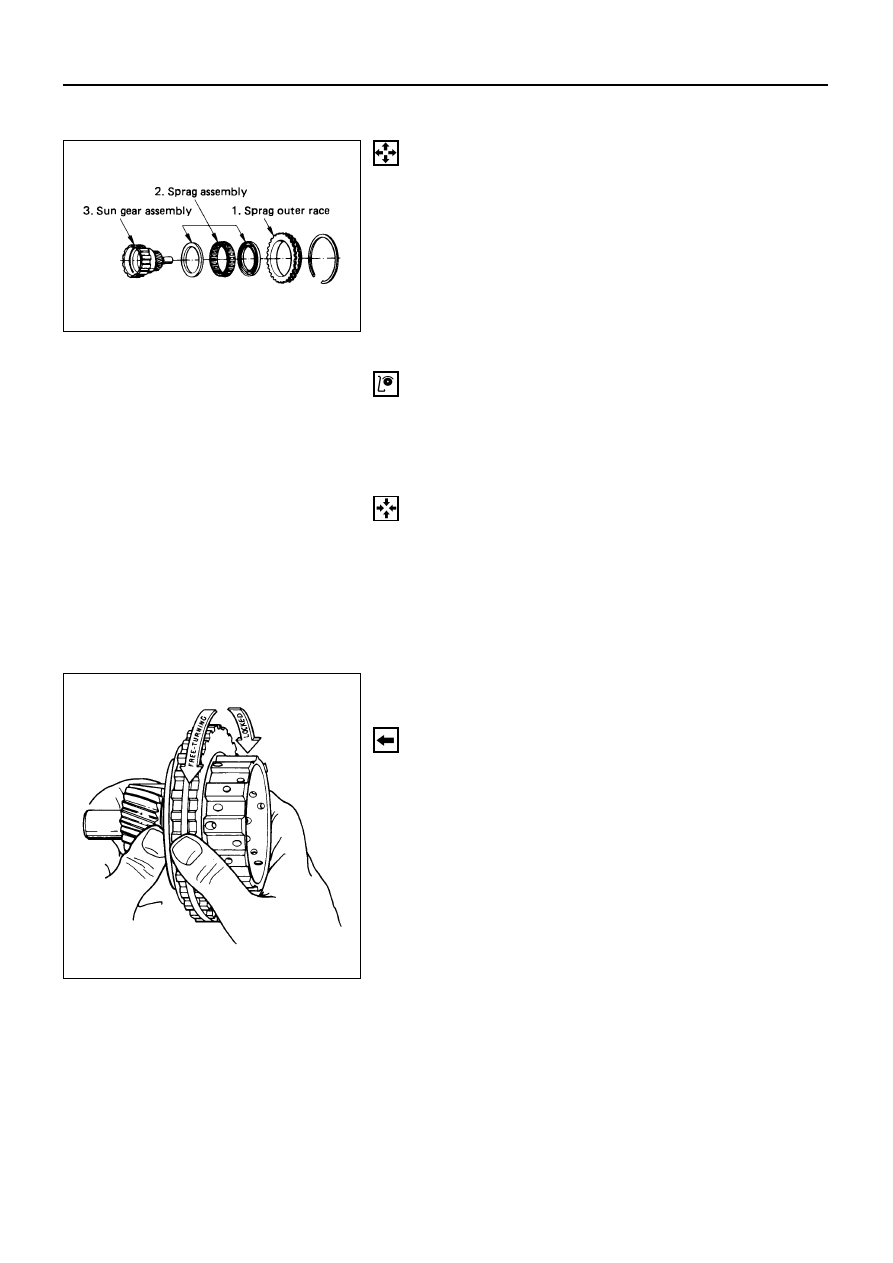

SPRAG UNIT

DISASSEMBLY

1. Sprag Outer Race

2. Sprag Assembly

Remove sprag outer race and sprag assembly from
third clutch hub and sun gear assembly.

3. Sun Gear Assembly

INSPECTION AND REPAIR

Visual check
If any damage, deformation or local wear is found in a sun
gear, sprag assembly or sprag outer race, replace it.

REASSEMBLY

3. Sun Gear Assembly

2. Sprag Assembly

Install sprag assembly onto the sun gear.

NOTE:

Flared shoulder of the sprag cage faces the sun gear.
This procedure must be followed exactly to be sure
that the sprag assembly is installed properly.

1. Sprag Outer Race

1) Install outer sprag race assembly over the sprag

cage assembly.

2) Place third clutch hub and sun gear assembly on a

flat surface, sun gear facing up. Place sprag outer
race and sprag assembly over the sun gear
assembly, push down and turn the input sun
counterclockwise at the same time.

NOTE:

Check correct rotation by holding the sun gear in
your left hand and turning the outer race. The outer
sprag race should turn freely towards you and lock
turning away from you.

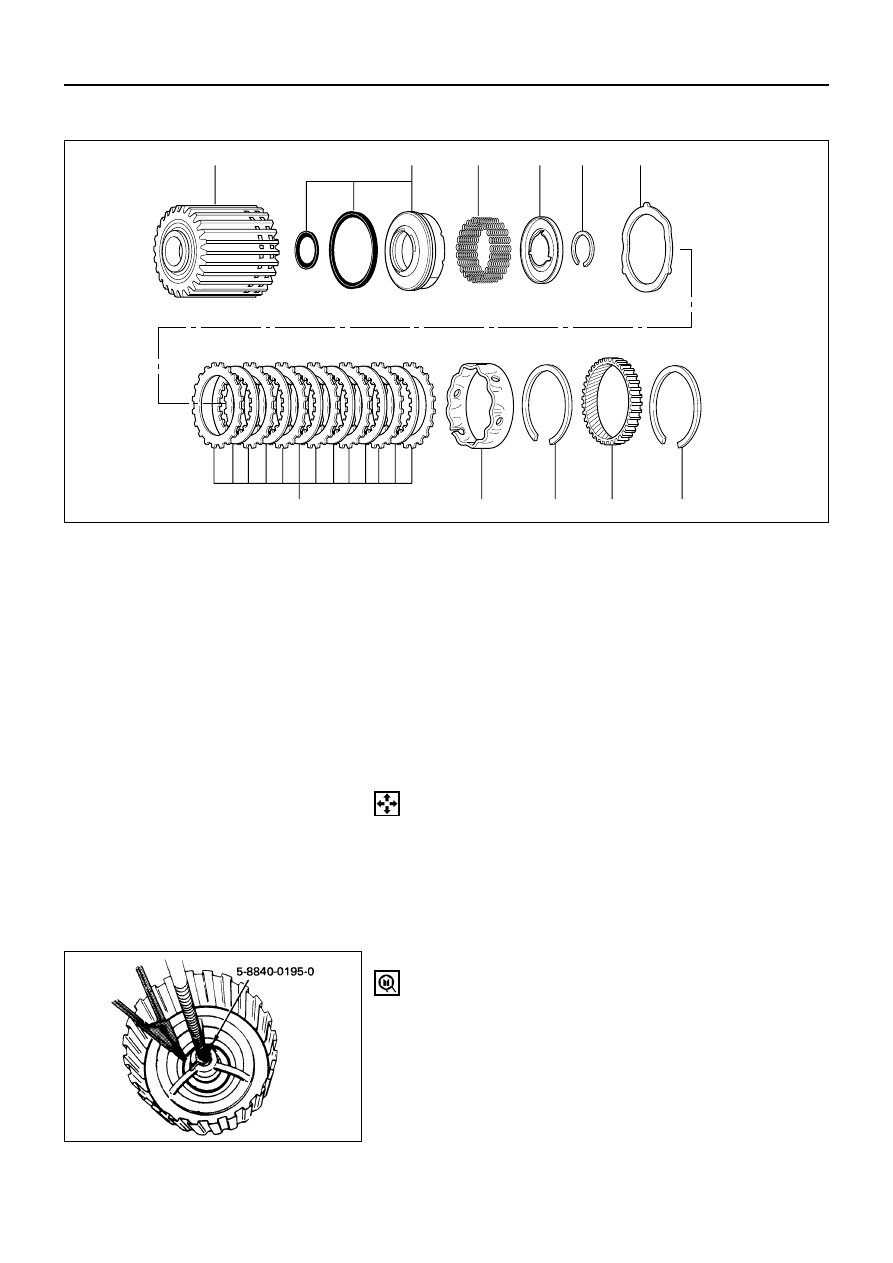

7A1 – 194 AUTOMATIC TRANSMISSION (4L30-E)

Disassembly Steps

1. Retaining ring
2. Ring gear
3. Retaining ring
4. Spacer
5. Clutch plates
6. Waved washer
7. Retaining ring
8. Spring seat

9. Springs

10. Piston
11. Second clutch drum

Removal Steps

To reassemble, follow the disassembly steps
in the reverse order.

11

5

4

3

2

1

10

9

8

7

6

SECOND CLUTCH

DISASSEMBLY

1. Retaining Ring

2. Ring Gear

3. Retaining Ring

4. Spacer

5. Clutch Plates

6. Waved Washer

7. Retaining Ring

Compress the spring seat.
Compressor: 5-8840-0195-0 (J-23327)

247RW001

★; Repair kit

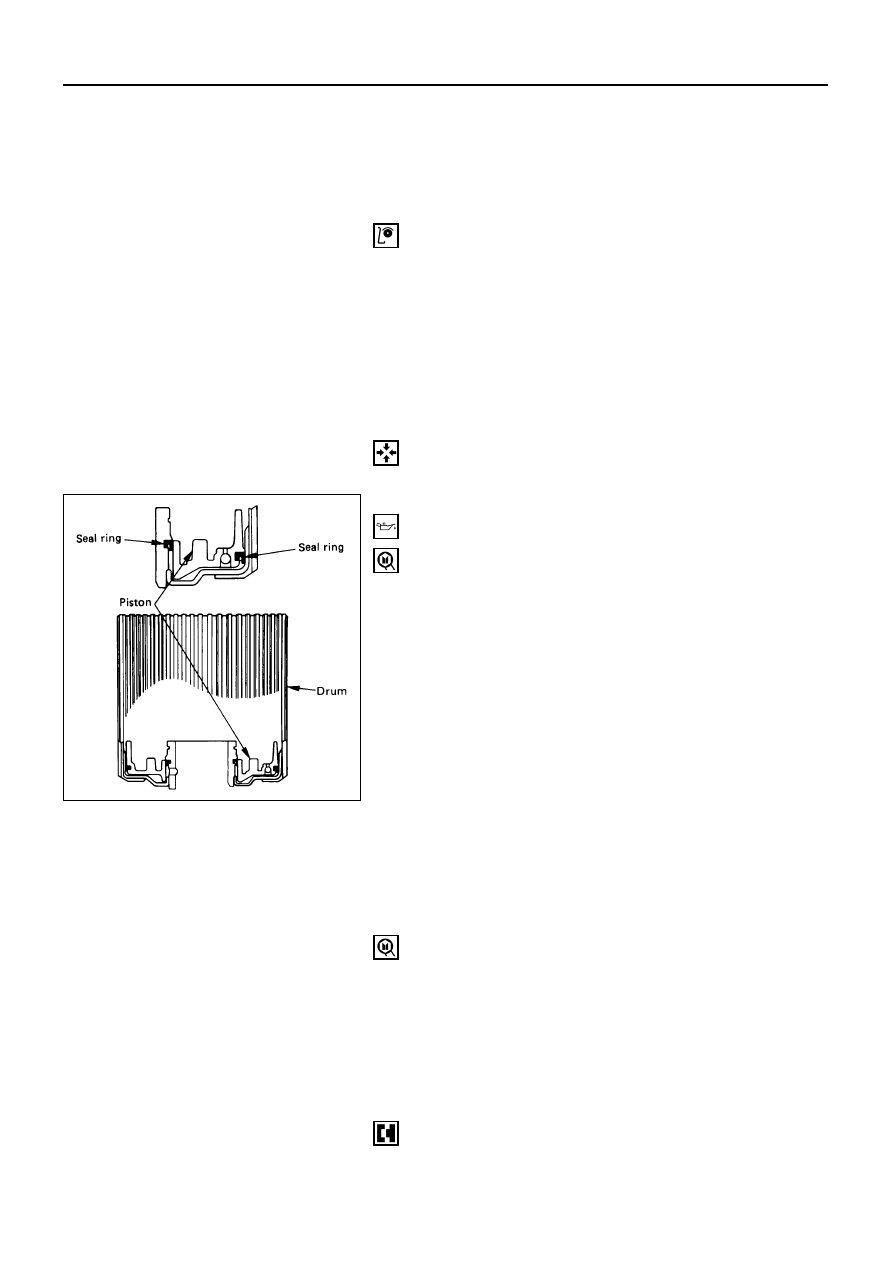

AUTOMATIC TRANSMISSION (4L30-E)  7A1 – 195

8. Spring Seat

9. Springs

10. Piston

11. Second Clutch Drum

INSPECTION AND REPAIR

Visual check
If any damage, deformation or local wear is found in a
retaining ring, ring gear, spacer, clutch plates, piston
seals, return spring or spring seat, replace it.

Operation check
Shake piston and listen for check ball movement.
Movement indicates proper check ball operation. Replace
piston if check ball is missing or falls out.

REASSEMBLY

11. Second Clutch Drum

10. Piston

Install piston assembly into the second clutch drum.
Lubricate the lip seal with liberal amounts of
transmission fluid. Use the installer to protect the
outer piston lip seal.

NOTE:

Lip of the seals point toward front of transmission.

Second clutch piston installer: 5-8840-2261-0

(J-23080-A)

9. Springs

8. Spring Seat

7. Retaining Ring

1) Install twenty-two piston springs and spring seat

on the second clutch piston. Place retaining ring
onto spring seat.

2) Use the compressor to compress the piston

springs.

Compressor: 5-8840-0195-0 (J-23327)

NOTE:

Do not let spring seat catch in ring groove.

6. Waved Plate

5. Clutch Plates

Install clutch plates. Start with a steel plate and
alternate with lined plates.

Align second clutch inner tangs.
