00 – 10 SERVICE INFORMATION

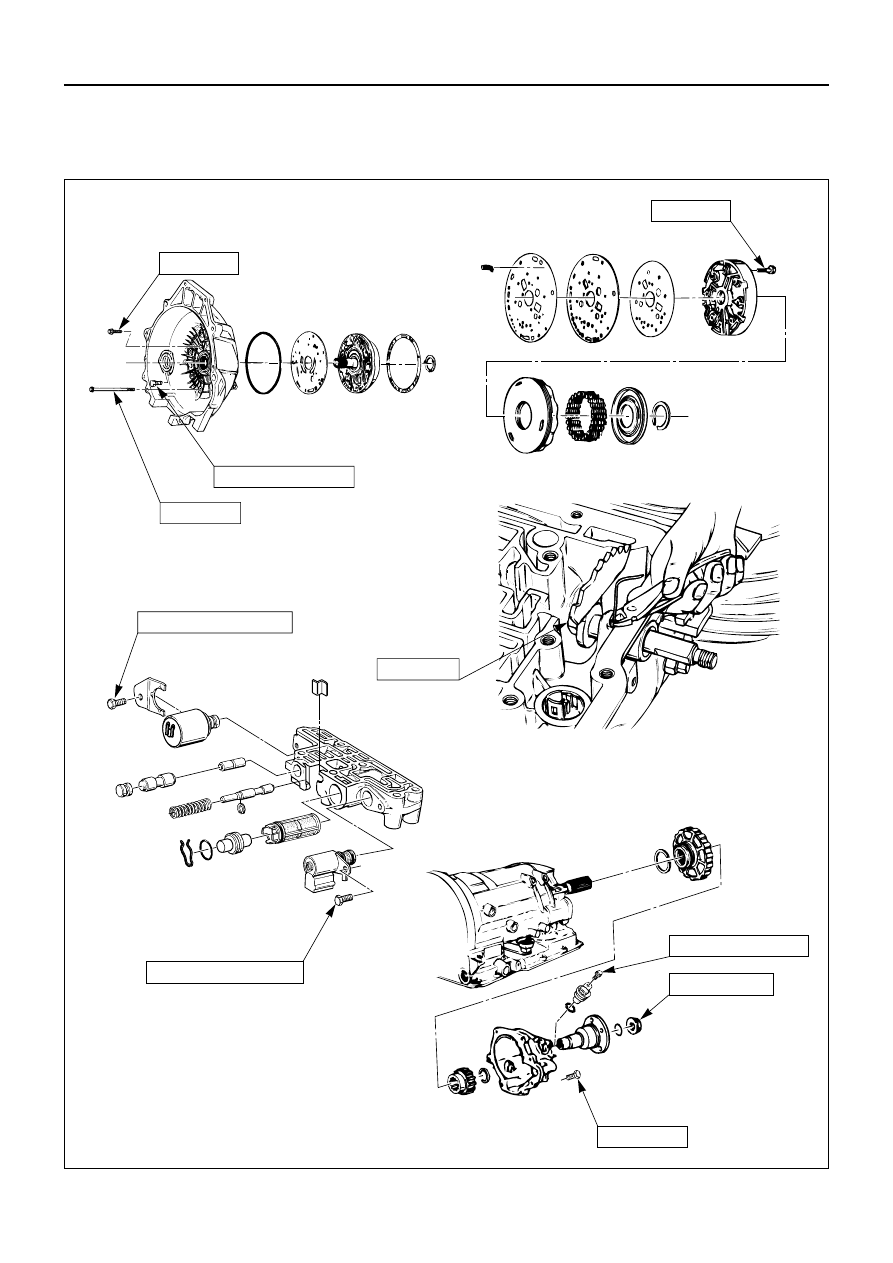

FIXING TORQUE (CONT.)

AUTOMATIC TRANSMISSION

N·m (kg·m / lb·ft)

20 (2.0/15)

25 (2.5/18)

3 (30kg·cm/26 Ib·in)

39 (4.0/29)

10 (100kg·cm/87 Ib·in)

22 (2.2/16)

10 (100kg·cm/87 Ib·in)

9 (90kg·cm/78 Ib·in)

32 (3.3/24 )

103 (10.5/76 )

E07LW002

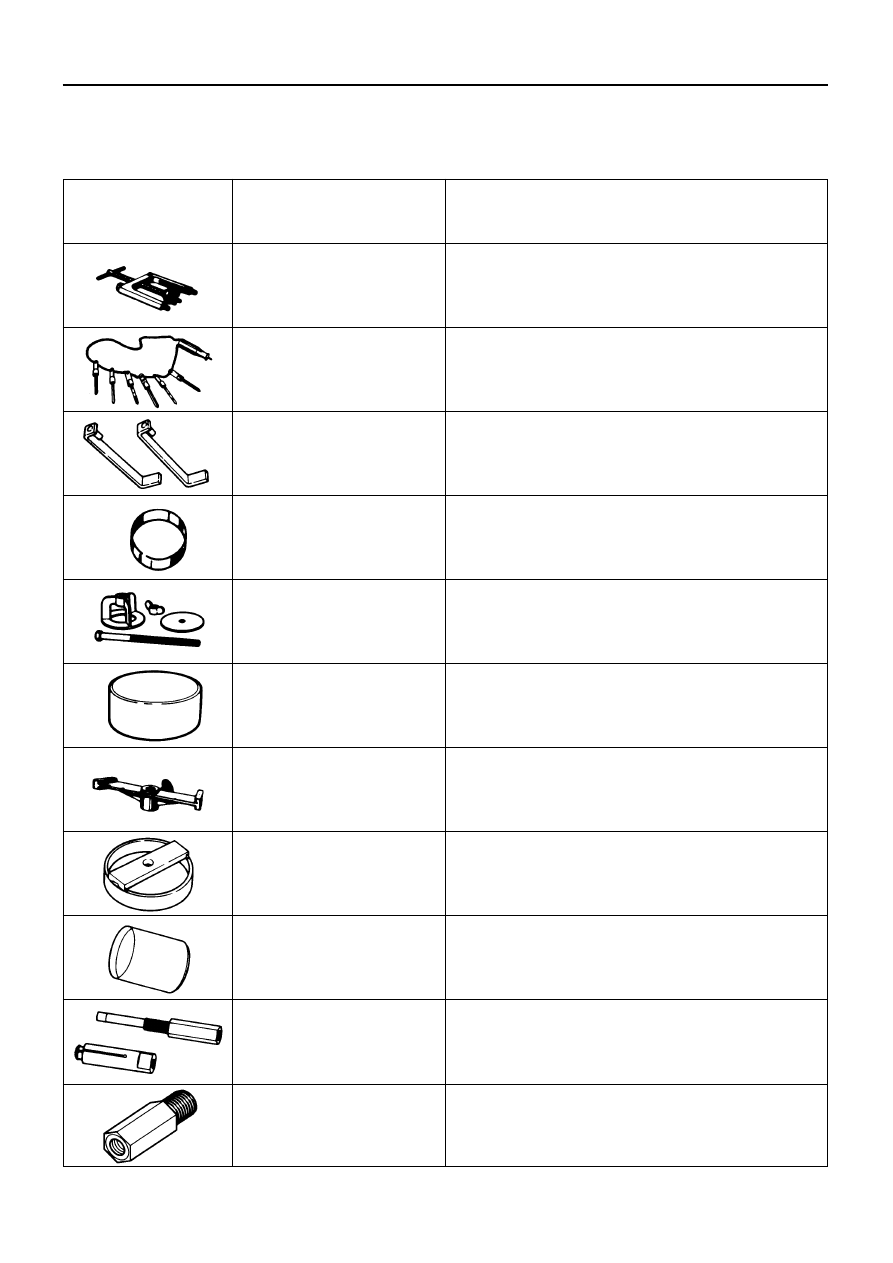

SERVICE INFORMATION  00 – 11

SPECIAL TOOLS

AUTOMATIC TRANSMISSION

ILLUSTRATION

PARTS NO.

PARTS NAME

5-8840-0501-0

Spring compressor (For servo piston)

(J-23075)

5-8840-2258-0

Third clutch retaining ring compressor

(J-38450)

5-8840-2259-0

Third clutch spring compressor adapter

(J-23075-12)

(Use with 5-8840-0501-0 (J-23075))

5-8840-2260-0

Third clutch piston installer

(J-23084)

5-8840-0195-0

Spring compressor

(J-23327)

5-8840-2261-0

Second clutch piston installer

(J-23080-A)

5-8840-2262-0

Selective washer gaging tool

(J-23085-A)

5-8840-2263-0

Fourth clutch spring compressor

(J-23327-90)

(Use with 5-8840-0195-0 (J-23327))

5-8840-2264-0

3/4 Accumulator piston fitter

(J-38553)

5-8840-2265-0 (’94)

Cover remover

(J-38552)

(Use with 5-8840-2266-0 (J-38584))

5-8840-2403-0 (’96)

Cover remover

(J-41096)

(Use with 5-8840-2266-0 (J-38584))

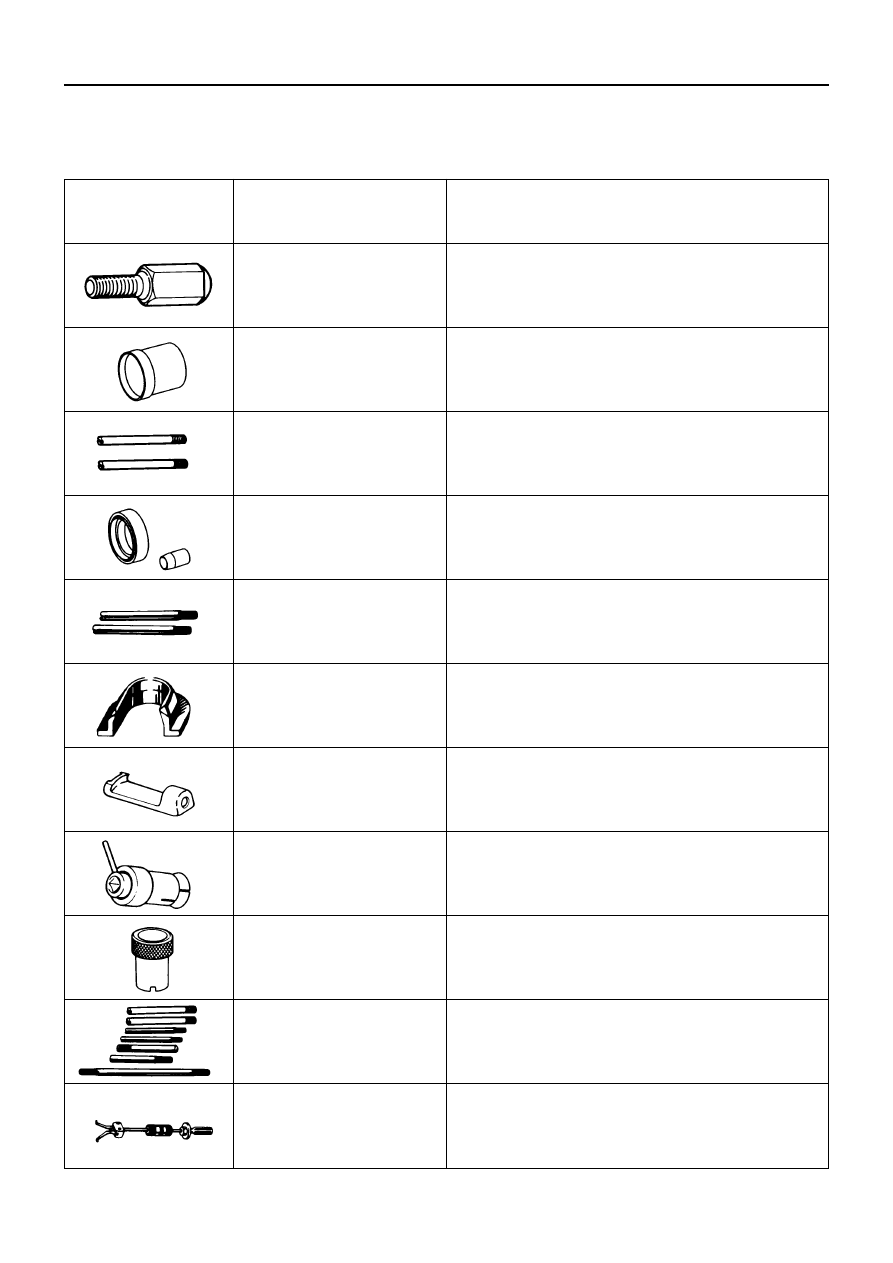

00 – 12 SERVICE INFORMATION

SPECIAL TOOLS (CONT.)

AUTOMATIC TRANSMISSION

ILLUSTRATION

PARTS NO.

PARTS NAME

5-8840-2266-0

Slide hammer adapter

(J-38584)

(Use with 5-8840-0019-0 (J-23907))

5-8840-2267-0

Fourth clutch piston fitter

(J-38554)

5-8840-2268-0

Guide pins: adapter case to main case

(J-38588)

5-8840-2269-0

Overrun clutch piston seal installer set

(J-38555)

5-8840-2270-0

Guide pins: gasket and transfer plate to valve

(J-3387-2)

body

5-8840-2271-0

Turbine shaft puller

(J-25022)

(Use with 5-8840-0618-0 (J-24773-1))

5-8840-0196-0

Oil seal remover (Use with 5-8840-0019-0

(J-23129)

(J-23907) and 5-8840-2266-0 (J-38584))

5-8840-2272-0

Oil pump centering tool

(J-38557)

5-8840-2273-0

Oil pump rotation tool

(J-23082-01)

5-8840-0022-0

Guide pins: valve body to main case

(J-25025-B)

5-8840-0019-0 &

5-8840-2000-0

Slide hammer

(J-23907)

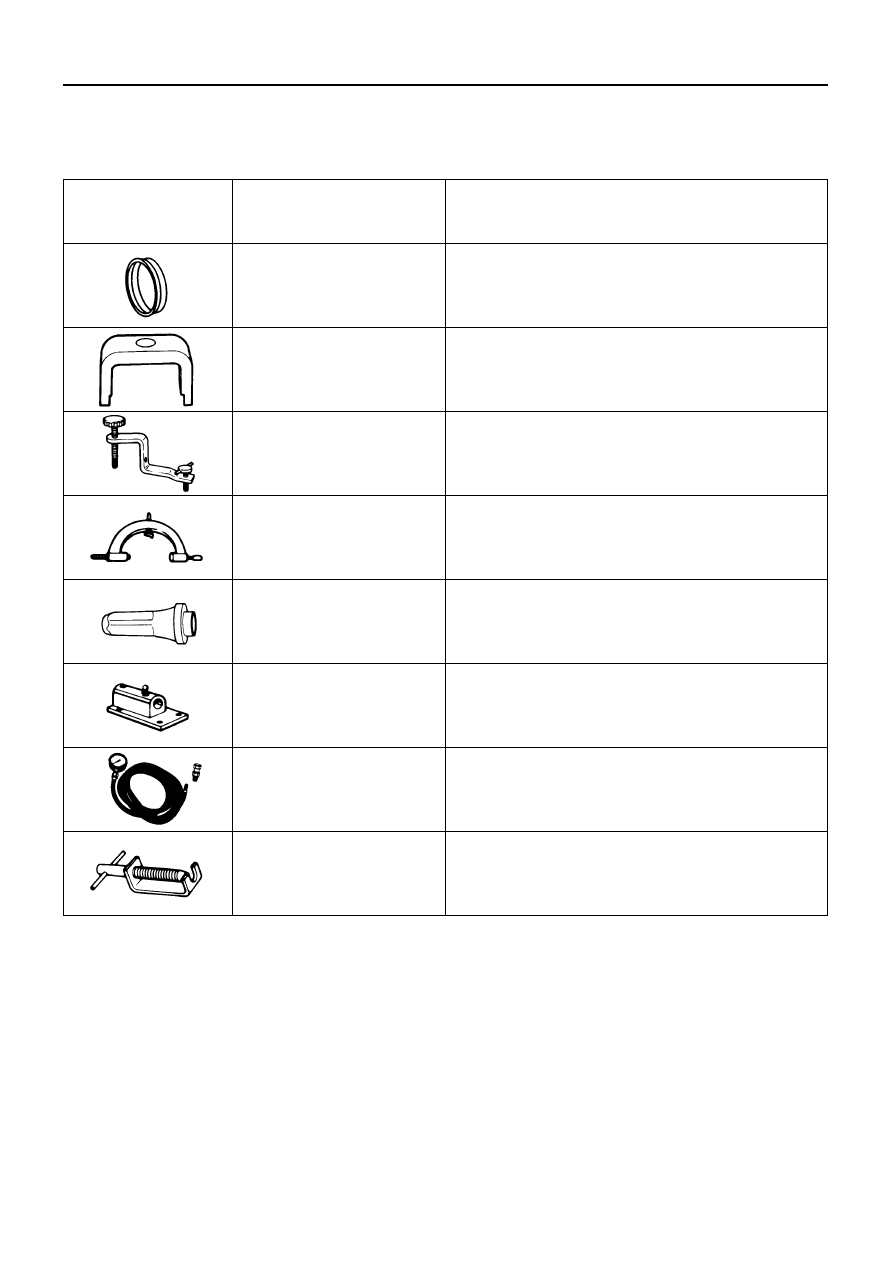

SERVICE INFORMATION  00 – 13

SPECIAL TOOLS (CONT.)

AUTOMATIC TRANSMISSION

ILLUSTRATION

PARTS NO.

PARTS NAME

5-8840-2274-0

Servo piston fitter

(J-38428)

5-8840-2275-0

Overrun clutch spring compressor

(J-23327-91)

5-8840-2277-1

3/4 Accumulator piston cover compressor

(J-38559-A)

5-8840-2278-0

Holding fixture

(J-8763-02)

5-8840-2282-0

A/T extension housing oil seal installer (Inside)

(J-36797)

5-8840-0003-0

Holding fixture base

(J-3289-20)

5-8840-0004-0

Pressure gauge

(J-21867)

5-8840-0618-0

End play fixture

(J-24773-1)

(Use with 5-8840-2271-0(J-25022))
