ENGINE ELECTRICAL  6D – 55



Condition Cause

Circuit

Through glow plug
relay turns ON,
preheating is not
done.

Bad connection of FLW between battery and glow relay.

Bad connection or disconnection in preheating circuit of glow relay main contact
terminal connector.

Bad connection between plug connector and preheating circuit



1




9



Glow plug relay
turns ON, but does
not go OFF.

Bad timer.

Bad timer. Short circuiting in circuit or earth between 5 terminal and glow relay.

Bad glow relay.





6



Indication lamp is
not lit.

Bad timer.

Burning-out of light bulb.





8



Note:  Circuit No. in rectangle is shown in the previous pre-heating chart.



2)  Problems when the time water temperature of the engine is 0°C or above.

Condition Cause

Circuit

Indicator lamp is
not lit

Bad timer

Burning-out of bulb.





8



Turn glow relay
ON.

Bad thermoswitch or disconnection of thermo SW circuit.
(Indicator will light up for 3.5 seconds.)

Bad timer.

Bad timer. Short-circuiting in circuit or earth between terminal 5 and glow relay.

  4



Note:  Circuit No. in rectangle is shown in the previous pre-heating chart.



3)  Burning-out of glow plug


When only one line is burned out, it has no effect on the start up of the engine. Even if one line is burned out,
judging from the characteristics of the glow plug, the impressed voltage will change only slightly. Therefore, no
judgment can be made by normal testing while the glow plug is installed. In order to check for disconnections
and burn-outs, the glow plugs will have to be removed from the connectors and checked one by one for
continuity.



6D – 56  ENGINE ELECTRICAL



ENGINE WARMING-UP SYSTEM

GENERAL DESCRIPTION

The engine warm-up system is a device which changes the openning of the throttle valve for intake in accordance
with the engine rpm, controls the amount of the intake air, and changes the air ratio which is supplied to the cylinder.
The device is also provided with such functions as to measure the amount of heat capacity, to close the exhaust
throttle valve to raise the exhaust pressure, and to accelerate the rise in compression and temperature, and the
increase of fuel.


Operation of each device when warming-up switch is ON position.

Vacuum switching valve

Temp. sw.

Ambient sw.

Half sw. (only 4JA1)

Accel

sw.

1 2

FICD.

EXH.
valve

Intake

valve

FICD

One of above sw. OFF

OFF

OFF

OFF

Open

Open

NOT

Working

OFF ON OFF ON

Full

Close

Close

Working

All of above sw. ON

ON ON ON ON

Half

Close

Close

Working





ENGINE ELECTRICAL  6D – 57

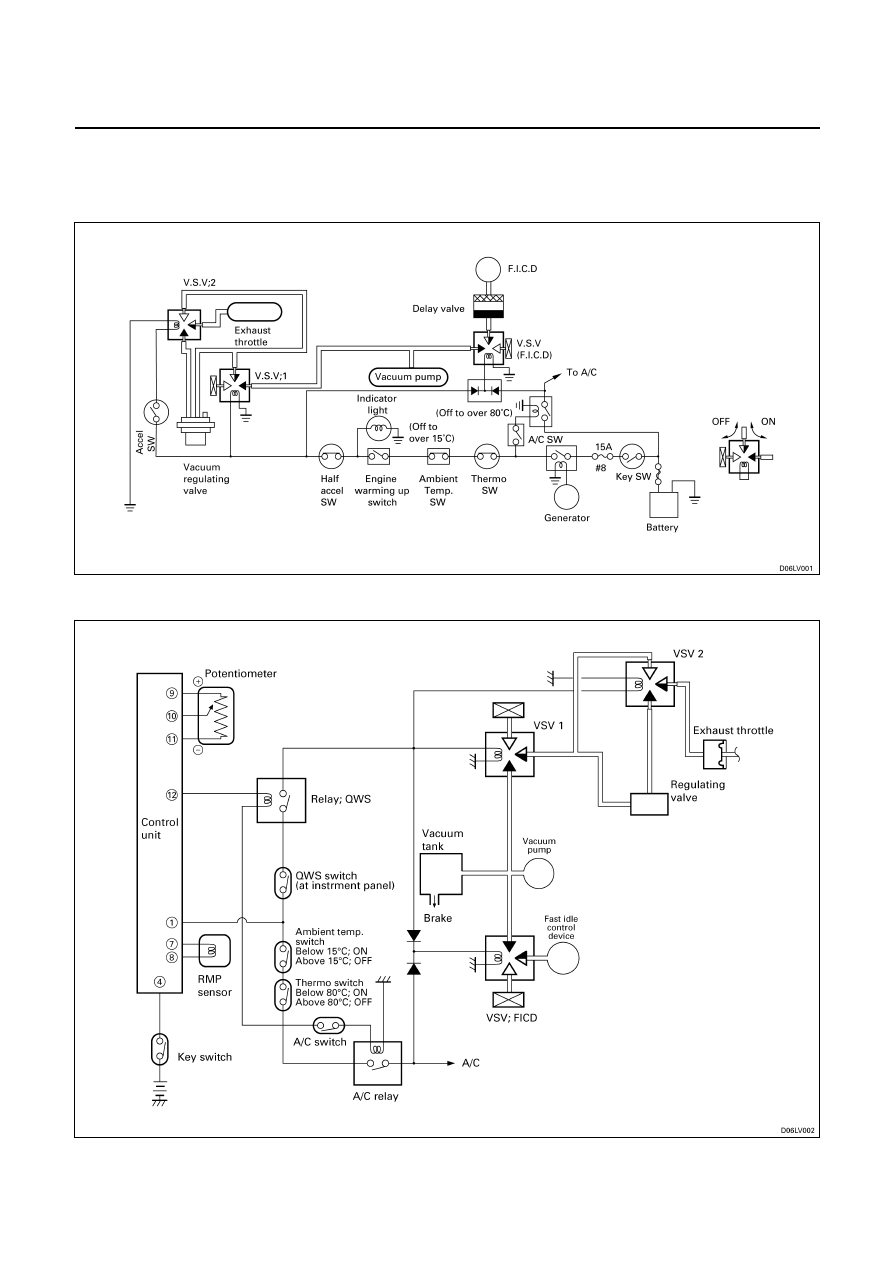

ENGINE WARMING-UP SYSTEM CIRCUIT

Type A




















Type B




6D – 58  ENGINE ELECTRICAL



TROUBLE SHOOTING

QUICK CHART FOR CHECK POINT

ENGINE WARMING-UP

When this system is out of order, checking as follows.

Switch



VSV Throttle

Checking parts



Trouble mode

Engine

warming up

Thermo

Ambient

temperature

Accel

Half Accel

(only 4JA1)

ENG. Warming

up Indicator

1

FICD

INT EXH

Cable

harness

The indicator light does not
light when switch is ON
position.

¡

¡

¡





¡













The system does not operate

¡

¡

¡

¡

¡



¡

¡  ¡  ¡  ¡

¡

Abbreviation


V.S.V.  ;  Vacuum switching valve



FICD  ;  Fast idle control device

 INT  ;

Intake

 EX  ;

Exhaust
