6A – 118  ENGINE MECHANICAL

 INTERNAL PARTS

MAJOR COMPONENTS

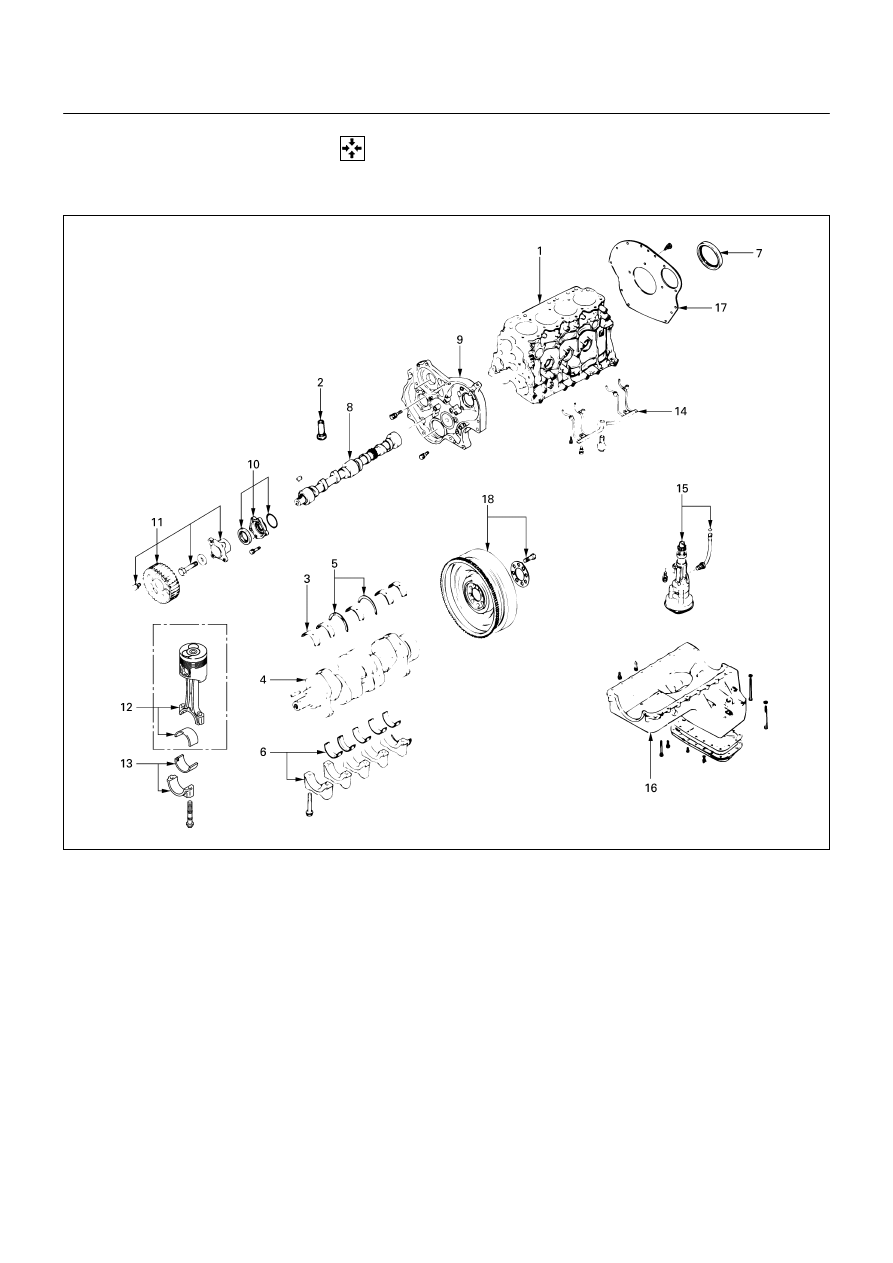

Reassembly Steps-1 (Belt Drive Model)

t

1.

Cylinder body

t

11.

Camshaft timing pulley

t

2.

Tappet

t

12.

Piston and connecting rod with

t

3.

Crankshaft upper bearing

upper bearing

t

4.

Crankshaft

t

13.

Connecting rod bearing cap with

t

5.

Crankshaft thrust bearing

lower bearing

t

6.

Crankshaft bearing cap with

t

14.

Piston cooling oil pipe

lower bearing

t

15.

Oil pump with oil pipe

t

7.

Crankshaft rear oil seal

t

16.

Oil pan

t

8.

Camshaft

t

17.

Cylinder body rear plate

t

9.

Timing pulley housing

t

18.

Flywheel

t

10.

Oil seal retainer

014RY00047

Belt Drive Model

ENGINE MECHANICAL   6A – 119

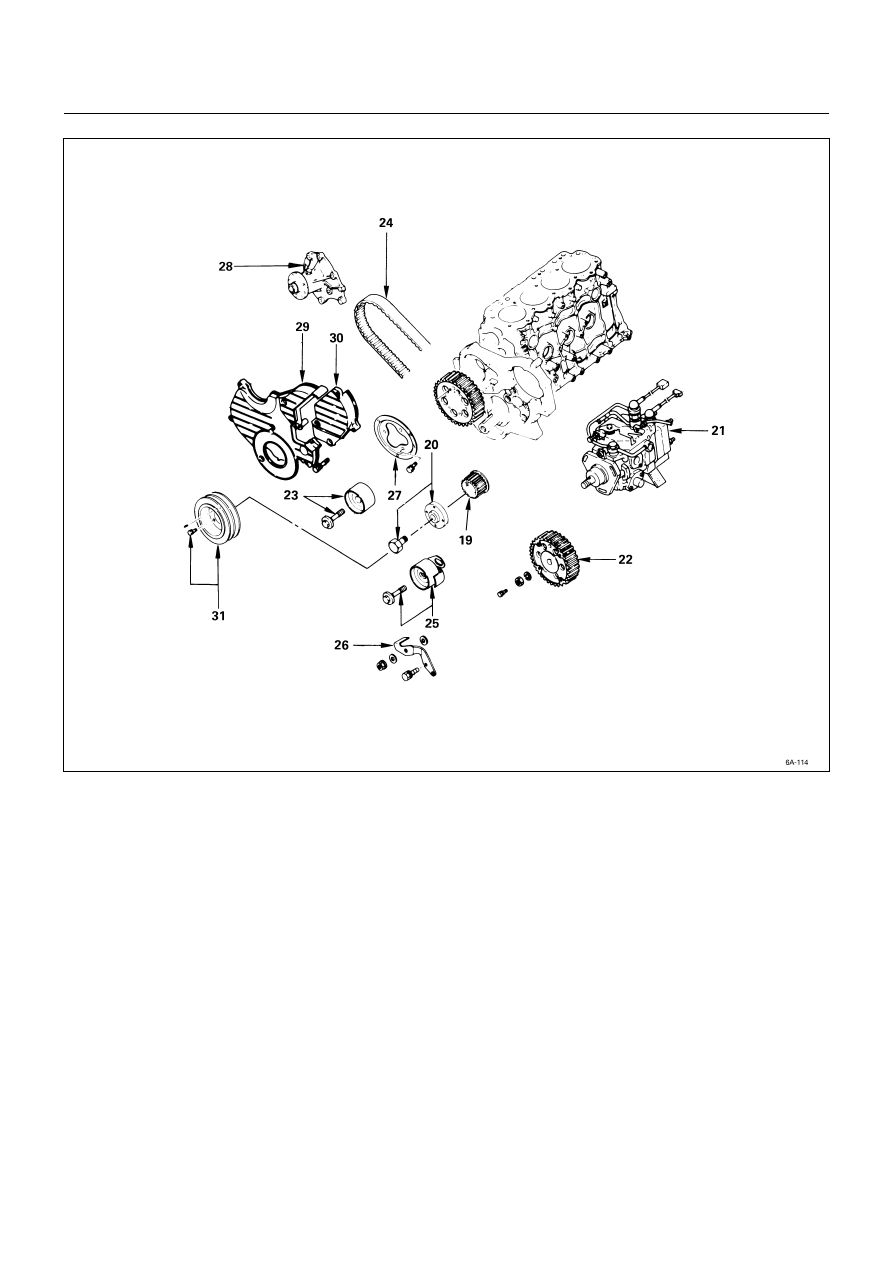

Reassembly Steps-2 (Belt Drive Model)

t

19.

Crankshaft timing pulley

t

26.

Timing belt tension adjusting

t

20.

Crankshaft timing pulley center

lever

t

21.

Injection pump

t

27.

Camshaft timing pulley flange

t

22.

Injection pump timing pulley

t

28.

Water pump

t

23.

Tension idler

t

29.

Timing pulley housing lower

t

24.

Timing belt

cover

t

25.

Timing belt tensioner

t

30.

Timing pulley housing upper

cover

31.

Crankshaft damper pulley



6A – 120  ENGINE MECHANICAL

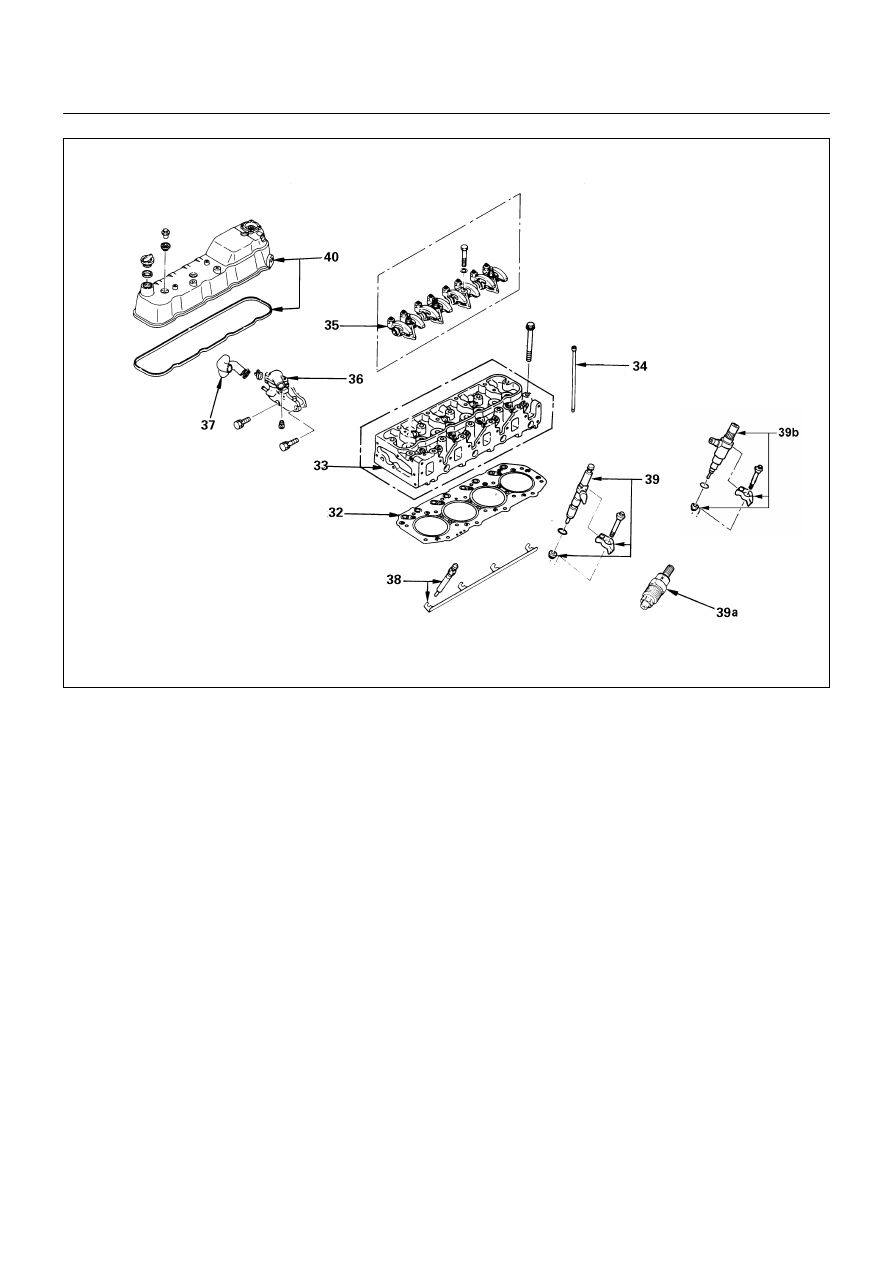

Reassembly Steps-3

t

32.

Cylinder head gasket

37.

Water by-pass hose

t

33.

Cylinder head

t

38.

34.

Push rod

Glow plug and glow plug
connector

t

35.

Rocker arm shaft and rocker
arm

t

39.

Injection nozzle and Injection
nozzle holder

t

36.

t

39a.

Injection nozzle (4JG2T engine)

Thermostat housing with thermo
switch

39b.

Injection nozzle and injection
nozzle holder (4JA1TC, 4JH1TC)

t

40.

Cylinder head cover

ENGINE MECHANICAL   6A – 121

Important Operations

1. Cylinder

Body

Use compressed air to thoroughly clean the inside and
outside surfaces of the cylinder body, the oil holes, and the
water jackets.

2. Tappet

1)  Apply a coat of engine oil to the tappet

c

 and the

cylinder body tappet insert holes

d

.

2)  Locate the position mark applied at disassembly (if the

tappet is to be reused).

Note:

The tappet must be installed before the camshaft
installation.

3.  Crankshaft Upper Bearing

The crankshaft upper bearings have an oil hole and an oil
groove. The lower bearings do not.

1)  Carefully wipe any foreign material from the upper

bearing.

Note:

Do not apply engine oil to the bearing back faces and
the cylinder body bearing fitting surfaces.

2) Locate the position mark applied at disassembly if the

removed upper bearings are to be reused.

4. Crankshaft

Apply an ample coat of engine oil to the crankshaft
journals and the crankshaft bearing surfaces before
installing the crankshaft.
