AUTOMATIC TRANSMISSION (AW30-40LE) 7A-277

243R200064

7. Spring
8. 3-4 shift valve
9. Plug

Install the spring, 3-4 shift valve and plug into the bore.

10. Retainer

Install the retainer by pushing in the plug.

243R200072

243R200063

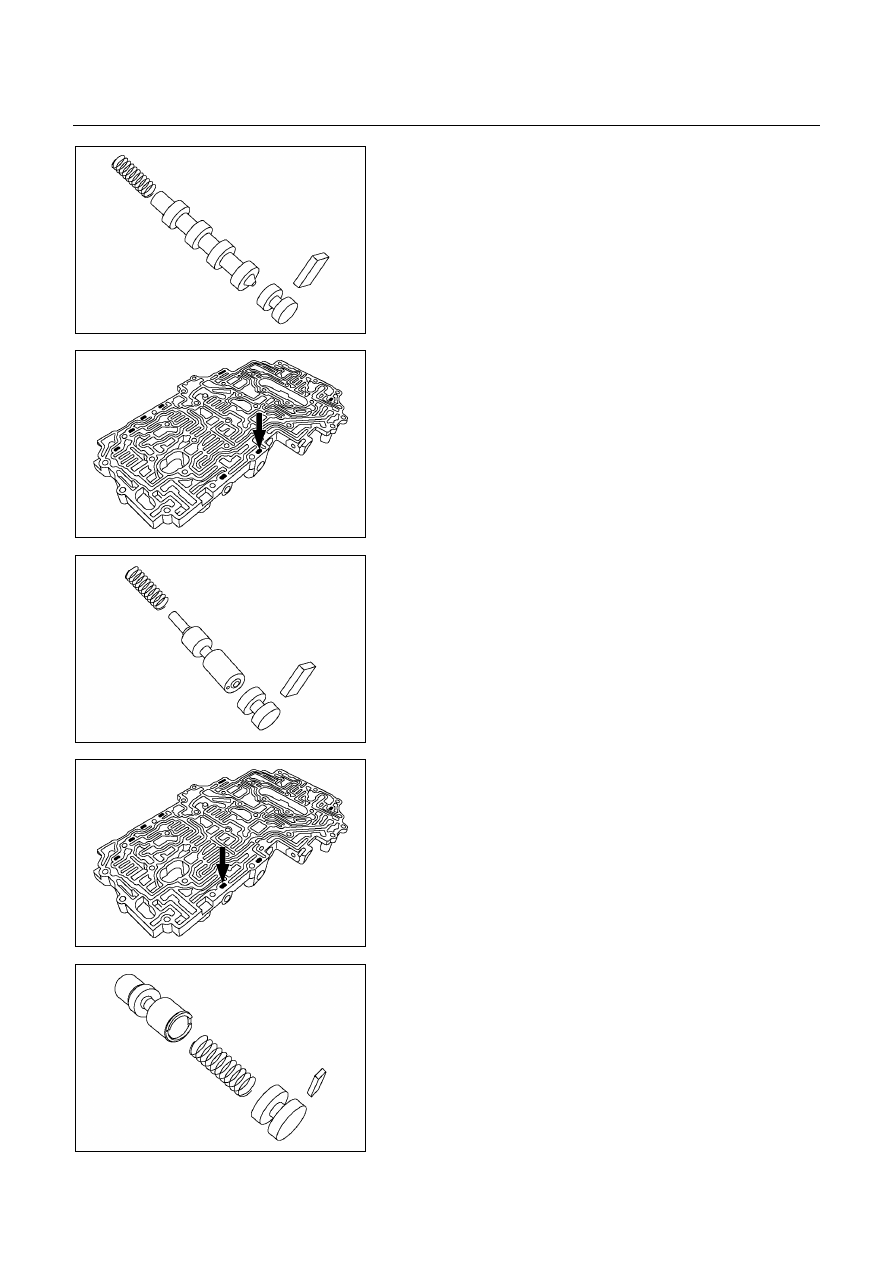

11. Spring
12. Secondary regulator valve
13. Plug

Install the spring, second coast modulator valve and
plug into the bore.

14. Retainer

Install the retainer by pushing in the plug.

243R200073

243R200060

15. Reverse control valve
16. Spring
17. Plug

Install the reverse control valve, spring and plug into
the bore.

18. Retainer

Install the retainer by pushing in the plug.

7A-278 AUTOMATIC TRANSMISSION (AW30-40LE)

243R200068

243R200058

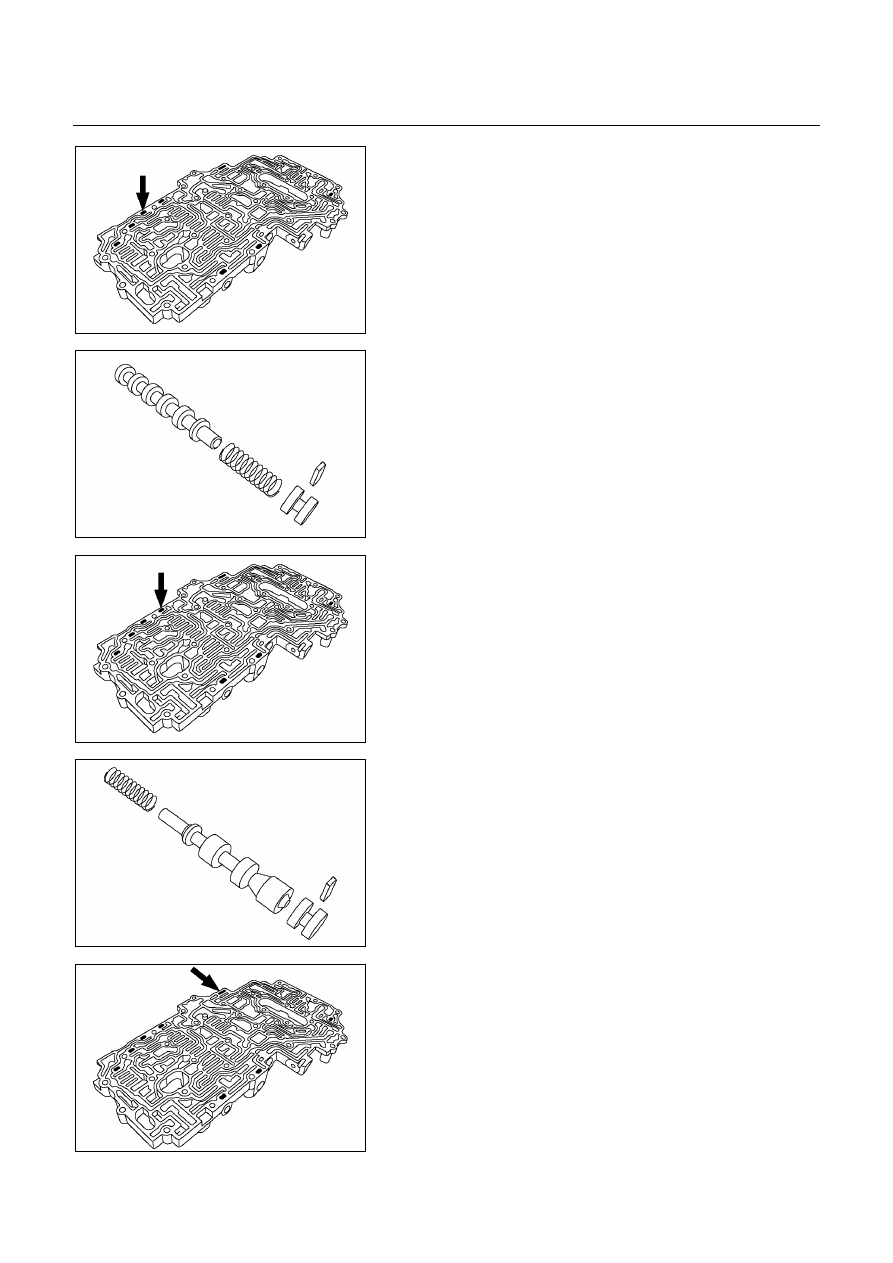

19. 2-3 shift valve
20. Spring
21. Plug

Install the 2-3 valve, spring and plug into the bore.

22. Retainer

Install the retainer by pushing in the plug.

243R200069

243R200056

23. Spring
24. Secondary regulator valve
25. Plug

Install the spring, secondary regulator valve and plug
into the bore.

26. Retainer

Install the retainer by pushing in the plug.

243R200070

AUTOMATIC TRANSMISSION (AW30-40LE) 7A-279

243R200062

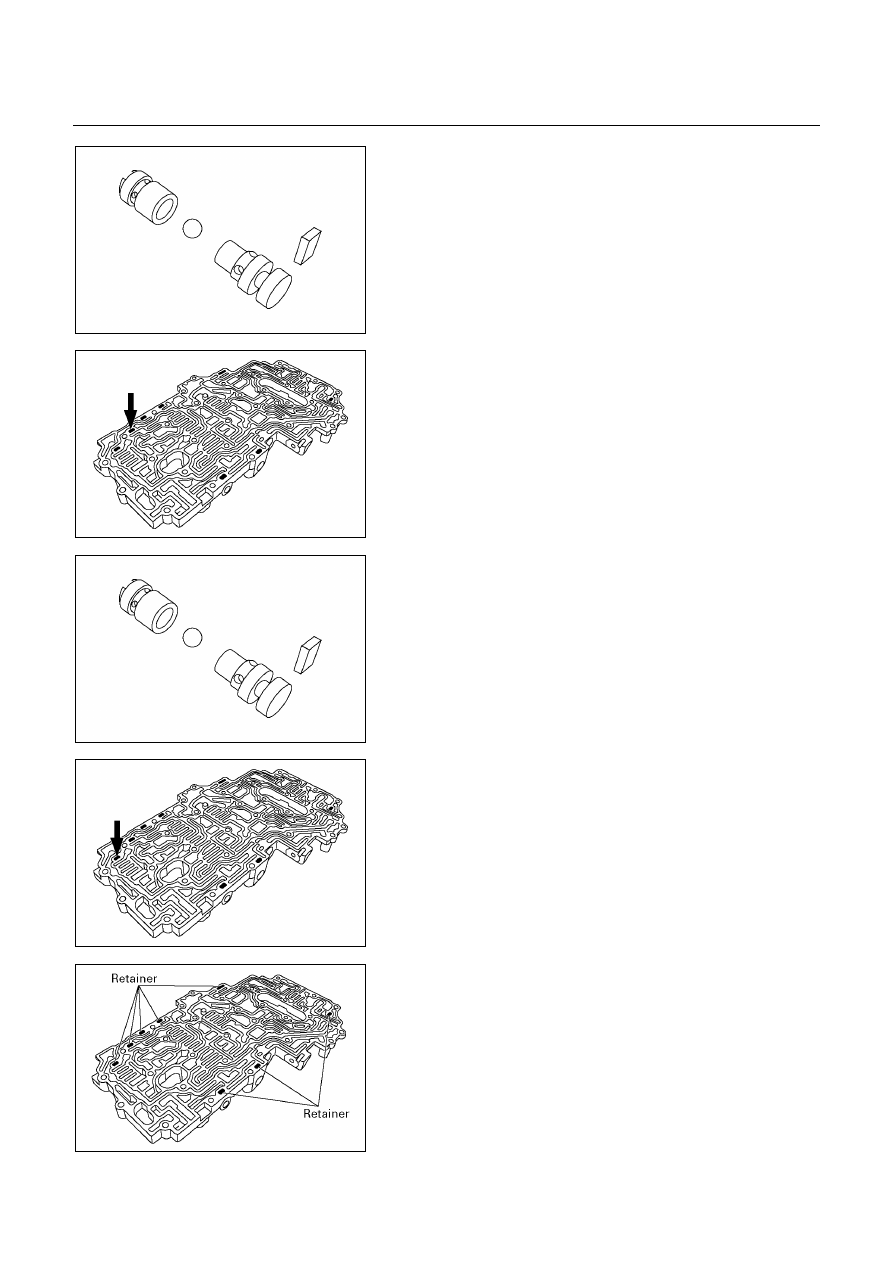

27. Check valve NO.1
28. Ball
29. Check valve NO.2

Install the check valve NO.1, ball and check valve NO.2
to valve body.

30. Retainer

243R200067

243R200062

31. Check valve NO.1
32. Ball
33. Check valve NO.2

Install the check valve NO.1, ball and check valve NO.2
to the valve body.

34. Retainer

243R200066

243R200054

NOTE:
Make sure eight retainers are installed correctly

7A-280 AUTOMATIC TRANSMISSION (AW30-40LE)

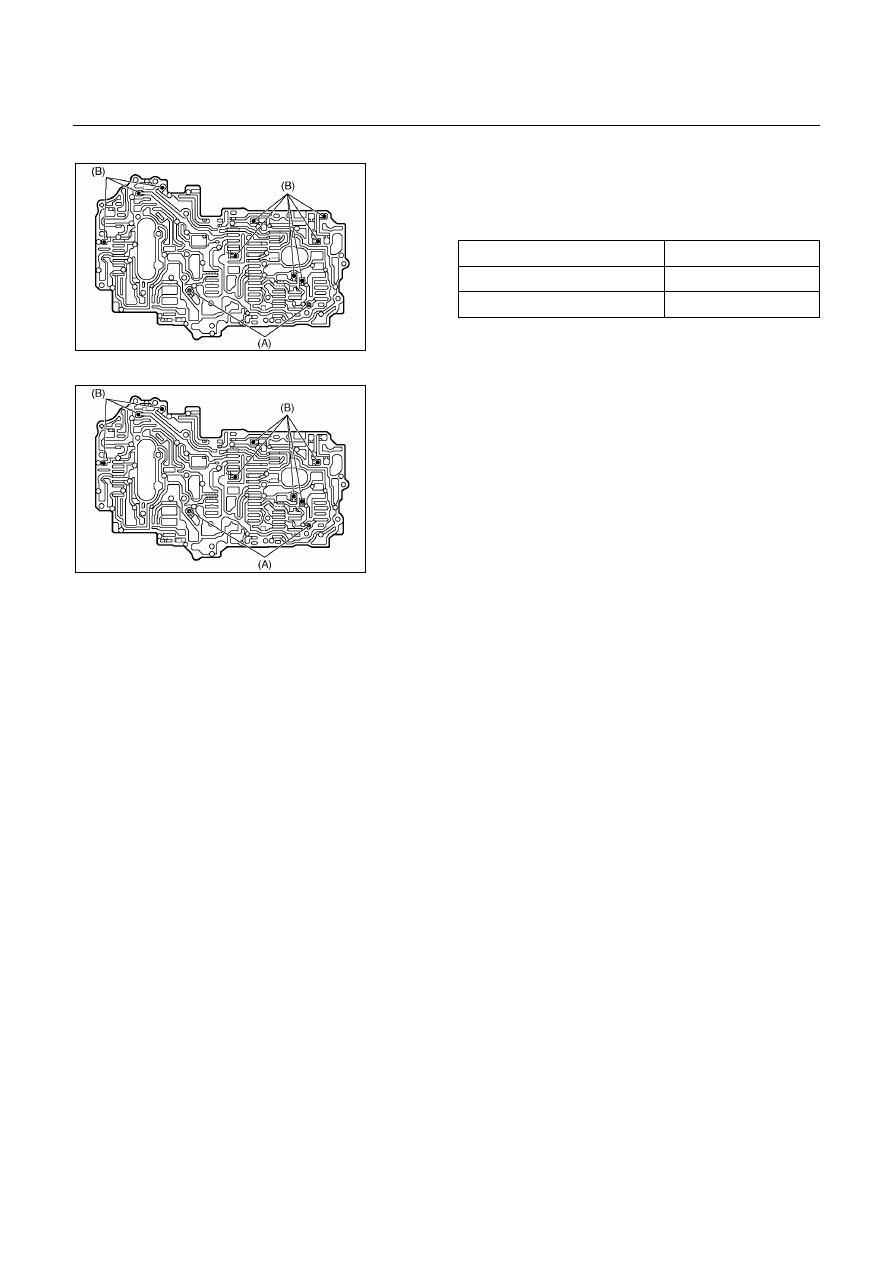

35. Check ball

Install the two types of check balls to the valve body.
Number of check ball : UBS – 11

TFR/S – 10

Check

ball

Diameter

(A) Rubber ball

5.535 mm (0.2179 in)

(B) Rubber ball

6.35 mm (0.2500 in)

UBS

243R200053

TFR/S

243L200001
