7

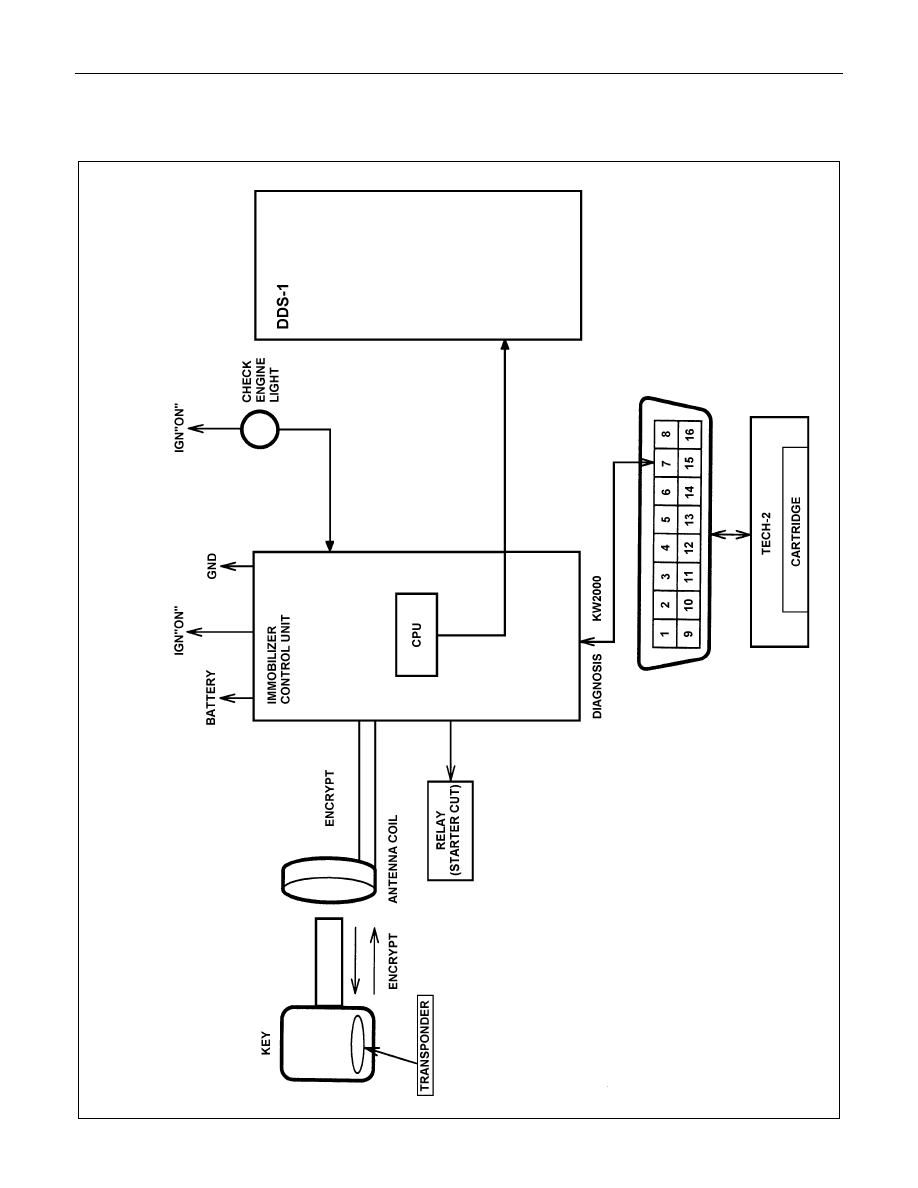

Immobilizer system Diesel Engine
(4JG2 3.1L/4JB1 2.8L/4JA1 2.5L)

8

Electrical Equipment – Instruments

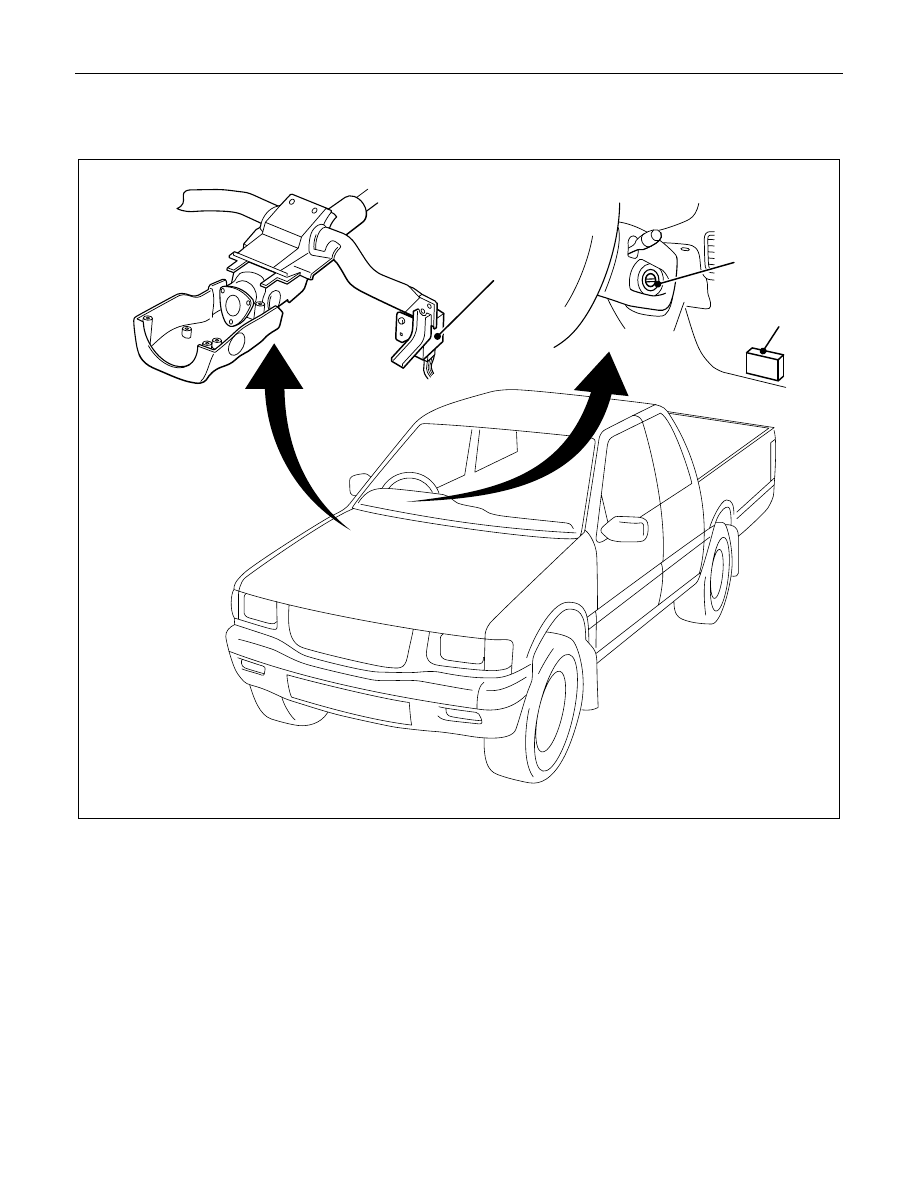

Location of Components

1

2

3

1 Control unit; electronic immobilizer

(located at the under cross Beam)

2 Antenna coil
3 DLC

9

Electrical Equipment – Instruments

Terminal Assignment of wiring Harness Connector, Immobilizer Controller

1 Back up voltage supply
2 Voltage from ignition switch ON
3 Communication: carry on line from ECM

to immobilizer (Gas Engine)
Check Engine Lamp (Diesel Engine)

4 DWA (South Africa model only)
5 N.C.
6 Antenna coil positive
7 Ground

8 Communication: carry on line from

immobilizer to ECM (Gas Engine)
Communication: carry on line from
immobilizer to DDS-1 (Diesel Engine)

9 To Tech 2

10 Speed sensor voltage (Gas Engine)
11 N.C.
12 N.C.
13 Antenna coil negative
14 Starter relay

10

Electrical Equipment – Instruments

Function (Continued)

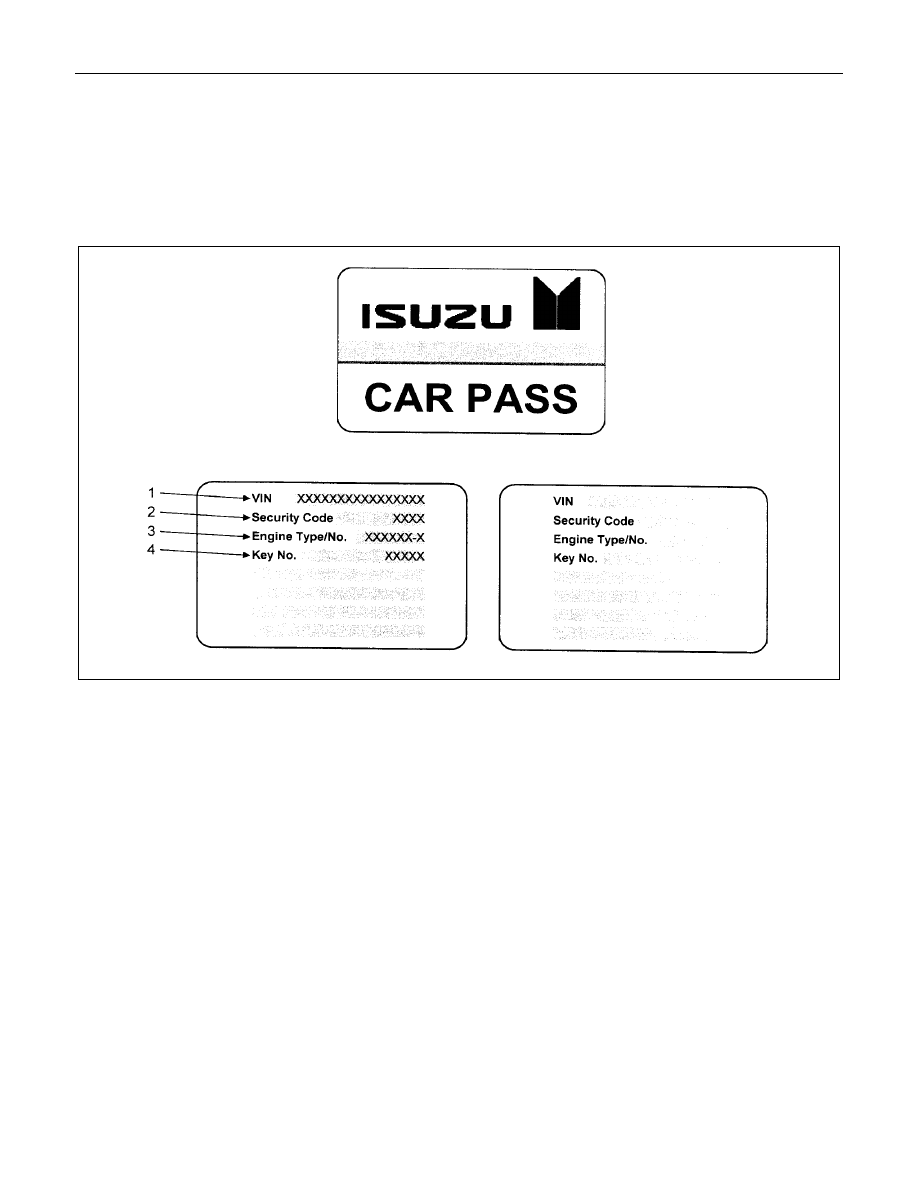

Car pass Card

Each vehicle has a car pass, which is issued to the customer on delivery of the vehicle along with the other papers.
For this, a card is used, similar to the conventional radio passes.

Note:

This car pass is an important document and must be treated with the same care as the vehicle papers. It
must not be kept in the vehicle. The customer must present the car pass for operations involving the
immobilizer or the engine control unit.
