Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 241

ENGINE DRIVEABILITY AND EMISSIONS

6E–205

1. Using the Tech 2, ignition “On” and engine “On”.

2. Select the “Miscellaneous Test” and perform the

“IAC Control” in the “IAC System”.

3. Operate the Tech 2 in accordance with procedure.

Was the engine speed changed, when the IAC valve is
operating step by step?

—

Go to Step 10

Go to Step 9

Check for the following conditions.

• Objects blocking the IAC valve.

• Objects blocking the throttle valve.

• Vacuum leaking at throttle body.
If a problem is found, repair as necessary.
Was the problem found?

—

Verify repair

Go to Step 14

Check for injector for the affected bank.
Refer to “Injector Coil Test & Injector Balance Test
Procedure”.
Was the injector operation correct?

—

Go to Step 11

Refer to Injector

Coil Test &

Injector

Balance Test

Procedure

Check for fuel pressure.
Refer to “Fuel System Diagnosis”.
Was the fuel pressure correct?

—

Go to Step 15

Refer to Fuel

System

Diagnosis

Replace the TPS.
Is the action complete?

—

Verify repair

—

Replace the MAP sensor.
Is the action complete?

—

Verify repair

—

Replace the IAC valve.
Is the action complete?

—

Verify repair

—

Replace the O

sensor.

Was the problem solved?

—

Verify repair

Go to Step 16

Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?

—

Verify repair

Go to Step 17

Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobiliser system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobiliser System-ECM replacement” for
the ECM/Immobiliser linking procedure.

—

Verify repair

—

Step

Action

Value(s)

Yes

6E–206

ENGINE DRIVEABILITY AND EMISSIONS

DIAGNOSTIC TROUBLE CODE (DTC) P1171 FUEL SUPPLY SYSTEM LEAN

DURING POWER ENRICHMENT

Condition for setting the DTC and action taken when the DTC sets

Circuit Description

The engine control module (ECM) internal circuitry can
identify if the vehicle fuel system is capable of supplying
adequate amounts of fuel during heavy acceleration
(power enrichment). The ECM monitors the voltage of
the oxygen sensor during power enrichment. When a
power enrichment mode of operation is requested
during “Closed Loop” operation (by heavy acceleration),

the ECM will provide more fuel to the engine. Under
these conditions the ECM should detect a “rich”
condition (high oxygen sensor voltage). If this “rich”
exhaust is not detected at this time, a Diagnostic Trouble
Code P1171 will set. A plugged fuel filter or restricted
fuel line can prevent adequate amounts of fuel from
being supplied during power enrichment mode.

Code

Type

DTC Name

DTC Setting Condition

Fail-Safe (Back Up)

P1171

Fuel Supply System Lean During
Power Enrichment

1. No DTC relating to MAP sensor, TPS,

EVAP purge, ECT sensor, CKP sensor,
VSS, injector control circuit and ignition
control circuit.

2. Engine coolant temperature is more than

60°C.

3. Mass air flow is below 13.5m/s.
4. O

sensor bank 1 output voltage is below

350mV in power enrichment mode.

No fail-safe function.

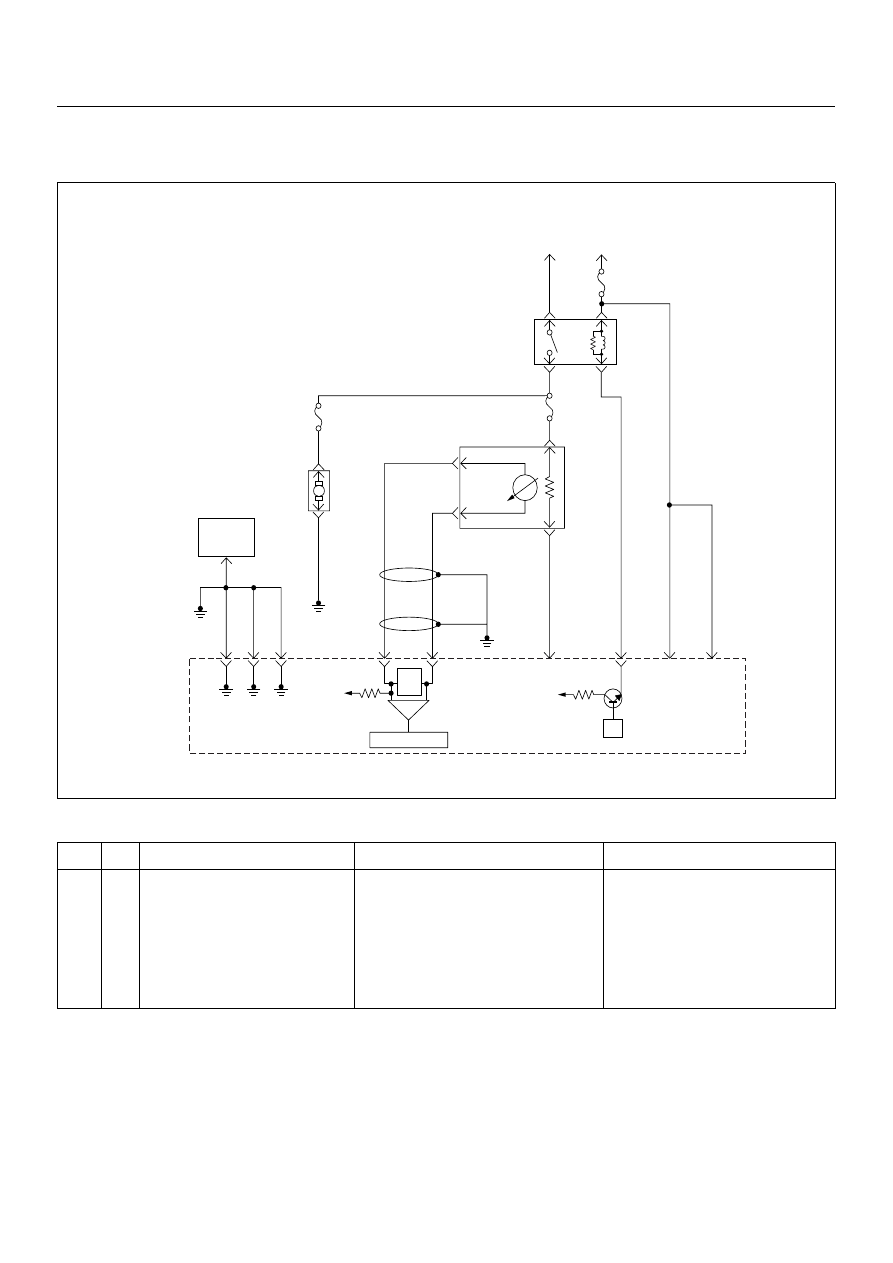

µP

Ign

Crankshaft
Position
Sensor

J1-1 J1-2 J1-17

Battery
Voltage

2.0
WHT

ECM
10A

450
mV

A/D Converter

Vcc
+5V

TIMING
COVER

J2-6

J2-21

Fuel
Pump

FUEL
PUMP
20A

2.0
BLK

2.0
BLK/
BLU

Fuel
Pump
Relay

SENSOR
10A

Heated
O

Sensor

0.85
RED/
WHT

0.5
GRN/
WHT

0.5
RED/
WHT

0.5
BLU/
WHT

0.5
BLU

0.5 PNK

J2-31

J2-11

J2-2

J2-18

Engine
Control
Module
(ECM)

ENGINE DRIVEABILITY AND EMISSIONS

6E–207

Diagnostic Aids

Check for the following conditions:

• Heated oxygen sensor wiring - The sensor pigtail

may be routed incorrectly and contacting the exhaust
system.

• Poor ECM to engine block ground.

• Fuel pressure - The system will go lean if pressure is

too low. The ECM can compensate for some
decrease. However, if fuel pressure is too low, a
diagnostic Trouble Code P1171 may be set. Refer to
Fuel System Diagnosis.

• Lean injector(s) - Perform “Injector Balance Test.”

• Vacuum leaks - Check for disconnected or damaged

vacuum hoses and for vacuum leaks at the intake
manifold, throttle body, and PCV system.

• Exhaust leaks - An exhaust leak may cause outside

air to be pulled into the exhaust gas stream past the
HO2S, causing the system to appear lean. Check for
exhaust leaks that may cause a false lean condition
to be indicated.

• Fuel contamination - Water, even in small amounts,

can be delivered to the fuel injectors. The water can
cause a lean exhaust to be indicated, Excessive
alcohol in the fuel can also cause this condition.
Refer to Fuel System Diagnosis for the procedure to
check for fuel contamination.

Diagnostic Trouble Code (DTC) P1171

Fuel Supply System Lean During Power Enrichment

Step

Action

Value(s)

Yes

Was the “On-Board Diagnostic (OBD) System Check”
performed?

—

Go to Step 2

Go to On Board

Diagnostic

(OBD) System

Check

1. Connect the Tech 2.

2. Review and record the failure information.

3. Select “F0: Read DTC Infor By Priority” in “F0:

Diagnostic Trouble Code”.

Is the DTC P1171 stored as “Present Failure”?

—

Go to Step 3

Refer to

Diagnostic Aids

and Go to Step

1. Using the Tech2, ignition “On” and engine “Off”.

2. Select “Clear DTC Information” with the Tech2 and

clear the DTC information.

3. Operate the vehicle and monitor the “F5: Failed

This Ignition” in “F2: DTC Information”.

Was the DTC P1171 stored in this ignition cycle?

—

Go to Step 4

Refer to

Diagnostic Aids

and Go to Step

1. Using the Tech 2, ignition “On” and engine “Off”.

2. Monitor the “Throttle Position” in the data display.

Does the Tech 2 indicate correct “Throttle Position” in
accordance with accelerator pedal operation?

—

Go to Step 6

Go to Step 5

Check for the following conditions.

• Objects blocking the throttle valve.

• Incorrectly installed.
If a problem is found, repair as necessary.
Was the problem found?

—

Verify repair

Go to Step 12

1. Using the Tech 2, ignition “On” and engine “On”.

2. Monitor the “Manifold Absolute Pressure” in the

data display.

Does the Tech 2 indicate correct “Manifold Absolute
Pressure” in accordance with engine speed or
acceleration?

—

Go to Step 8

Go to Step 7

6E–208

ENGINE DRIVEABILITY AND EMISSIONS

Remove the MAP sensor and check for the following
conditions.

• Objects blocking the air cleaner.

• Objects blocking the MAP sensor.

• Objects blocking the throttle valve.

• Vacuum leaking at intake duct.

• Vacuum leaking at throttle body.
If a problem is found, repair as necessary.
Was the problem found?

—

Verify repair

Go to Step 13

1. Using the Tech 2, ignition “On” and engine “On”.

2. Select the “Miscellaneous Test” and perform the

“IAC Control” in the “IAC System”.

3. Operate the Tech 2 in accordance with procedure.

Was the engine speed changed, when the IAC valve is
operating step by step?

—

Go to Step 10

Go to Step 9

Check for the following conditions.

• Objects blocking the IAC valve.

• Objects blocking the throttle valve.

• Vacuum leaking at throttle body.
If a problem is found, repair as necessary.
Was the problem found?

—

Verify repair

Go to Step 14

Check for injector for the affected bank.
Refer to “Injector Coil Test & Injector Balance Test
Procedure”.
Was the injector operation correct?

—

Go to Step 11

Refer to Injector

Coil Test &

Injector

Balance Test

Procedure

Check for fuel pressure.
Refer to “Fuel System Diagnosis”.
Was the fuel pressure correct?

—

Go to Step 15

Refer to Fuel

System

Diagnosis

Replace the TPS.
Is the action complete?

—

Verify repair

—

Replace the MAP sensor.
Is the action complete?

—

Verify repair

—

Replace the IAC valve.
Is the action complete?

—

Verify repair

—

Replace the O

sensor.

Was the problem solved?

—

Verify repair

Go to Step 16

Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?

—

Verify repair

Go to Step 17

—

Verify repair

—

Step

Action

Value(s)

Yes
