ENGINE DRIVEABILITY AND EMISSIONS

6E–157

7

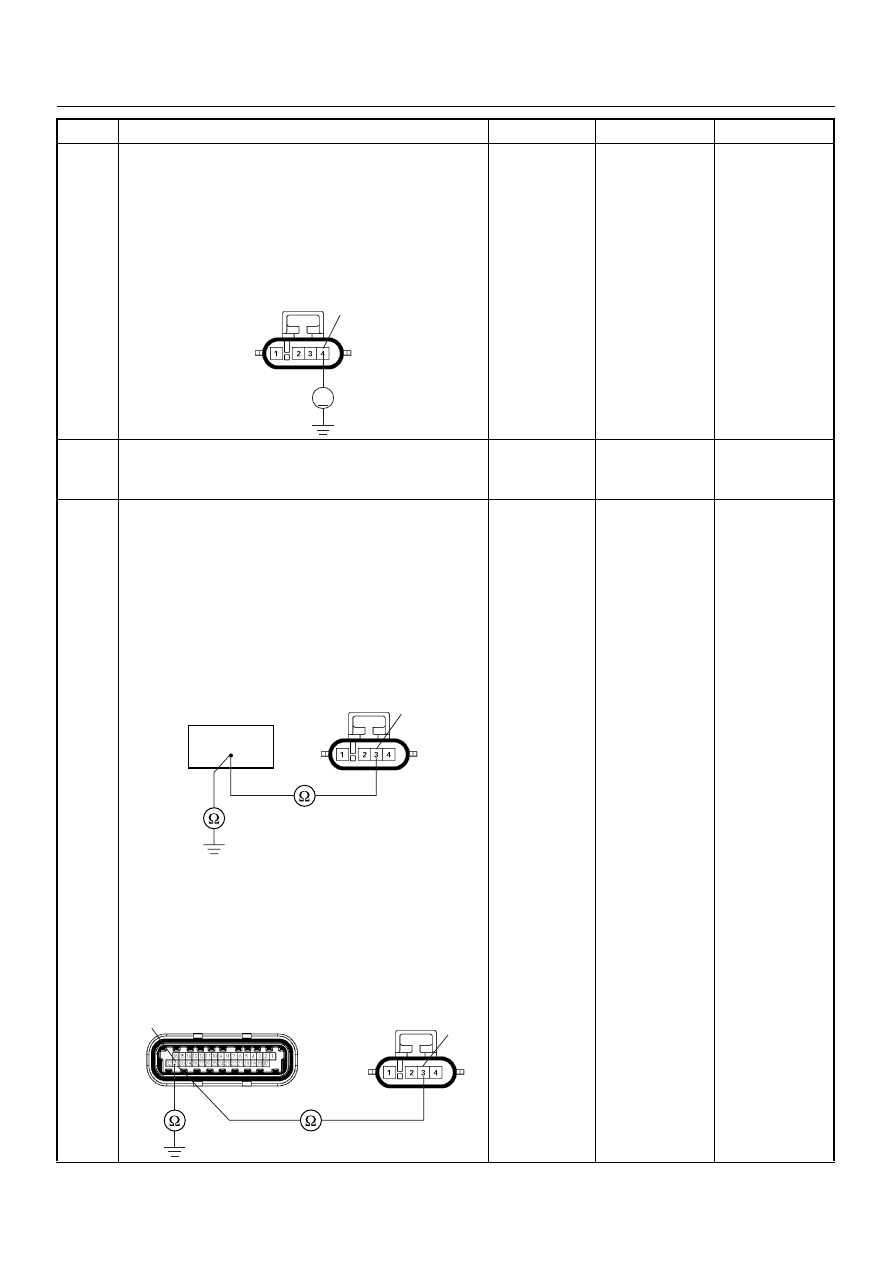

Using the DVM and check the heater power supply
circuit for the affected cylinder.

1. Ignition “On”, engine “Off”.

2. Disconnect the O

2

 sensor connector.

3. Check the circuit for open circuit.

Was the DVM indicated specified value?

Battery
voltage

Go to Step 9

Go to Step 8

8

Repair the open or short to ground circuit between the
“O

2

 Sensor” fuse (10A) and O

2

 sensor.

Is the action complete?

—

Verify repair

—

9

Using the DVM and check the heater ground circuit.
Breaker box is available:

1. Ignition “Off”, engine “Off”.

2. Install the breaker box as type A. (ECM

disconnected) Ref. 6E-80.

3. Disconnect the O

2

 sensor connector.

4. Check the circuit for open or short to ground

circuit.

Was the problem found?

Breaker box is not available:

1. Ignition “Off”, engine “Off”.

2. Disconnect the O

2

 sensor connector and ECM

connector.

3. Check the circuit for open or short to ground

circuit.

Was the problem found?

—

Repair faulty

harness and

verify repair

Go to Step 10

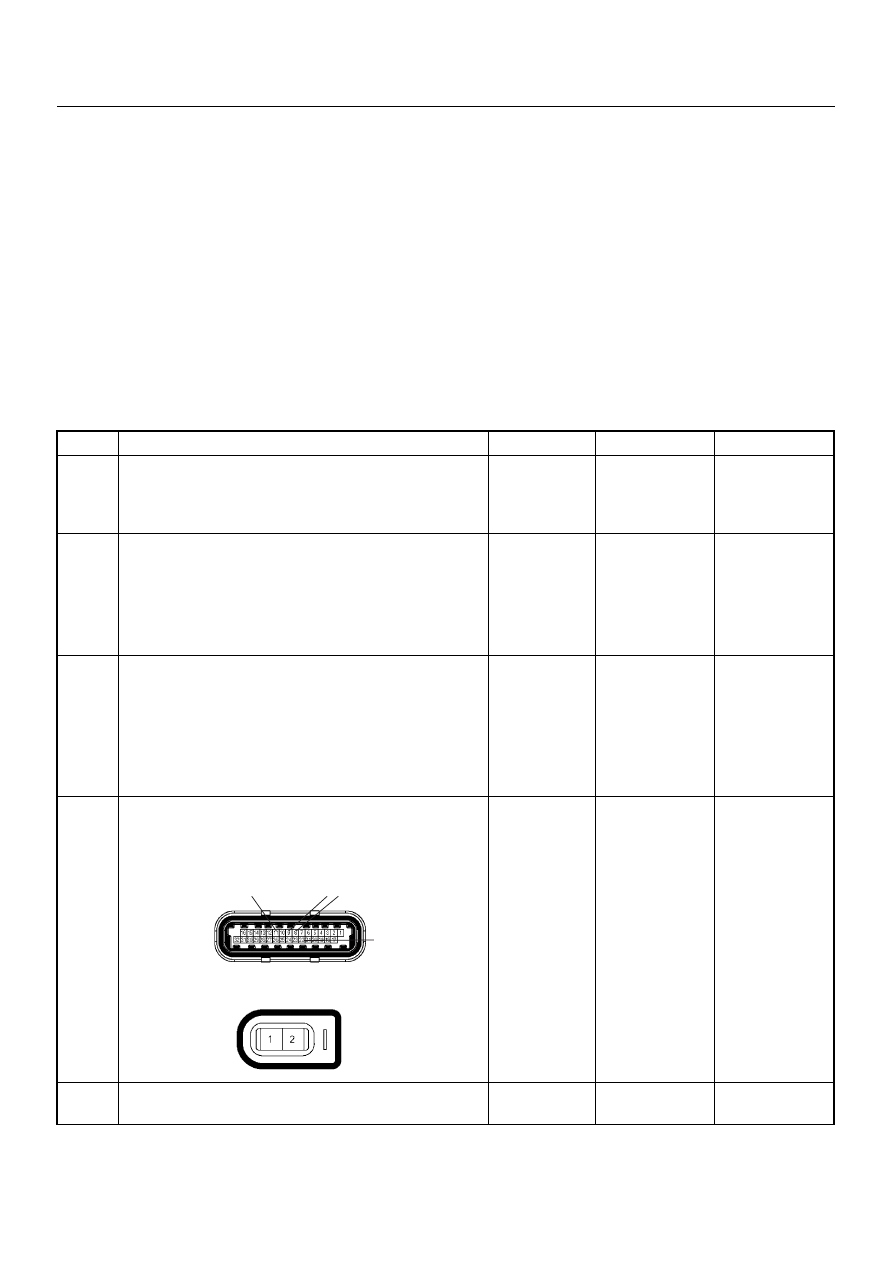

Step

Action

Value(s)

Yes

No

4

V

E77

3

63

E77

3

31

E56(J2)

E77

6E–158

ENGINE DRIVEABILITY AND EMISSIONS

10

Using the DVM and check the heater ground circuit.

1. Ignition “On”, engine “Off”.

2. Disconnect the O

2

 sensor connector.

3. Check the circuit for short to battery voltage

circuit.

Was the DVM indicated voltage?

—

Repair faulty

harness and

verify repair

Go to Step 12

11

Replace the O

2

 sensor.

Was the problem solved?

—

Verify repair

Go to Step 12

12

Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?

—

Verify repair

Go to Step 13

13

Replace the ECM.
Is the action complete?
IMPORTANT:  The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobiliser system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobiliser System-ECM replacement” for
the ECM/Immobiliser linking procedure.

—

Verify repair

—

Step

Action

Value(s)

Yes

No

3

V

E77

ENGINE DRIVEABILITY AND EMISSIONS

6E–159

DIAGNOSTIC TROUBLE CODE (DTC) P0201 INJECTOR 1 CONTROL CIRCUIT

DIAGNOSTIC TROUBLE CODE (DTC) P0202 INJECTOR 2 CONTROL CIRCUIT

DIAGNOSTIC TROUBLE CODE (DTC) P0203 INJECTOR 3 CONTROL CIRCUIT

DIAGNOSTIC TROUBLE CODE (DTC) P0204  INJECTOR 4 CONTROL CIRCUIT

Condition for setting the DTC and action taken when the DTC sets

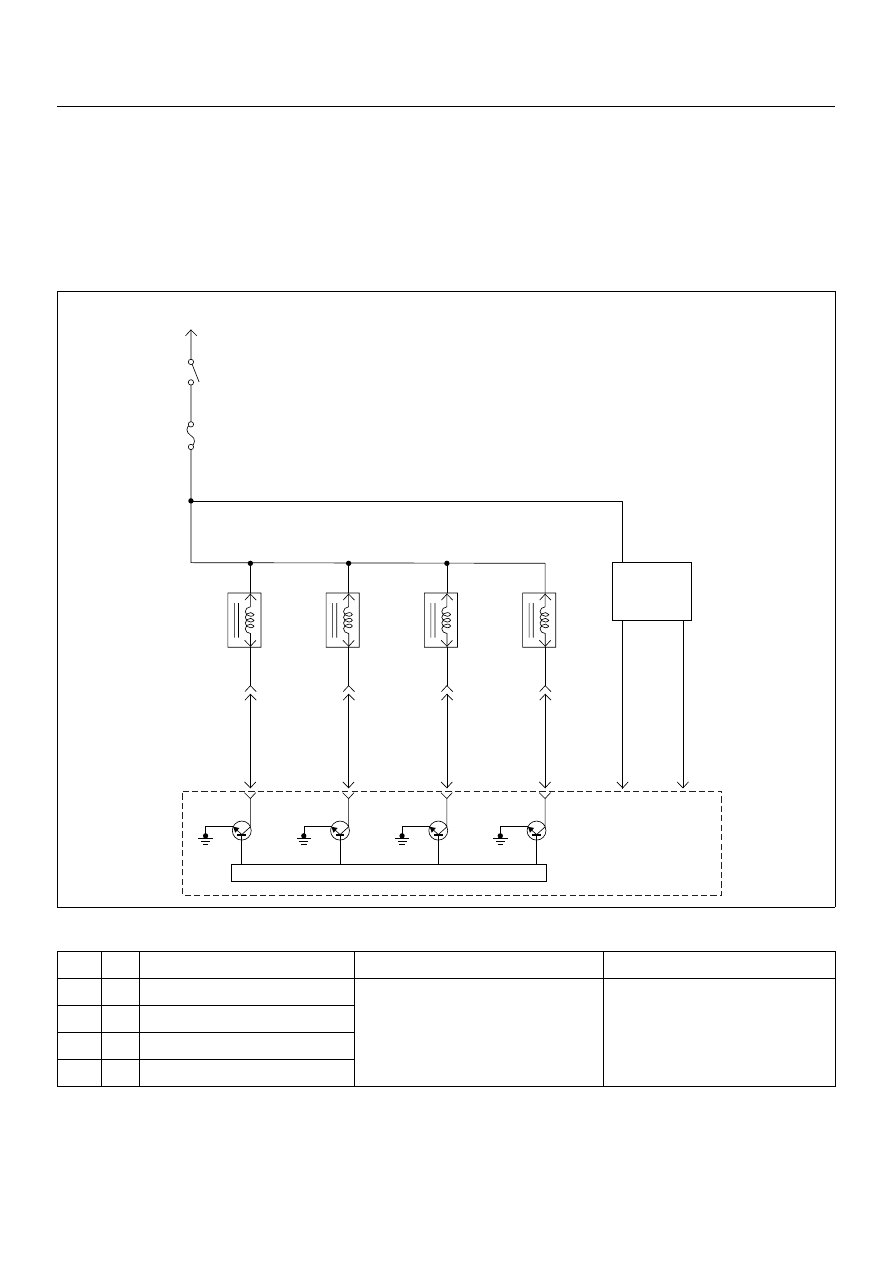

Circuit Description

The engine control module (ECM) has four individual
injector driver circuits. Each controls an injector. When a
driver circuit is grounded by the ECM, the injector is

activated. The ECM monitors the current in each driver
circuit. The ECM measures a voltage drop through a
fixed resistor and controls it. The voltage on each driver
is monitored to detect a fault. If the voltage is not what
the ECM expects to monitor on the circuit, a Diagnostic

Code

Type

DTC Name

DTC Setting Condition

Fail-Safe (Back Up)

P0201

A

Injector 1 Control Circuit

1.  Engine is running.
2. Engine speed is more than 1000rpm.
3. Injector voltage does not meet to the bat-

tery voltage when the injector is com-
manded Off or does not meet to the 0V
when the injector is commanded On.

No fail-safe function.

P0202

A

Injector 2 Control Circuit

P0203

A

Injector 3 Control Circuit

P0204

A

Injector 4 Control Circuit

Battery Voltage

PNK/
BLU

Injector
#1
Cylinder

Injector
#2
Cylinder

Injector
#3
Cylinder

Injector
#4
Cylinder

J1-9

BLU/
BLK

J1-22

BLU/
WHT

J1-8

COIL
MODULE

BLU/
YEL

J1-11

0.85
GRN

J1-19

0.85
BLU

J1-18

µP

IGN
Switch

IGN
Fuse
15A

Engine
Control
Module
(ECM)

6E–160

ENGINE DRIVEABILITY AND EMISSIONS

Trouble Code is set. This Diagnostic Trouble Code is
also set if an injector driver is shorted to voltage.

Diagnostic Aids

An injector driver circuit that is open or shorted to
voltage will cause a Diagnostic Trouble Code P0201 to
set. It will also cause a misfire due to an inoperative

injector. A misfire Diagnostic Trouble Code will also be
set indicating which cylinder is inoperative.
Long term and short term fuel trims that are excessively
high or low are a good indication that an injector is
faulty.
Use Fuel Injector Coil Test Procedure to check for faulty
injectors.

Diagnostic Trouble Code (DTC) P0201 Injector 1 Control Circuit

Diagnostic Trouble Code (DTC) P0202 Injector 2 Control Circuit

Diagnostic Trouble Code (DTC) P0203 Injector 3 Control Circuit

Diagnostic Trouble Code (DTC) P0204  Injector 4 Control Circuit

Step

Action

Value(s)

Yes

No

1

Was  the  “On-Board Diagnostic (OBD) System Check”
performed?

—

Go to Step 2

Go to On Board

Diagnostic

(OBD) System

Check

2

1. Connect the Tech 2.

2. Review and record the failure information.

3. Select  “F0: Read DTC Infor By Priority” in “F0:

Diagnostic Trouble Code”.

Is the DTC P0201, P0202, P0203 or P0204 stored as
“Present Failure”?

—

Go to Step 3

Refer to

Diagnostic Aids

and Go to Step

3

3

1. Using the Tech2, ignition “On” and engine “Off”.

2. Select “Clear DTC Information” with the Tech2 and

clear the DTC information.

3. Operate the vehicle and monitor the “F5: Failed

This Ignition” in “F2: DTC Information”.

Was the DTC P0201, P0202, P0203 or P0204 stored
in this ignition cycle?

—

Go to Step 4

Refer to

Diagnostic Aids

and Go to Step

4

4

Check for poor/faulty connection at the injector or
ECM connector. If a poor/faulty connection is found,
repair as necessary.
Was the problem found?

—

Verify repair

Go to Step 5

5

Visually check the injector for the affected cylinder.
Was the problem found?

—

Go to Step 11

Go to Step 6

22

8

9

11

E-60(J1)

E-6/E-7/E-8/E-9
