Using the DVM and check the ECT sensor signal
circuit.

1.  Ignition “On”, engine “Off”.

2. Disconnect the ECT sensor connector.

3. Check the circuit for open circuit.

Was the DVM indicated specified value?

Approximately

5.0V

Go to Step 10

Less than 1V:

Go to Step 8

More than

specified value:

Go to Step 9

8

Repair the open circuit between the ECM and ECT
sensor.
Was the problem solved?

—

Verify repair

Go to Step 14

9

Repair the short to voltage circuit between the ECM
and ECT sensor.
Was the problem solved?

—

Verify repair

Go to Step 14

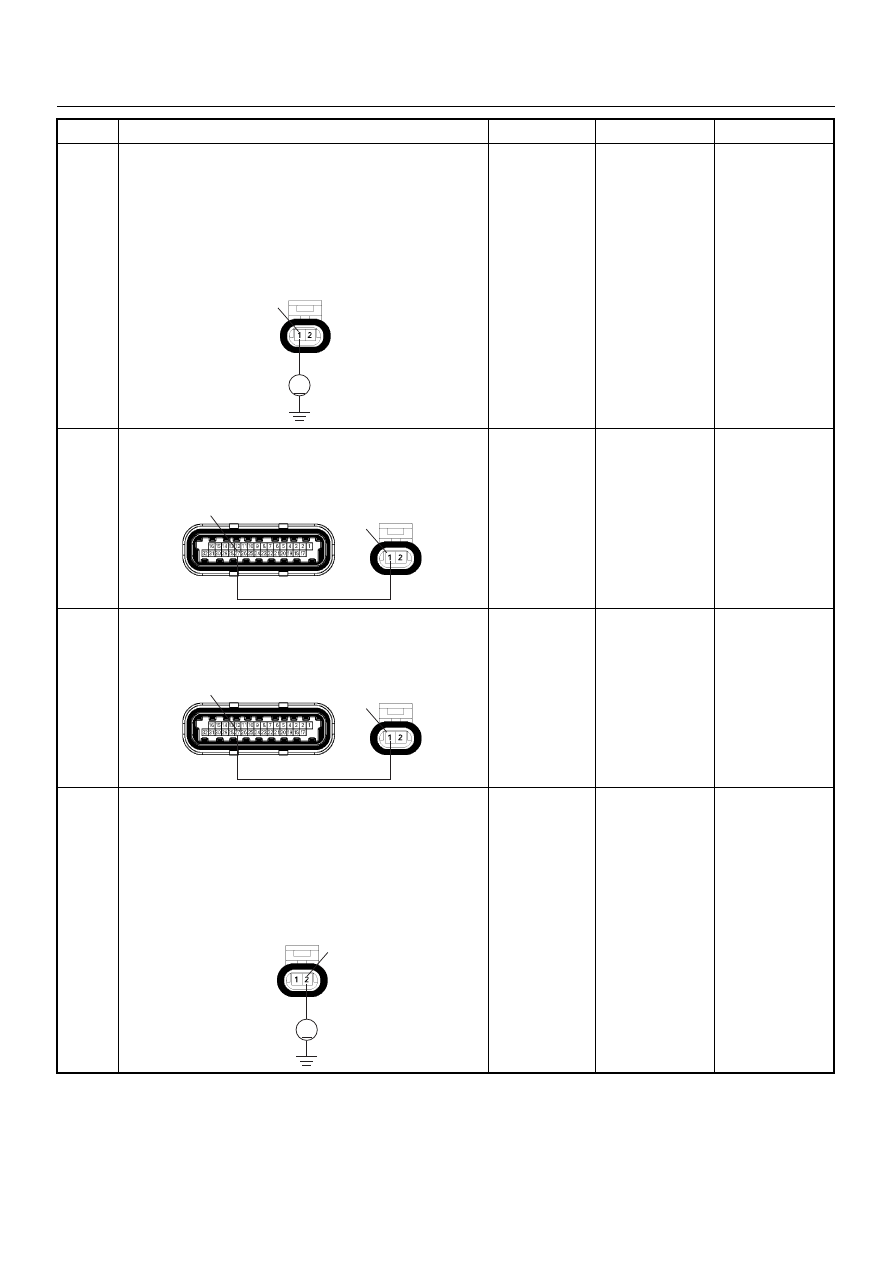

10

Using the DVM and check the ECT sensor ground
circuit.

1. Ignition “On”, engine “Off”.

2. Disconnect the ECT sensor connector.

3. Check the circuit for short to power supply circuit.

Was the DVM indicated specified value?

Less than 1V

Go to Step 11

Repair faulty

harness and

verify repair

Step

Action

Value(s)

Yes

No

V

E69

1

E60(J1)

E69

27

1

E60(J1)

E69

27

1

V

E69

2

6E–134

ENGINE DRIVEABILITY AND EMISSIONS

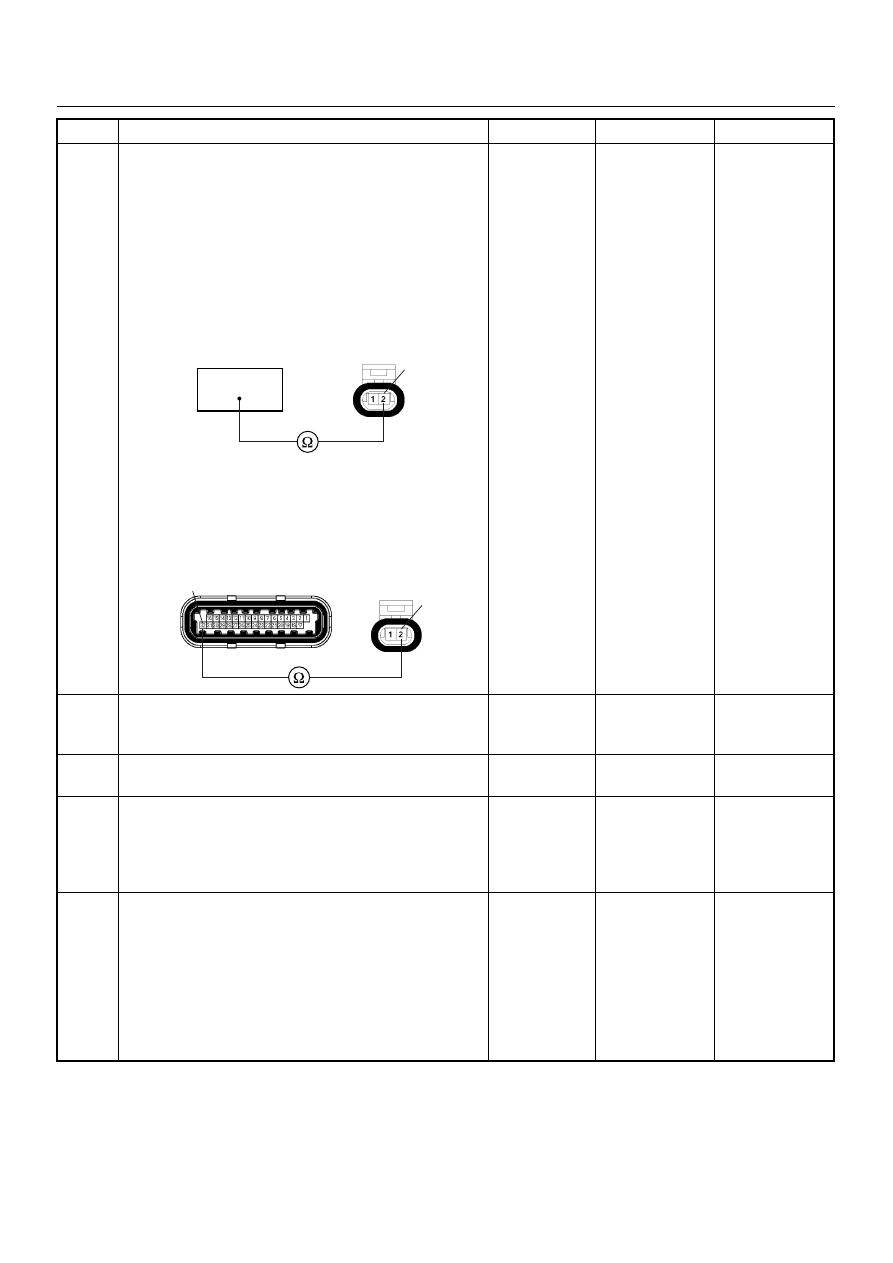

11

Using the DVM and check the ECT sensor ground
circuit.
Breaker box is available:

1. Ignition “Off”, engine “Off”.

2. Install the breaker box as type A. (ECM

disconnected) Ref. 6E-80.

3. Disconnect the ECT sensor connector.

4. Check the circuit for open circuit.

Was the problem found?

Breaker box is not available:

1. Ignition “Off”, engine “Off”.

2. Disconnect the ECT sensor connector.

3. Check the circuit for open circuit.

Was the problem found?

—

Repair faulty

harness and

verify repair

Go to Step 14

12

Substitute a known good ECT sensor assembly and
recheck.
Was the problem solved?

—

Go to Step 13

Go to Step 14

13

Replace the ECT sensor.
Is the action complete?

—

Verify repair

—

14

Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?

—

Verify repair

Go to Step 15

15

Replace the ECM.
Is the action complete?
IMPORTANT:  The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobiliser system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobiliser System-ECM replacement” for
the ECM/Immobiliser linking procedure.

—

Verify repair

—

Step

Action

Value(s)

Yes

No

32

E69

2

2

32

E60(J1)

E69

ENGINE DRIVEABILITY AND EMISSIONS

6E–135

DIAGNOSTIC TROUBLE CODE (DTC) P0122 THROTTLE POSITION SENSOR

LOW INPUT

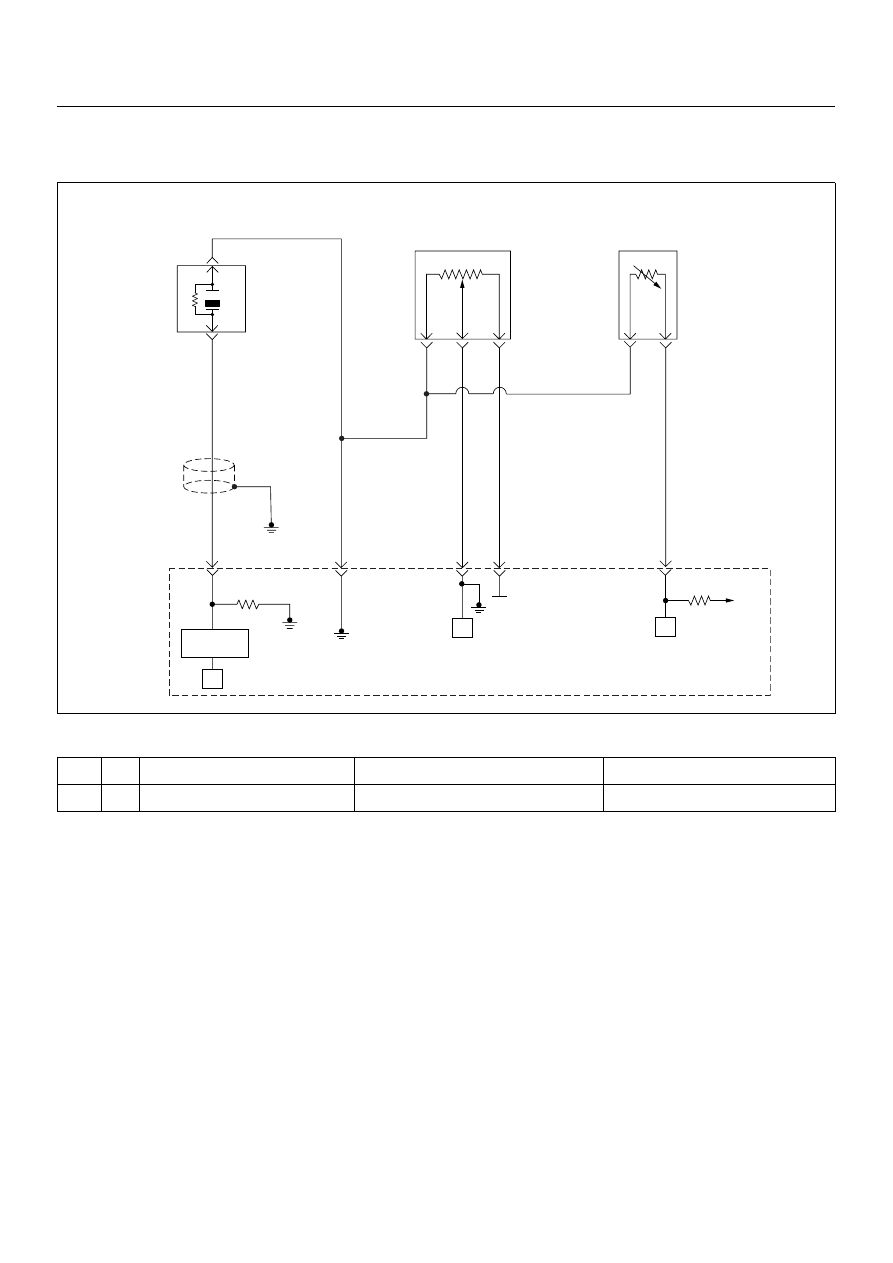

Condition for setting the DTC and action taken when the DTC sets

Circuit Description

The throttle position sensor circuit provides a signal
voltage that changes relative to throttle blade angle. The
signal voltage will vary from below 1 volt at closed
throttle to about 4 volts at wide open throttle (WOT).
The TPS signal is used by the engine control module
(ECM) for fuel control and most of the ECM-controlled
outputs. If the ECM detect a continuous short to ground
in the TPS or circuit, then a code P0122 will set.

Diagnostic Aids

• Poor connection at ECM - Inspect harness

connectors for backed-out terminals, improper
mating, broken locks, improperly formed or damaged
terminals, and poor terminal-to-wire connection.

• Damaged harness - Inspect the wiring harness for

damage, short to ground, short to battery positive,
and open circuit. If the harness appears to be OK,
observe the throttle position display on the Tech 2
while moving connectors and wiring harnesses
related to the TPS. A change in the display will
indicate the location of the fault.

Code

Type

DTC Name

DTC Setting Condition

Fail-Safe (Back Up)

P0122

A

Throttle Position Sensor Low Input

TPS output voltage is below 0.14V.

The ECM uses 0% condition as substitute.

µP

0.5
GRY

J1-27

+5V

µP

µP

5Volts
Reference

Knock
Sensor

0.5
YEL

0.5
WHT/
BLU

J1-7

0.5
BLU/
PNK

J1-32

0.5
BLK/
YEL

J1-15

J1-3

Engine
Coolant
Temperature(ECT)
                   Sensor

Throttle
Position Sensor

Knock Filter
Module

Engine
Control
Module
(ECM)

6E–136

ENGINE DRIVEABILITY AND EMISSIONS

Diagnostic Trouble Code (DTC) P0122 Throttle Position Sensor Low Input

Step

Action

Value(s)

Yes

No

1

Was  the  “On-Board Diagnostic (OBD) System Check”
performed?

—

Go to Step 2

Go to On Board

Diagnostic

(OBD) System

Check

2

1. Connect the Tech 2.

2. Review and record the failure information.

3. Select  “F0: Read DTC Infor By Priority” in “F0:

Diagnostic Trouble Code”.

Is the DTC P0122 stored as “Present Failure”?

—

Go to Step 3

Refer to

Diagnostic Aids

and Go to Step

3

3

1. Using the Tech2, ignition “On” and engine “Off”.

2. Select “Clear DTC Information” with the Tech2 and

clear the DTC information.

3. Operate the vehicle and monitor the “F5: Failed

This Ignition” in “F2: DTC Information”.

Was the DTC P0122 stored in this ignition cycle?

—

Go to Step 4

Refer to

Diagnostic Aids

and Go to Step

4

4

Check for poor/faulty connection at the TPS or ECM
connector. If a poor/faulty connection is found, repair
as necessary.
Was the problem found?

—

Verify repair

Go to Step 5

5

Visually check the TPS.
Was the problem found?

—

Go to Step 10

Go to Step 6

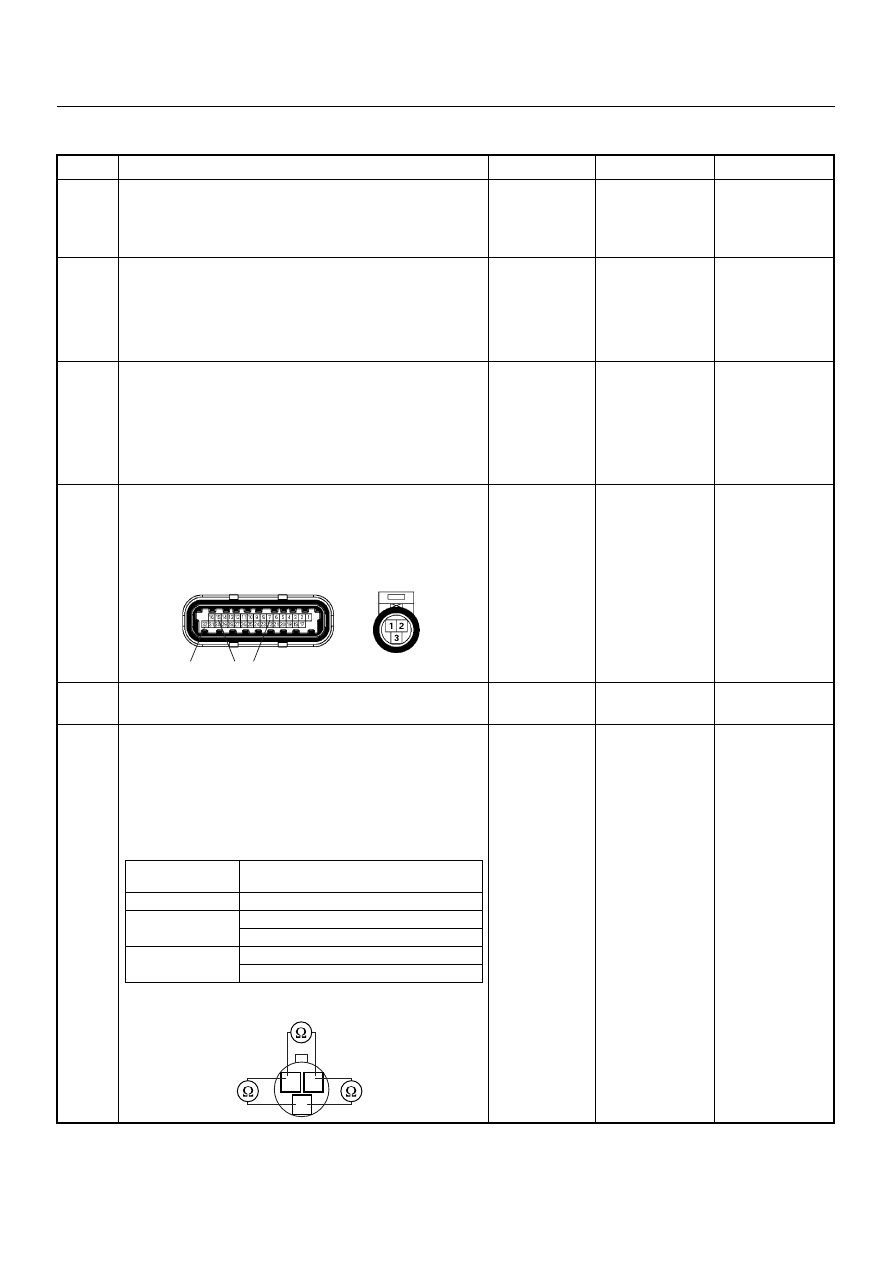

6

Using the DVM and check the TPS.

1. Ignition “Off”,  engine “Off”.

2. Disconnect TPS connector.

3. Measure the resistance of TPS.

Does the tester indicate standard resistance as shown
in the following table?

Standard

resistance

Go to Step 7

Go to Step 10

E60(J1)

E68

32

15 7

Measurement

Terminal

Resistance (

Ω)

1 - 2

Approximately 5.6k

Ω at idle position & WOT

2 - 3

Approximately 6.0k

Ω at idle position

Approximately 1.7k

Ω at WOT

1 - 3

Approximately 2.3k

Ω at idle position & WOT

Approximately 6.6k

Ω at WOT

2

1

3

TPS
