3E-12  WHEELS AND TIRES

  DISASSEMBLY

C22, C20 Series Engine Model

4 x 4 and 4 x 2 sporty model

4 x 2 model (except sporty)

3

2

1a

2a

4

3a

4a

1

WHEELS AND TIRES  3E-13

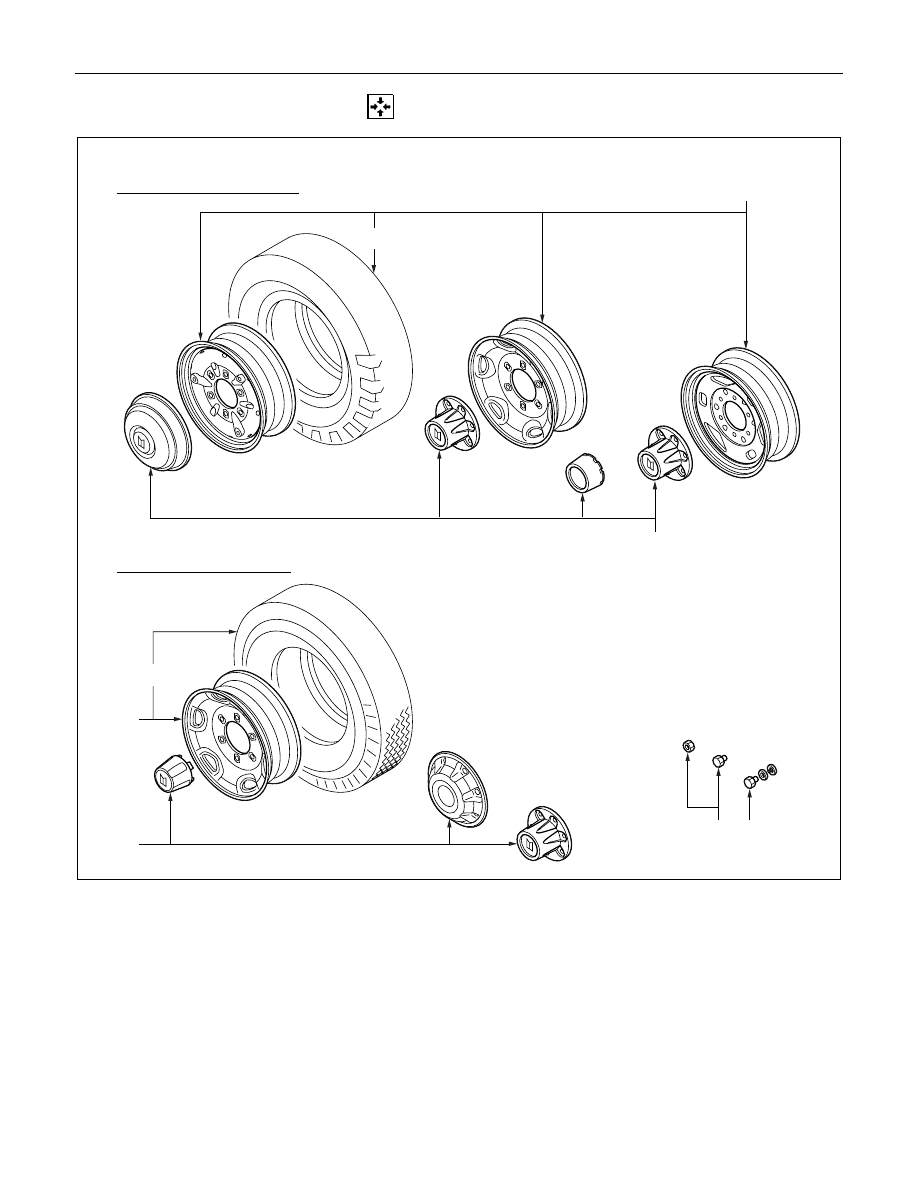

4J Series, 6VD1 Engine Model

4 x 2 model (except sporty)

4 x 4 and 4 x 2 sporty model

3

1

2a

2, 1a

3a

4

4a

Disassembly Steps

(for 4

××××

 2 model)

1. Wheel cap

2. Wheel nut

3. Wheel and tire assembly

4. Tire assembly

(for 4

××××

 4 model)

1a. Wheel nut

2a. Center cap

3a. Wheel and tire assembly

4a. Tire assembly

3E-14  WHEELS AND TIRES

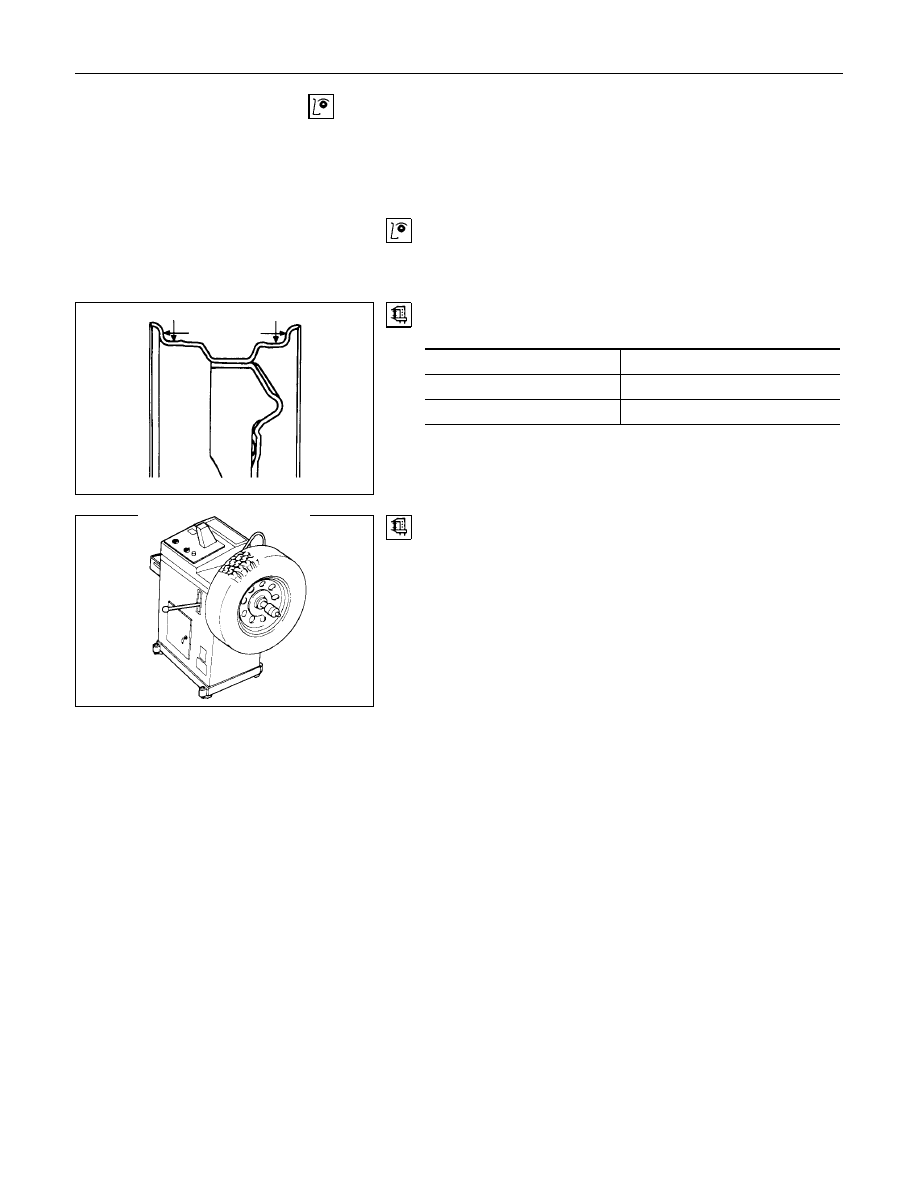

  INSPECTION AND REPAIR

Make necessary correction or parts replacement if wear, damage or any other abnormal conditions are found
through inspection.

Visual Check

Inspect all disassembled parts for wear, damage or other
abnormal conditions.

Measure Wheel Runout

mm(in)

16 inch Alumi

Less than 0.55 (0.022)

14 inch Steel

Less than 1.2 (0.047)

15 inch, 16inch Steel

Less than 1.5 (0.059)

If the measured value exceed the specified limit, the wheel
must be replaced.

Measure Wheel Unbalance

Using a wheel balancing equipment.

Install on the side rim of the wheel a balance weight to offset
unbalance.

Balance weight for the wheel should not exceed 170g in total,
and 140g is the maximum amount for either side.

WHEELS AND TIRES  3E-15

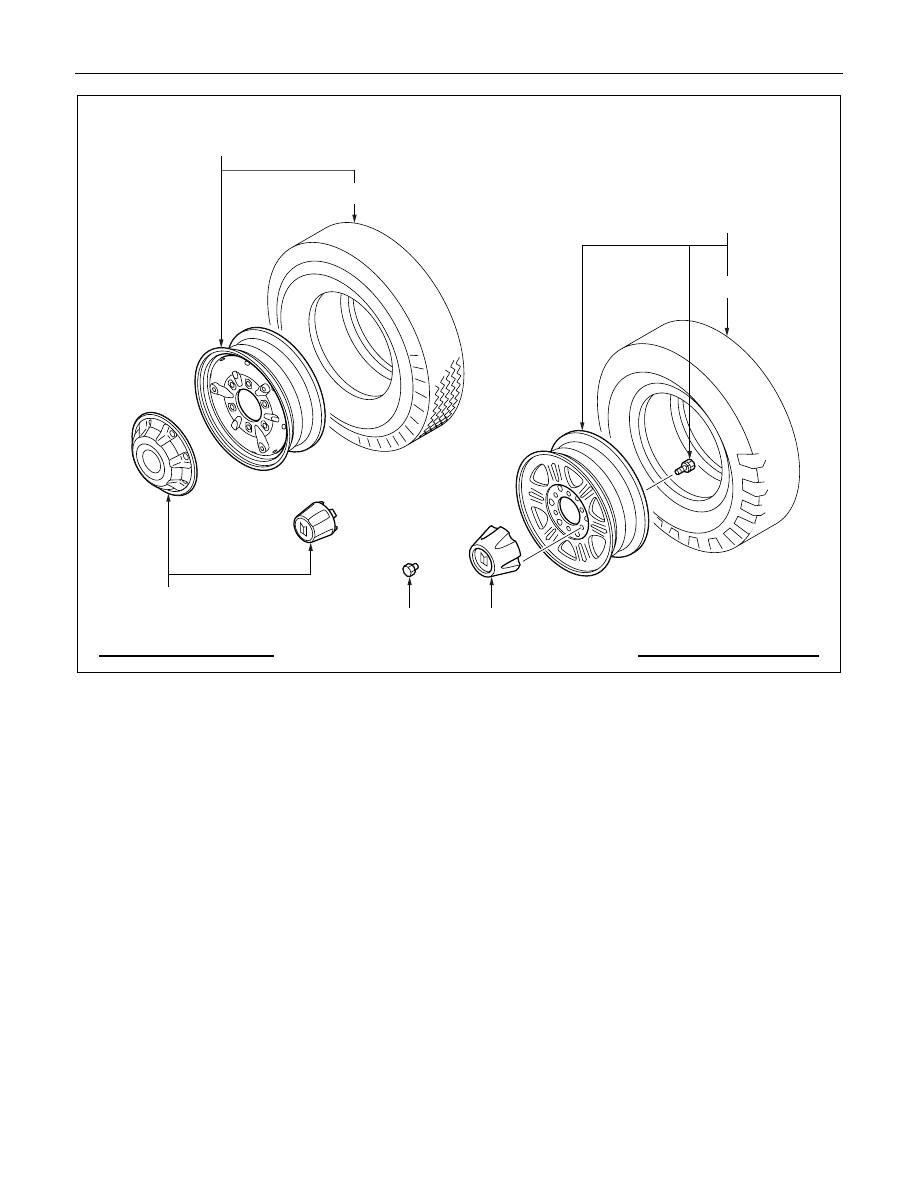

  REASSEMBLY

C22, C20 Series Engine Model

4 x 4 and 4 x 2 sporty model

4 x 2 model (except sporty)

2

3

4a

3a

1

2a

1a

4
