WHEELS AND TIRES  3E-1

SECTION 3E

WHEELS AND TIRES

TABLE OF CONTENTS

PAGE

Main Data and Specifications........................................................................................... 3E- 2

Torque Specifications ....................................................................................................... 3E- 3

Special Parts Fixing Nuts and Bolts ........................................................................... 3E- 3

Wheels and Tires............................................................................................................... 3E- 5

General Description...................................................................................................... 3E- 5

Servicing........................................................................................................................ 3E- 10

Disassembly .................................................................................................................. 3E- 12

Inspection and Repair .................................................................................................. 3E- 14

Reassembly ................................................................................................................... 3E- 15

Troubleshooting ................................................................................................................ 3E- 18

INDEX

3E-2  WHEELS AND TIRES

MAIN DATA AND SPECIFICATIONS

2WD (except Sporty)

Front Tire

Rear Tire

Tire size

Wheel size

Tire pressure

kg/cm

2

(psi/kPa)

Tire size

Wheel size

Tire pressure

kg/cm

2

(psi/kPa)

6.00-14-6

14

×

 5J

2.0 (28/196)

6.50-14-8

14

×

 5J

4.25 (60/416)

6.50-14-8

14

×

 5J

1.8 (26/176)

6.50-14-8

14

×

 5J

4.25 (60/416)

185R14-6

14

×

 5.5JJ

1.8 (26/176)

185R14-8

14

×

 5.5JJ

4.5 (64/441)

185R14-8

14

×

 5.5JJ

1.8 (26/176)

185R14-8

14

×

 5.5JJ

4.5 (64/441)

195R14C8

14

×

 5.5JJ

2.5 (36/245)

195R14C8

14

×

 5.5JJ

4.5 (64/441)

4WD and 2WD Sporty Model

Front Tire

Rear Tire

Tire size

Wheel size

Tire pressure

kg/cm

2

(psi/kPa)

Tire size

Wheel size

Tire pressure

kg/cm

2

(psi/kPa)

6.50-15-8PR LT

15

×

 5.5K

2.0 (28/200)

6.50-15-8PR LT

15

×

 5.5K

4.25 (60/425)

6.50-15-6PR LT

15

×

 5.5K

2.0 (28/200)

6.50-15-8PR LT

15

×

 5.5K

4.25 (60/425)

215R15-6PR

15

×

 5.5K

1.8 (26/180)

215R15-6PR

15

×

 5.5

2.8 (40/280)

*215R15 105S

15

×

 6JJ

2.0 (28/200)

215R15 105S

15

×

 6JJ

2.9 (41/290)

205/80R16

104T and Q

16

×

 6JJ

2.0 (28/200)

205/80R16

104T and Q

16

×

 6JJ

2.7 (38/270)

205R16 104S

and Q

16

×

 6JJ

2.0 (28/200)

205R16 104S

and Q

16

×

 6JJ

2.7 (38/270)

* 2WD (for Australia)

WHEELS AND TIRES  3E-3

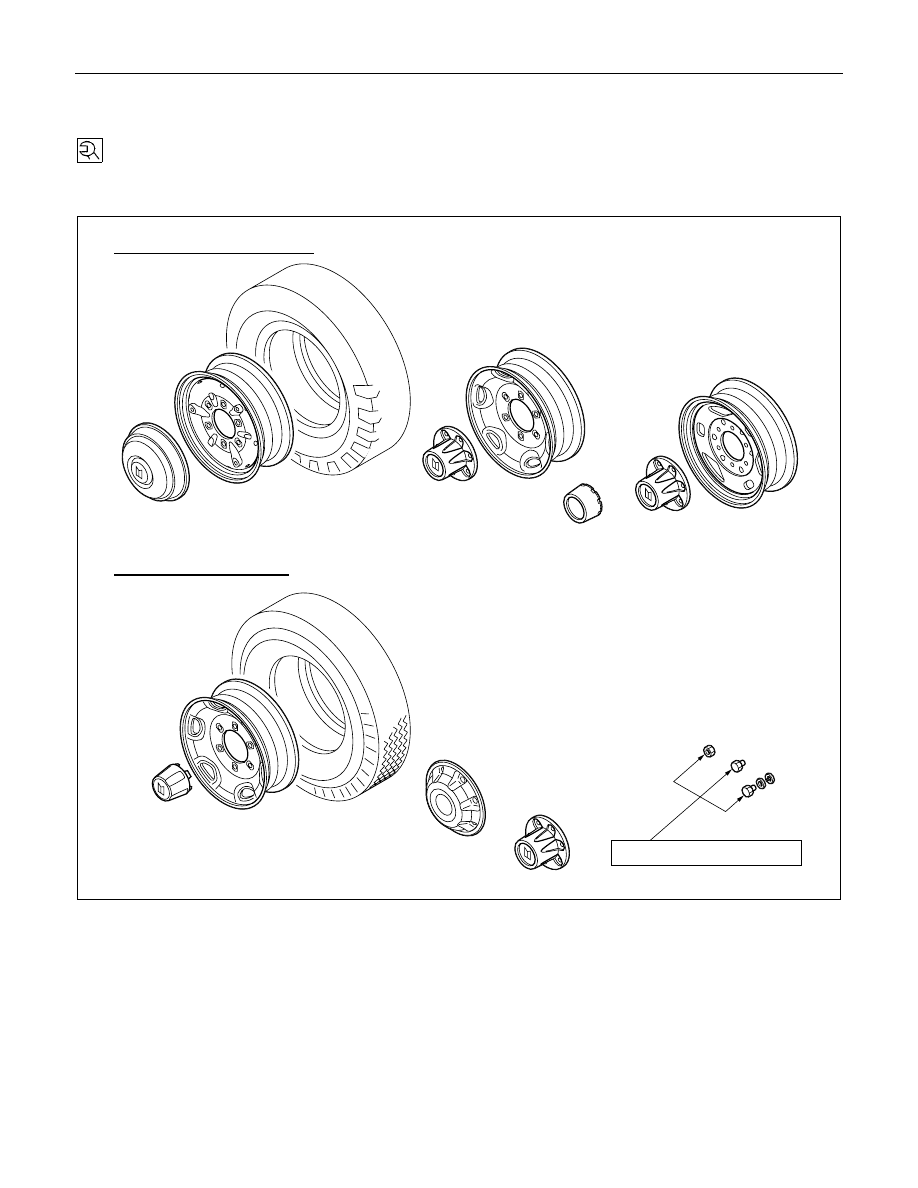

TORQUE SPECIFICATIONS

  SPECIAL PARTS FIXING NUTS AND BOLTS

WHEELS AND TIRES

N

⋅

m(kgf

⋅

m/lb

⋅⋅⋅⋅

ft)

12±1(86.8±7.2/117.7±9.8)

4 x 4 model, 4 x 2 sporty model

4 x 2 model (except sporty)
