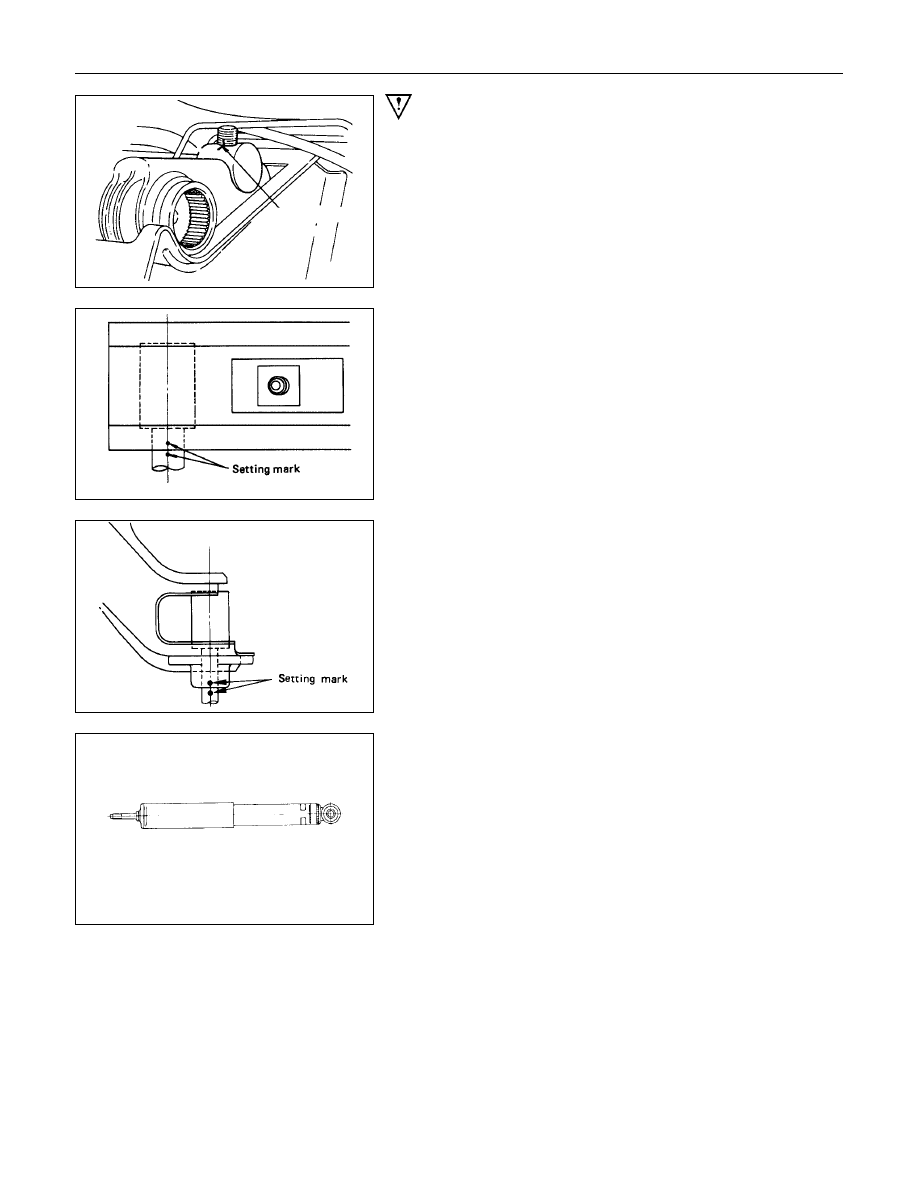

3C-20  FRONT SUSPENSION

Setting mark

Important Operations

1. Adjust Bolt
Apply the setting marks to the adjust bolt and height control
arm.

2. Height Control Arm
Apply the setting marks to the height control arm and torsion
bar.

3. Torsion Bar
Apply the setting marks to the torsion bar and lower link.

13.Shock Absorber (For Australia)

CAUTION :
The shock absorbers have been charged with gas at the
factory.  Exposure to high temperatures or an open flame
can result in a dangerous explosion.
Keep the shock absorbers away from high temperatures
and open flames.

FRONT SUSPENSION  3C-21

  INSPECTION AND REPAIR

Make all necessary adjustments, repairs, and part replacements if wear, damage, or other problems are discovered
during inspection.

•

 Torsion bar, height control arm

•

 Strut bar

•

 Stabilizer bar

•

 Shock absorber

•

 Rubber bushing

Visual Check

Inspect the following parts for wear, damage or other abnormal
conditions.

3C-22  FRONT SUSPENSION

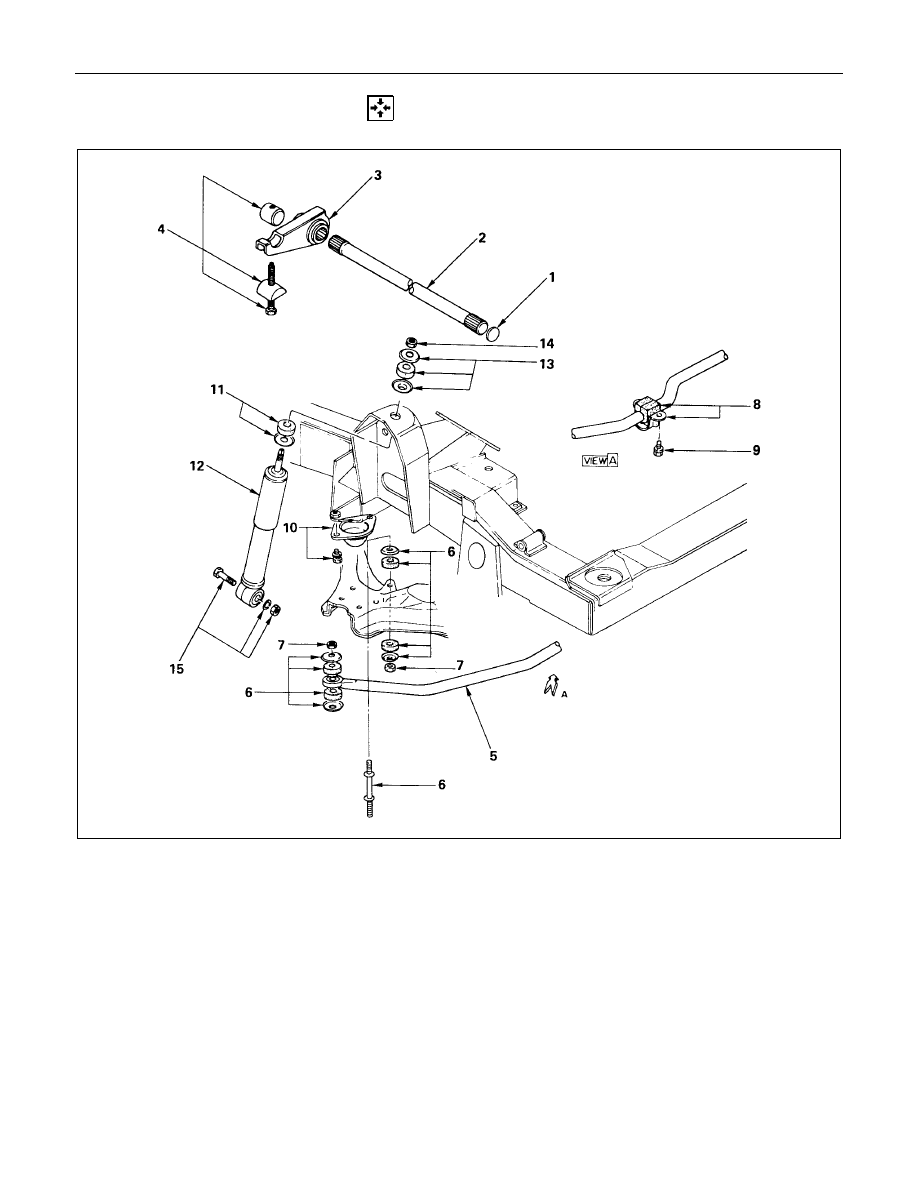

  REASSEMBLY

Reassembly Steps

Torsion Bar

1. Rubber seat

V

2. Torsion Bar

V

3. Height control arm

V

4. Adjust bolt, seat

Stabilizer Bar

5. Stabilizer bar
6. Rubber bushing and washer

V

7. Nut
8. Bracket
9. Bolt

Shock Absorber

10. Lower link bumper
11. Rubber bushing and washer
12. Shock absorber
13. Rubber bushing and washer

V

14. Nut

V

15. Bolt, nut, and washer

FRONT SUSPENSION  3C-23

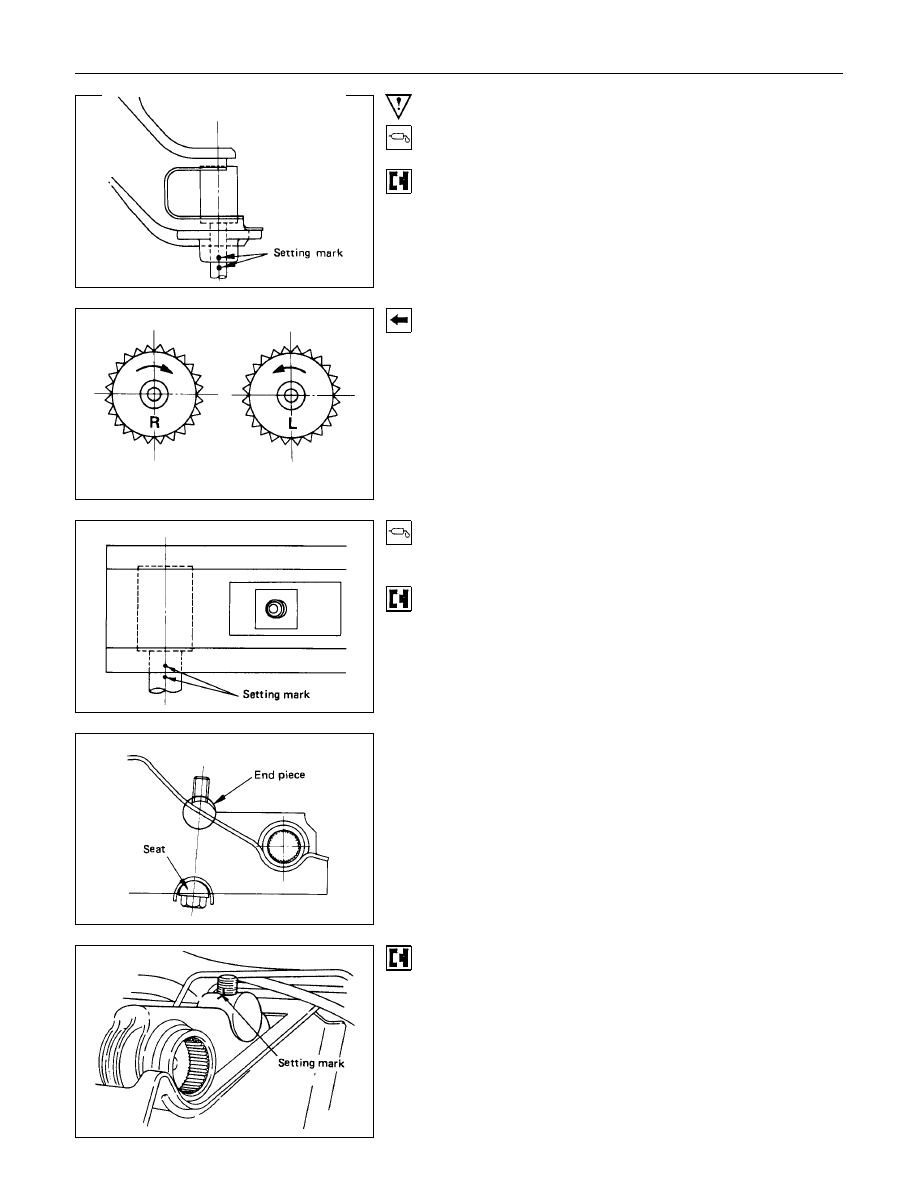

Important Operations

2. Torsion Bar

(1) Apply grease to the serrated portions.

(2) Align the setting marks.

(3) Note the emboss mark on its side face.

R : Right side

L : Left side

3. Height Control Arm

(1) Apply grease to the portion that fits into the bracket.

(2) Align the setting marks.

(3) Apply grease to the bolt portion of the end piece.

(4) Apply grease to the portion of the seat that fits in to the

bracket.

4. Adjust Bolt

(1) Turn in the adjust bolt to location marked during

disassembly.
