3B-66  STEERING

Connector Torque

N

m (kgf

m / lb

ft)

54 (5.5 / 40)

5. O-ring

Be sure to discard used parts, and always used new parts
for installation.

4. O-ring

Be sure to discard used parts, and always used new parts
for installation.

3. O-ring

Be sure to discard used parts, and always used new parts
for installation.

2. Pipe, Suction

1. Bolt

Suction Pipe Bolt Torque

N

m (kgf

m / lb

ft)

21 (2.1 / 15)

STEERING  3B-67

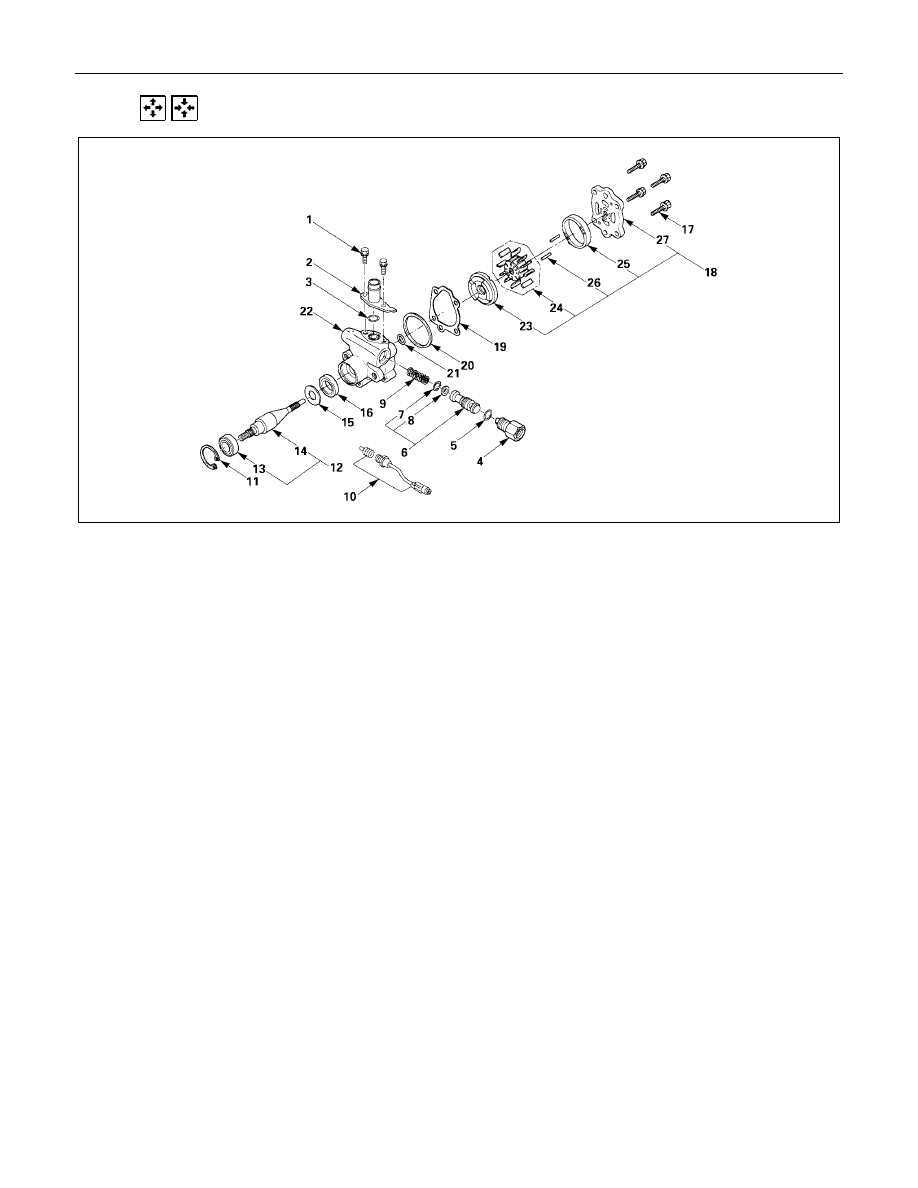

  DISASSEMBLY AND REASSEMBLY (6VD1 Engine Model)

Disassembly Steps

1. Bolt
2. Pipe, suction
3. O-ring
4. Connector
5. O-ring
6. Valve
7. Retaining ring
8. Filter
9. Spring

10. Pressure switch
11. Retaining ring
12. Shaft assembly
13. Bearing
14. Shaft

15. Retaining ring
16. Oil seal
17. Bolt
18. Rear housing assembly and pump

cartridge

19. Gasket
20. O-ring
21. O-ring
22. Front housing
23. Pressure plate
24. Rotor and vane
25. Cam
26. Pin
27. Rear housing

Reassembly Steps

27. Rear housing
26. Pin
25. Cam
24. Rotor and vane
23. Pressure plate
22. Front housing
21. O-ring
20. O-ring
19. Gasket
18. Rear housing assembly and pump

cartridge

17. Bolt
16. Oil seal
15. Retaining ring

14. Shaft
13. Bearing
12. Shaft assembly
11. Retaining ring
10. Pressure switch

9. Spring
8. Filter
7. Retaining ring
6. Valve
5. O-ring
4. Connector
3. O-ring
2. Pipe, suction
1. Bolt

3B-68  STEERING

DISASSEMBLY

Preparation:

Clean oil pump with solvent (its plug discharge and suction port
to prevent the entry of solvent). Be careful not to expose the oil
seal of shaft assembly to solvent.

1. Bolt

2. Pipe, Suction

3. O-ring

4. Connector

5. O-ring

6. Valve

7. Retaining Ring

8. Filter

9. Spring

10. Pressure Switch

11. Retaining Ring

12. Shaft Assembly

13. Bearing

14. Shaft

15. Retaining Ring

16. Oil Seal
CAUTION:

When removing the oil seal, be careful not to damage the
housing.

17. Bolt

18. Rear Housing Assembly and Pump Cartridge

19. Gasket

20. O-ring

21. O-ring

22. Front Housing

23. Pressure Plate

24. Rotor and Vane

25. Cam

26. Pin

27. Rear Housing

INSPECTION AND REPAIR

Make all necessary adjustments, repairs, and part
replacements if wear, damage, or other problems are
discovered during inspection.

STEERING  3B-69

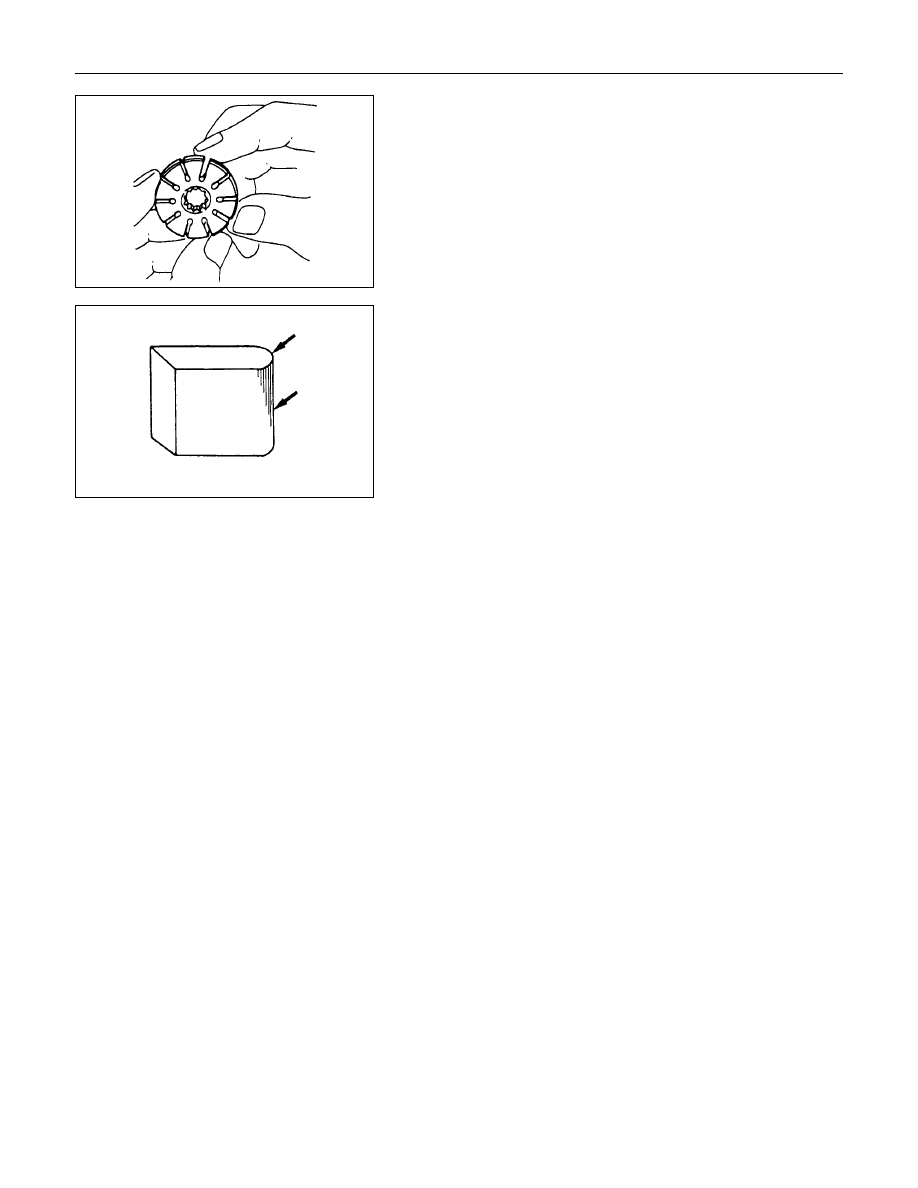

Rotor

Check that the groove in the vane is free from excessive wear
and that the vane slides smoothly

When part replacement becomes necessary, the pump
cartridge should be replaced as a subassembly.

Vane

Sliding faces of the vane should be free from wear.
(Particularly the curved face at the tip in contact with the cam
should be free from wear and distortion.)
When part replacement becomes necessary, the pump
cartridge should be replaced as a subassembly.

Cam

The inner face of the cam should have a trace of uniform
contact without a sign of step wear.

When part replacement becomes necessary, the pump
cartridge should be replaced as a subassembly.

Side plate

The sliding faces of parts must be free from step wear (more
than 0.01 mm), which can be felt by the finger nail.

The parts with minor scores may be reused after lapping the
face.

Valve

The sliding face of the valve must be free from burrs and
damage.

The parts with minor scores may be reused after smoothing
with emery cloth (#800 or finer).

Shaft

Oil seal sliding faces must be free from a step wear which can
be felt by the finger nail.

Needle bearing fitting face must be free from disintegration and
wear.

O-ring, oil seal retaining ring

Be sure to discard used parts, and always use new parts for
installation. Prior to installation, lubricate all seals and rings
with power steering fluid.
