REAR SUSPENSION  3D-11

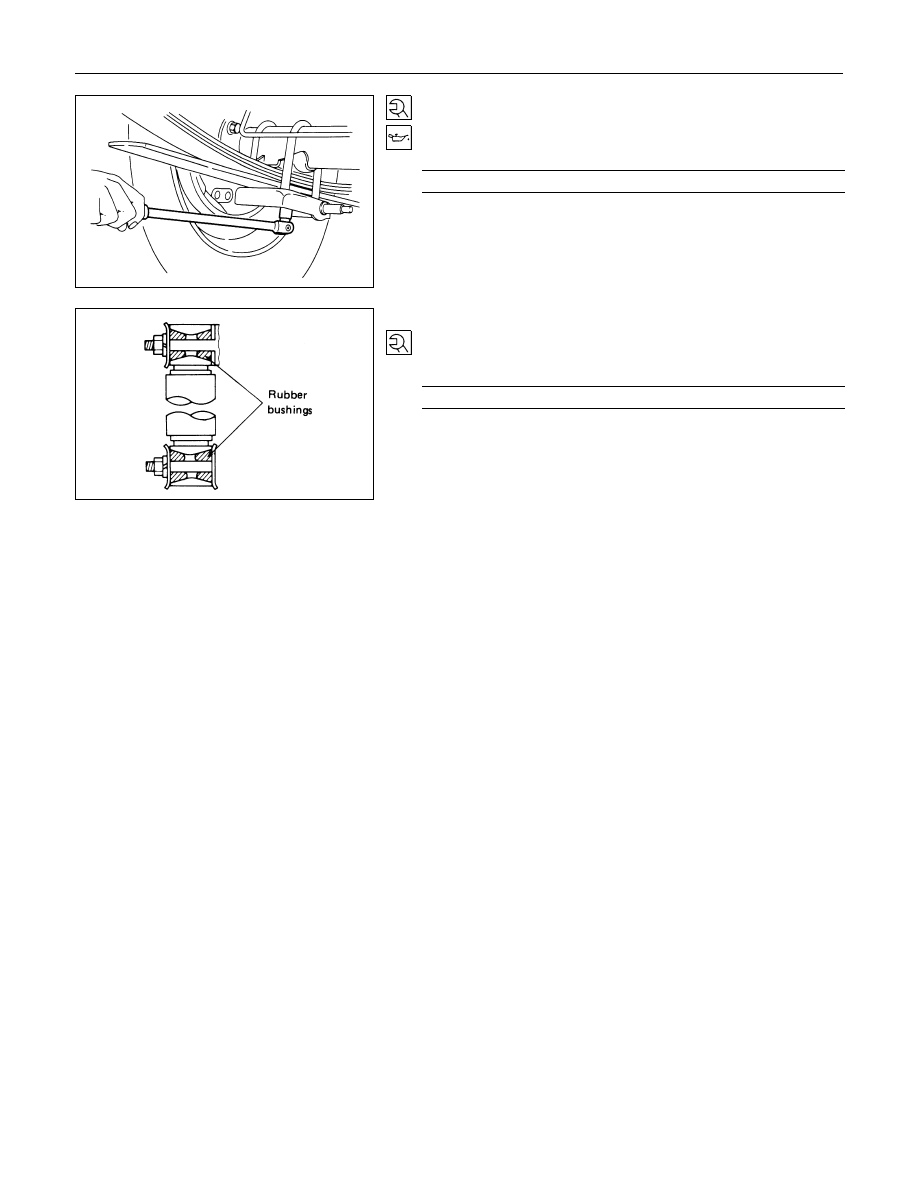

13.U-bolt and Nut
When tightening the nuts apply oil as necessary to prevent
damaging the threads.
U-bolt Nut Torque

N

⋅m(kgf⋅m/lb⋅ft)

65.7

± 5.8 (6.7 ± 0.6 / 48.5 ± 4.3)

14.Shock Absorber

15.16. Nut and Washer
Refer to the drawing for parts installation.
Shock Absorber Nut Torque

N

⋅m(kgf⋅m/lb⋅ft)

39.2

± 4.9 (4.0 ± 0.5 / 28.9 ± 3.6)

3D-12  REAR SUSPENSION

TROUBLESHOOTING

1.  BODY INCLINATION

Checkpoint

Trouble Cause

Countermeasure

Replace

Bushings worn or

disintegrated

NG

Mounting brackets

Shock absorbers

Replace

Defective

Spring brackets and U-bolts

Shackle pins and bushings

Replace

Retighten

Replace

Cracked

Bolt loosened

Worn or disintegrated

Regrease

Replace

Poorly lubricated

Weak or broken

OK

OK

OK

NG

NG

NG

NG

NG

NG

OK

Spring

REAR SUSPENSION  3D-13

2.  REDUCTION GROUND CLEARANCE

Checkpoint

Trouble Cause

Countermeasure

Bushings

Leaf springs

Regrease

Replace

Retighten

Replace

Poorly lubricated

Deteriorated or disintegrated

Loosened

Broken

Springs clip bands

Replace

Worn or broken

Continued on the next page

OK

NG

NG

NG

NG

NG

OK

OK

Condition of load

Wipe off excess grease

Over lubricated

NG

3D-14  REAR SUSPENSION

Checkpoint

Trouble Cause

Countermeasure

Replace

Cracked or damaged

Retighten

Loose

OK

NG

NG

Parts for looseness

Continued from the previous page
