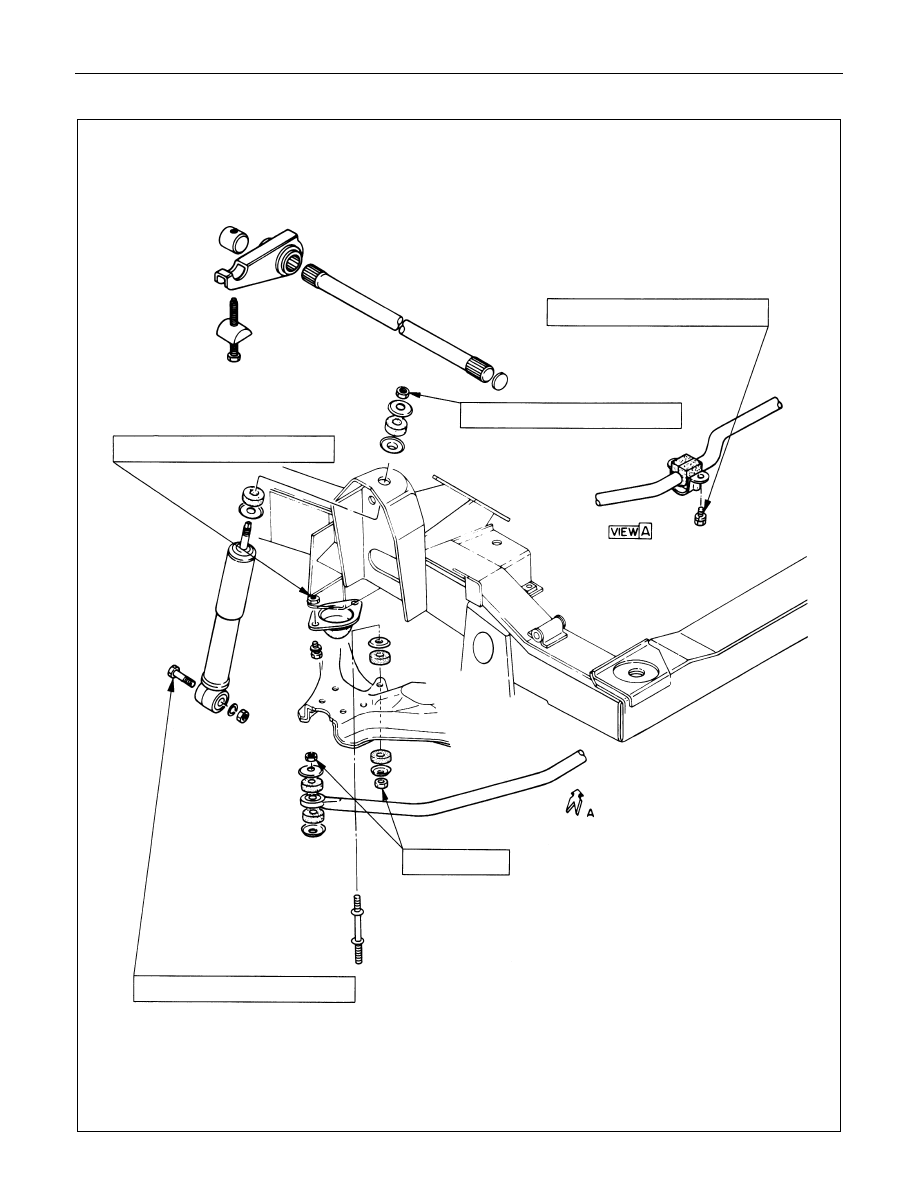

FRONT SUSPENSION  3C-9

4

××××4 Model and TFR25

N

⋅m (kgf⋅m/lb⋅ft)

82.4

±7.8 (8.4±0.8/60.8±5.8)

9.8 (1.0/7.2)

40.2

±5.9 (4.1±0.6/29.7±4.3)

19.6

±4.9 (2.0±0.5/14.5±3.6)

27.5

±6.9 (2.8±0.7/20.3±5.1)

3C-10  FRONT SUSPENSION

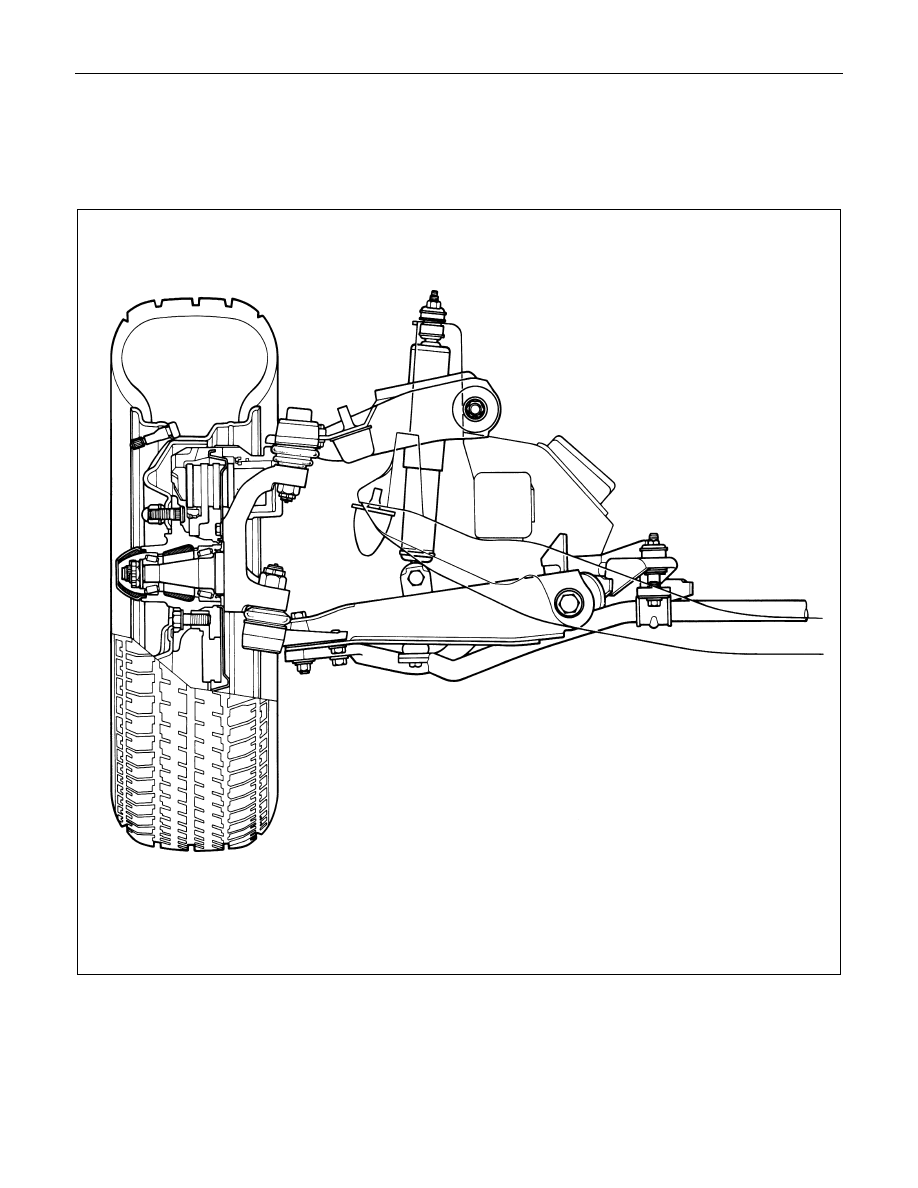

FRONT SUSPENSION

GENERAL DESCRIPTION

4

××××2 Model (except TFR25)

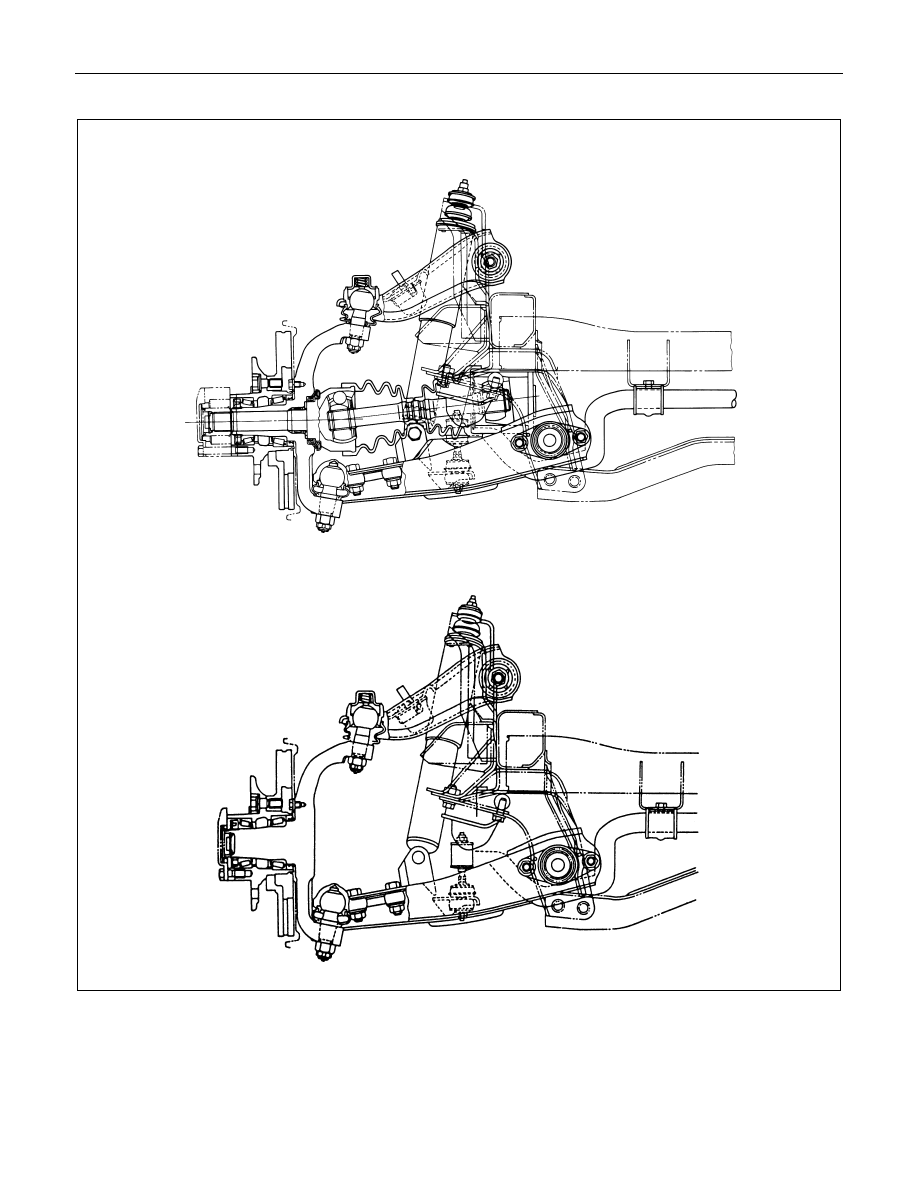

FRONT SUSPENSION  3C-11

4

××××4 Model and TFR25

4

××××4 Model

TFR25

The links attach to the vehicle with bolts and bushings at their inner pivot points and to the steering knuckle, which
is part of the front wheel spindle, at their outer points.
The knuckle is mounted to the upper and lower links each of which has a ball joint to permit pivoting of the knuckle
for steering operations.  The hub is supported in position on the knuckle spindle by means of the two bearings and
the rotor is mounted to the hub.
The front suspension is an independent type utilizing torsion bar springs.  The torsion bar spring has splines on
each end.  Height control is provided on the third crossmember.  Both the upper and lower links are pressed steel
and the torsion bar is supported at the ends by lower link in front and by height control arm in rear.

3C-12  FRONT SUSPENSION

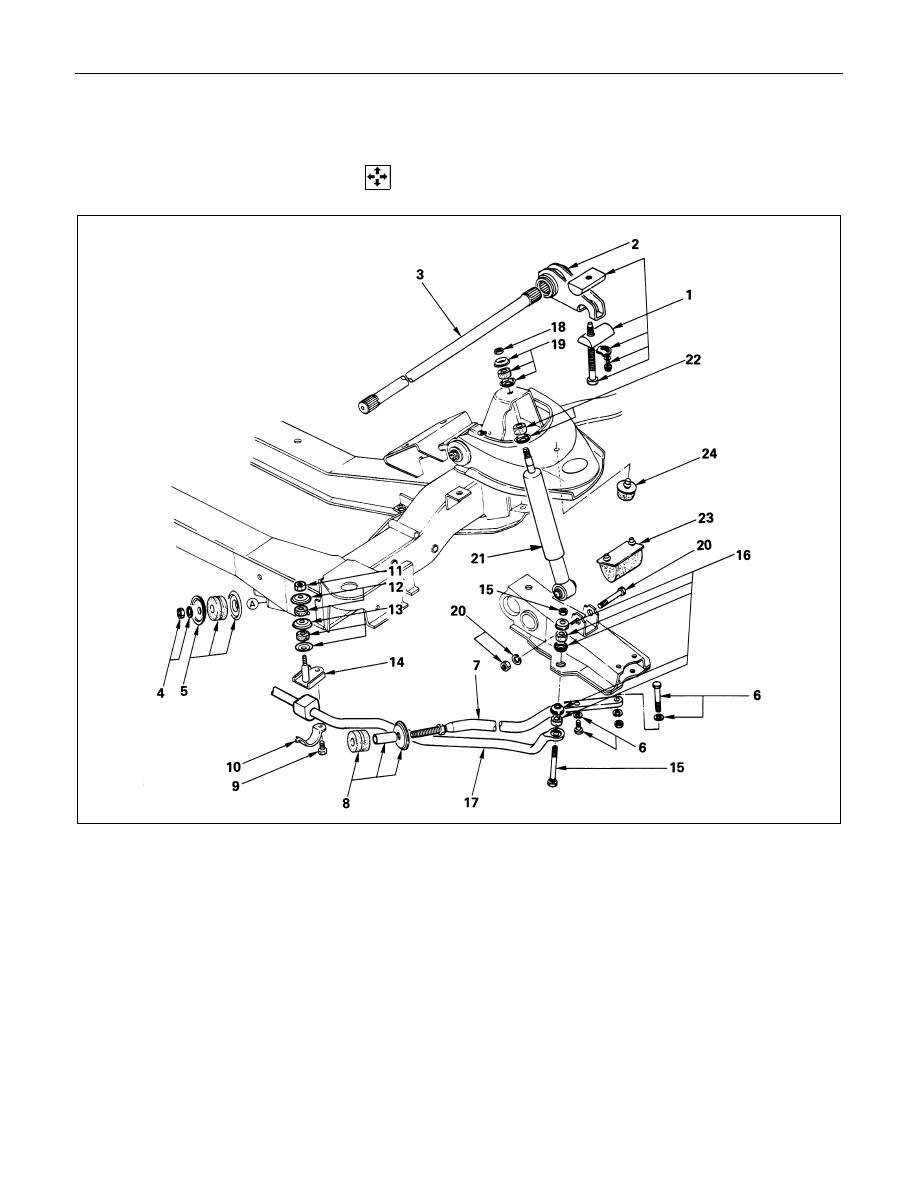

TORSION BAR, STRUT BAR, STABILIZER BAR

AND SHOCK ABSORBER (4

××××2 MODEL EXCEPT TFR25)

  DISASSEMBLY

Disassembly Steps

Torsion Bar

! 1. Adjust bolt, seat, lock plate

and bolt

! 2. Height control arm
! 3. Torsion bar

Strut Bar

4. Nut and washer
5. Rubber bushing and washer
6. Bolt and washer
7. Strut bar
8. Rubber bushing, washer and

tube

Stabilizer Bar

9. Bolt

10. Bracket
11. Nut
12. Rubber bushing and washer
13. Rubber bushing and washer
14. Bracket
15. Bolt and nut
16. Rubber bushing and washer
17. Stabilizer bar

Shock Absorber

18. Nut
19. Rubber bushing and washer
20. Bolt, nut, and washer

!21. Shock absorber

22. Rubber bushing and washer
23. Lower link bumper
24. Upper link bumper
