DIAGNOSIS  7A2-160



No.

Wire

Color

Pin Name

Input /

Output

Connected to

Measurement

Item

Measurement

Condition

Standard

Inspection

Point at
Trouble

At key switch

ON

Battery

voltage

Related

harness

B24

WHT  V ign (Ignition Power Supply)

Input

Key switch

Voltage

At Key switch

OFF

Less than 2V  Fuse









      7.14ms                                                                                        7.14ms











    Time                                                                                                      Time



0.714ms                              6.426ms



V

olt

age

Off duty 10% =Throttle Position 0%

V

olt

age

Off duty 90% =Throttle Position 100%





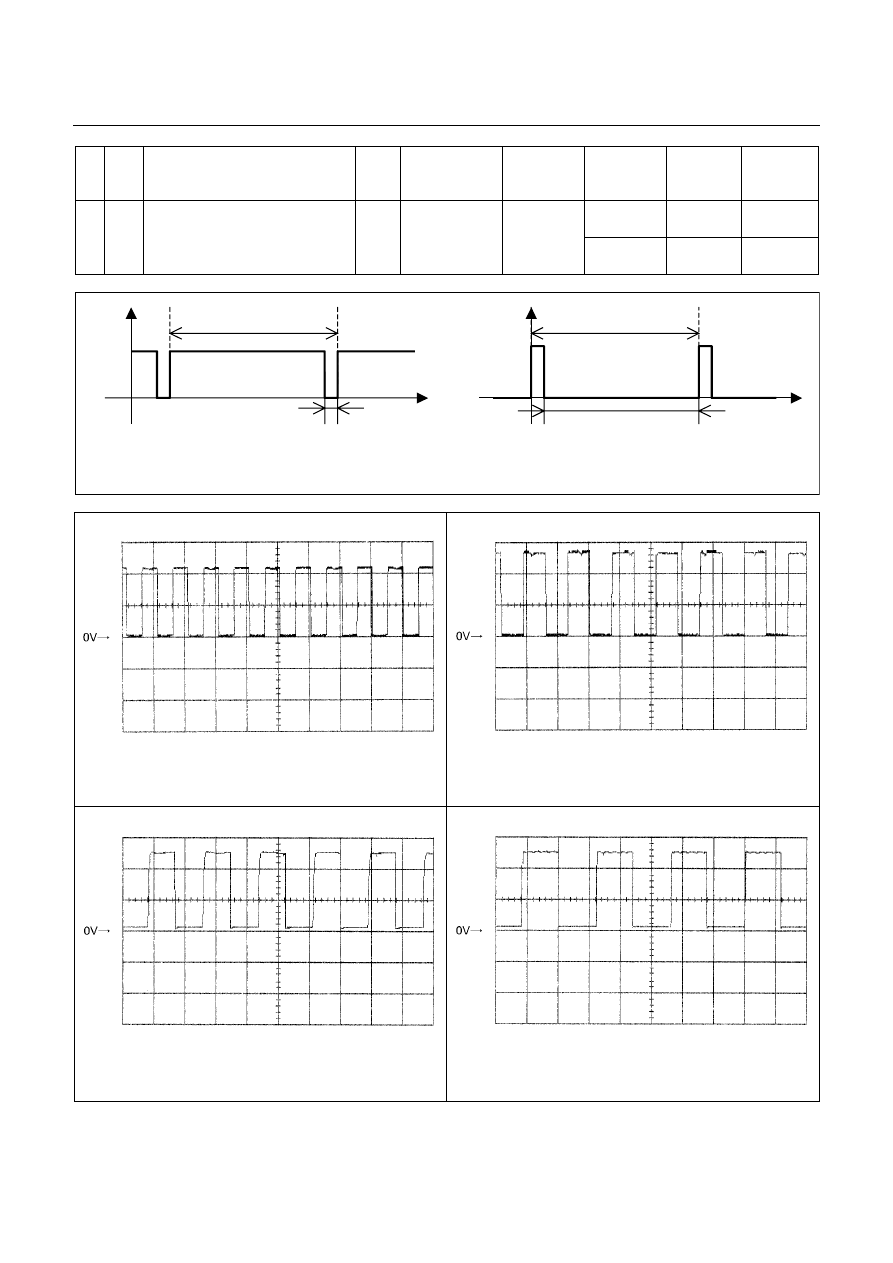

Engine Speed Sensor Reference Wave Form

Measurement Terminal: A7 (+)

B5 (-)

Measurement Scale: 5V/div

20ms/div

Measurement Condition: At engine speed 1500rpm







Vehicle Speed Sensor Out Reference Wave Form

Measurement Terminal: A10 (+)  B5 (-)
Measurement Scale: 5V/div

50ms/div

Measurement Condition: Vehicle speed 20km/h at L
range in 1st gear



  Turbine Sensor Reference Wave Form

Measurement Terminal: B3 (+)

B5 (-)

Measurement Scale: 5V/div

500ms/div

Measurement Condition: Vehicle speed 20km/h at L
range in 1st gear



Vehicle Speed Sensor Reference Wave Form

Measurement Terminal: B13 (+)  B5 (-)
Measurement Scale: 5V/div

2ms/div

Measurement Condition: Vehicle speed 20km/h at L
range in 1st gear

DIAGNOSIS  7A2-161





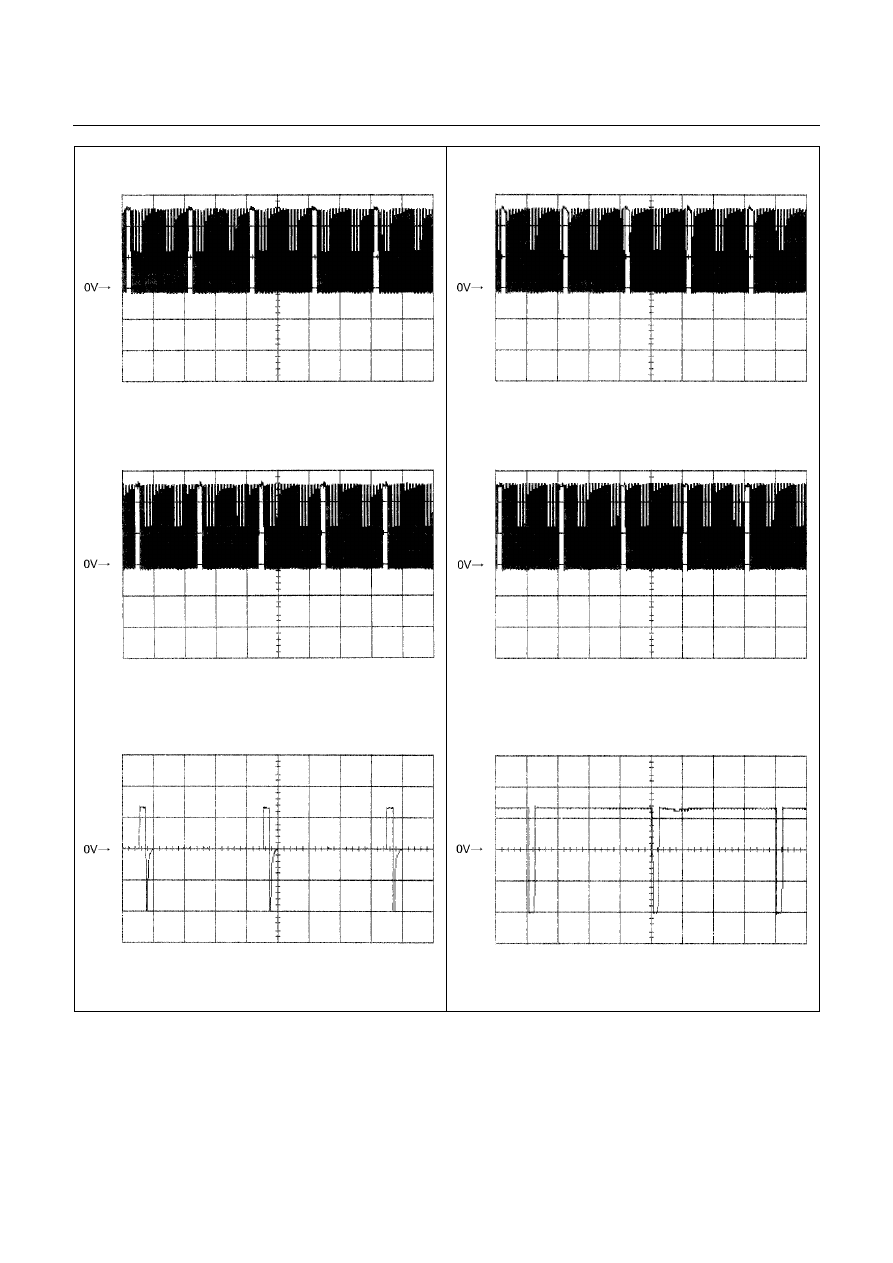

Low & Reverse Brake Duty Solenoid Reference
Wave Form

Measurement Terminal: B6 (+)

B22 (-)

Measurement Scale: 5V/div

10ms/div

Measurement Condition: P, N range in idle



2-4 Brake Duty Solenoid Reference Wave Form


Measurement Terminal: B7 (+)

B22 (-)

Measurement Scale: 5V/div

20ms/div

Measurement Condition: P, N range in idle





High Clutch Duty Solenoid Reference Wave Form

Measurement Terminal: B8 (+)

B22 (-)

Measurement Scale: 5V/div

20ms/div

Measurement Condition: P, N range in idle





Low Clutch Duty Solenoid Reference Wave Form

Measurement Terminal: B9 (+)

B22 (-)

Measurement Scale: 5V/div

20ms/div

Measurement Condition: D range 4th gear





Lock-up Duty Solenoid Reference Wave Form

Measurement Terminal: B17 (+)  B5 (-)
Measurement Scale: 10V/div

5ms/div

Measurement Condition: Unlock-up condition



Lock-up Duty Solenoid Reference Wave Form

Measurement Terminal: B17 (+)  B5 (-)
Measurement Scale: 10V/div

5ms/div

Measurement Condition: Lock-up condition
