MSG MODEL (4WD)  7B-89

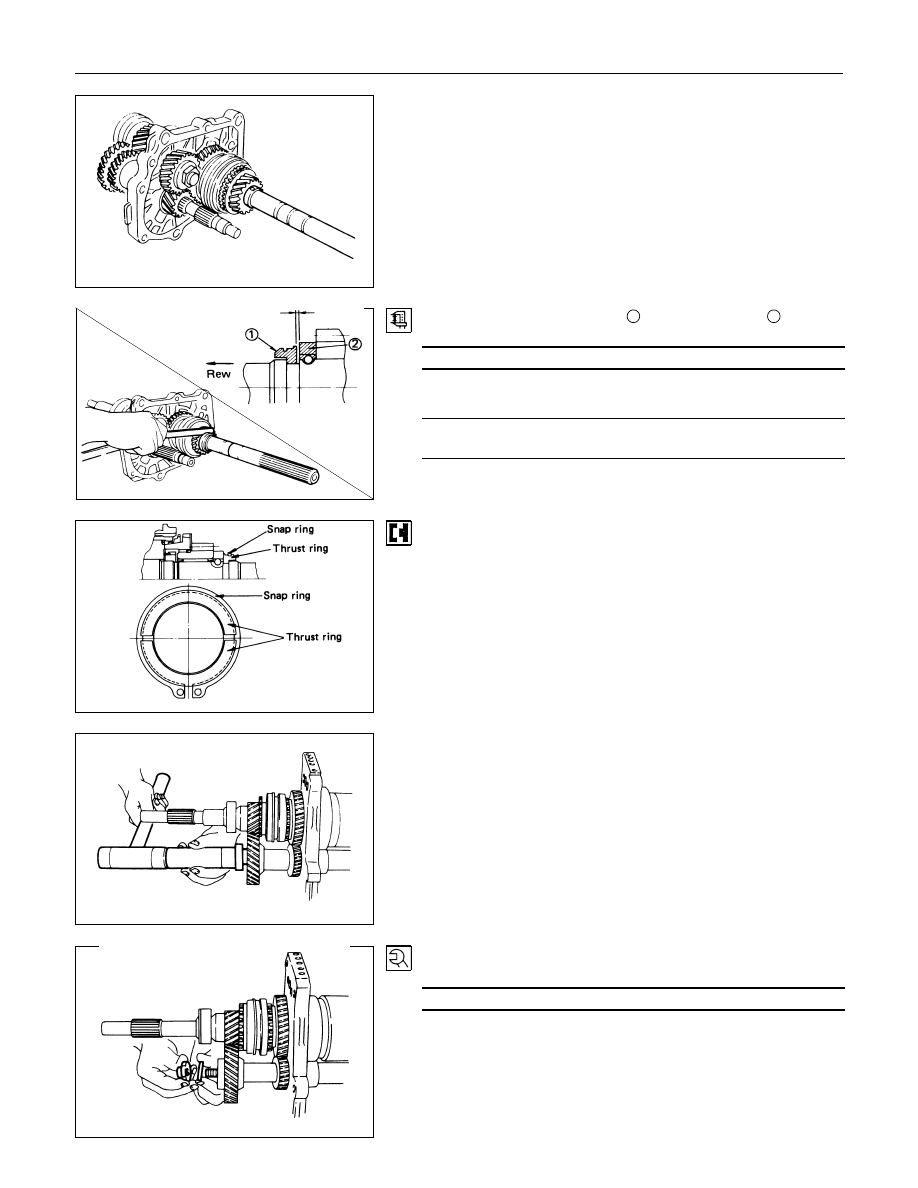

16.Thrust Washer and Ball
Install the lock ball and thrust washer on the mainshaft using a
snap ring.

Clearance between thrust ring

1

 and thrust washer

2

.

Standard

mm(in.)

0.10-0.30 (0.004-0.012)

Thicknesses of thrust washers available.

mm (in.)

7.8, 7.9, 8.0, 8.1, 8.2, 8.3

(0.307, 0.311, 0.315, 0.319, 0.323, 0.327)

18.Snap Ring
The opening of the snap ring should be positioned at right
angle to opening of the thrust ring.

21.Ball Bearing
Install the bearing using suitable tool.

22 Washer and Lock Nut

Torque

N

⋅m(kgf⋅m/lb⋅ft)

107.8

± 9.8 (11 ± 1 / 79.6 ± 7.2)

7B-90  MSG MODEL (4WD)

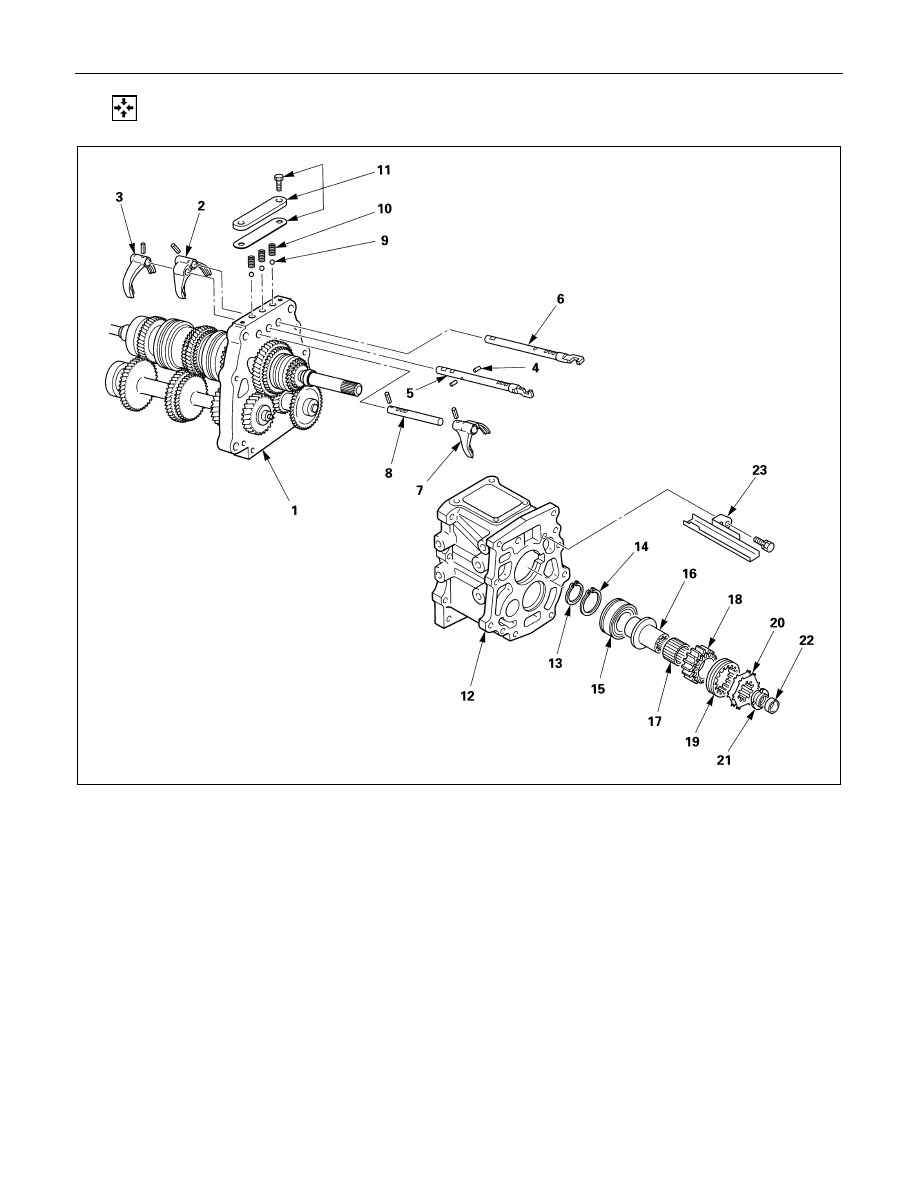

  ADAPTOR CASE, INTERMEDIATE PLATE WITH GEAR ASSEMBLY

Reassembly Steps

1. Intermediate plate with gear assembly

! 2. 1st-2nd shift arm
! 3. 3rd-4th shift arm

4. Interlock pin
5. 3rd-4th shift rod
6. 1st-2nd shift rod

! 7. Rev.-5th shift arm

8. Rev.-5th Shift rod
9. Detent ball

10. Detent spring

!11. Detent spring plate and gasket

12. Adaptor case
13. Snap ring
14. Snap ring
15. Ball bearing
16. Thrust input gear coller
17. Needle bearing
18. Thrust input gear
19. High-Low shift sleeve

!20. Thrust input hub
!21. Thrust input hub nut

22. Spacer
23. Oil guide

MSG MODEL (4WD)  7B-91

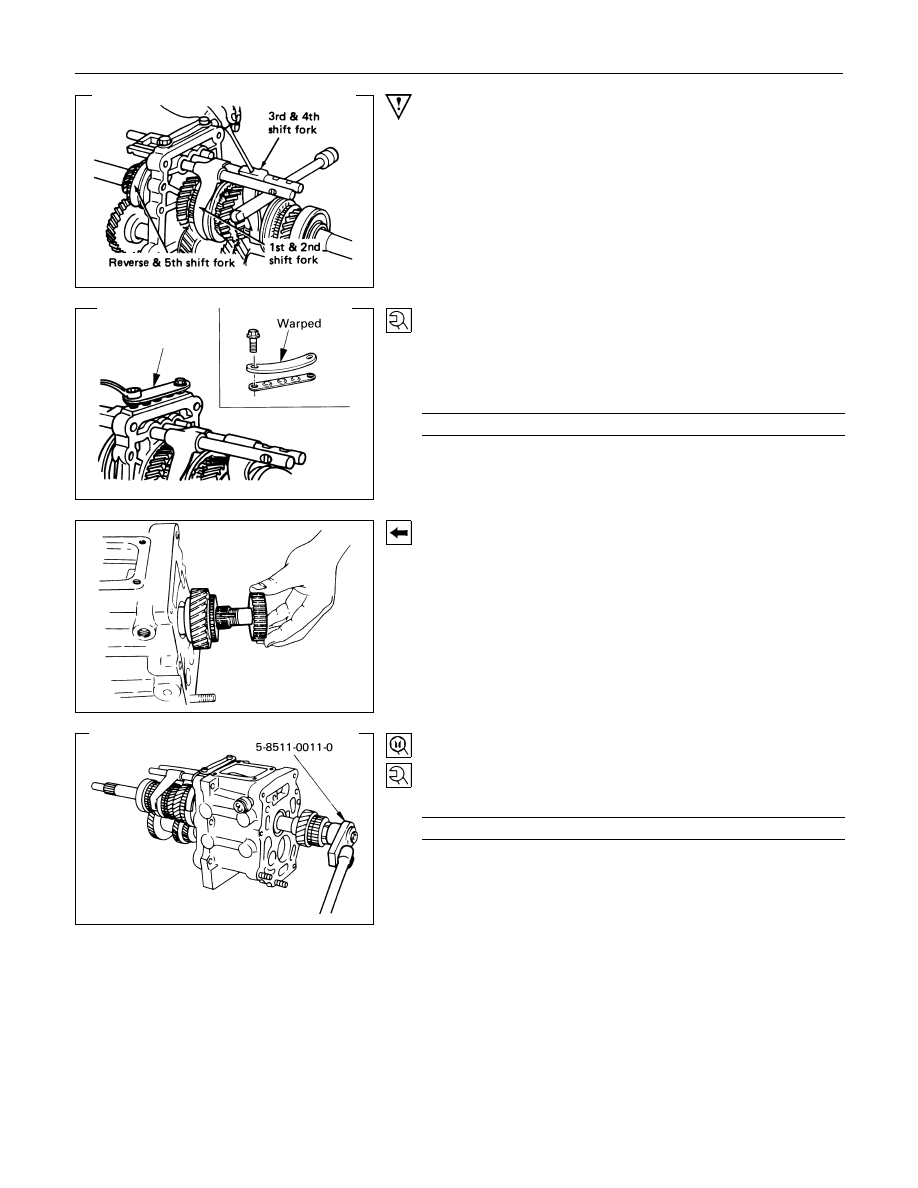

Important Operations

2. 1st-2nd Shift Arm

3. 3rd-4th Shift Arm

7. Rev.-5th Shift Arm

1) Hold  a  round  bar  against  the  shift  rod  end  lower  face  to

protect it against damage.

2) Use a spring pin installer to install the spring pin to the shift

arm and the shift rod.

Never reinstall the used spring pins.

11 Detent Spring Plate and Gasket

1) Install  the  new  detent  plete  and  new  gasket  onto  the

transmission case into the correct direction.

2) Tighten the detent spring plate bolts to the specified torque.

Detent Spring Plate Bolt Torque

N

⋅m(kgf⋅m/lb⋅ft)

18.6

± 3.9 (1.9 ± 0.4 / 13.7 ± 2.9)

20.Thrust Input Hub

21.Thrust Input Hub Nut

1) Install the input hub nut to the main shaft.

2) Use the wrench to tighten to the specified torque.

Thrust Input Hub Nut Torque

N

⋅m(kgf⋅m/lb⋅ft)

127.4

± 9.8 (13 ± 1 / 94.0 ± 7.2)

Wrench : 5-8511-0110-0 (J-29041)

7B-92  MSG MODEL (4WD)

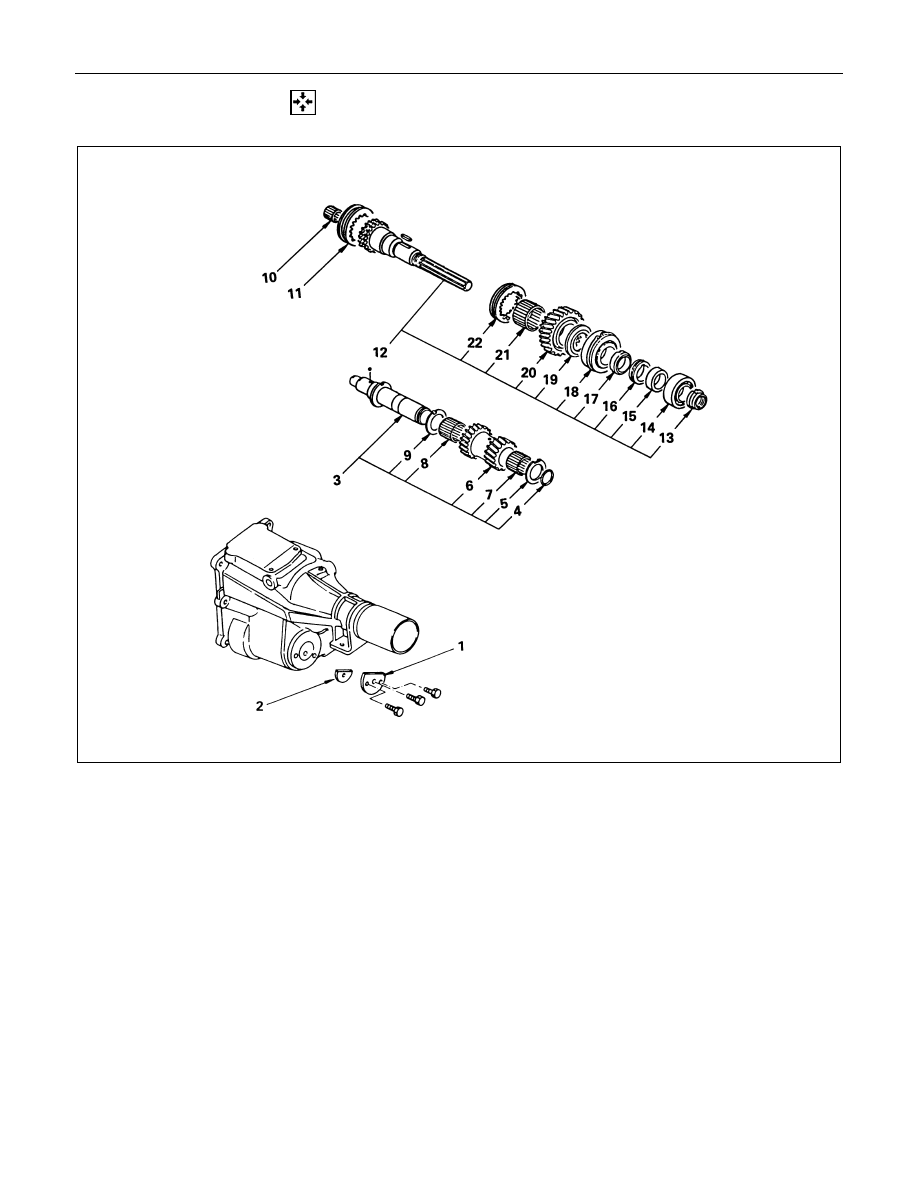

  TRANSFER CASE ASSEMBLY

Reassembly Steps

! 1. 4

×2/4×4 sleeve

2. Needle bearing
3. Output gear

! 4. Thrust washer
! 5. Ball bearing

6. Distance piece
7. Speedometer drive gear
8. Spacer

! 9. Ball bearing
!10. Nut
!11. Output shaft assembly

12. Thrust washer
13. Needle bearing
14. Counter gear
15. Needle bearing

!16. Thrust washer
!17. O-ring
!18. Counter shaft assembly
!19. High/Low sleeve

20. Needle bearing

!21. Distance plate
!22. Lock plate
