DIAGNOSIS 7A2-19

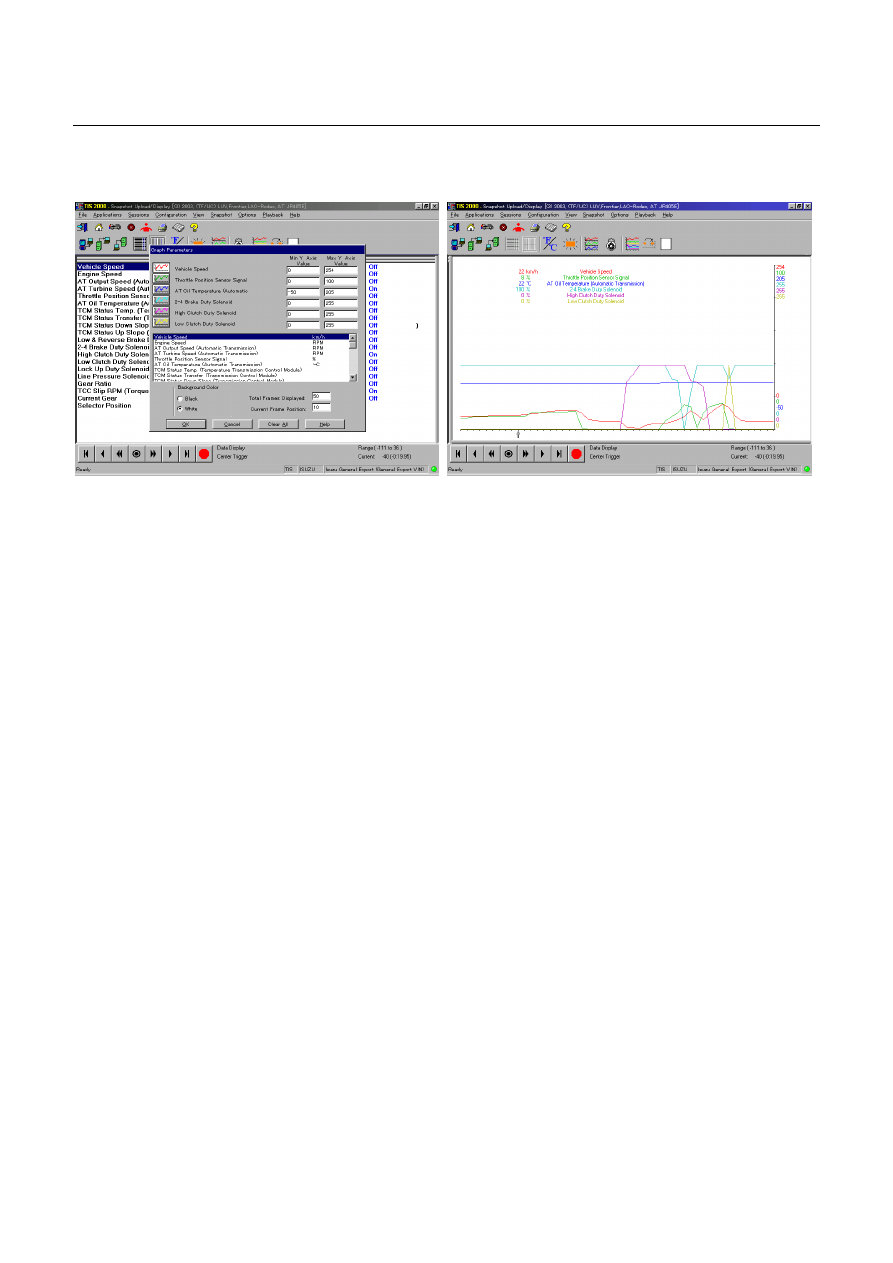

Display of graphs on one screen (Max. 6 graphs): 1. Click the 6 graph icon. [Graph Parameter] window opens.
Click the graph icon, select the parameter to be displayed from the list and change divisions according to necessity. 3. Repeat the same procedures with the graph icons, from the 2nd to 6th. 4. Click the [OK] button to display. 5. In this case, parameters are displayed only in graph form. All parameters are displayed in one graph. 6. The graph display screen can be moved with the navigation icon.
|
