ENGINE FUEL  6C-19

N

⋅m (kgf⋅m)

68(6.9)

68(6.9)

6C-20  ENGINE FUEL

Fuel Tank





Removal and Installation

ENGINE FUEL  6C-21



Removal

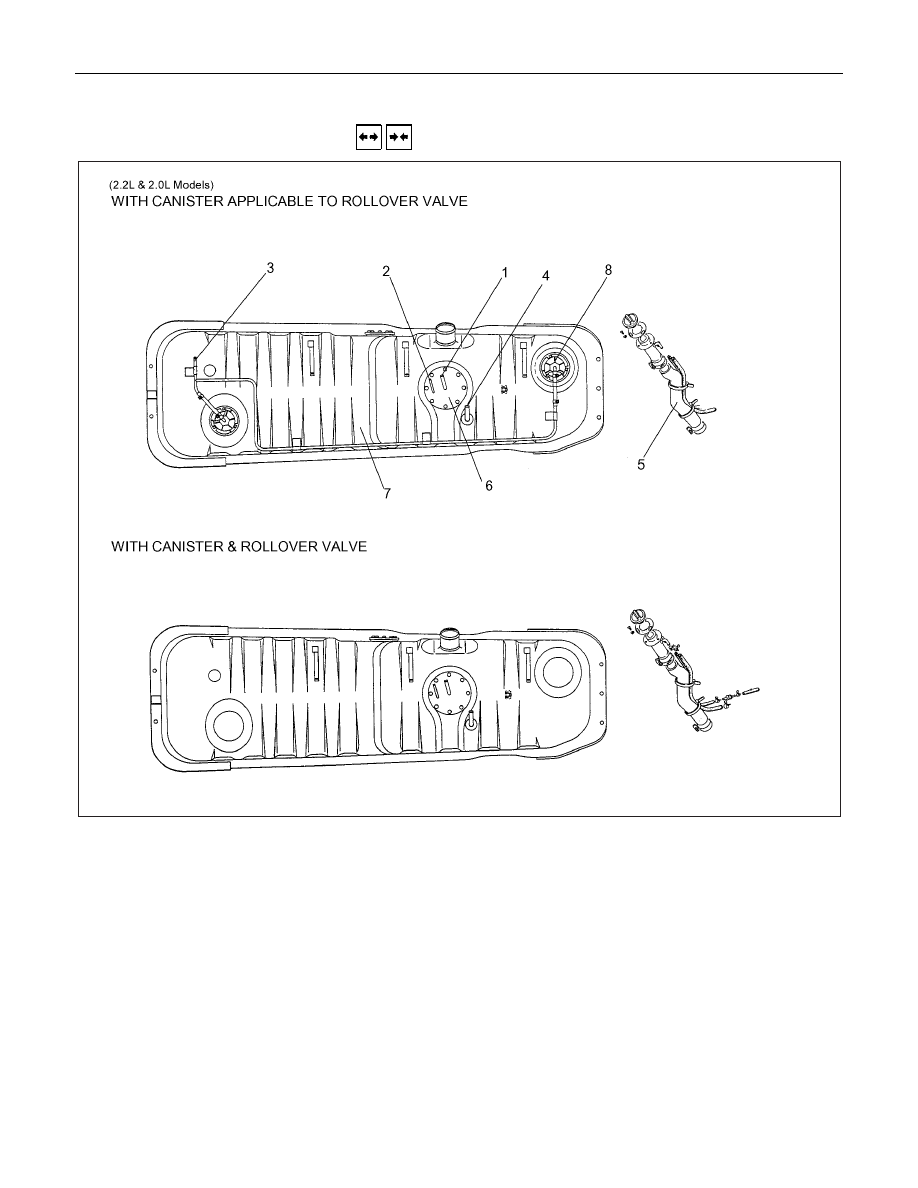

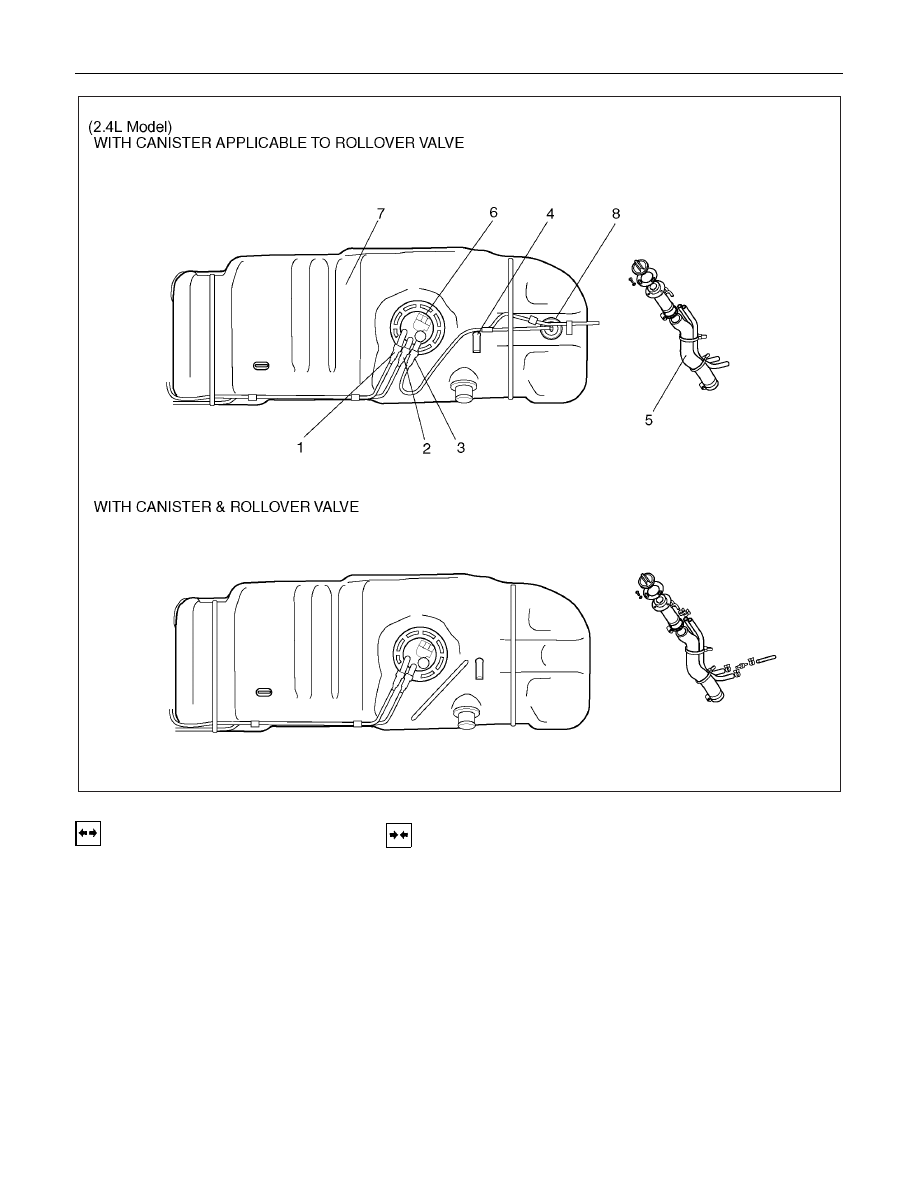

1. Fuel hose (Delivery)

2. Fuel hose(Return)

3. Evapo fuel hose

4. Breather hose

5. Fuel filler hose

6. Fuel Pump

7. Fuel tank

8. Roll over valve

Installation

To install, follow the removal steps in the reverse order.

6C-22  ENGINE FUEL

Removal

Preparation
• Disconnect battery ground cable.
• Loosen fuel filler cap.
• Drain fuel.

Tighten drain plug to the specified torque after drain fuel.

N

⋅m (kgf⋅m)

20 (2.0)

NOTE:
Cover fuel hose with waste to prevent any dust entering.

Installation

7. Fuel Tank

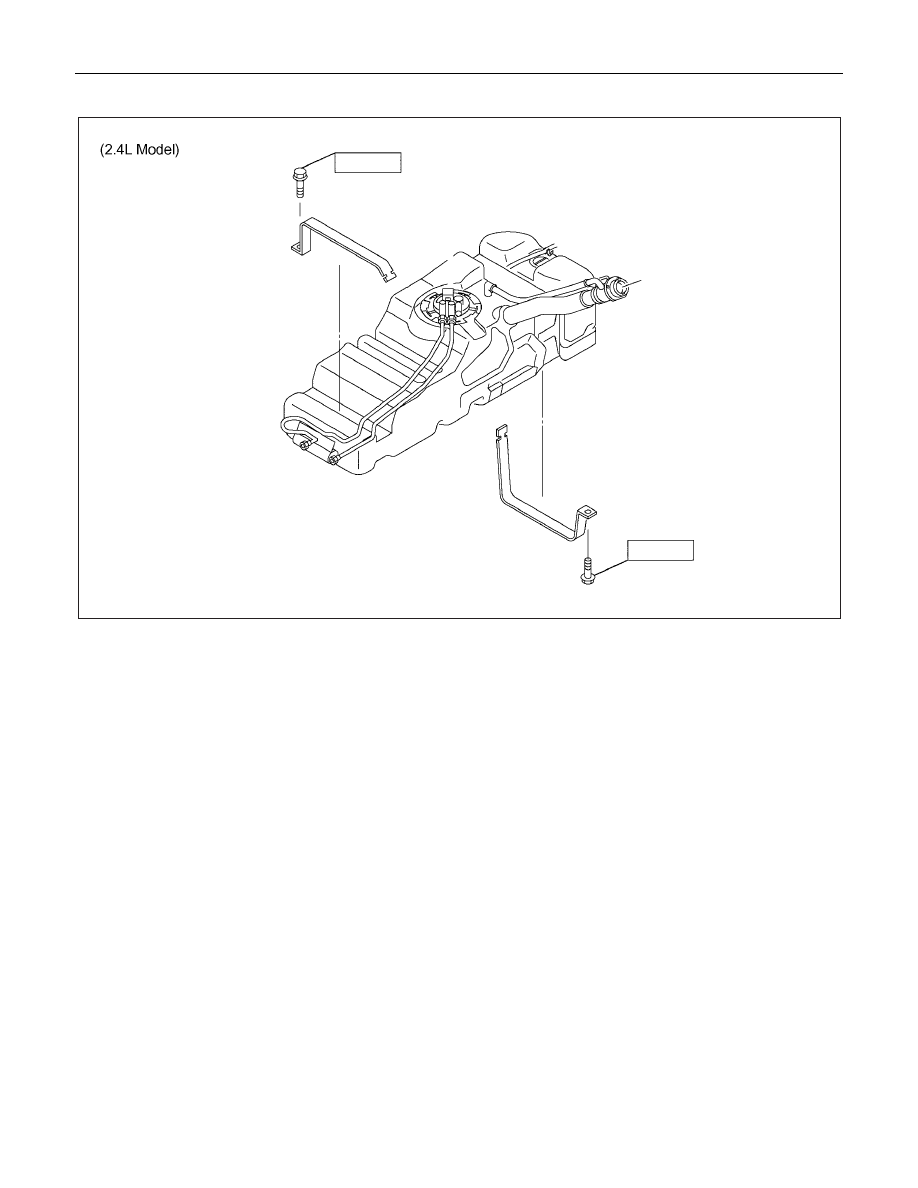

• Tighten fuel tank bolt.

N

⋅m (kgf⋅m)

26.5 (2.7)
