6A-38 ENGINE MECHANICAL (C24SE, C22NE, 22LE, 20LE)

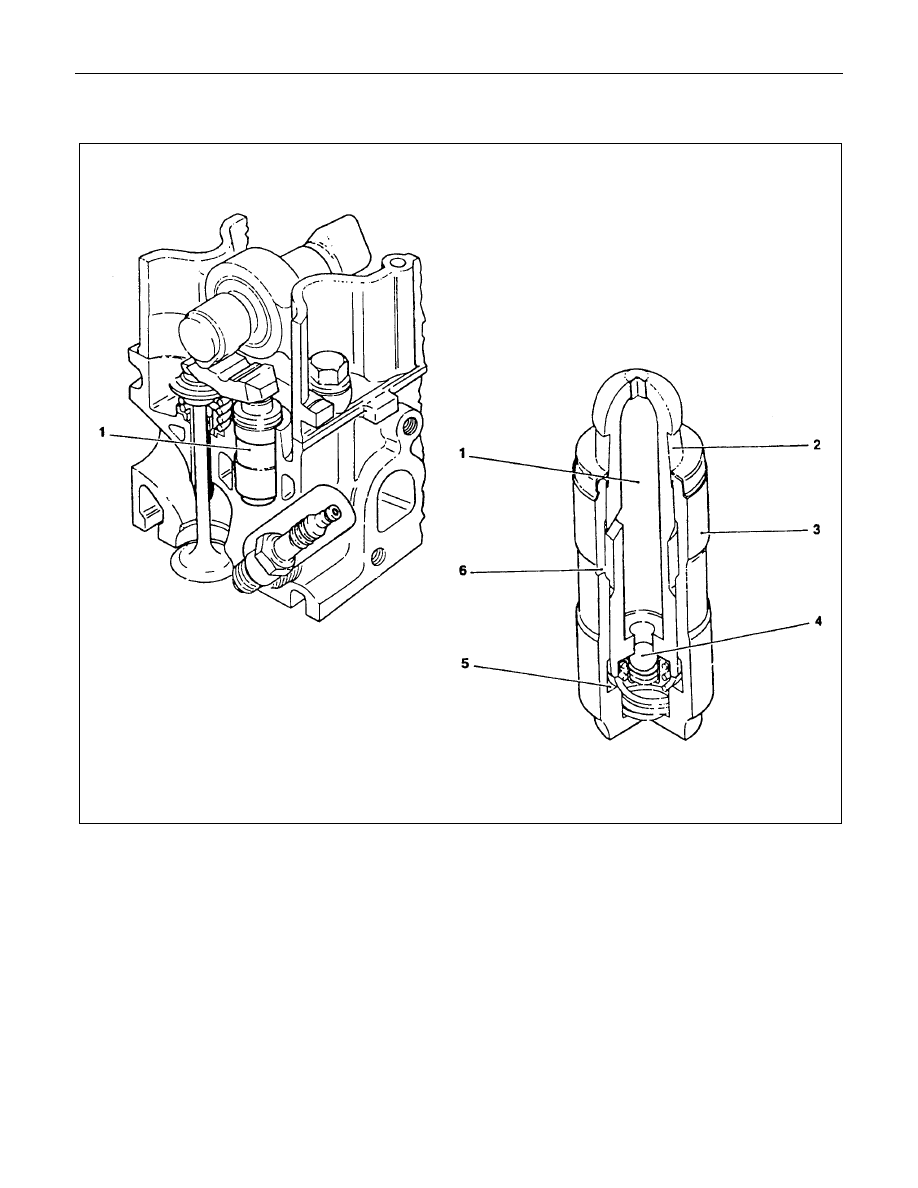

HYDRAULIC VALVE LIFTER

1.

Hydraulic Valve Lifter

1.

Oil reservoir

2.

Piston with ball head (moving)

3.

Pressure cylinder (fixed)

4.

Check ball

5.

Pressure chamber

6.

Oil feed

ENGINE MECHANICAL (C24SE, C22NE, 22LE, 20LE) 6A-39

OPERATIONS ON CYLINDER HEAD AND CAMSHAFT

HOUSING

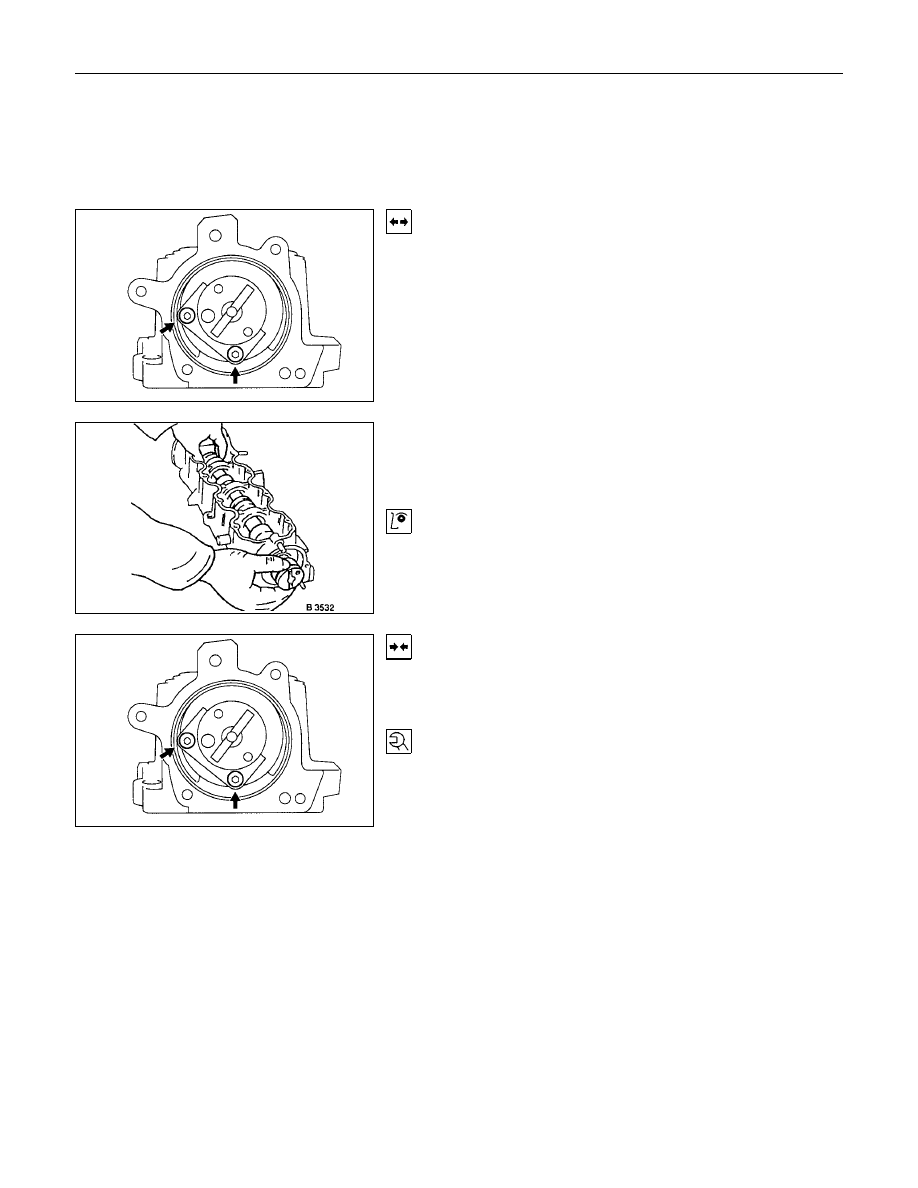

Camshaft

Removal

1.

Remove cylinder head according to the corresponding
operation.

2.

Remove camshaft housing from cylinder head and lay
housing on base provided

3.

Remove rear sealing gasket and plate camshaft housing
with taking care not to damage housing.

4.

Remove thrust plate.

5.

Remove camshaft.

6.

Remove front sealing gasket and plate from camshaft
housing with taking care not to damage housing.

Inspection

All parts.

Installation

1.

Install camshaft.

2.

Coat sliding surfaces with molybdenum disulphate paste.

Tighten (Torque)

Thrust plate for camshaft housing - 8 N

⋅m (0.8 kgf⋅m)

6A-40 ENGINE MECHANICAL (C24SE, C22NE, 22LE, 20LE)

Camshaft Housing, Removal and
Installation

See operation Camshaft

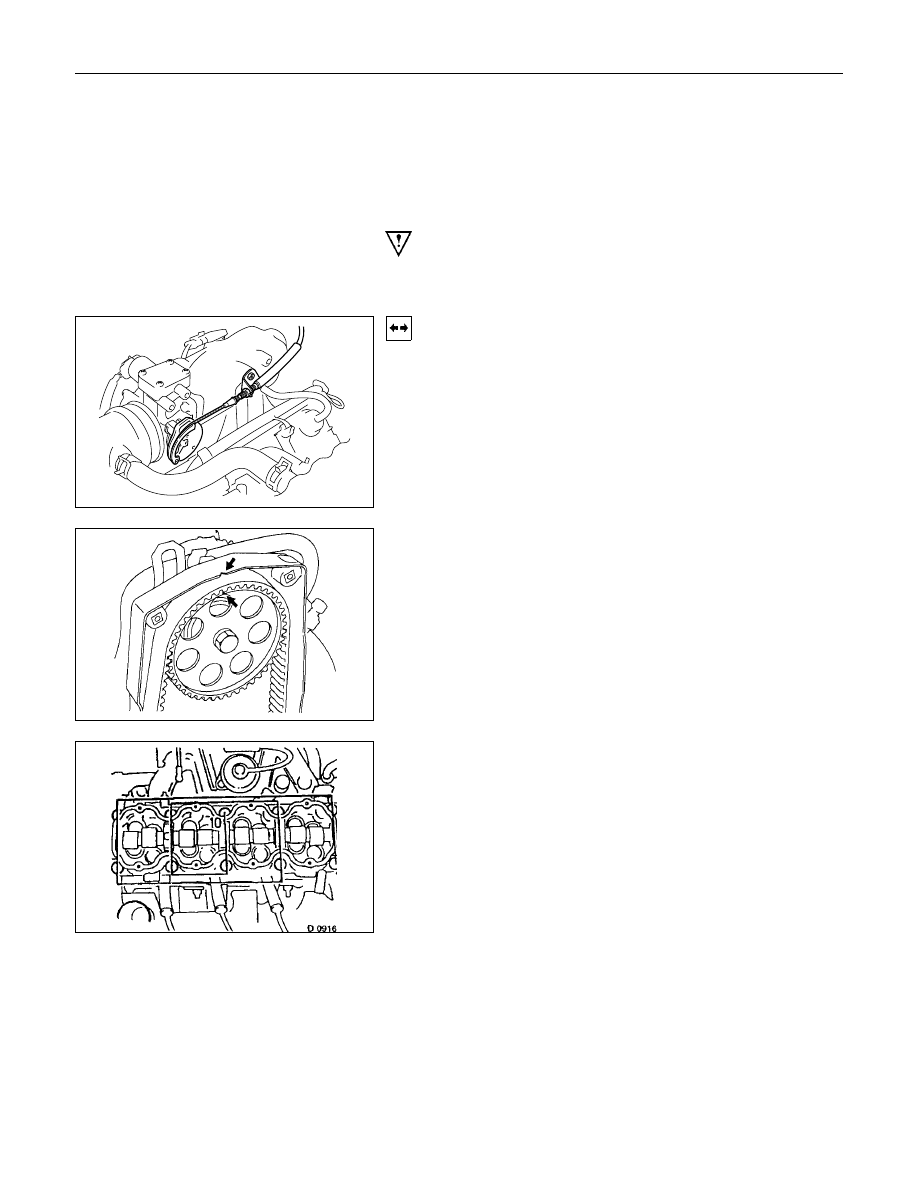

Cylinder Head

Important!

Remove cylinder head only from cold engine (room

temperature).

Removal

1.

Remove ground cable from battery.

2.

Open radiator drain tap and collect coolant.

3.

Remove air intake hose.

4.

Remove all cable connections, hoses and lines to the
cylinder head.

5.

Remove accelerator cable on the throttle valve.

6.

Remove V-belt for alternator.

7.

Remove front toothed belt cover according to the
corresponding operation.

8.

Bring piston of 1st cylinder to TDC and mark the position.

9.

Remove camshaft housing cover.

10.

Remove camshaft timing gear after releasing tension on
toothed belt.

11.

Remove upper bolts of rear toothed belt cover.

12.

Remove exhaust pipe from exhaust manifold.

13.

Remove cylinder head after loosening bolts from outside
inwards (at first quarter turn then half turn) in a spiral
pattern.

14.

Remove camshaft housing from cylinder head.

15.

Remove rocker arm, pressure parts and hydraulic valve
lifter adjuster.

ENGINE MECHANICAL (C24SE, C22NE, 22LE, 20LE) 6A-41

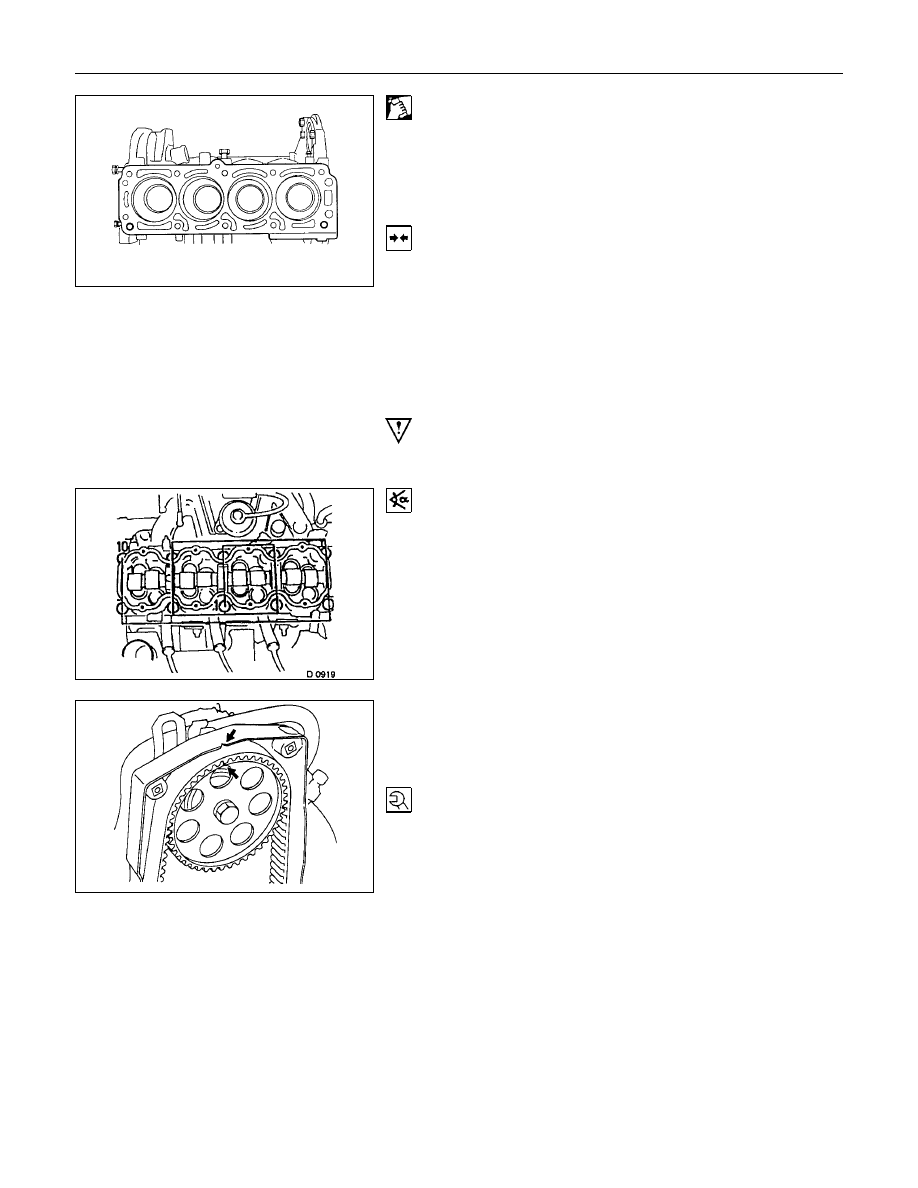

Clean

All sealing surfaces, drill holes in cylinder head bolts.

Check cylinder block and cylinder head for plane surface

according to the corresponding operations.

Installation

1.

Install cylinder head sealing with marking "OBEN/TOP"
facing upwards and to right side of engine.

2.

Install cylinder head on cylinder block.

3.

Install hydraulic valve lash adjuster, pressure parts and
rocker arm - molybdenum disulphate paste.

4.

Install camshaft housing-Sealing Compound TB-1207C
or equivalent.

Important!

Use new cylinder head bolts.

Screw in bolts until they rest on cover.

Torque - Angle Method

Cylinder head to cylinder block - 25 N

⋅m (2.5 kgf⋅m)

Further turn angle 90

°+90°+ 90°.

Tighten cylinder head bolts from inside outwards. In four

stages in a spiral pattern.

5.

Install rear toothed belt cover onto camshaft housing.

6.

Install toothed belt and apply tension according to the
corresponding operation.

Tighten (Torque)

Camshaft timing gear to camshaft - 45 N

⋅m (4.6 kgf⋅m)

7.

Install camshaft housing cover and front toothed belt
cover.

8.

Install cable connections, all hoses and lines onto
cylinder head.

9.

Adjust accelerator cable for free of play.

10.

Install V-belt according to the corresponding operation.

11.

Install air intake hose.

12.

Install front exhaust pipe.

13.

Install ground cable onto battery.

14.

Fill up cooling system and bleed according to the
corresponding operation.
