Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 1616

0A-8  GENERAL INFORMATION

LIFTING INSTRUCTIONS

If a lifting device other than the original jack is used, it is most important that the device be applied only to the
correct lifting points.  (See the illustration.)  Raising the vehicle from any other point may result in serious damage.

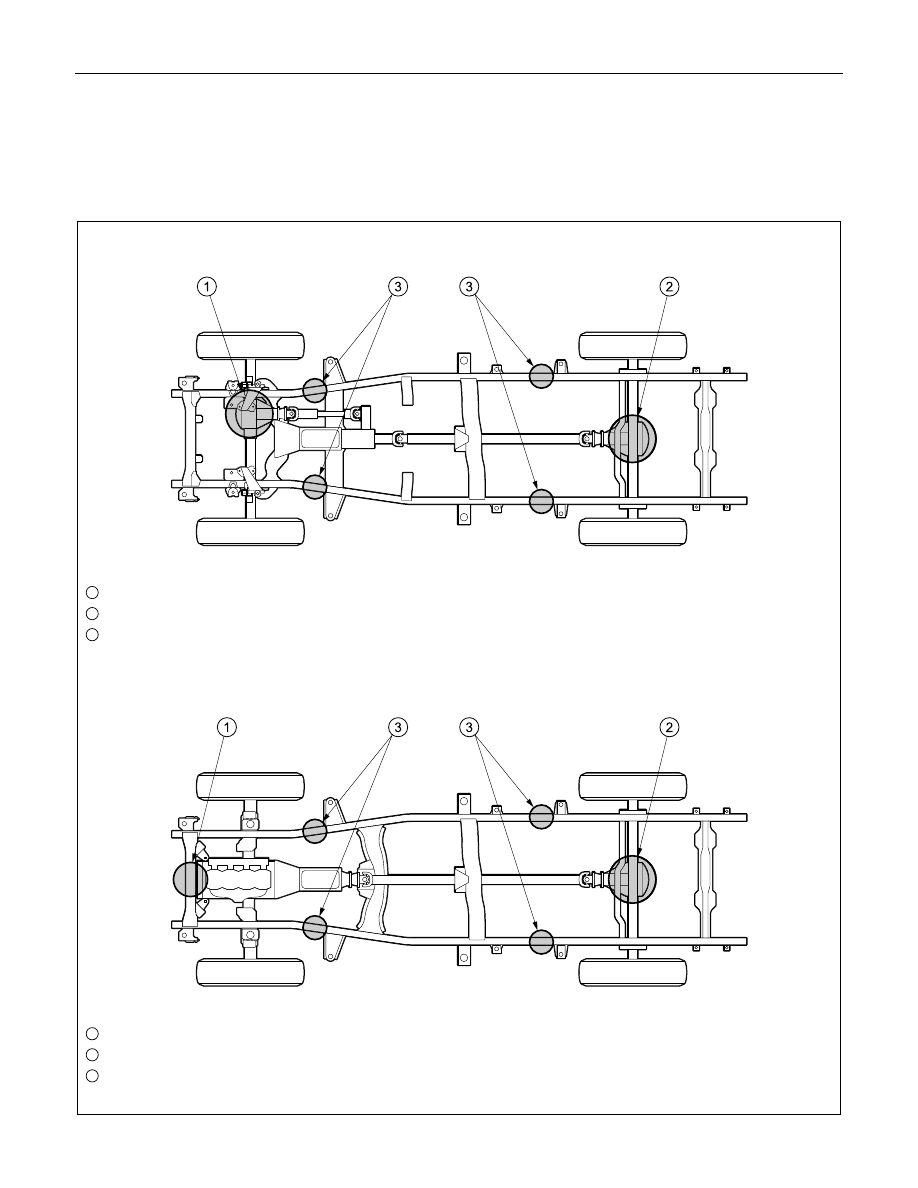

Lifting Points and Supportable Point-Locations

<4

×

4 MODEL>

1

Front axle center

2

Rear axle center

3

Side frame

<4

×

2 MODEL>

1

1st cross member center

2

Rear cross member center

3

Side frame

GENERAL INFORMATION  0A-9

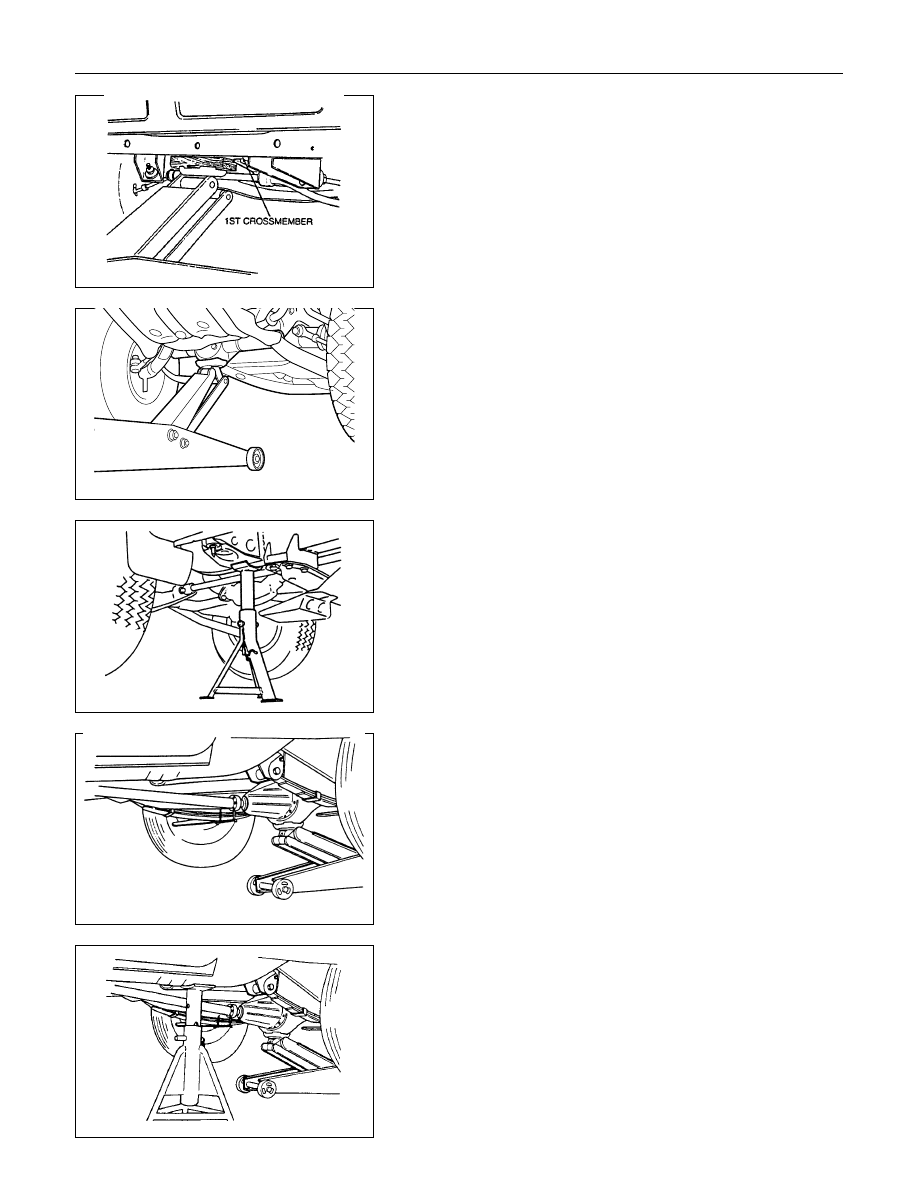

LIFTING POINT; FRONT
4

×

2 model

•

When using floor jack, lift of the center of the 1st

crosmember.

4

×

4 model

•

When using floor jack, lift on the Front axle center.

SUPPORTABLE POINT; FRONT

•

Position the chassis stands at the bottom of the frame

sidemember, backward of front wheel.

LIFTING POINT; REAR

•

Position the floor jack at the center of the rear axle case

when lifting the vehicle.

SUPPORTABLE POINT; REAR

•

Position the chassis stands at the bottom of the frame

sidemember, forward of the rear wheel.

0A-10  GENERAL INFORMATION

CONVERSION TABLE

TABLE OF CONTENTS

PAGE

Length............................................................................................................................... 0A-10

Area................................................................................................................................... 0A-12

Volume.............................................................................................................................. 0A-12

Mass.................................................................................................................................. 0A-14

Pressure ........................................................................................................................... 0A-15

Torque............................................................................................................................... 0A-16

Temperature ..................................................................................................................... 0A-17
