0A-6  GENERAL INFORMATION

IDENTIFICATION

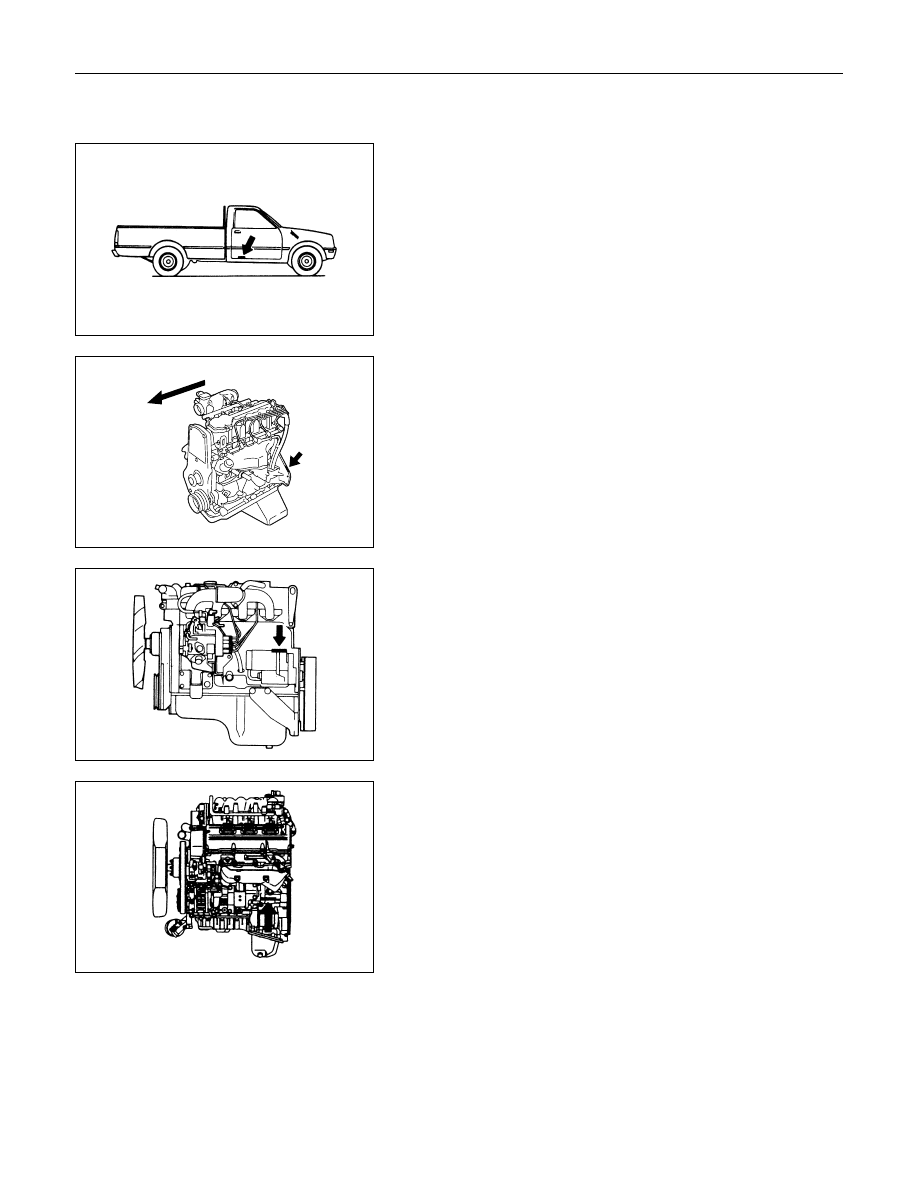

CHASSIS NUMBER

The chassis number is stamped on the right-hand side of the
chassis side member under the right door.

Front

ENGINE NUMBER (GASOLINE ENGINE

FOR HEC SERIES)

The engine number is stamped on the rear left-hand side of the
cylinder body.

ENGINE NUMBER (DIESEL ENGINE,

4J & C SERIES)

The engine number is stamped on the rear left-hand side of the
cylinder body.

ENGINE NUMBER (6VD1 ENGINE)

The engine number is stamped on the left-hand side of the
cylinder body.

GENERAL INFORMATION  0A-7

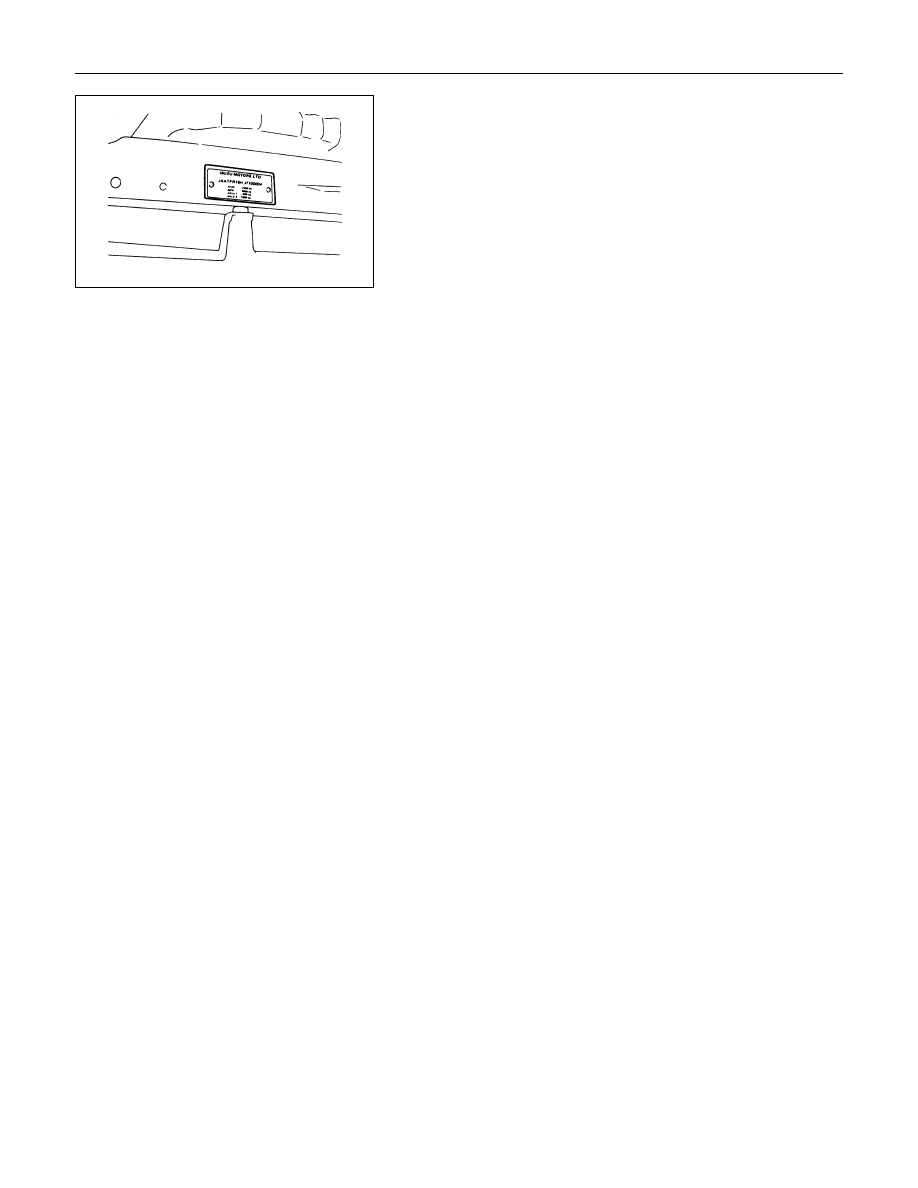

VEHICLE IDENTIFICATION PLATE

The vehicle identification plate is attached to the radiator sill in
the engine compartment.

0A-8  GENERAL INFORMATION

LIFTING INSTRUCTIONS

If a lifting device other than the original jack is used, it is most important that the device be applied only to the
correct lifting points.  (See the illustration.)  Raising the vehicle from any other point may result in serious damage.

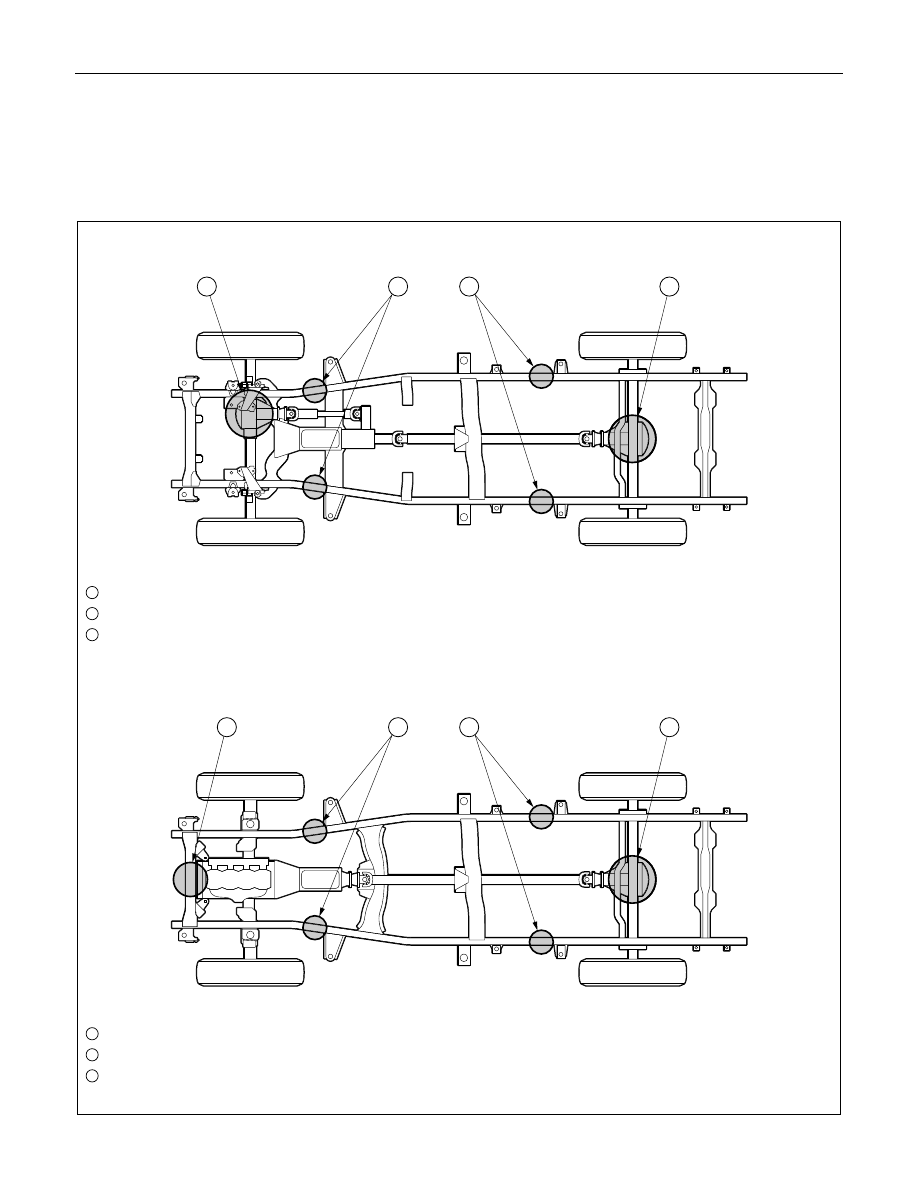

Lifting Points and Supportable Point-Locations

<4

××××4 MODEL>

3

3

2

1

1

Front axle center

2

Rear axle center

3

Side frame

<4

××××2 MODEL>

3

3

2

1

1

1st cross member center

2

Rear cross member center

3

Side frame

GENERAL INFORMATION  0A-9

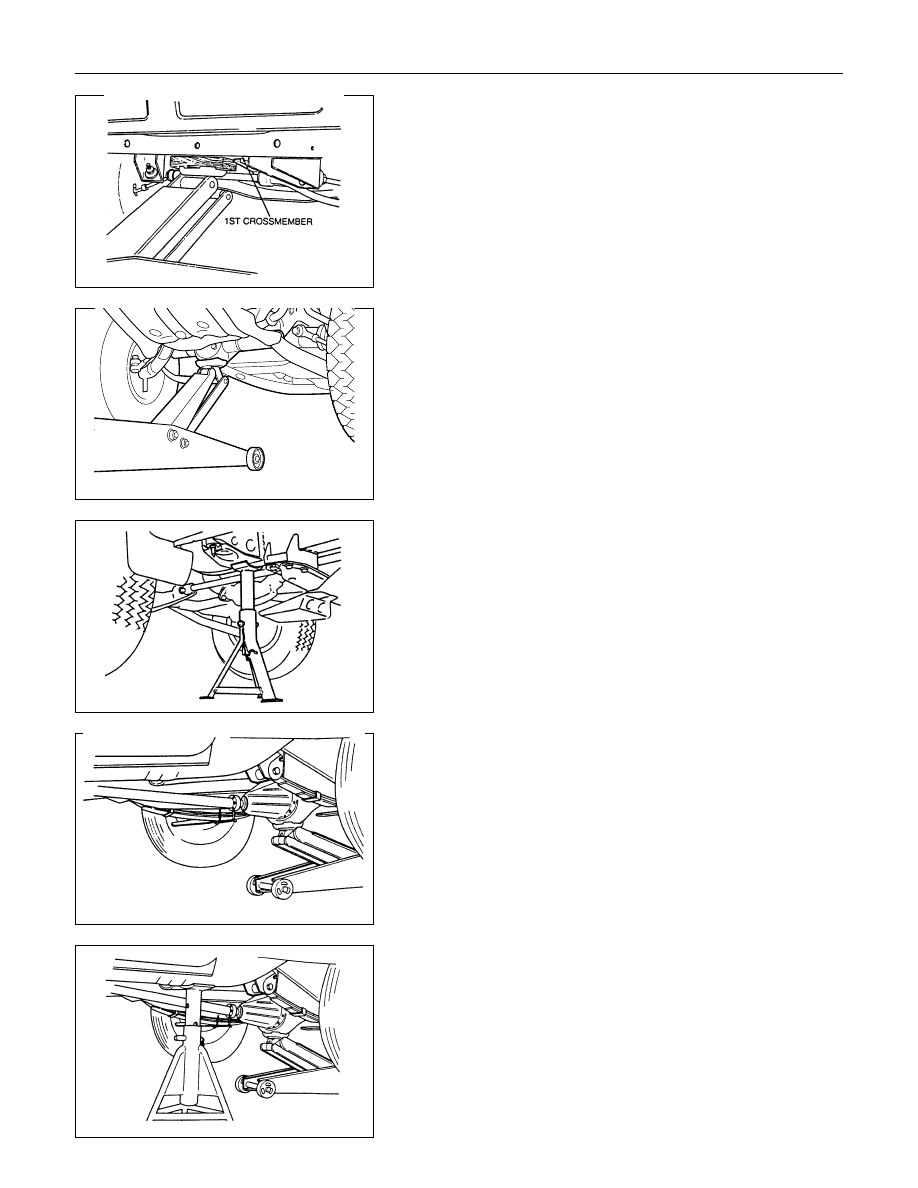

LIFTING POINT; FRONT
4

××××2 model

• When  using  floor  jack,  lift  of  the  center  of  the  1st

crosmember.

4

××××4 model

• When using floor jack, lift on the Front axle center.

SUPPORTABLE POINT; FRONT

• Position  the  chassis  stands  at  the  bottom  of  the  frame

sidemember, backward of front wheel.

LIFTING POINT; REAR

• Position  the  floor  jack  at  the  center  of  the  rear  axle  case

when lifting the vehicle.

SUPPORTABLE POINT; REAR

• Position  the  chassis  stands  at  the  bottom  of  the  frame

sidemember, forward of the rear wheel.
