SHEET METAL  2B-3

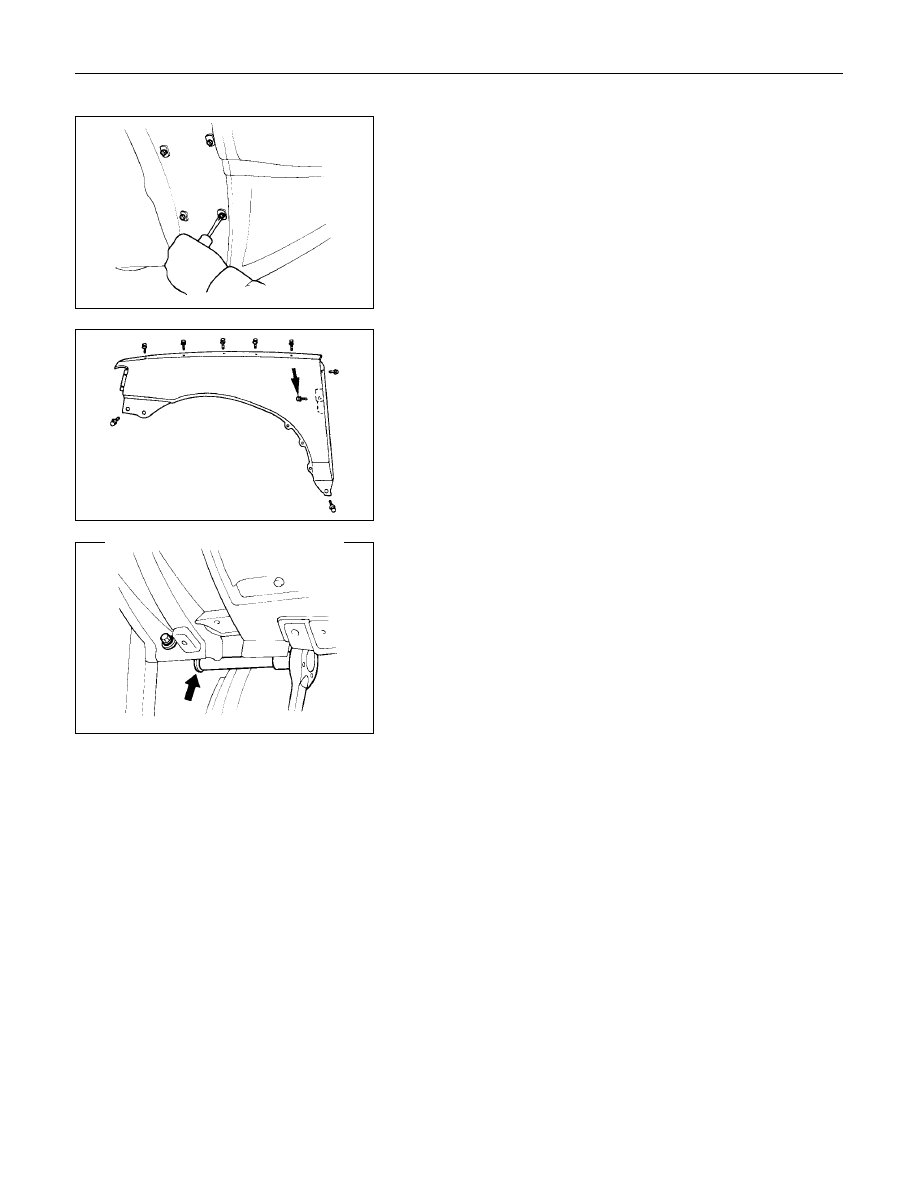

 7. Inner Liner

Remove the inner liner fixing screws.

11. Fender

First, remove the bolt (See illustration arrow mark) from the
inside of the car.

2B-4  SHEET METAL

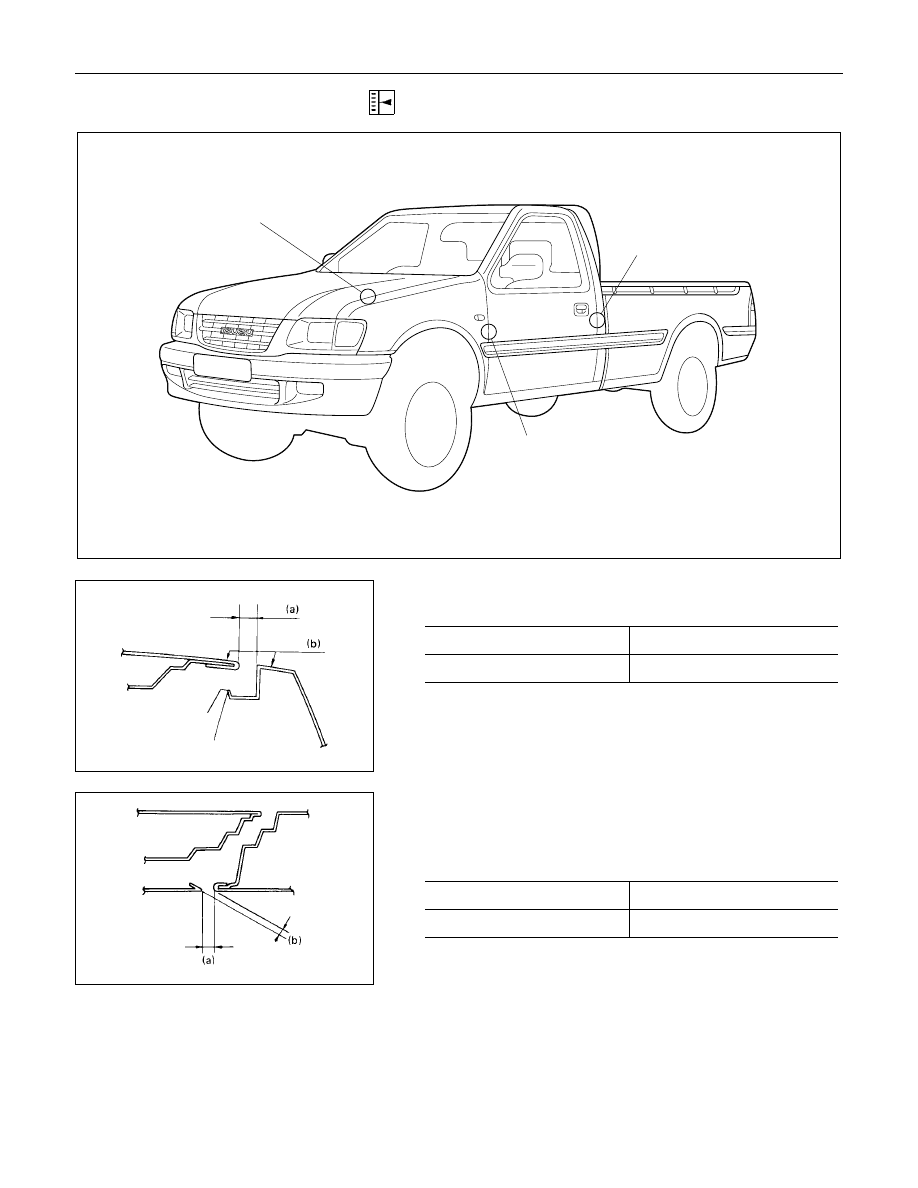

  ADJUSTMENT

A

C

B

A. Check the Engine Hood and Fender

mm (in.)

Clearance (a)

4 (0.157)

Height (b)

Flush

Adjust the clearance (a) with the hinges on the engine hood.

Adjust the step (b) with the hood rests.

B. Check the Fender and Door

C. Check the Door and Body

D. Check the Front Door and Rear Door

mm (in.)

Clearance (a)

5.5 (0.217)

Height (b)

Flush

Adjust clearance (a) with door hinges.

Adjust the step (b) by tapping on the fender lightly with a rubber
hammer.

TFFAB-WE-0101
